E380 automated desktop is one of the desktop glue machine series. It is a multi-functional automatic 3 axis adhesive dispenser; one machine can adapt and use different material cartridges and valves. It features hot melt dispensing, UV, FIP, thermal, solder paste, epoxy, and RTV gasket dispensing. The Cartesian machine is one-piece aluminum die-casting molded, strong structure, stable operation; compacted body but with 380mm XYZ max stroke. It is flexible and able to match different dispensing systems; realize one machine for different fluids, adhesive materials, and different products.
Desktop Hot Melt Glue Automatic Dispenser SEC-E380-30ccHM
Description
Our homepage is under construction, more information will be posted, welcome to email us for specific inquiry, thx
Features
Specification
Features:
Latest easily operated, user-friendly teaching pendant.
Can store up to 999 dispensing files.
Achieve 3-dimensional dispensing trajectory.
Durable one-piece aluminum die-cast machine body.
High dispensing and transporting accuracy.
Advantages:
Adaptable to different valves for different adhesives.
Compact body with a dispensing table (380mm area)
Emergency stop button improves security.
Built for professional and heavy-duty use.
One-year warranty but lifetime service support.
PRODUCT DETAILS
Supporting Systems
(1)The machine equips with hot melt filling system.
(2)The machine also comes with an external pre-heat barrel, before install to the machine, there’s another syringe can be heated by the external barrel
Material Tanks
(1)In order to achieve the highest stability and accuracy, the material tank of the machine is well-sealed
(2)With locking devices and valves, and each machine is equipped with material tanks of different capacities

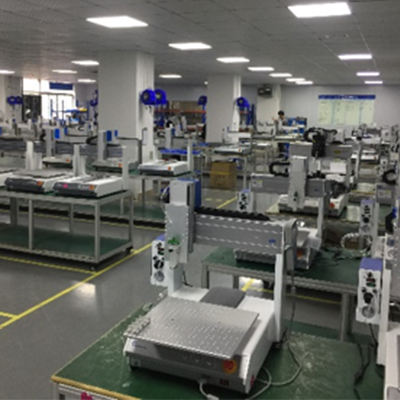

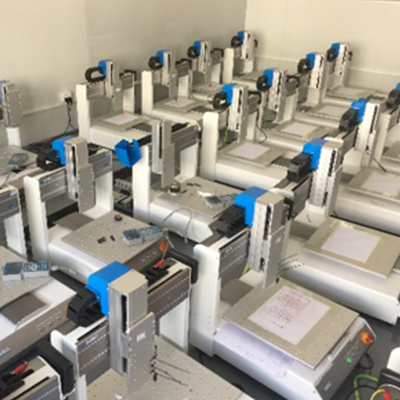

MANUFACTURING
Machine body and gantry are built as one-piece aluminum die-cast body, strong, precise, and durable for years to come. It is low maintenance.
How It Works
It has simpler structure, but still using around the world and in almost all factories that needs dispensing equipment. Second Intelligent supplies around couple thousands big or small dispensing.
CASE

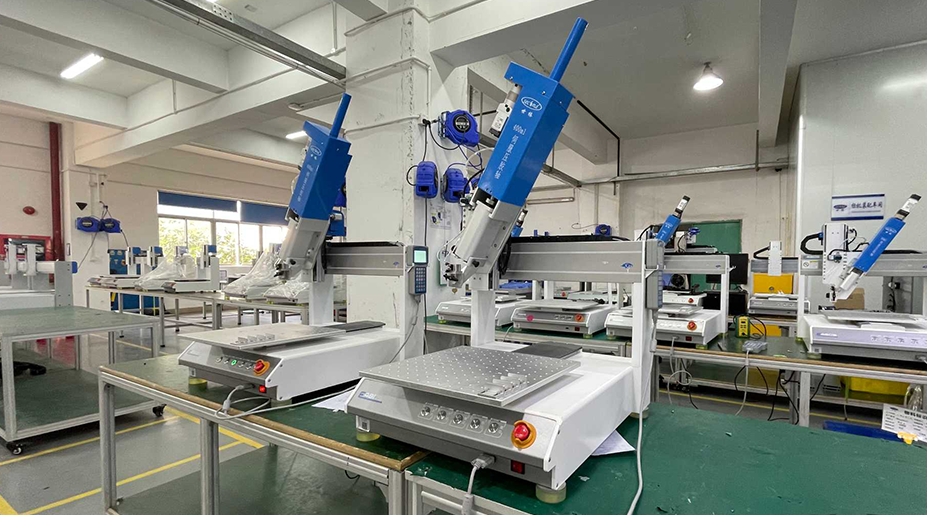

This is high-quality, high precision, user-friendly hot melt dispensing equipment. It comes with a user-friendly hot melt material refilling system. Just put a 30cc syringe with hot-melt material in the machine’s build-in white ceramic heating barrel directly, the barrel will warm up and melt the material according to the set temperature, and get ready to dispense. This automatic desktop glue machine also comes with an external pre-heat barrel. Before the dispensing machine runs out of material, there is another syringe of material that is warmed and ready to use already, so it won’t cost extra time to heat one after another one. This machine is one of the best-selling units; contact us now for this hot melt glue dispenser machine price.
SOLUTION
Project

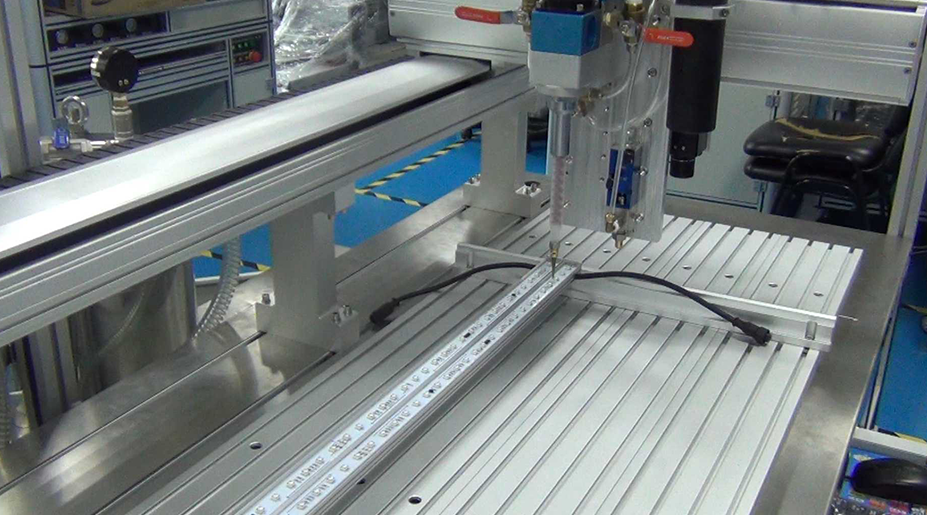

(EMS) Electronics Manufacturing Solutions, SEC-E380
Project Background
In the field of electronic manufacturing solution, dispensing machine is inadequate, especially these days. Chips, parts, and components are becoming more compact and small, but with very high precise bonding, fitting, and packaging requirements, and often need high volume automatic production, thus only automated dispensing machines can meet the need. EMS providers are usually equipped with various types of dispensing machines for different materials and dispensing projects. Some equipment for single-component dispensing, and some for two-component materials dispensing. Amount these machines, some desktop, standalone, inline system, and or with a robot arm. Automated desktop dispensers are often spot on the production floors, it is simple, flexible, and low-budget machines to equip. They are often used in semiconductors, automotive parts, electronic components, telecommunication devices, batteries, lighting, household electronic, and other manufacturing processes.
Project Features
Bonding, fitting, heat dissipate, insulating, connecting, fastening, encapsulation protection, waterproof, moisture-proof, dust-proof gasket, and more.
Project Advantages
1. It adopts the latest version handheld LCD teach pendant, a user-friendly APP like control, and a setup for a quick and accurate start.
2. One machine is able to adapt and use different applicators for different fluid, and adhesive materials dispensing. It is suitable for all kinds of UV glue, RTV, thermal material, epoxy, bonding glue, silicone, fixing agent, solder paste, red glue, silica gel, anaerobic glue, and more.
3. It is also able to match and work with different volumes and sizes of material feeding, filling equipment, from 5cc to 300cc syringe; 50ml, 100ml, 150ml, 300ml, and 500ml cartridge; 1 gallon to 5-gallon barrels. Provides great flexibility.
4. With the latest model of smart teach pendant, it is not only can dispense points, lines, arcs, circles, it also able to dispense different graphic patterns, and 3 dimensions, non-planar trajectory.
5. With an automatic anti-curing function, it can effectively prevent the glue from blocking the needle.
FAQ
1.Are you trading company or manufacturer?ehaitech2021-08-26T11:19:43+08:00
We are direct manufacturer.
2.What is your terms of packing?ehaitech2021-08-26T11:20:44+08:00
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
3.What is your terms of payment?ehaitech2021-08-26T11:21:07+08:00
Depends on terms and conditions, negotiable.
5.Can you produce according to the sample testing?ehaitech2021-08-26T11:22:35+08:00
Yes, we can produce according to the tested result. We can also product base on your design.
6.Do you test your goods before delivery?ehaitech2021-08-26T11:22:44+08:00
Yes, we will test 100% before delivery.
7.How do you make your business long-term and good relationship?ehaitech2021-08-26T11:22:53+08:00
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
8.What is the working principle of the Glue Dispensing Machine?ehaitech2021-08-26T11:24:59+08:00
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
9.What is the difference between a glue dispenser and a potting machine?ehaitech2021-08-26T11:25:18+08:00
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
10.What kind of glue does the dispenser generally use?ehaitech2021-08-26T11:26:02+08:00
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Technical Parameter
| Model | SEC-E380-30ccHM |
| The scope of work | 380(X)*380*(Y)*100(Z) |
| Max payload | 7kg/3kg |
| Max travel speed | 400mm/sec(XY)/200mm/sec(Z) |
| Transfer method | Stepper motor, belt, lead screw |
| XYZ position accuracy | ±0.025mm |
| Resolution | 0.01 |
| Memory storage | 999 program setup (each program store up to 65535 spots) |
| Operating method | LCD, Teach pendant |
| Motor | Precision stepper motor |
| Movement patterns | 3 axis spot to spot, continue line, arc |
| I/O | 1 input, 4 output (support expansion) |
| Power supply | AC220V 50/60Hz 0.5kw |
| Working environment | Temperature 0-40℃, Humidity 20-90% |
| Machine dimension | Approx 48KG |
