Two-Component Glue Filling Machine SEC-8700E

Home|MACHINES|2 Components Dispensing, Potting Dispensers|Two-Component Glue Filling Machine SEC-8700E

Two-Component Glue Filling Machine SEC-8700E

This is is automatic metering, mixing, and dosing base on pre-determined ratio. The machine equips with automatic refill, and degassing system. It can also add agitate stirring, tank heating, and automatic valve cleaning. The operation is simple and user friendly, which greatly saves the manual mixing time, improves efficiency, and also save material and labor cost.

Category:

Description

Our homepage is under construction, more information will be posted, welcome to email us for specific inquiry, thx

Features

Specification

epoxy resin dispenser

Features:

Flexible mounting mixing head

Extendable hoses

Automatic degassing, mixing base on ratio

Stable and reliable

Advantages:

Automatic degassing, mixing base on ratio

Flexible,Hand-held ,Portable

For low, medium capacity

Cheaper entry price

PRODUCT DETAILS

Supporting Systems

(1)The machine operation is control by Mitsubishi PLC, it is an world famous brand, good quality and reliable
(2)The electrical and systems are provided by the Schinider and other reliable big components suppliers.

Material Tanks

(1)The portable mixing head can be control by hands, or mounting to the conveyor to give and feed the mixed materials to the targets. It allows great flexibility.
(2)The system can perform degassing, metering, mixing, and dosing homogenously, and continually

MANUFACTURING

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically

How It Works

These machines are usually equips with two or more bigger materails tanks, so they need larger production floor space

CASE

epoxy resin dispenser

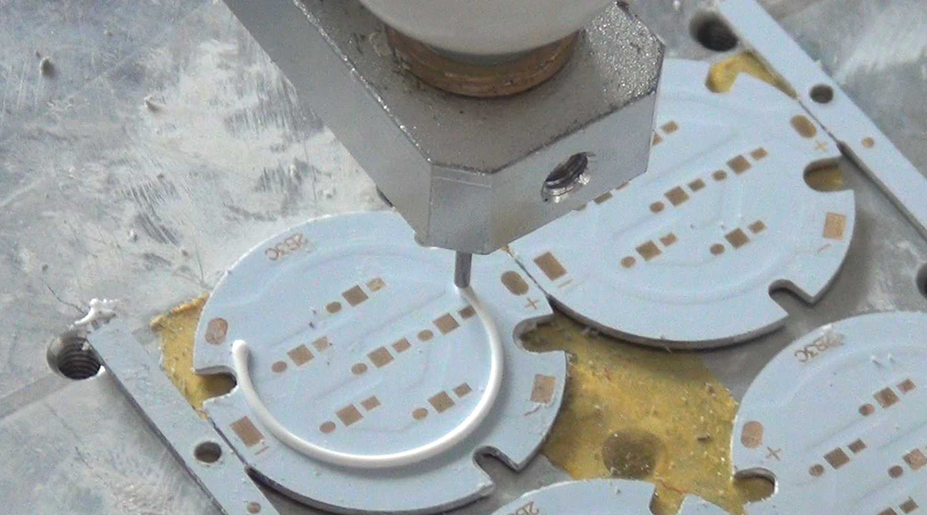

In the LED and lighting industry, manufacturers are using a lot of dispensing and AB potting machines. They were used mainly for insulation, heat dissipate, outdoor lighting, drivers’ encapsulation.

LED Driver, Power-supply

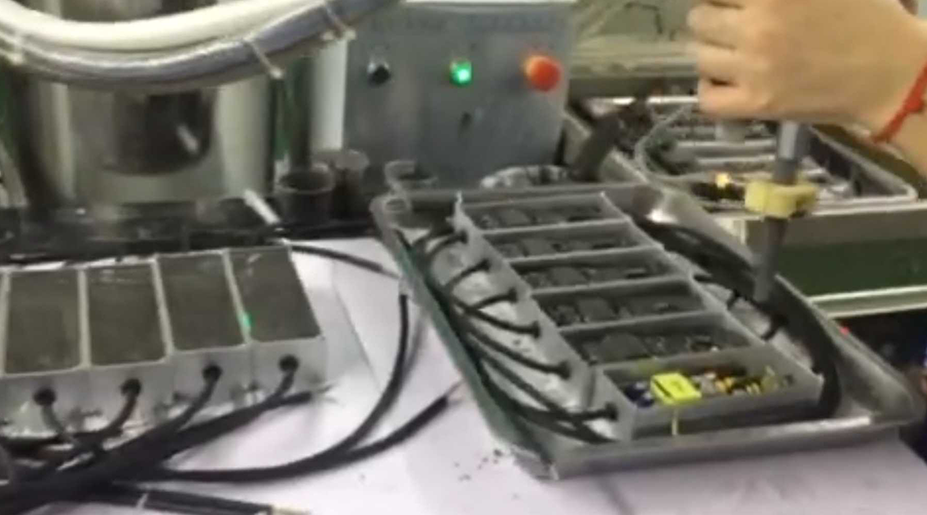

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

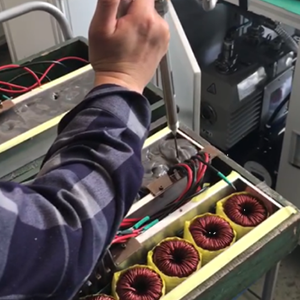

SOLUTION

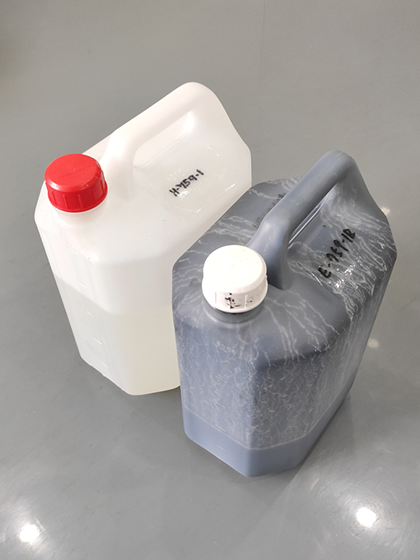

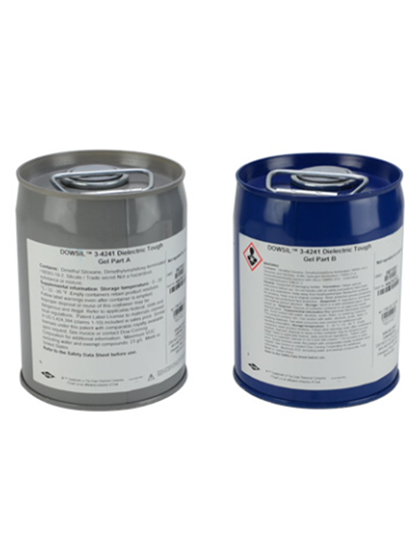

Material

-This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically.

-Machine comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

-After filling the materials into its tanks, the system can perform degassing, metering, mixing, and dosing homogenously, and continually.

Dispensing valve

1. It can work with dynamic, or static mixing valve base on the material’s characteristic, our engineer can provide advise.

2.The machine can adapt with different length of dispensing arm, and hoses depends on the need.

3.The mixing valve is made of aerospace grade of aluminum and stainless steel, it is designed for good and lasting quality, it is designed and made by Second originally.

4.There are mainly o-ring and sealant need to replaced when retired, others are build for lasting. Some mixing valve need to be replaced by months, but we build it for years.

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

Model SEC-8700E
Operating pattern Single, automatic, continuous
Working viscosity <100000CPS
Mixing ratio ±2%
Dispensing accuracy ±2%
Mixing ratio 100：100～100：20 or 100：20~100：10 Adjustable
Dispensing speed 1g/sec～15g/sec or 5g/sec～30g/sec
Operational method PLC, touchscreen
Metering method Stepper motor, gear pump/screw pump servo motor, piston pump
Operating method Footswitch/On Off switch
Anti clogging time set 0-100Sec
Power supply AC220V 50HZ 2.0KW
Machine dimension 1300(L) ╳900(W)╳1550(H)mm
Machine weight About 280KG
Working environment Temperature: 0-40℃, Humidity 20-90%

Main configuration:

Part Unit QTY Note
PLC Set 1 Mitsubishi
Touchscreen Piece 1 Weinview
Material Tank Piece 2 Tank Size (option)
Metering Pump Unit 2 Screw pump/Gear pump/Piston pump (according to the materials)
Mixing Valve Piece 1 Static or Dynamic
Heating System Set 2 Option
Pressure Monitor Set 2 Option
Flow Meter Set 2 Option
