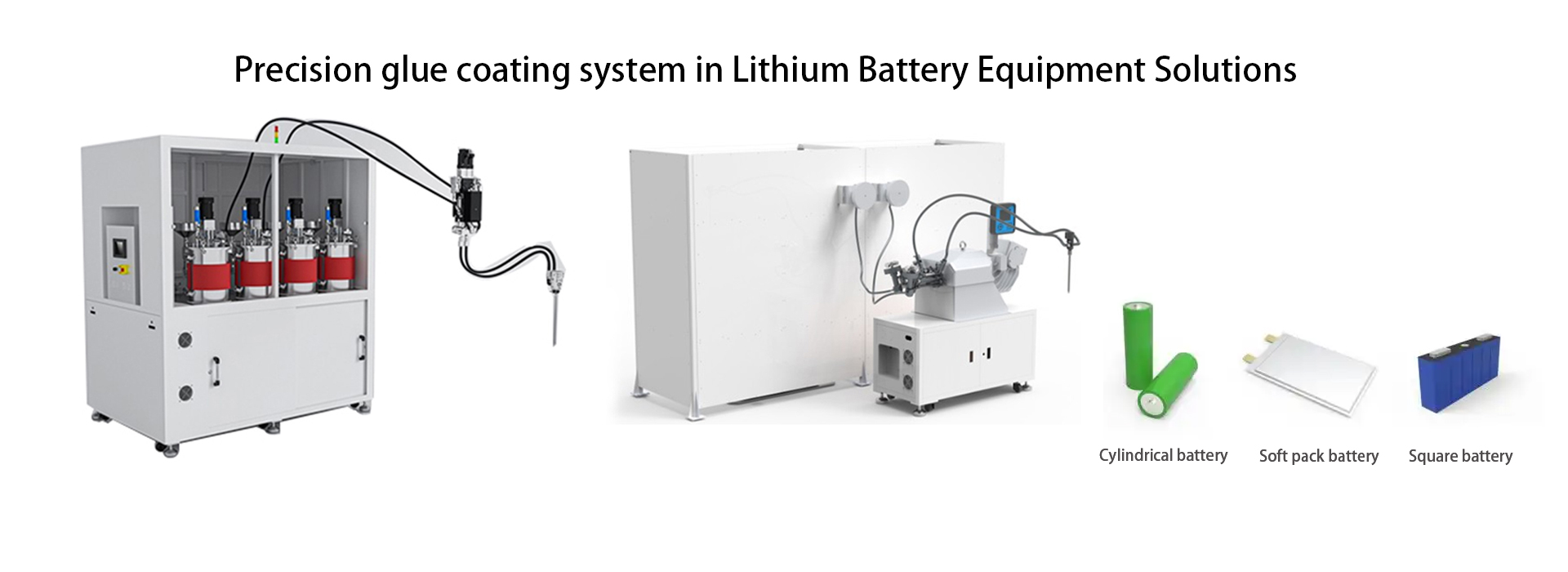

Lithium battery cell coating machine
SEC-S10-DH
Feature :
● Two-component precision gluing system
● Platen Pumps with Graco NXT Technology
● Suitable for medium to high viscosity materials
● High sealing transfer tank, realize the heating, stirring, vacuum defoaming of glue, low liquid level alarm, refilling without stopping.
● Dual servo measuring system PRXv, abrasion resistance design, material first in first out, stable glue flow, high precision, high repeatability
● Modular design of the TC dispensing valve reduces maintenance time and costs and can handle a wide range of materials
● With motor torque monitoring, fluid pressure detection, automatic pre-stamping and pressure relief functions
● Information management system, which can realize the transmission and storage of process data, compatible with MES system
Advantage :
- Stable glue output, high precision, high repeatability
- Modular design of the TC dispensing valve
- Glue stirring to prevent precipitation; vacuum degassing, nitrogen protection; material shortage alarm, automatic feeding
Application process :
Automatic feeding by platen pump + Glue processing in transit tanks
+ piston pump for metering + Dispensing Valve
Related content :
*Pre-sales services:
Providing solution consulting based on customers’ needs
Free sample test
Factory audit
Customized solutions according to customers’ needs
*Services during sale:
Production visualization
Machine quality controlling
Finished Machine test report
Logistics support upon customers’ requirement
*After-sales service:
Instruction manuals, step-by-step guides for installation and usage, and free remote video technical support
On-site technical service in 24 hours
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
A: Our pumps support 1,000,000cP viscosity with heated barrels (up to 100°C) and pressure relief valves.
A: Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
A: 0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
Recommended equipment 1
- Name: Lithium battery box gluing machine
- Model: SEC-S30-DH
- Video: Click to view
Equipment Features
The lithium battery box glue coating machine has the following technical features:
● it adopts the Graco pressure plate pump with NXT technology and the high-sealing transfer barrel to achieve heating, stirring, vacuum degassing of the glue, low liquid level alarm, and non-stop feeding;
● it adopts the single servo metering system EFR, which has precise glue coating, a wide range of uses, easy operation and easy maintenance;
● it adopts a high-precision drive motor to directly control the pump without excessive maintenance;
● the modular design of the distribution valve MD2 reduces maintenance time and cost, and can handle a wide range of materials;
● the highly wear-resistant metering Z pump has a mechanical connection, accurate ratio, and continuous glue discharge; sixth, it uses the advanced display module ADM, which is easy to operate and highly integrated; seventh, it is equipped with a flow meter to monitor the glue output and glue output ratio in real time; eighth, it adopts an information management system to realize the transmission and storage of process data and is compatible with the MES system.
Recommended equipment 2
- Name: Lithium battery box gluing machine
- Model: SEC-S10-DH
- Video: Click to view
Equipment Features
The lithium battery cell glue coating machine has the following technical features:
● it adopts the Graco pressure plate pump with NXT technology and the high-sealing transfer barrel to achieve heating, stirring, vacuum degassing of the glue, low liquid level alarm, and non-stop feeding;
● it adopts the dual servo metering system PR-Xv, which is designed for abrasion resistance, first-in-first-out materials, stable glue flow, high precision and high repeatability;
● it adopts the modular design of the distribution valve TC Valve to reduce maintenance time and cost, and can handle a wide range of materials;
● it has motor torque monitoring, fluid pressure detection, automatic pre-punching and pressure relief functions; fifth, it is equipped with a flow meter to monitor the glue output and glue output ratio in real time; sixth, it adopts an information management system to realize the transmission and storage of process data and is compatible with the MES system.
