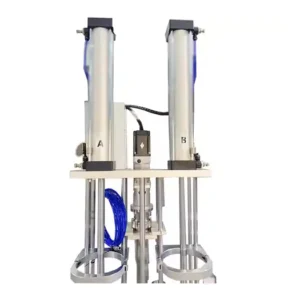

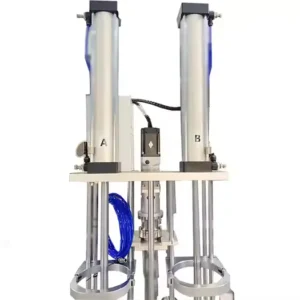

Double Barrel Precision Screw Pump Glue Supply Suitable for 2600 ml silicone sleeve packaging. Easy to operate and maintain. Can communicate with automatic machine .
Stable glue output. The glue output accuracy can reach up to ± 3%
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,
exhaust the air in the pipeline, and start one of the cylinders.
After that, you only need to replace the glue barrel that has run out of glue.
2.For example, when glue barrel A is used up, click cylinder A to press the glue up, and then click cylinder B to press the glue down,
so that glue can be supplied without stopping the machine. After opening buckle A, rotate glue barrel A counterclockwise
to take out glue barrel A.
3.Put the new plastic barrel A into the plastic barrel seat A and tighten it, then fasten the buckle A.
Suitable for 2600 ml silicone sleeve packaging. Easy to operate and maintain. Can communicate with automatic machine . Stable glue output. The glue output accuracy can reach up to ± 3%
Screw pump stator material: FKM corrosion resistant fluororubber
Screw pump rotor material: 304 stainless steel plating
Screw pump connecting rod material: 304 stainless steel (with spiral blade)
Applied range:
Delivery of medium and high viscosity fluids such as silicone, epoxy resin, grease, thermal conductive gel,thermal conductive silicone, and thermal paste
Changing operation
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,exhaust the air in the pipeline, and start one of the cylinders.After that, you only need to replace the glue barrel that has run out of glue.
Changing operation
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,
exhaust the air in the pipeline, and start one of the cylinders.
After that, you only need to replace the glue barrel that has run out of glue.
Changing operation
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,exhaust the air in the pipeline, and start one of the cylinders.After that, you only need to replace the glue barrel that has run out of glue.
