Feature:
●Extrudes viscous material from their original 1 quart (0.95 L) or 5 gallon (18.93L) pails
● Compact and lightweight
● Built tough for rugged conditions
Typical Fluids Handled:
● Adhesives
● Thermal pastes
● Potting compounds
● Heatsink compounds
● Encapsulants
● Sealants
● Grease
● Inks
● Colorants
Product Description

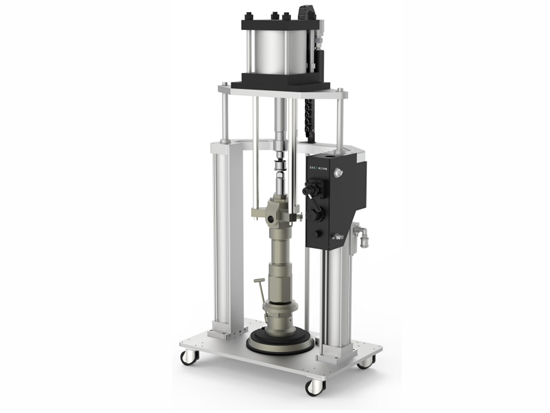

Second 5-gallon High-precision High-efficiency Plunger-type Pressure Plate Pump Is Suitable for High-viscosity Glue
Functional features:
Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;

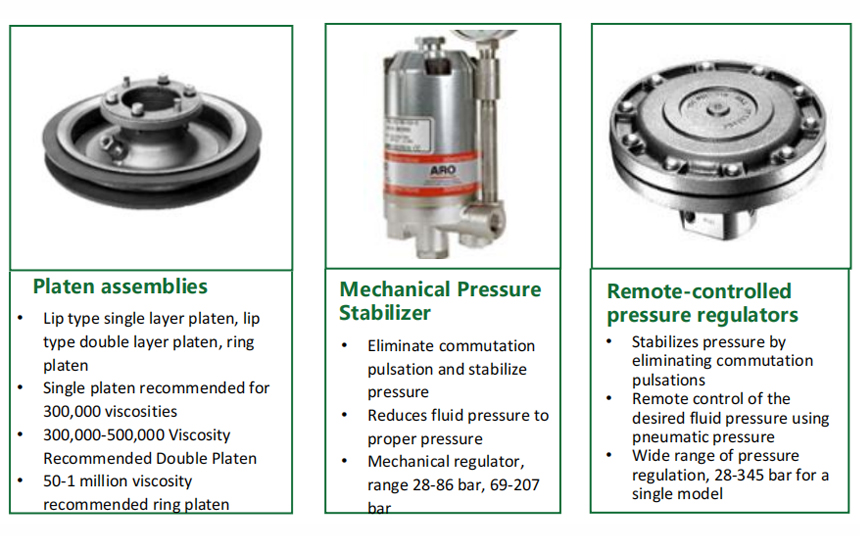

Structural layout instroduction


Structure diagram

Commonly Used Glue

Industrial Applications:
● Higher pressure ratios, 36:1 available
● Conveys a wide range of fluids from low to high viscosity, suitable
for 5 gallon packages of all types of glue.
● Higher outlet pressure, the maximum pressure can reach 400Bar, more suitable for the application of ultra-high viscosity glue.
● Equipped with a special regulator to reduce reversing pressure pulsation, better dispensing effect.
● Suitable for all kinds of medium and high viscosity liquid transportation, such as glass glue, silicone glue, RTV glue, thermally
conductive gel, thermally conductive silicone grease and so on.
