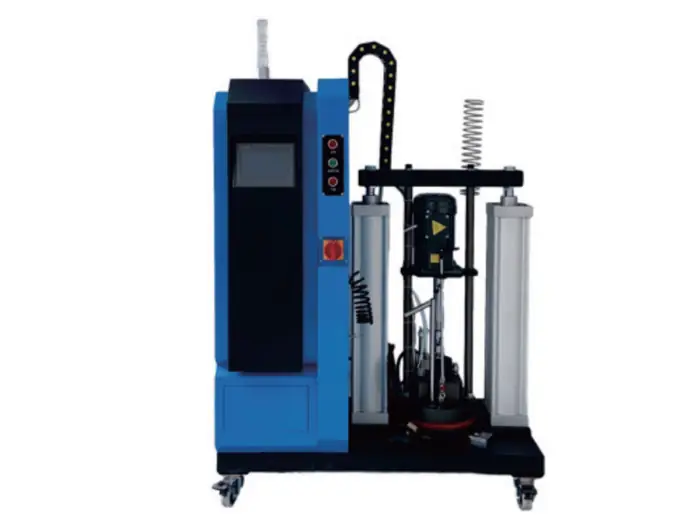

PUR Hot Melt System Equipment 5 Gallon

Description

Module features :

● Floor-standing design, dual motors, dual pumps, dual branch seats, independent and pre-assembled
● Buffer connectors are used for horizontal pump installation to better correct the connection level
● New guide return valve, more accurate and stable adjustment
● Frame-type body structure, simple and fast installation and maintenance
● Double-layer permeable Teflon coating in the melting cylinder, progressive large fin-shaped heating area, improve melt efficiency, save energy consumption, and effectively reduce carbonization

Apply industries：

1. Packaging industry:
● Paper box packaging ● Label pasting ● Bottle cap bonding

2. Automobile industry
● Interior assembly ● Parts fixing ● Headlight manufacturing

3. Electronics industry
● Circuit board manufacturing: ● Electronic product assembly:

4. Medical industry
● Medical dressing production: ● Medical device manufacturing

5. Construction industry
● Insulation material installation: ● Waterproof membrane construction

Technical parameters:

Cylinder capacity	5/55 gallon
Glue supply method	Gear pump glue supply
Heating output channel	2-way output
Temperature control range	40-220°C (100-450°F)
Usage environment	0-50°C humidity 20-90%
Maximum dissolution speed	5gal:12L/h, 55gal:20L/h
Input voltage	AC380V 50-60HZ
Maximum power	5gal:7500w
Maximum power	55gal:16kw
Dimensions	6-12L:1200x600x1350mm
Dimensions	15-50L:1680x1050x2750

Product Details

Technical features:

SECOND series PUR hot melt glue machine adopts touch screen-human-machine interface full operation, suitable for high-precision hot melt glue spraying applications, with motor-driven precision gear pump and glue output automatic tracking system, and equipped with precision gear pump to meet different production needs of users.

● The body adopts frame structure design and enclosure combination, making it beautiful overall coordination, fast and convenient daily maintenance;

● Double-layer permeable Teflon coating in the melting cylinder, ripple-type large fin heating part, improve melting efficiency and save energy consumption, "Teflon" coating on the inner wall, effectively reduce carbonization phenomenon, and ensure maximum melting efficiency;

● Delta PLC temperature control is adopted to ensure stable control temperature within ±1℃ of the set temperature. The host temperature control system adopts full touch screen,

module temperature controller combination control, with PID self-tuning adjustment function, the system operation interface is a full Chinese operation interface, graphic intelligent dialogue window,

intelligent alarm, easy to operate.

● The host control unit is equipped with an automatic tracking system, high-precision signal acquisition, a special anti-electromagnetic interference meter, and internal over-current and over-voltage protection to ensure the stable and reliable operation of the system.

● It uses a liquid crystal display, a good human-machine interface, simple, intuitive and convenient data observation and operation, and a maximum of 8-way temperature control settings;

● The precision metering pump ensures the stability and continuity of the glue output;

● The gear pump and the motor are connected by a universal joint, which is used to make the angles at both ends of the transmission shaft equal, ensuring that the instantaneous angular velocity of the output shaft and the shaft input shaft is always equal, ensuring the stability and uniformity of the glue machine during high-speed operation.

● The host uses a high-precision reflux valve (reflux valve sensitivity ±1bar) with a locking function to avoid damage to equipment or personnel caused by operating errors. The whole machine filter design uses multiple layers of filtration to prevent PUR glue from clogging due to expired solidification.

● The mechanical and electrical control systems are designed independently, with reasonable structure and convenient operation and maintenance.

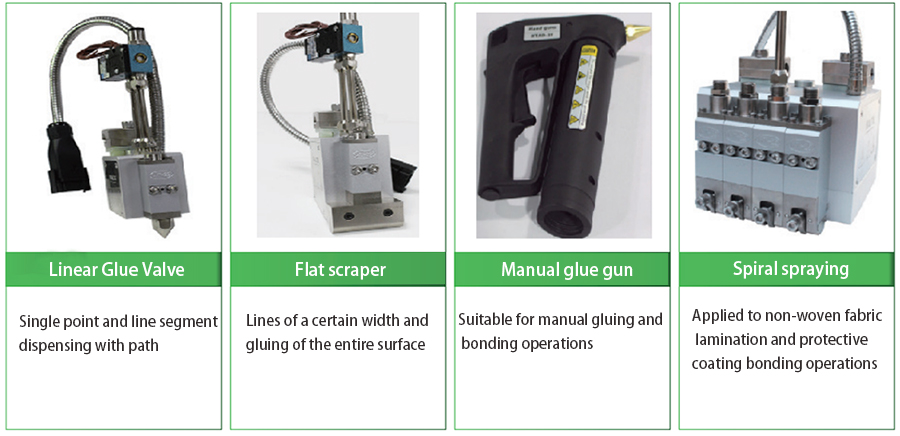

Feature

● Double barrel pressure plate (5 gallons-approximately 20Kg)
● Pressure plate suitable for barrel diameter c 280mm/c 286mm
● Adopting a one machine dual melting cylinder method;
● Up to 4 sets of rubber hose guns can be connected
● Standard 12CC gear pump and pressure pump
● Preheat all types of adhesives, PUR adhesives, and sealing fillers

Technical Parameters

Serial number	Name-Model Specifications	Parameter Value	unit
1	Glue barrel size or capacity	Φ280.00MM	LITER
2	Number of motors	1	PCS
3	Heating output (channels)	2	GROUP
4	Maximum glue supply	12KG/H	H
5	Maximum working pressure	8.5	Mpa
6	Using air pressure range	0.6-0.8	Mpa
7	Hot melt adhesive viscosity range	500-25000	PIS
8	Ambient temperature range	0-50	℃
9	Temperature control range	0～220℃（0～535℉）	℃
10	Power requirements	380V 50HZ	V
11	Maximum power consumption of equipment	7500W	WATT
12	Temperature control accuracy	±1	℃
13	Temperature sensor type	PT100
14	Equipment weight	About 200KG	KG
15	Overall dimensions (length * width * height)	1200.0600.01350.0	MM
