Multi-station feeding mechanism can realize non-stop feeding function

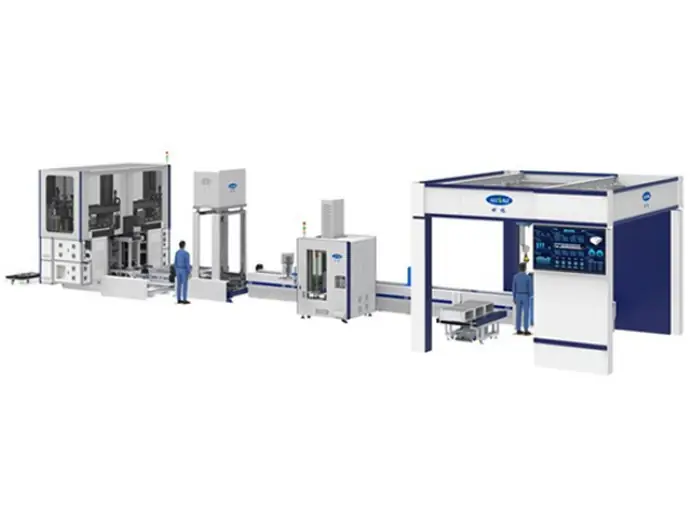

After product positioning, the robot automatically and efficiently stacks
Adopts multi-speed servo stacking and real-time force feedback
Online air tightness detection: pressure difference method and flow method
Historical data storage, parameter traceability
Main process
The production line uses robots to automatically grab MEA/bipolar plates, current collectors, temperature measuring plates, end plates and other battery stack components, assemble them into battery stacks after secondary positioning, and then high-precision servo presses perform stacking process. The equipment automatically tests the air tightness of the battery stack, and finally manually locks the battery stack studs before the product is offline.
Manual placement of the lower end plate and screws→Manual placement of the lower collector plate→Placement of blpolar plates and special membrane electrodes→Place blpolar plates and membrane electrode→
Repeated placement of plates and membrane electrodes→Reach a certain amount→Place the upper collector plate + upper end plate→ Compacting gas→Air tightness test→Lock nut→Stack offline
RTV effectively suppresses the movement of plug-in components.
●Accept production capacity customization and different process combinations. The line can be operated as a whole line or as a single machine offline;
●Reserve AGV docking interface;
●The control system is an independent, modular, and standardized program;
Accurate ratio, integrated glue mixing and filling,
to achieve truly fully automated mixing, avoid manual mismatching,
resulting in waste and scrap. Accurate positioning,
fast speed, simple and convenient adjustment, strong versatility,
conventional LED, electronic appliances,
handicrafts can be used. Simple programming, simple operation,
can be used with assembly lines,
anyone can operate the counting function, non-standard mode,
bottom glue mode, liquid level alarm
①Accept production capacity customization and different process combinations. The line can be operated as a whole line or as a single machine offline.
②Reserve AGV docking interface
③The control system is an independent, modular, and standardized program
Do not hesitate to contact us for further information, thanks in advance for your support!
