Basic configuration:
● Three/four-axis base platforms
● Visual system
● Multi-functional dispensing control system based on industrial PC
● The platform and X/Y module base are made of mineral casting, and the key surfaces are processed by grinding to ensure higher precision and stability.
● Gantry structure, large load bearing and stable structure.
● The products are stationary and fixed positioning, which can avoid the synchronous movement of the product position during the work when special glue
and process are required, and the positioning is firm.
● Meet the small product precision dispensing at the same time, can also meet the larger products of the gluing operation
● Powerful industrial PC platform multi-functional dispensing system, expandable multi-axis rotary dispensing, variable position dispensing, to realize multi-angle,all-round dispensing application.
Model | SEC-DH550 | SEC-DH650 | SEC-DH860 | |
Dispensing desk | Upper gantry structure | |||
Dispensing range | X500/Y500/Z100 mm | X600/Y500/Z100 mm | X800/Y600/Z100 mm | |
Machine dimensions | L820 x W1250x H1600 mm | L1020 x W1250x H1600 mm | L1220 x W1400x H1600 mm | |
Z-axis load | Z10kg | |||
Platform load | 30KG | |||
Max travel speed | X/Y800,Z200 mm/s | X/Y800,Z200 mm/s | X/Y800,Z200 mm/s | |
transmission method | Servo Motor + leading Screw | Servo Motor + leading Screw | Servo Motor + leading Screw | |
Maximum acceleration | 0.7G | 0.7G | 0.7G | |
Positioning accuracy | ±0.015 | |||
Visua system | German HD digital camera | |||
Light source | LED red / blue / white ，Coaxial light source | |||
Operating system | Win7 and above | |||
Control system | Second Fluent | |||
Power input | AC220V 50/60Hz 2kw | |||
Air Pressure Input | 0.5-0.8Mpa | |||
Working environment | Relative humidity 20-90%, temperature 0-40℃ | |||
Machine weight | 500kg (est.) | 600kg (est.) | 800kg (est.) | |
● safety light curtains

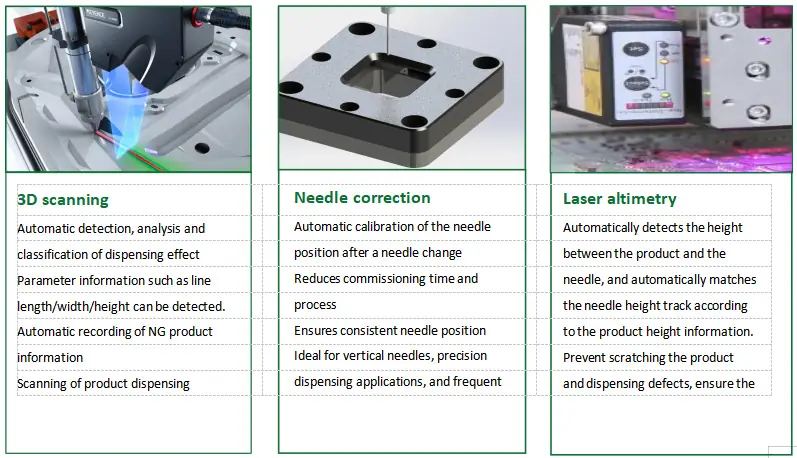

● Needle correction
● Dispensing Inspection
● Level-detectoo
● Glue weighing
● Needle cleaning
● Laser altimetr
● Information sacnning
● AOl inspection
● 3D scanning
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
EC series machine performance:
CCD video-assisted programming, large field of view to take pictures as a whole, automatic identification of product location.
Independently researched and developed R-axis needle head linkage rotation function, equipped with ceramic rotary valve, which is absolutely leading in the application field of conductive adhesive.
Gantry dispensing platform can be equipped with a variety of glue supply systems to meet multi-process and realize one machine with multiple uses.
The online dispenser can be flexibly equipped with automatic width adjustment, memory, weighing, code scanning, improve the information management level of the entire line of equipment.
EC Series Precision Dispensing Machine:
● Mineral cast platforms with higher precision and greater stability.
● Powerful functions
● Rich configuration
● stable performance
● Anti-dumbness
● Wide range of applications
● Strong scalability.

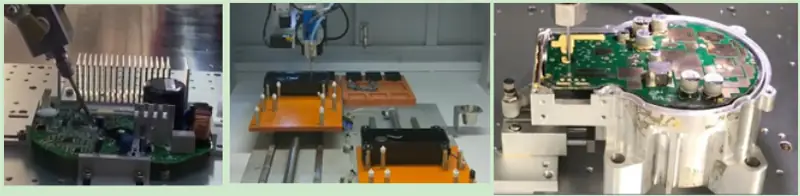

This machine is used in solder paste dispensing, semiconductor IC packaging, bottom filling and other processes.
With this steup, in one machine, it can provide multiple functions, such as plasma treatment before dispensing; or UV curing after dispensing. It is suitable for high capacity UPH production, one operator can handle two stations efficiently and effectively.

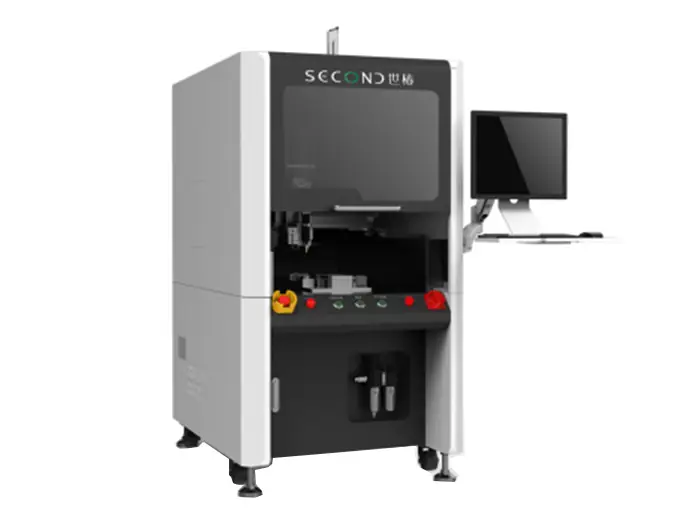

Smart high precision automated adhesive material dispensing machine with inline conveying system.
