Second Plastic Base Precision Needle

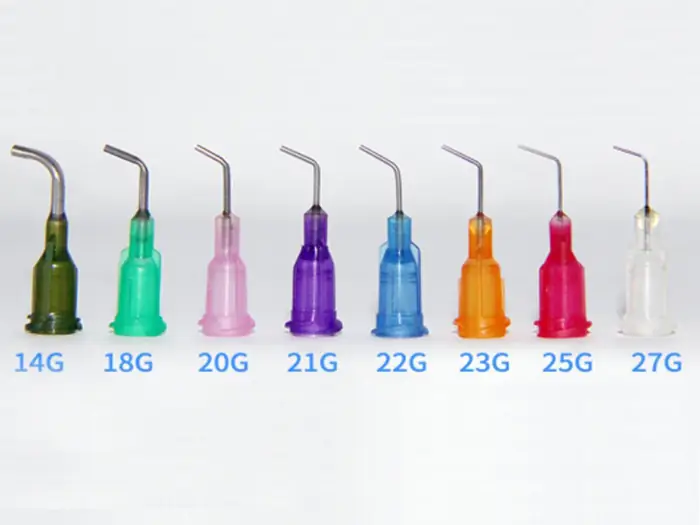

Bent needles are precision bent for specialprocesses and workpiece dispensing, specialsteel tube bending process ensures that thereis no additional increase in fluid passageresistance at the bend, customized bends of 30,45, 60 and 90° are available.
High Precision Dispensing: The double liquid dynamic design ensures precise mixing and dispensing of the two-part glue components. This guarantees optimal bonding strength and durability for your products.
Dynamic Mixing: The valve features a dynamic mixing chamber that ensures the two components are thoroughly mixed before dispensing, eliminating the need for manual mixing or pre-mixed glue.
Adjustable Dispensing Rate: The dispensing rate can be easily adjusted to meet the specific requirements of your application, ensuring both speed and accuracy.
Key attributes
Other attributes
| Applicable Industries | Energy & Mining |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | other |
| Place of Origin | Guangdong, China |
| Weight | 0 |
| Warranty | 1 Year |
| Condition | New |
| Brand Name | Second intelligent |
| Dimension(L*W*H) | differ from the model |
| After-sales Service Provided | Engineers available to service machinery overseas |
| MOQ | 300PCS |
| dispensing time | 0.01~31 sec± 0.1% |
| Certification | CE approved |

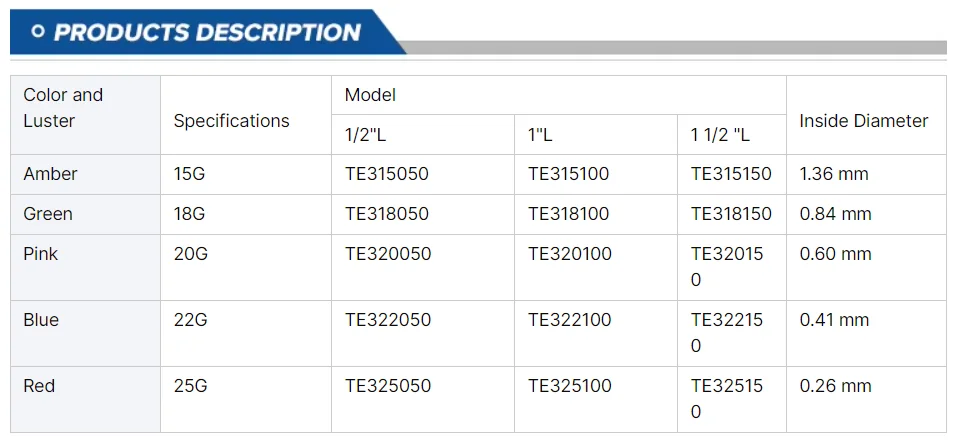

Specification
| Color and Luster | Specifications | Model | Inside Diameter | ||
| 1/2″L | 1”L | 1 1/2 “L | |||
| Amber | 15G | TE315050 | TE315100 | TE315150 | 1.36 mm |
| Green | 18G | TE318050 | TE318100 | TE318150 | 0.84 mm |
| Pink | 20G | TE320050 | TE320100 | TE32015 | 0.60 mm |
| Blue | 22G | TE322050 | TE322100 | TE32215 | 0.41 mm |
| Red | 25G | TE325050 | TE325100 | TE32515 | 0.26 mm |
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
Benefits:
● Durable Construction: Manufactured from high-grade materials, the dispensing valve is built to last, withstanding the rigors of continuous use in industrial environments.
● Easy Integration: The dispensing valve is designed for easy integration into your existing Second AB 2K Two-Part Component Glue Potting Filling Machine, minimizing downtime and maximizing productivity.
● Maintenance-Friendly: The valve’s modular design allows for quick and easy disassembly for cleaning and maintenance, reducing the need for specialized tools or extensive downtime.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,
exhaust the air in the pipeline, and start one of the cylinders.
After that, you only need to replace the glue barrel that has run out of glue.
2.For example, when glue barrel A is used up, click cylinder A to press the glue up, and then click cylinder B to press the glue down,
so that glue can be supplied without stopping the machine. After opening buckle A, rotate glue barrel A counterclockwise
to take out glue barrel A.
3.Put the new plastic barrel A into the plastic barrel seat A and tighten it, then fasten the buckle A.
Product Features:
Highly user-friendly, you can directly input the time quantitative value from the panel button, and you can increase or decrease it. When gluing, the display will jump from zero to the set time.
Product Parameters:
1. Microcomputer control
2. Timing time display 0.001 to 9.999
3. Repeatability 0.005 seconds
4. Learning TEACCH function
5. Non-disappearing time memory
6. Adjustable fluid pressure, 0 to 120 PSI (0 to 8.0KG)
7. One-year functional guarantee
Second Piezoelectric Electric Injection Glue Dispensing Valve
The F-P series piezoelectric injection valve is a single-component volumetric metering valve. Its application scenarios are almost the same as those of pneumatic injection valves, but it uses piezoelectric drive. Compared with pneumatic injection valves, it has a higher dispensing rate and higher glue consistency, and can achieve a smaller amount of glue dispensing! It is widely used in a variety of high-precision dispensing occasions!
Second Needle glue dispensing Valve
● It is a switch that acts on the fluid in the flow channel, and the stroke is adjustable.
● Applicable to low and medium viscosity fluids.
● The high-thrust cylinder can quickly close the rubber.
● Large flow channel, high glue efficiency.
● Stainless steel flow channel, compatible with a variety of glue specifications.

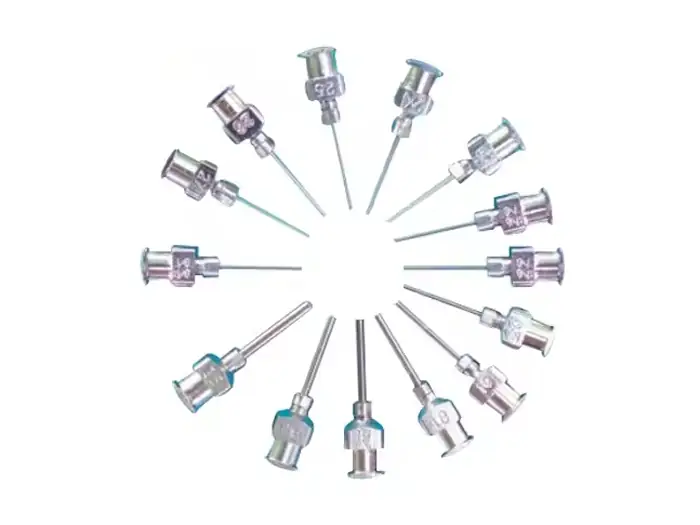

● Compatible with various specifications of needles such as plastic-based needles, stainless steel needles, and TT-type needles.
