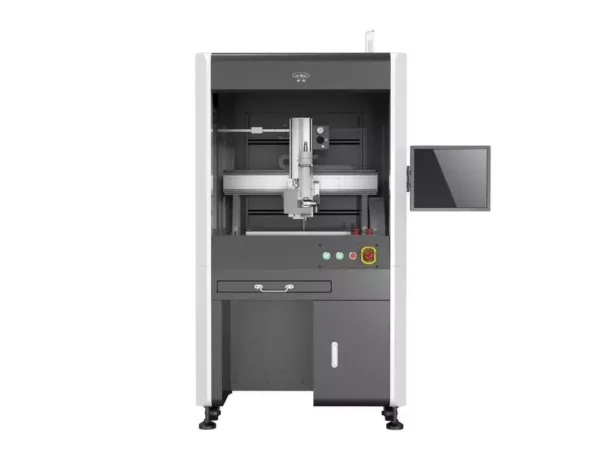

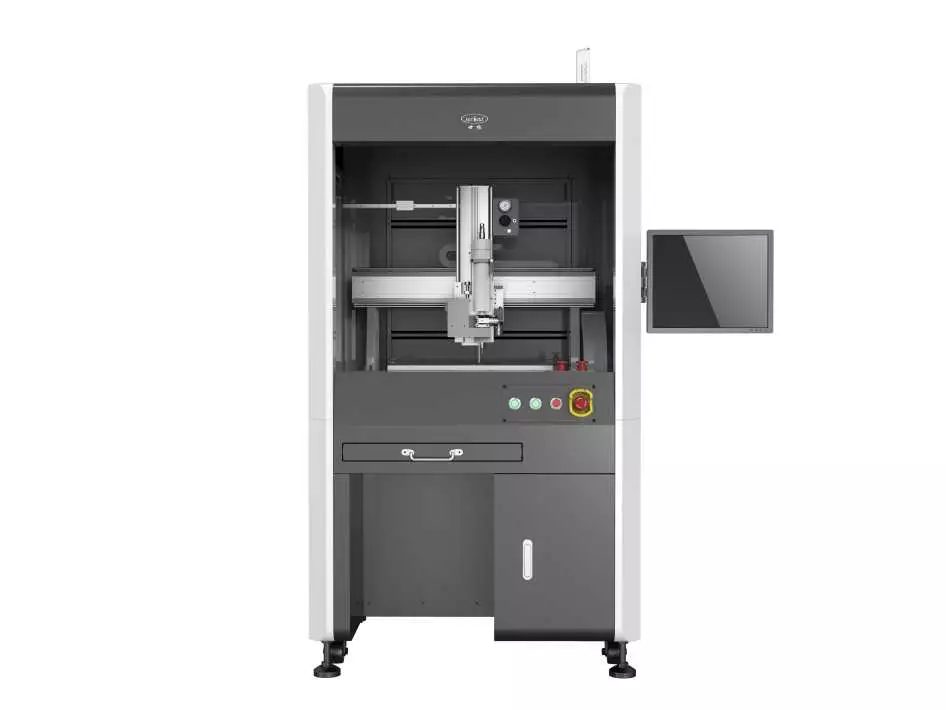

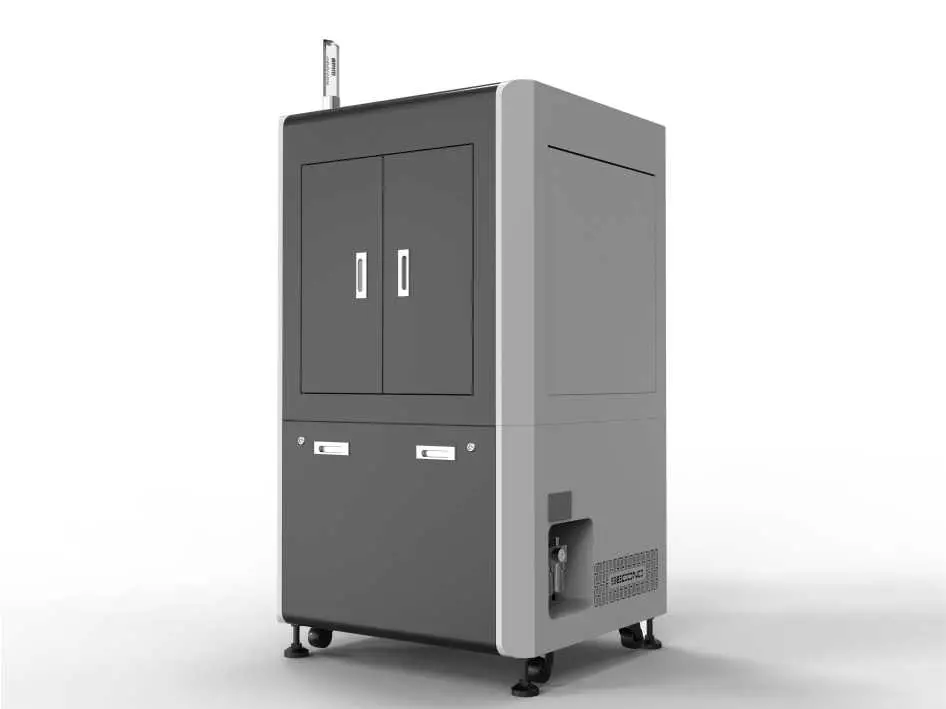

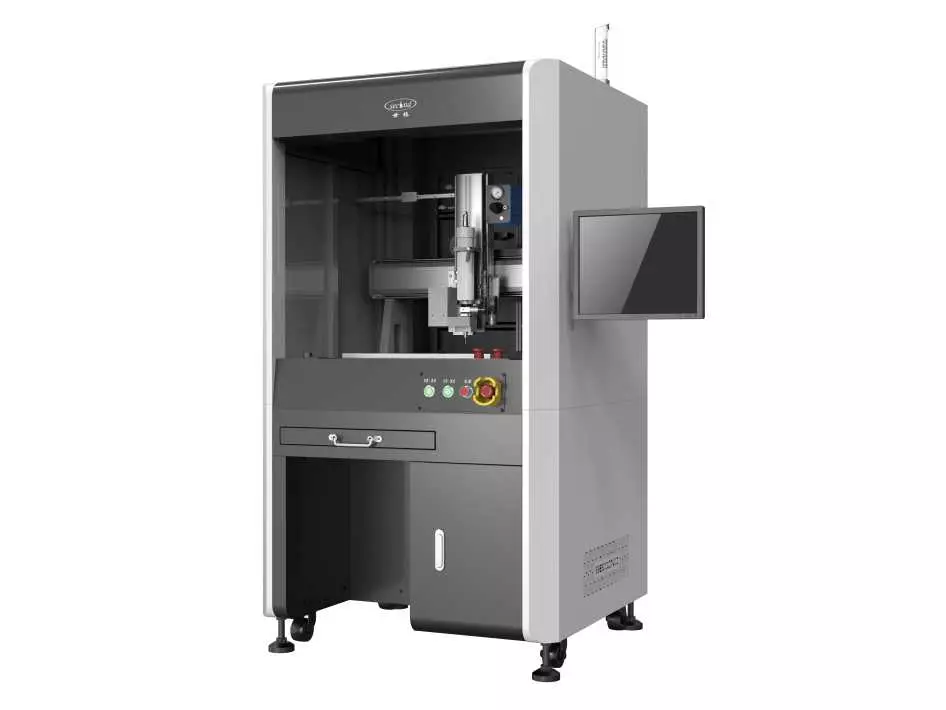

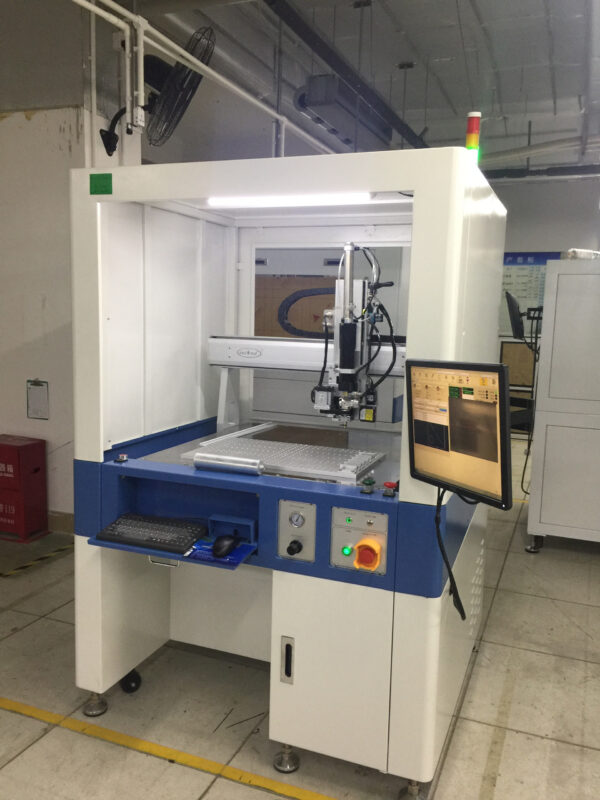

Conductive EMI, EMC, and thermal adhesive material dispensing machine SEC-400BDR-800BDR.
Stability –
The machine designed with gantry type dispensing platform to ensures easy and stable product placement. The machine is using quality components to make sure stability, durability of production, and less maintenance.
Unique system –
The dispensing nozzle equips with a uniquely designed vertical-rotation-linkage function, it allows the valve to open-close smartly when performing curve-turn and u-turn without accumulate the material at the corner, so to achieve a high precision and uniform gasket dispensing.
Software –
The dispensing software is originally design, it is user-friendly to set-up and program, it has been designed base on What-you-see-is-what-you-get principal. The model has been developed and sold for many years, it is debugged, validated by many manufacturers for its high quality.
Adaptive –
It can be equipped with a 3D camera for full scanning of the product, as a guide for the dispensing trajectory / path, and realizes flexible dispensing.

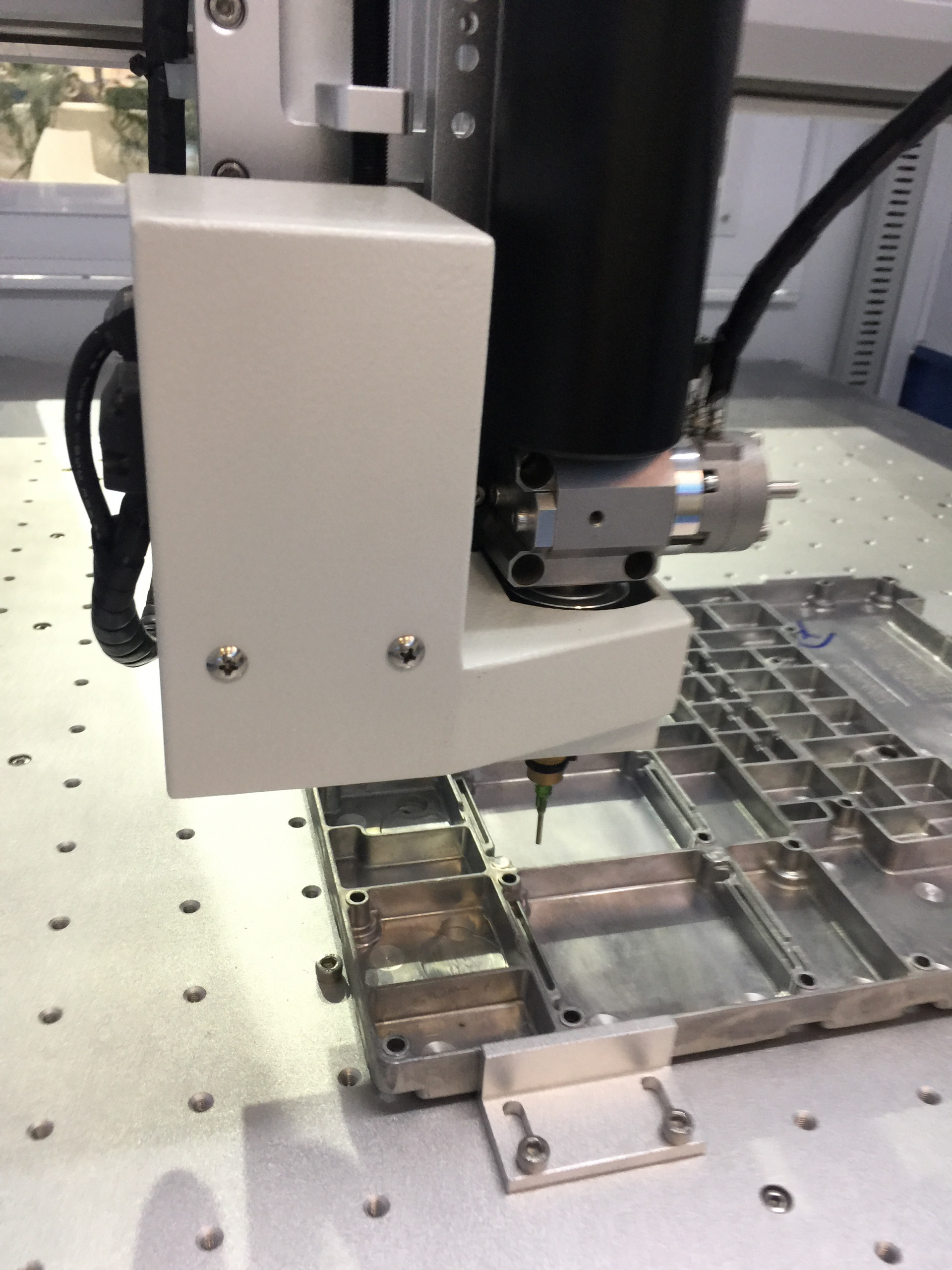

This dispensing machine equips with unique dispensing system that allows to dispensing EMI, EMC triangular or D-shape shielding gasket directly on the aluminum casting plate.
It is able to dispense both single or two-components EMI, EMC high viscosity conductive material(s).
It is widely used in SMT industry, telecommunication, and consumer electronics industry, LED lighting industry, and is suitable for automated assembly line operations.
Model | SEC-400BDR | SEC-800BDR | |
Dispensing range | X400*Y400*Z100mm | X800*Y800*Z100mm | |
Travel system | Servo-motor, lead-screw | ||
XY axis travel speed | Max：500mm/s | ||
Z-axis travel speed | Max：200mm/s | ||
XYZ axis repeat accuracy | ±0.02mm | ||
Z-axis payload | 20kg | ||
R-axis speed | Max：1000mm/s（The actual speed software automatically matches） | ||
Ground to working desk height | 900±20mm | ||
CCD visual | High definition camera and lens（可选） | ||
Operating system | Industrial computer, LCD monitor, mouse and keyboard | ||
Machine dimensions | W980*L980*H1750（mm） | W1300*L1365*H1855(mm) | |
Machine weight | 500kg (est.) | 700kg (est.) | |
Power supply | AC220V,50/60Hz,2Kw | ||
Air-pressure | 0.65MPa±0.02MPa，0.2m³/h | ||
This dispenser is mainly used in the conductive adhesive dispensing process. It is widely used in the equipment modules of 5G communication base stations. Conductive adhesive material is dispensed on the electromagnetic shielding casting cover to achieve electromagnetic shielding and anti-interference. The machine is able to dispensing triangular shielding or D-shape gasket directly.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
