Product Features:
Highly user-friendly, you can directly input the time quantitative value from the panel button, and you can increase or decrease it. When gluing, the display will jump from zero to the set time.
Product Parameters:
1. Microcomputer control
2. Timing time display 0.001 to 9.999
3. Repeatability 0.005 seconds
4. Learning TEACCH function
5. Non-disappearing time memory
6. Adjustable fluid pressure, 0 to 120 PSI (0 to 8.0KG)
7. One-year functional guarantee
SEC-200S, Digital display high precision dispensing machine，Using the latest single-chip technology， with professional production in China。And is Widely used in electronics, aerospace, optics, automotive, watches, medical, petroleum, packaging, jewelry and machinery etc.
SEC-200S, the main feature of Digital display high precision dispensing machine is ：It is easy to apply a precise amount of liquid that is precisely adjusted. Bring high quality products, improve production efficiency, and ensure excellent quality and quantity in the production process.
The dispenser is small in size, easy to use, can work reliably for a long time under various environmental conditions, and has a long service life. Due to the use of a full range of different accessories, it can be applied to different industries
| Place of Origin | Guangdong,China |
| Condition | New |
| Weight (kG) | 4 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | controller |
| Warranty | 1 Year |
| Applicable Industries | Energy & Mining |
| Showroom Location | None |
| Brand Name | Second |
| Model | SEC-200S |
| Timer display: | 0.001 to 9.999 |
| repeating accouracy: | 0.005sec |
| repeating accuracy: | 0.005sec |
| adjustable fluid pressure: | 0 to 120 PSI(0.-8.0KG) |
| GuarantY | 1 year |
The SECOND SEC-200S dispensing controller can be widely used in the following fields:
Aircraft/Airplanes, Automobiles, Packaging, Home Appliances, Bearings, Circuit Boards,
Electronic Components, Cameras, Pharmaceuticals, Electrical Components, Capacitors, Production Processing
Instruments, Jewelry, Relays, Integrated Circuits, Lighting, Radio Equipment
Wire Connectors, Machinery, Switches, Watches, Medical Devices, Toys
Components, Metal Forming, Typewriters, Computers, Optical Components, Food
The SECOND SEC-200S glue dispensing controller utilizes the latest single-chip microcomputer technology and is professionally manufactured in China. The SEC-200S high-precision dispensing controller’s biggest feature is its ability to easily apply precisely calibrated and uniform dispensing volumes, resulting in high-quality products, improved production efficiency, and ensuring excellent quality and quantity throughout the production process.
This dispensing machine is compact, easy to use, and can operate reliably for extended periods under various environmental conditions, boasting a long service life. Because it comes with a complete set of accessories,
it can be applied to various industries.

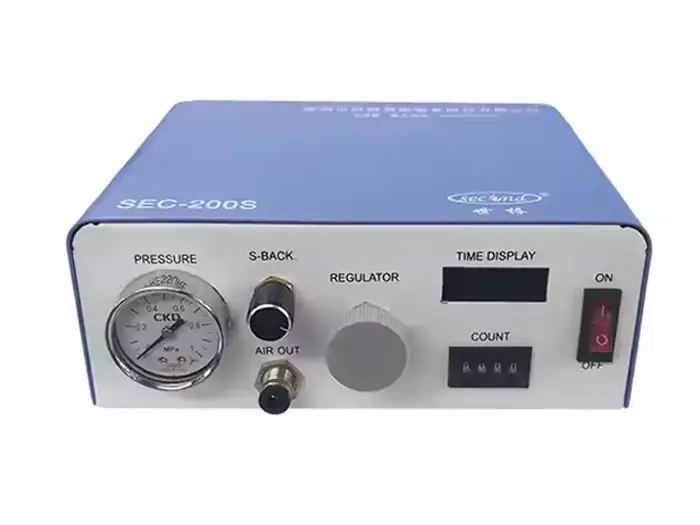

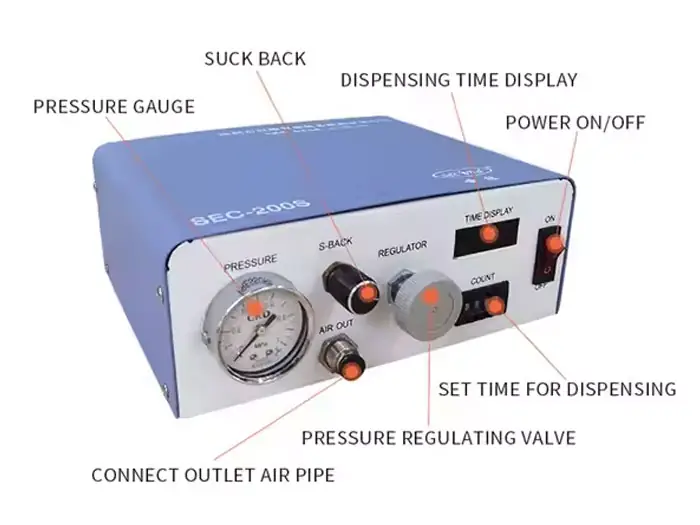

Time display: four-digit LED display
Liquid supply time: 0.001S-9.999S, 0.01S-99.99S (set by the switch inside the machine)
Input air pressure: 0.5Mpa–0.7Mpa
Output air pressure: 0.01Mpa–0.7Mpa
Repeat time error: ±0.1%
Minimum drop volume: 0.005ml
Working speed: > 600 times/min
Input voltage: 110V/220V±10% 50Hz
Power consumption: <15W
Weight: <3Kg

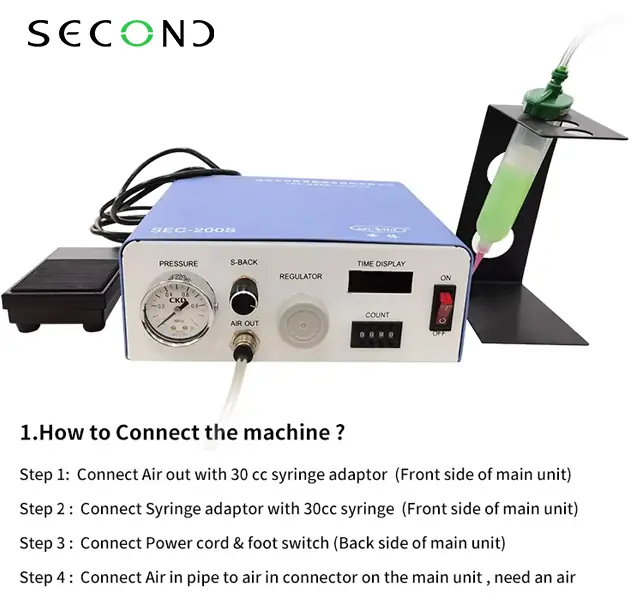

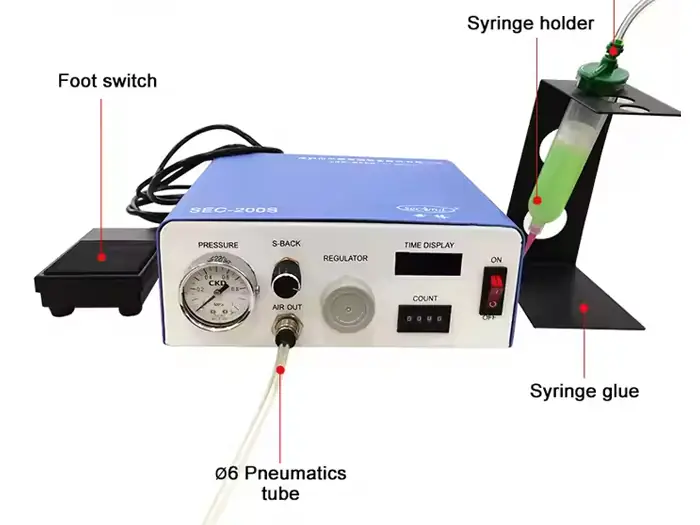

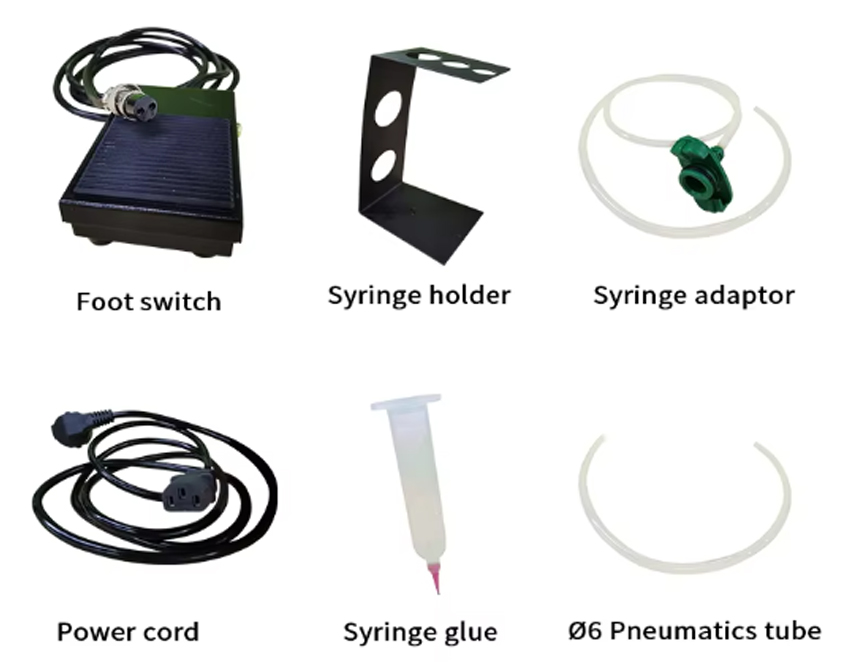

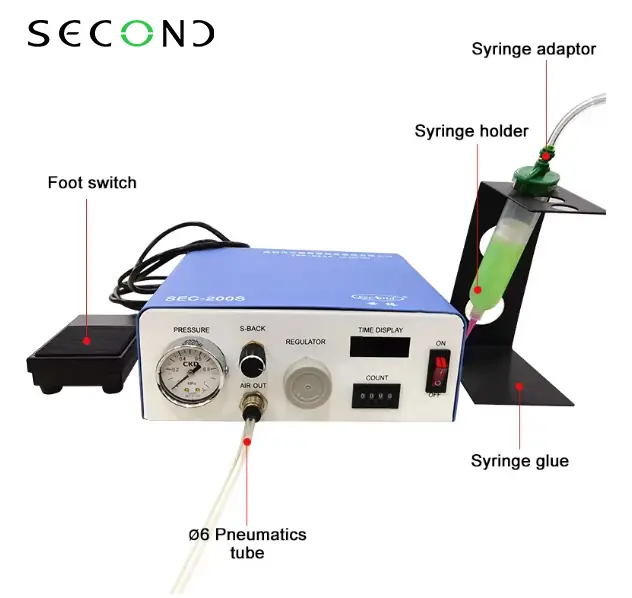

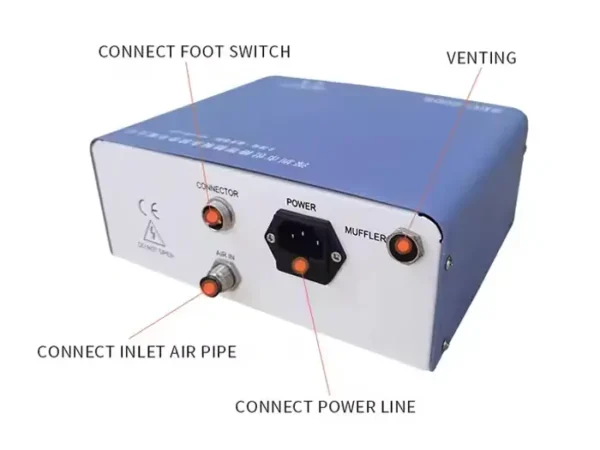

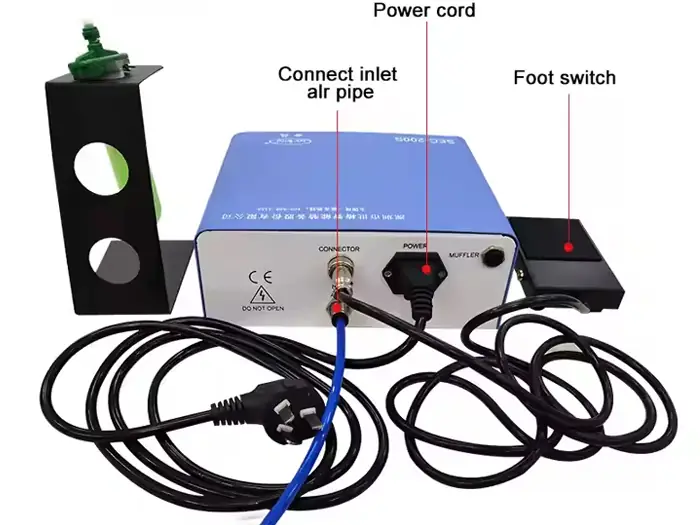

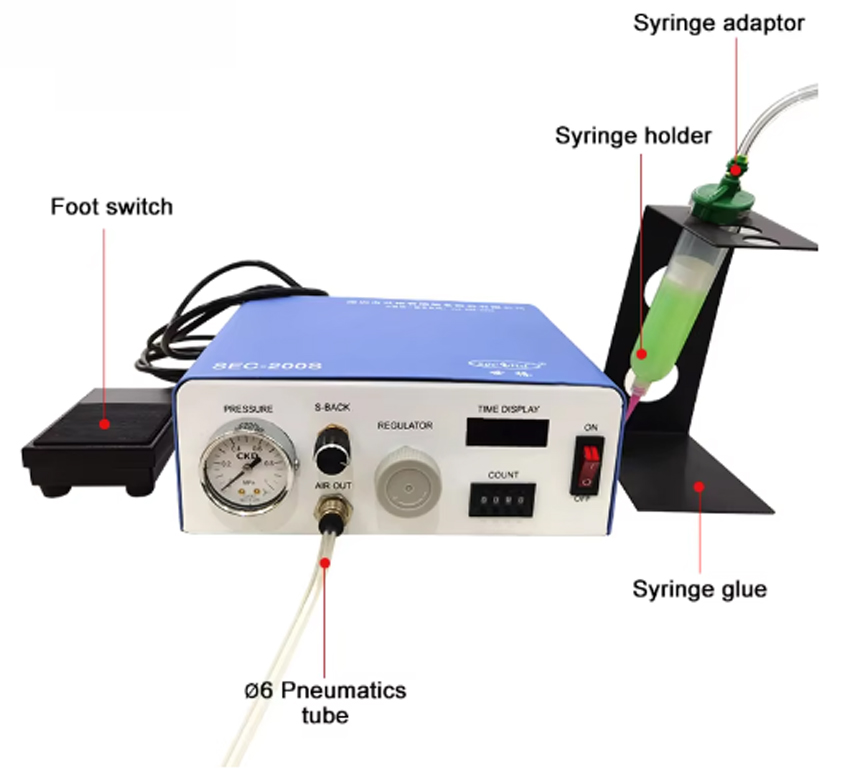

Standard accessories: host, power cord, air compressor tube, syringe stand, manual switch, foot switch,
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.

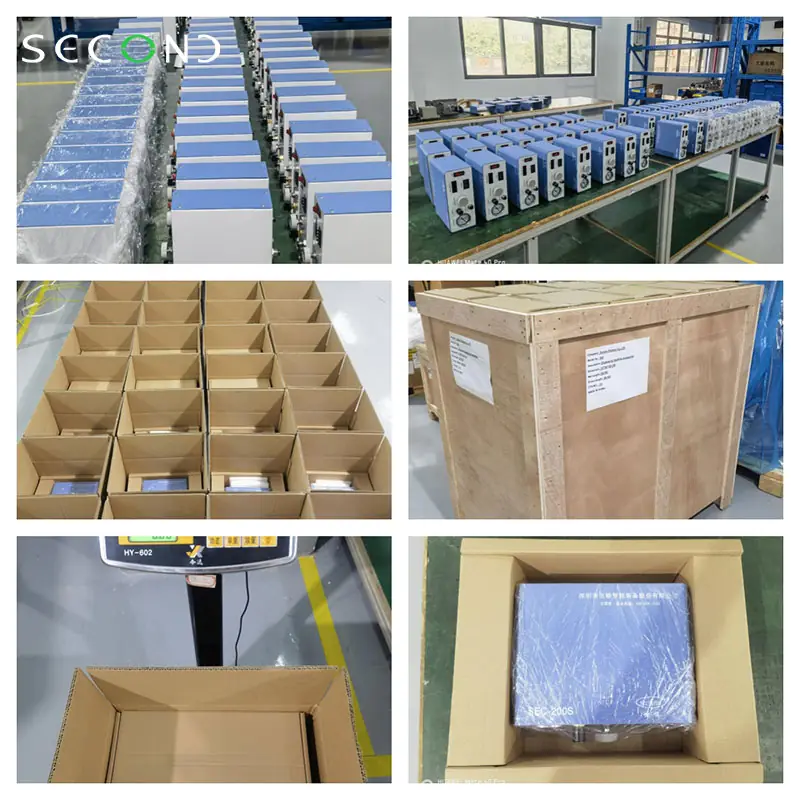

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
Second PP Flexible Pin Syringe Needle
PP flexible needle is suitable for complex working surfaces, convenient for dispensing glue at corners, can prevent scratches, make dispensing easier, needle tube length can be cut as needed. 50 pieces per box.
Product Introduction：
SEC-200S digital display high-precision glue dispenser adopts the latest single-chip microcomputer technology and is professionally produced in China. It is widely used in electronics, aviation, optics, automobiles, watches, medical, petroleum, packaging, jewelry and machinery.
The biggest feature of the SEC-200S high-precision glue dispenser is that it can easily dispense uniform amounts of liquid that have been precisely adjusted, bringing high-quality products, improving production efficiency, and ensuring both quality and quantity in the production process.
The glue dispenser is small in size, easy to use, can work reliably for a long time under various environmental conditions, and has a long service life. Because it is equipped with a full set of different accessories, it can be applied to different industries.
Using the novel SEC-200S precision glue dispenser controller can bring you perfect and ingenious craftsmanship.
SEC-210S, Digital display high precision dispensing machine，Using the latest single-chip technology， with professional production in China。
And is Widely used in electronics, aerospace, optics, automotive, watches, medical, petroleum, packaging, jewelry and machinery etc. SEC-210S,
the main feature of Digital display high precision dispensing machine is ：It is easy to apply a precise amount of liquid that is precisely adjusted.
Bring high quality products, improve production efficiency, and ensure excellent quality and quantity in the production process. The dispenser is
small in size, easy to use, can work reliably for a long time under various environmental conditions, and has a long service life. Due to the use of a
full range of different accessories, it can be applied to different industries.
Second Round Interface Dynamic mixing tube
Round Interface Dynamic mixing tube’s function is Dynamic Mixing two component glue , convenient for dispensing glue at corners, can prevent scratches, make dispensing easier, needle tube length can be cut as needed. 50 pieces per box.
