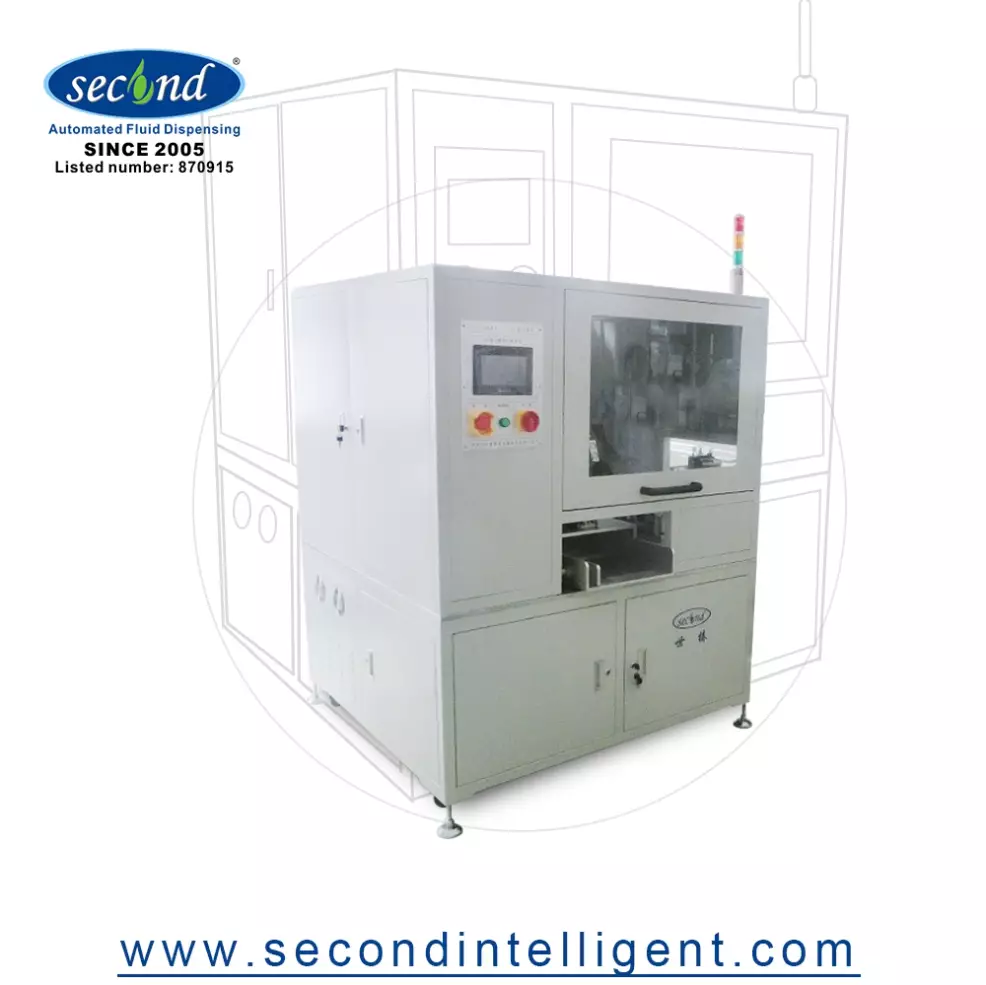

Domestic RO cartridge element edges trimming machine SEC-S60WT

The equipment is suitable for household RO cartridge element edges trimming. It works for cartridge elements sizes between 1810-3013.

Description

Introduction

The equipment is suitable for household RO cartridge element edges trimming. It works for cartridge elements sizes between 1810-3013.

How it works?

Operator can load up cartridge elements into the material bin manually, the equipment will automatically feed one by one to its working position and cut. After the cutting is completed, it will automatically unload to the collecting bin. The cutting position parameters can be set individually. The operation is simple. The operation is safe with machine covers and auto stop sensors if open accidentally. The quality is stable and reliable, and high efficiency. One operator can watch several machines at the same time to improve its capability.

Specification

Model

SEC-S60WT

Suitable cartridge sizes

1810-3313

Movement method

Lead-screw

Cutting range

150mm*150mm

Cutting speed

0-72 rpm adjustable

Blade driving method

Servo moto can be controlled independently

Travel system

Servo drive

Operating method

PLC

Loading and unloading

Manually load into bin,automatic unloading into bin

Capacity

200PCS/H(1812)

Power consumption

3KW

Power supply

AC220/50HZ

Machine dimensions

1540mm*1340mm*1800mm

Machine weight

300KG

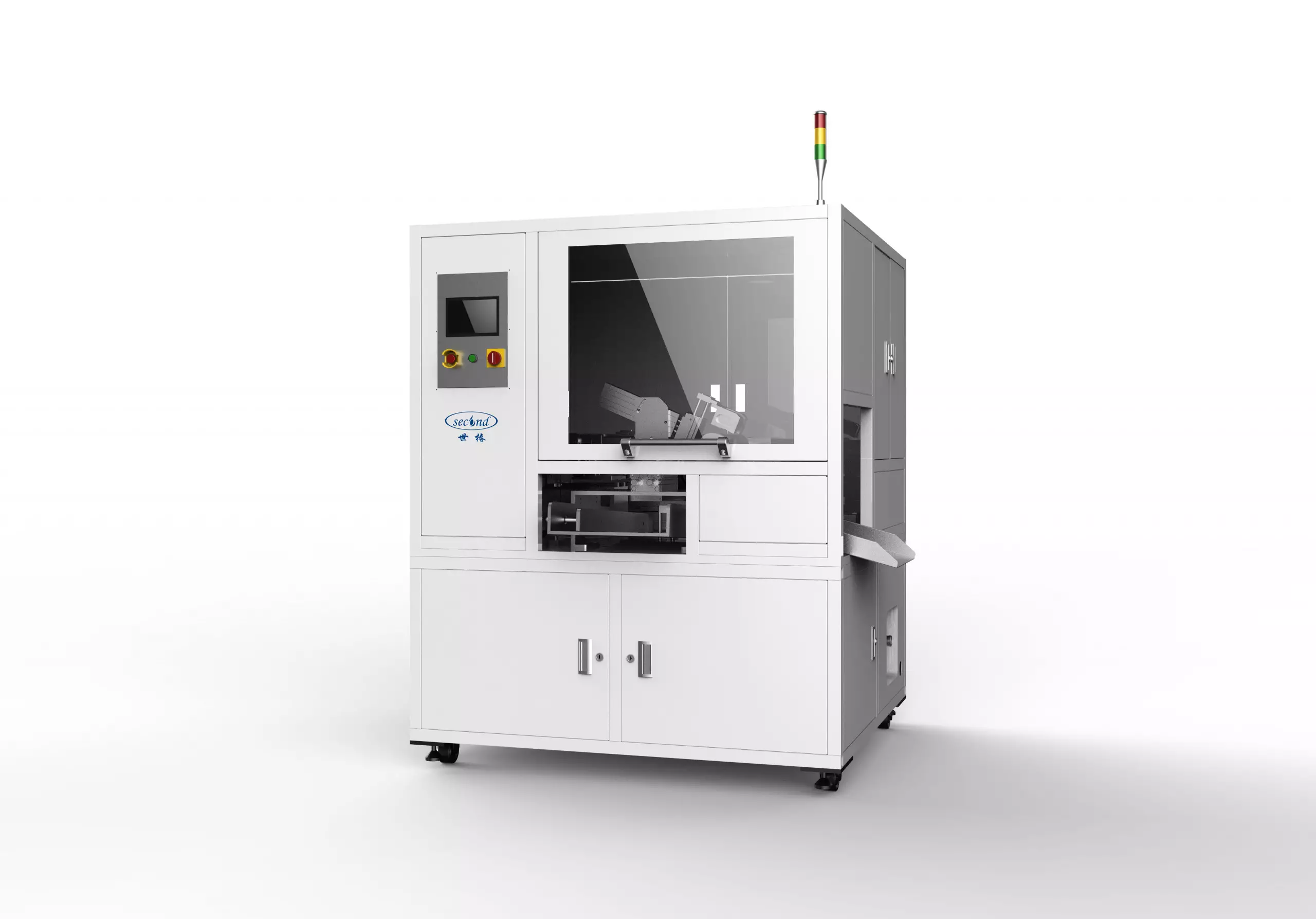

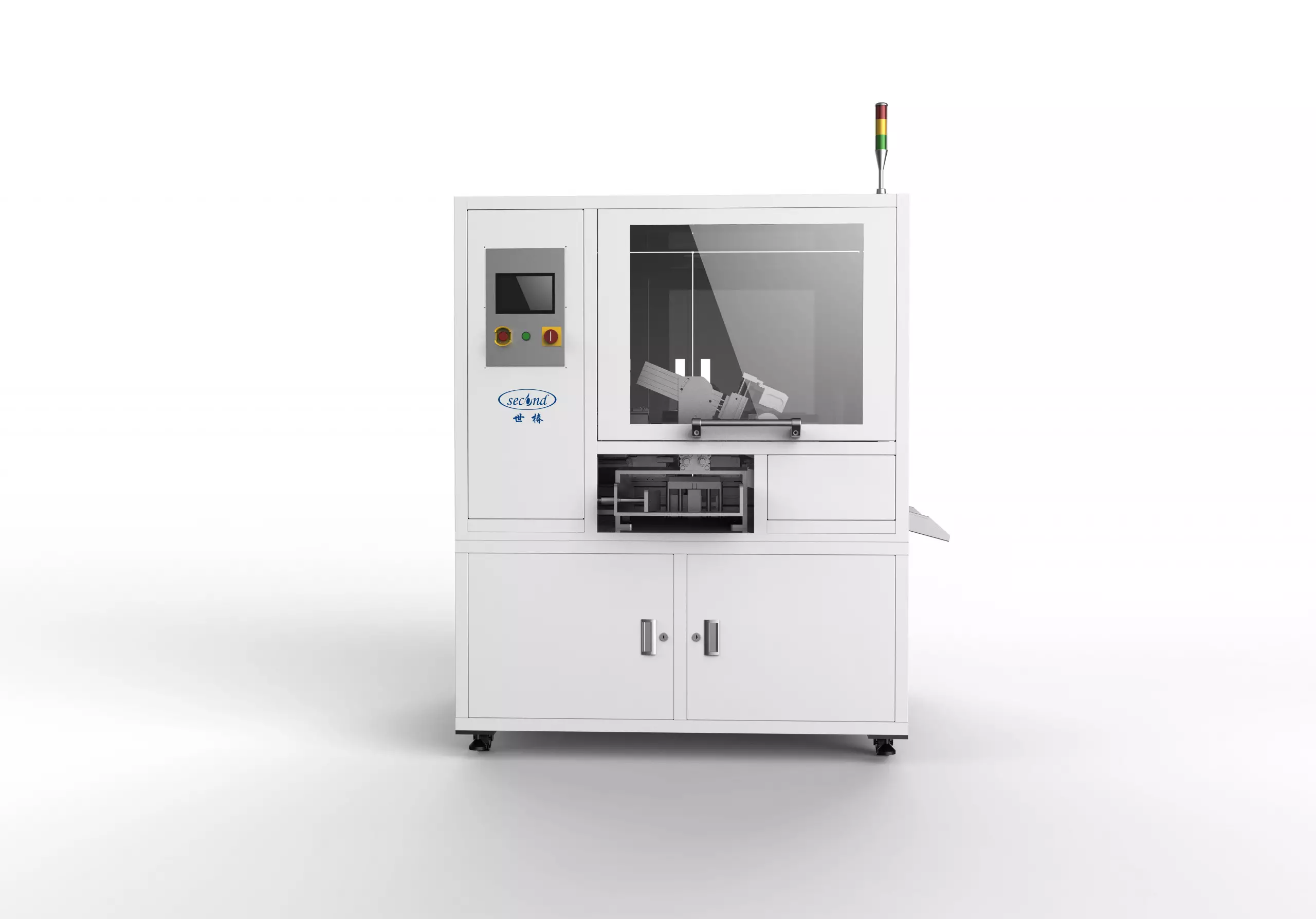

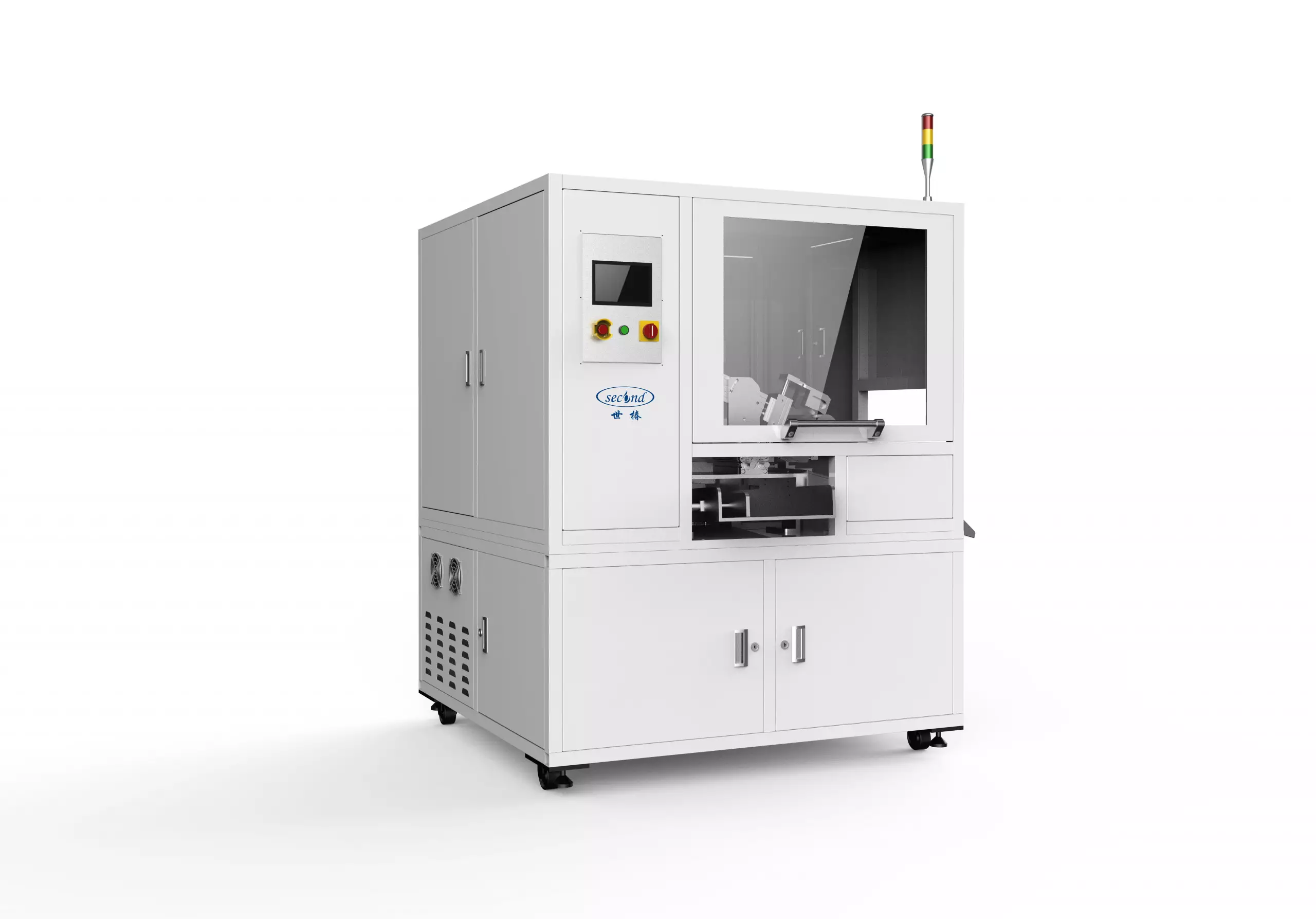

Domestic RO cartridge element edges trimming machine SEC-S60WT -1
Domestic RO cartridge element edges trimming machine SEC-S60WT -1

MANUFACTURING

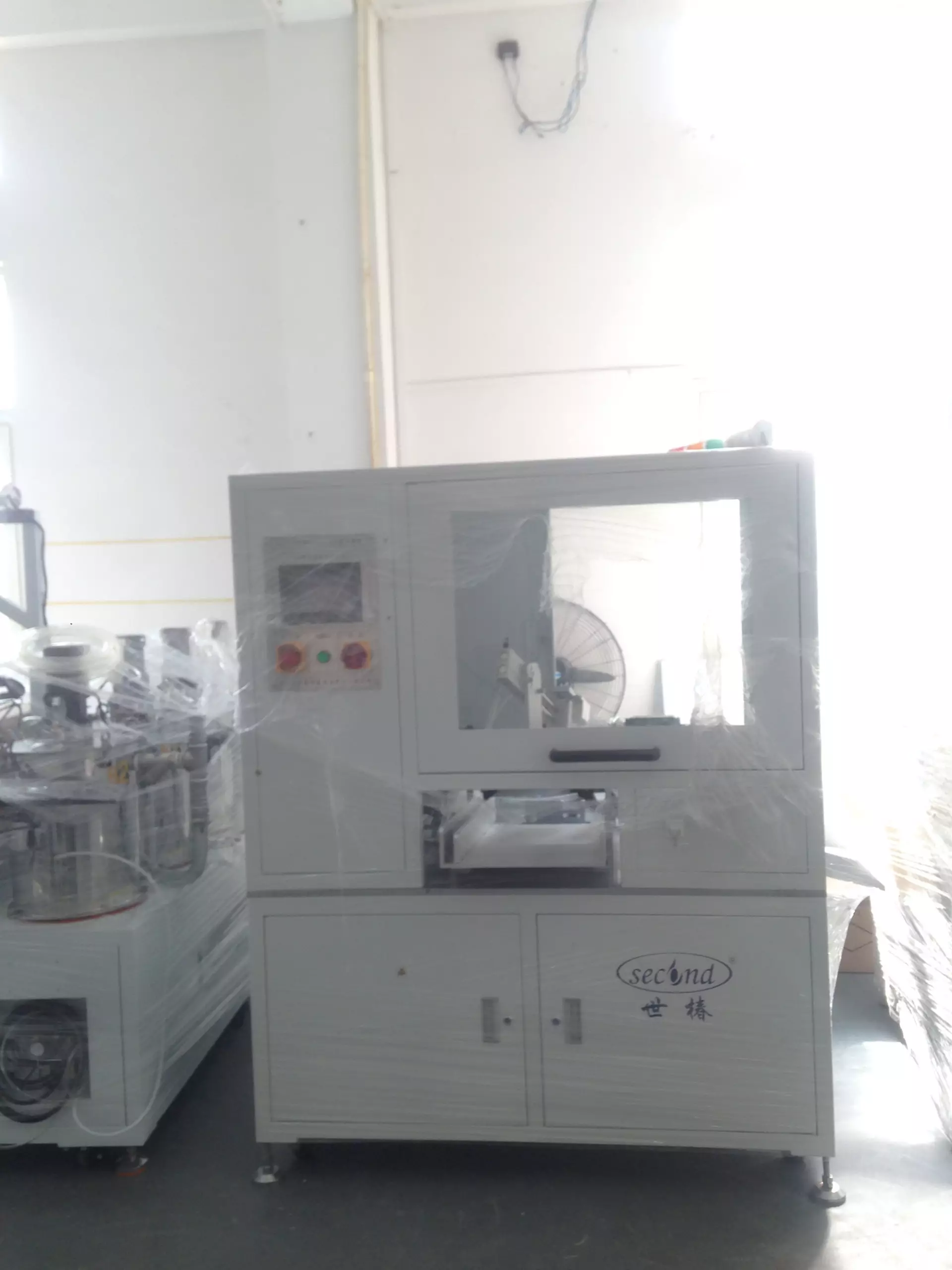

 This is RO and water filter fabricating machines and equipment production floor. From the house to industrial types of RO, they were produce in this department.

Reverse Osmosis cartridge element making machine production-floor -1
Reverse Osmosis cartridge element making machine production-floor -1
Reverse Osmosis cartridge element making machine production-floor -1
Reverse Osmosis cartridge element making machine production-floor -1

The machine is effective and efficient for different type of element withing the ranges.

liquid glue dispensing machine
liquid glue dispensing machine

LED Drive Power

The SECOND glue potting equipment is used in the LED drive power supply to play a role in heat dissipation, moisture proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equipped with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

glue dispenser machine robot

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

ModelSEC-1880GL
Suitable element1810 series-3313 series
Material width330mm(MAX)
Core pipe loadingAutomatic
UnloadingAutomatic
Working range1300mm(X)*500mm(Y)*100mm(Z)
Mixing methodDynamic mixing, fast, and cleanable
Max speed0-500mm/sec
Welding methodUltrasonic welding
Resolution0.01mm
Dispensing controlStepper motor + gear pump servo motor + ceramic piston pump
Repeat accuracy±0.025mm
Movement controlPC + motion control, PLC
Mixing ratio1:1-5:1; adjustable numeric number
RO Material roll diameterØ40-90mm

Main configuration:

DescriptionUnitQTYNote
Driving motorSet5Servo motor
Carrier membrane feeding systemSet1Magnetic control + Air expansion shaft
Ultrasonic weldingSet1Second original
Guide railSet5Taiwan TBI, Hiwin
Industrial computerSet1Second Original
MonitorUnit1Dell
PLC touchscreenSet1PLC, Weinview
Movement controlSet1Second Original
CylinderSet2SMC
