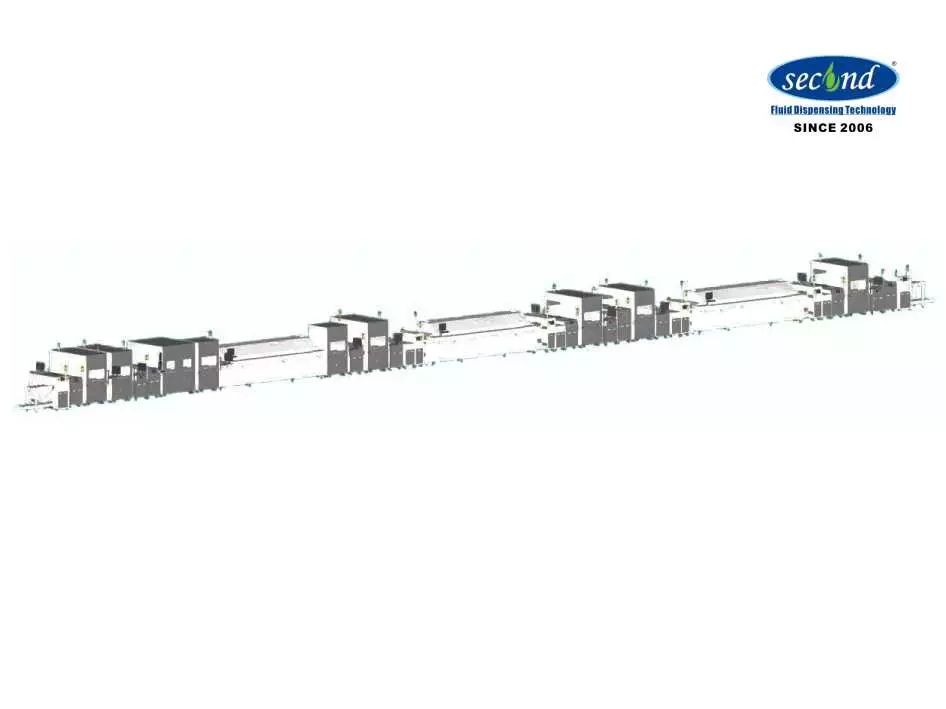

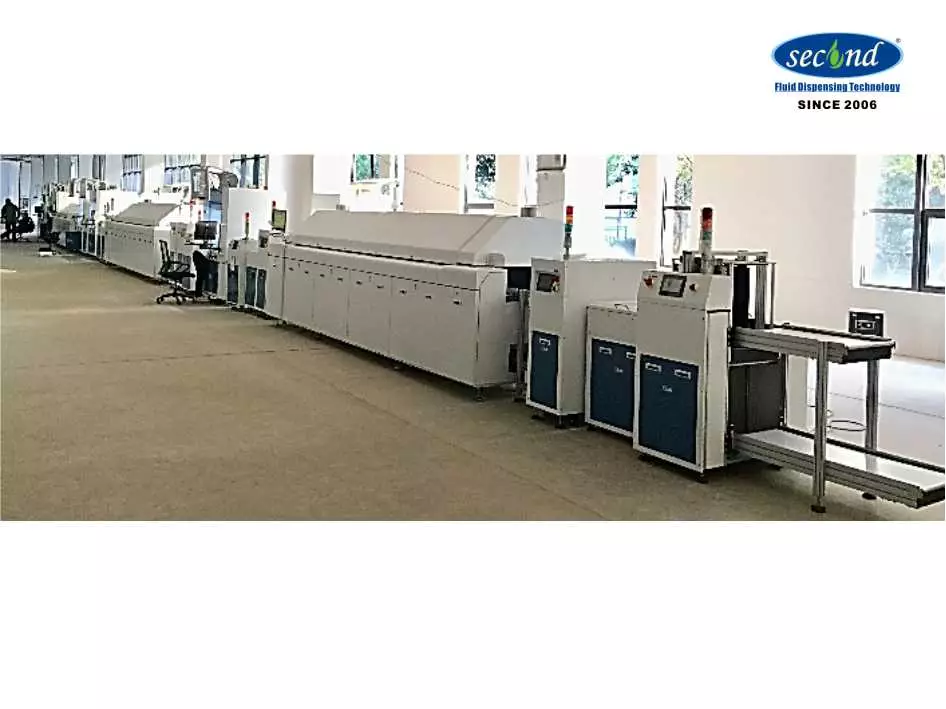

Fully automatic graphite bipolar plate dispensing, bonding, & gaskets forming production line - SEC-H500-BP - Second with Many Kinds of Robot Dispensers| Second Intelligent

Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

Welcome & accept capacity customization and different process combinations.
Conveying system: realize the functional equipment of product in and out.

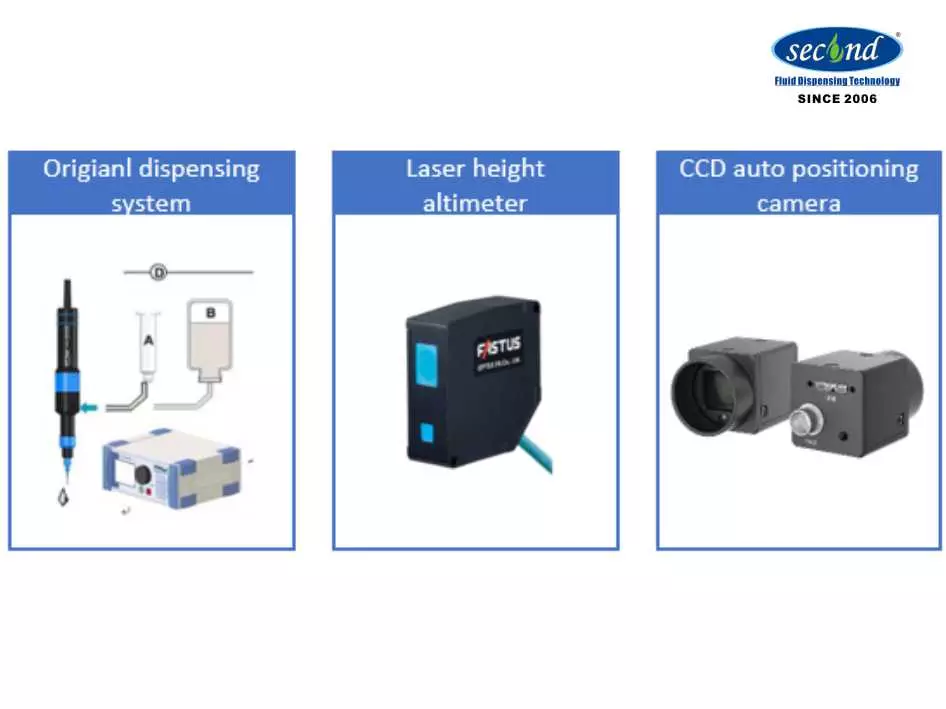

Dispensing system: equips with full functions of high precise dispensing machine.
Glue-break detection system: auto check whether the gasket rim/line has a break point after dispensing.
Lamination system: realize the lamination of cathode and anode plates.
Pressurization system: apply a certain pressure to the cathode and anode plates in the fixture to realize the complete fit of the veneer automatically.
Curing system: provide water field bonding and curing, airtight sealant gaskets curing.
Automatic gasket profiling inspection system: scans the width and height of the gaskets, and can perform random inspection and full inspection.
Sorting and collecting system: sort out the ACCEPTED or REJECTED bipolar plates, and collect them into the racks automatically.
Smart information management system can realize the transmission and automatic storage of process data such as movement, glue supply and dispensing, compatible with MES system and CIM system data communication, and supports one-key backup.

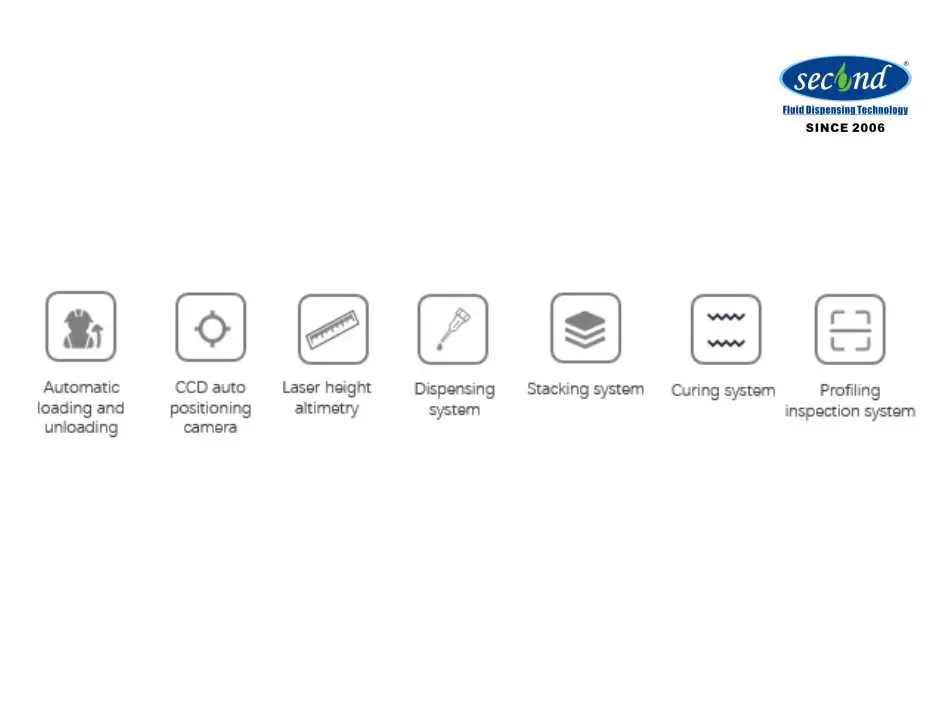

Main functions

Conveying system
Dispensing system
Automatic glue-break inspection system
Automatic plates fitting system
Plates boding and pressurized systems
Material curing systems
Gaskets auto profiling inpsection system
Auto plates sorting and collecting systems
Smart information management system

Optional functions：

Barcode scan and record systems
Gaskets air-tightness testing system

Specification

Model	SEC-H500-BP
Applicable product range	500(X)╳300(Y) ╳5(Z)mm
Cycle time (per plate)	≤20s/PCS
Temperature control accuracy	±1℃（option）
Glue-break detection accuracy	≤0.3mm
Fitting accuracy	≤±0.05mm
Pressurized range	0-3000Kg
Curing temperature range	Room temperature - 200℃
Temperature control accuracy	±1℃
Curing time	30-120min
Gasket inspection accuracy	Random checking：±0.01mm Full checking：±0.05mm
Operating system	Windows7+PLC
Power supply	AC220V，50-60HZ 280Kw
Machine footprint	L9000╳W4600╳H2000mm
Working environment	Humidity：20-90%， Temperature: 0-40℃

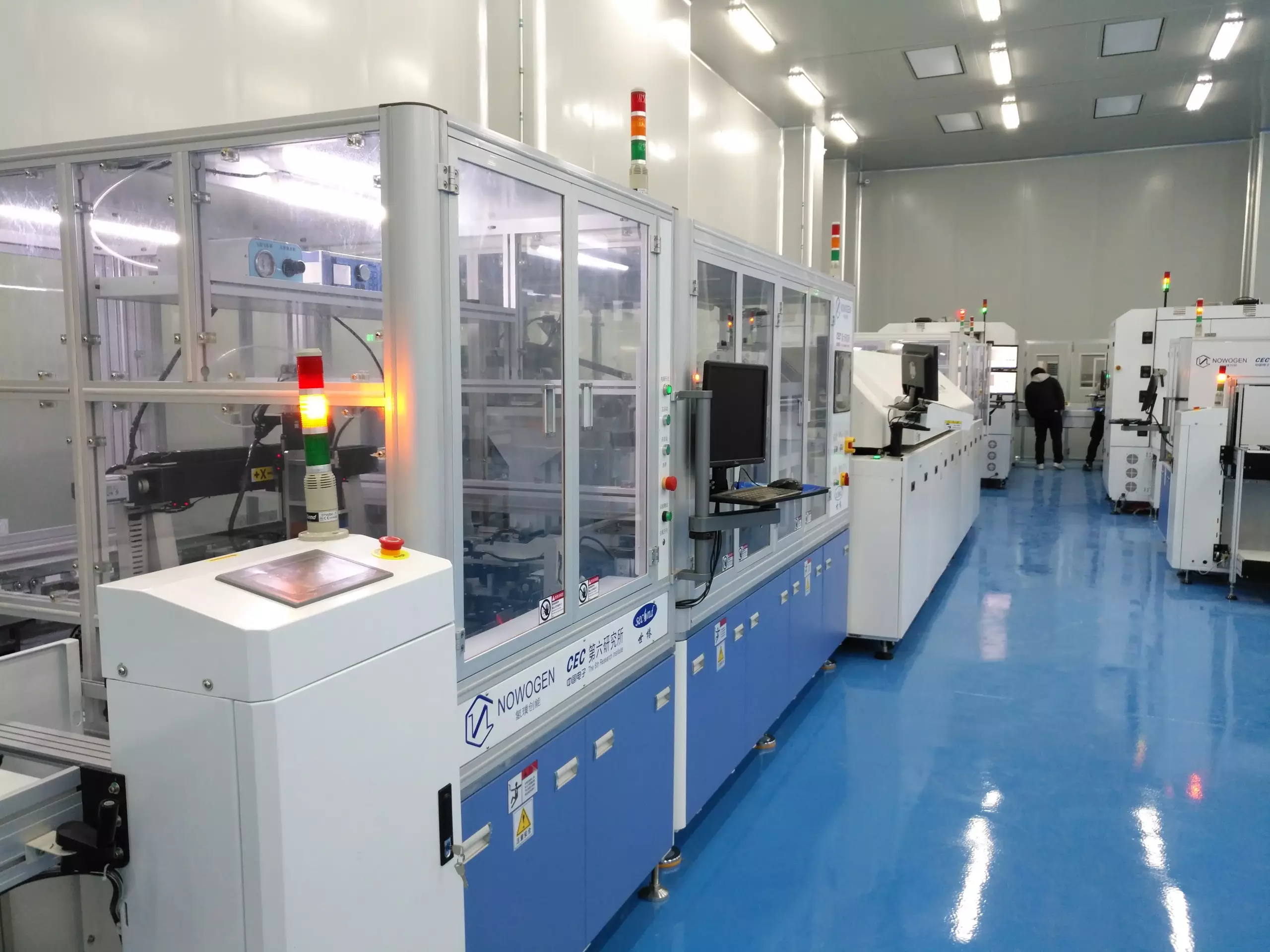

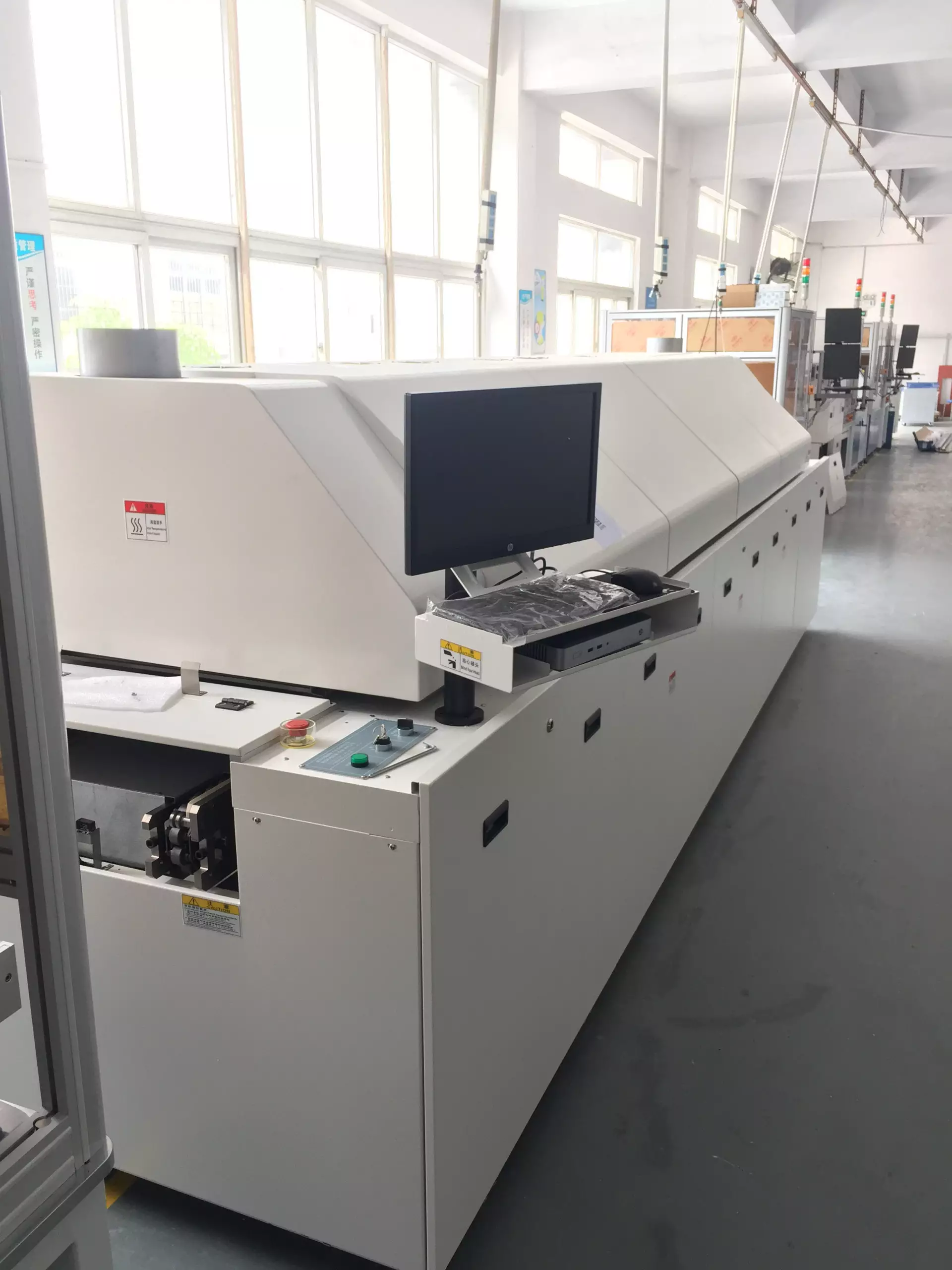

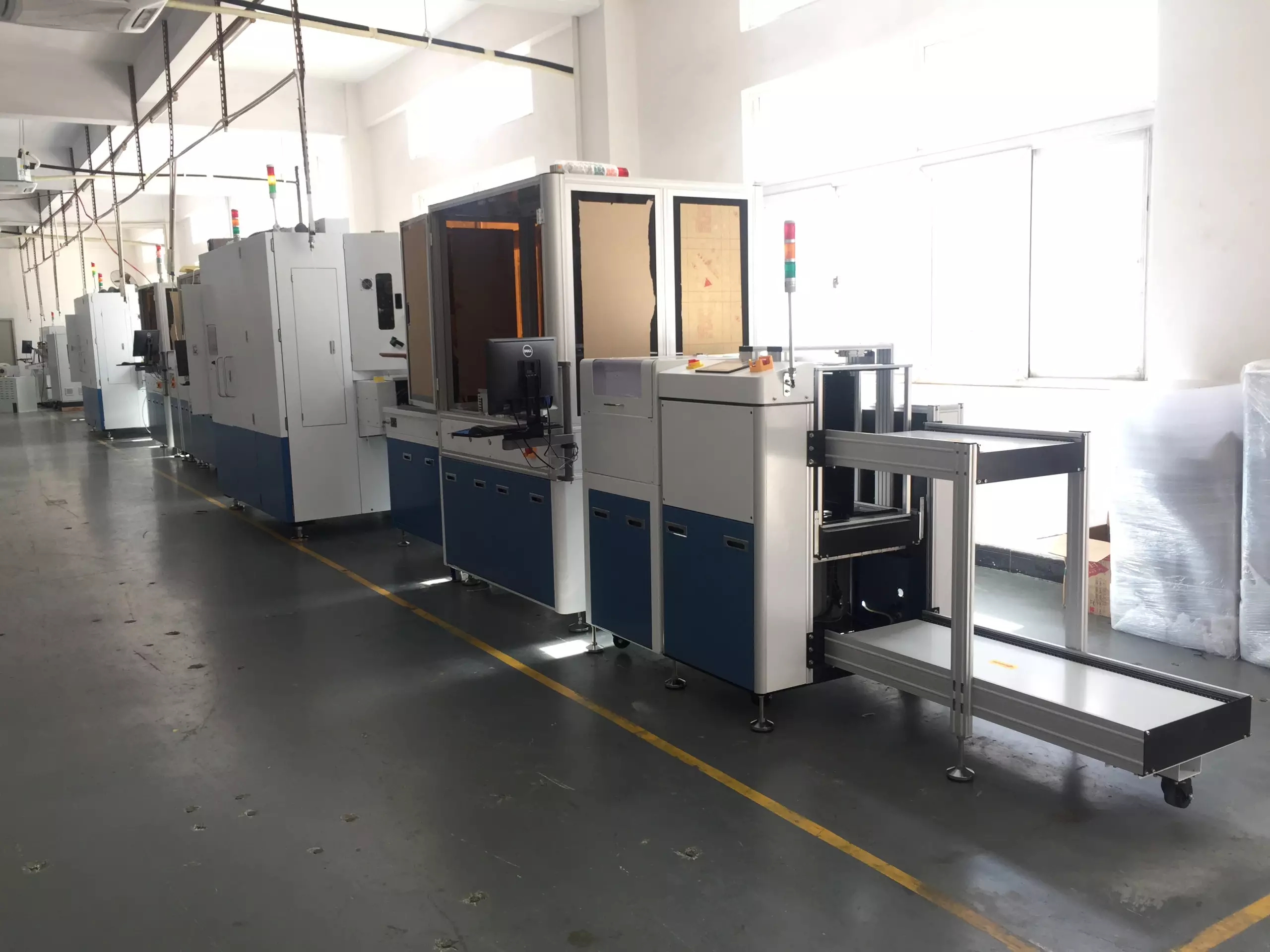

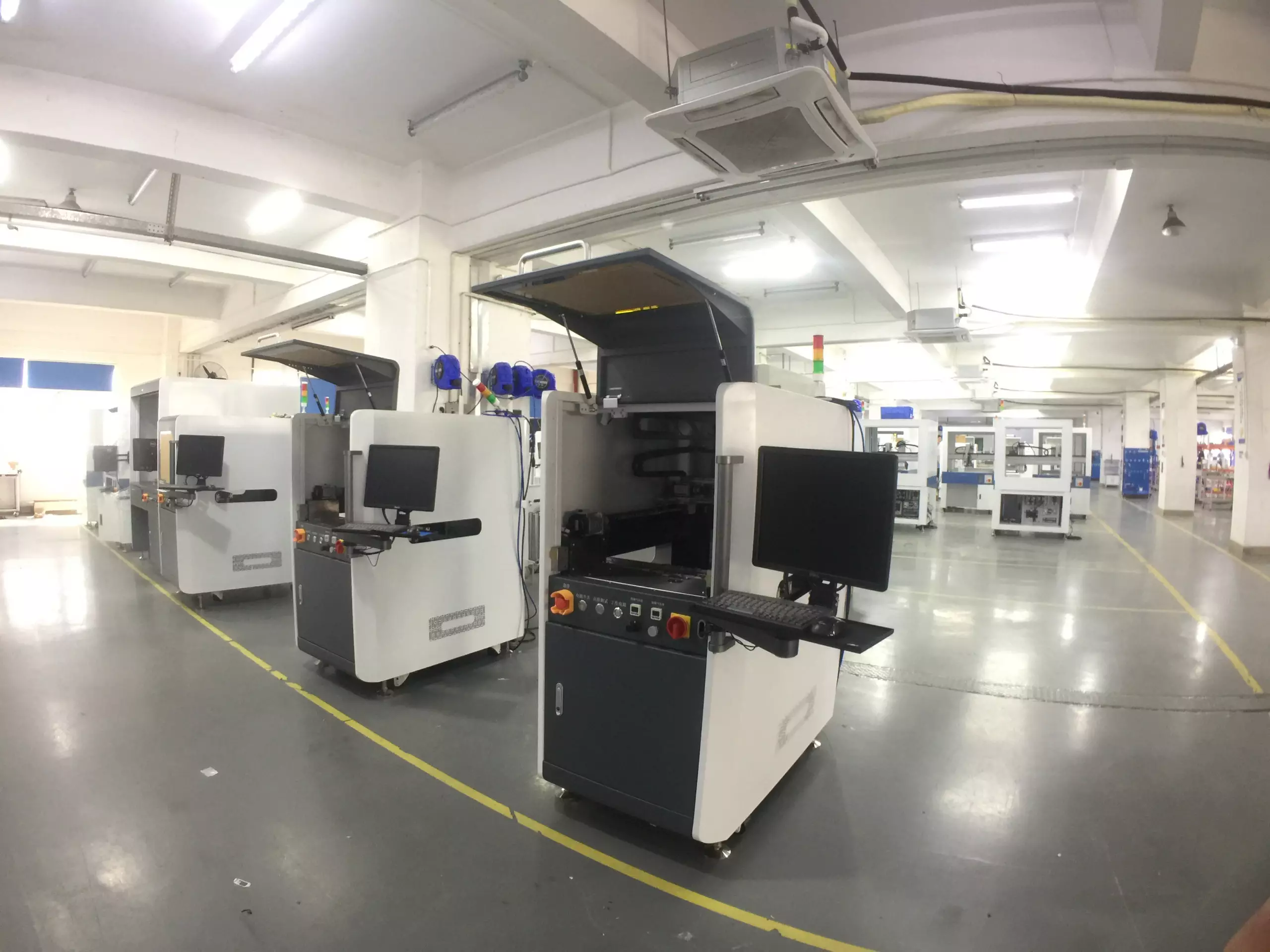

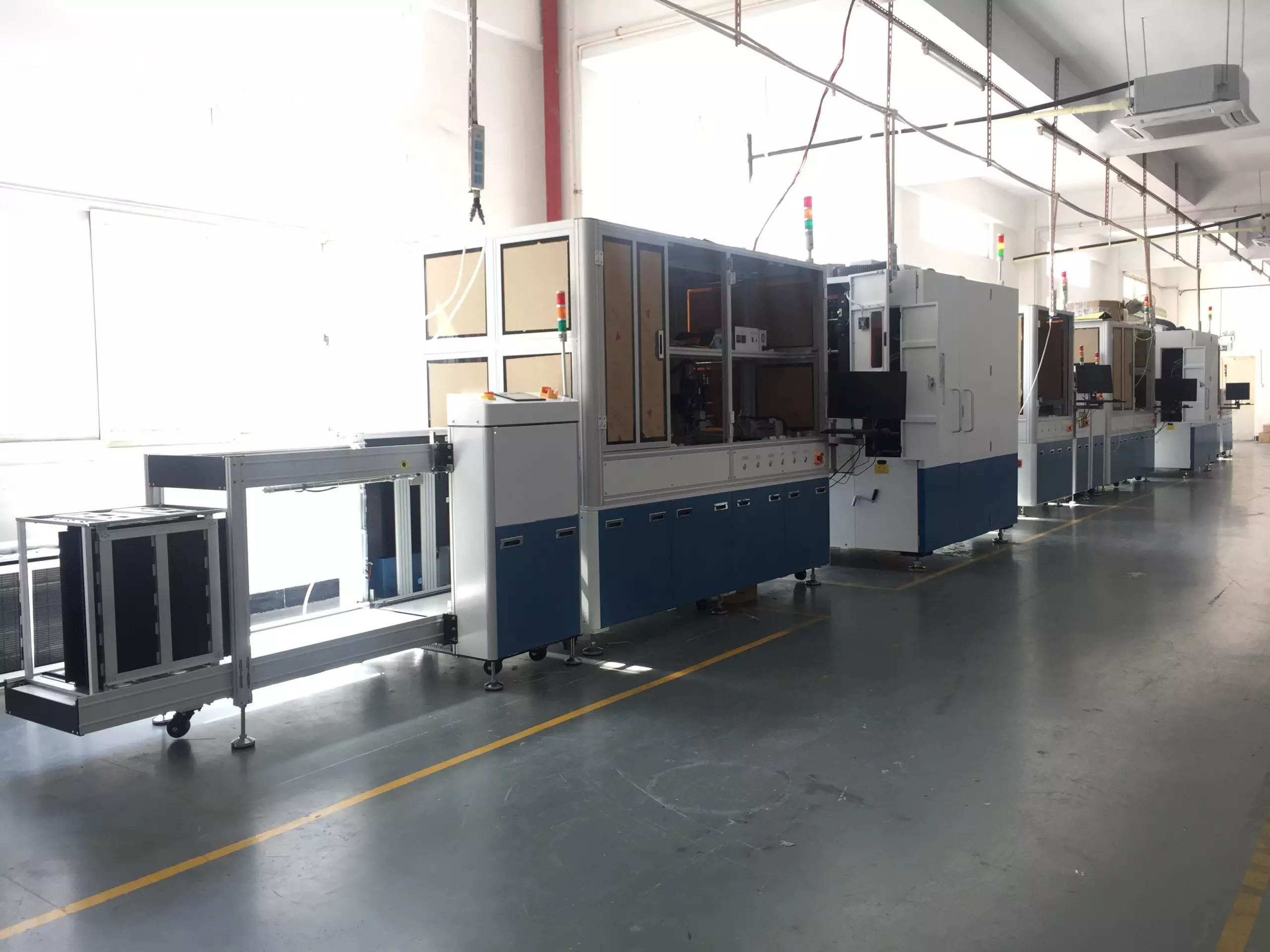

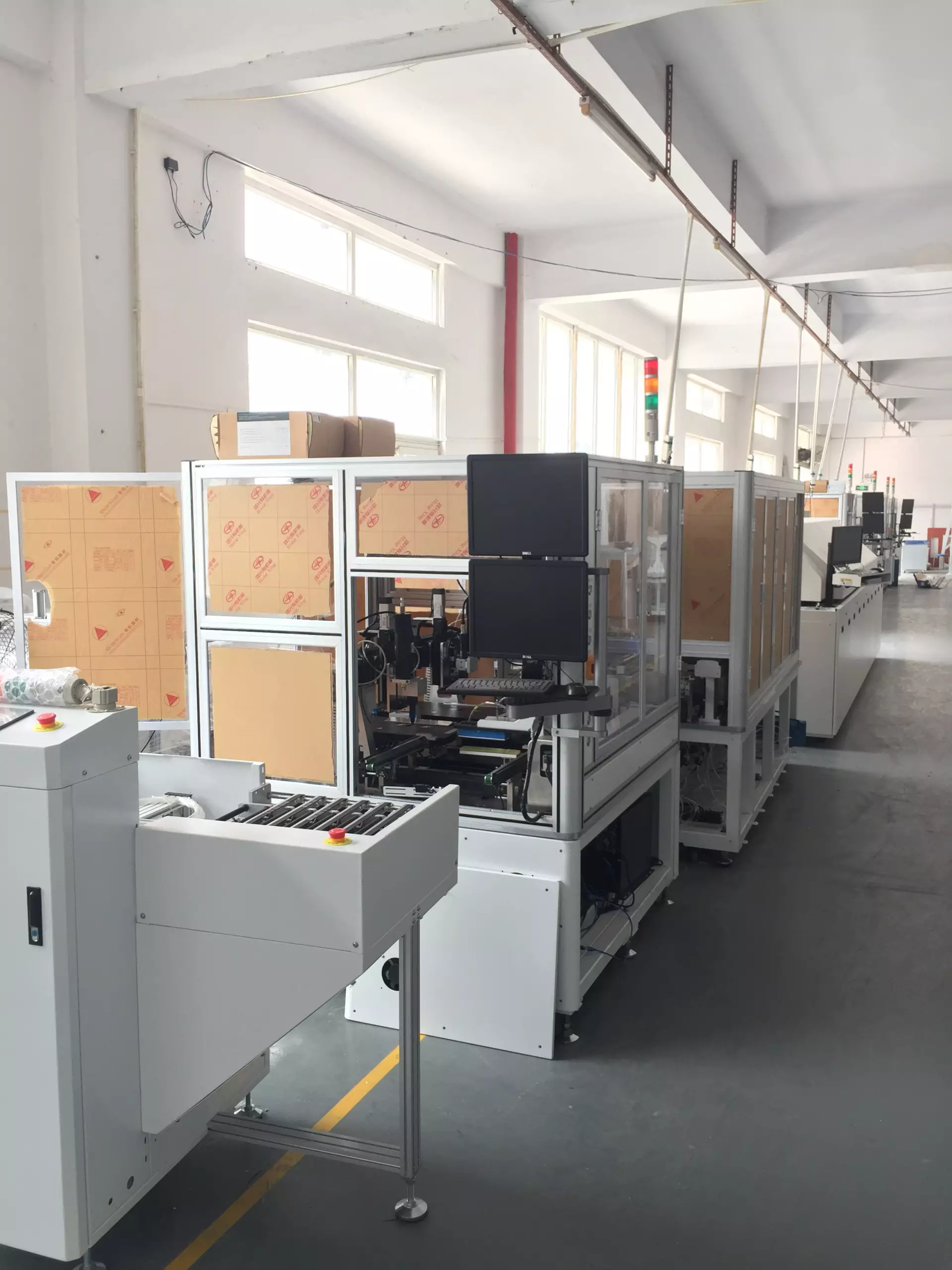

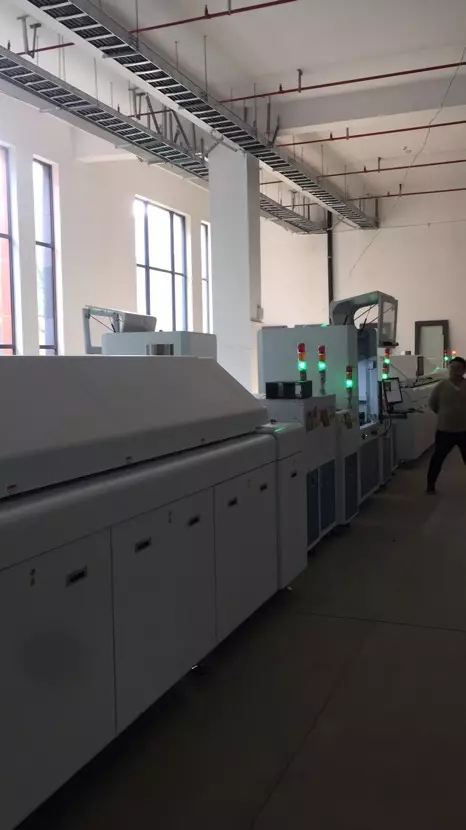

PEM H2 fuel cell battery fabricating machine 1

Supportive dispensing systems

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.

MANUFACTURING

LED Drive Power

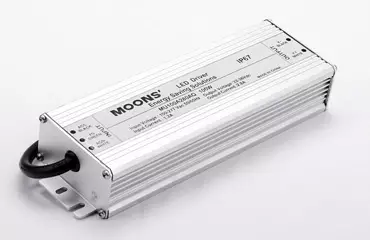

The SECOND glue potting equipment is used in the LED drive power supply to play a role in heat dissipation, moisture proof, waterproof, and flame retardant.
