PRODUCT DETAILS

DH Series Cantilever In-Line Dispensing Platforms
• Large stroke dispensing for large product length and width
• Powerful expansion capabilities for ion cleaning, dispensing, testing
UV exposure, etc.
• Powerful feature Rich Configuration • Smart
• Wide range of application


•Square welding frame + sheet metal shell, the table top is paved with one-piece steel plate, all mounting
surfaces are precision machined to ensure precision and better stability at the same time.
•The cantilever structure is suitable for products with higher aspect ratio, which can ensure the precision and
stability of the robotic arm at the same time to meet the large stroke.
•Powerful vision positioning system, can meet the Mark positioning, gripping edge positioning, 3D scanning
positioning.
•Strong expandability, can extend the AOI inspection 3D inspection, UV exposure curing and other functions.
•Powerful platform compatibility, contact and non-contact dispensing, to meet the different products and
processes of dispensing operations.




| Model | SEC-DH940LX | SEC-DH1040LX | SEC-DH1240LX | |
| Robotic arm structure | Cantilevered Upper gantry structure | |||
| Platform structure | Square pass + steel plate welding | |||
| Dispensing range | X900/Y400/Z100 mm | X1000/Y400/Z100 mm | X1200/Y400/Z100 mm | |
| Machine dimensions | L1500 x W1150x H1600 mm | L1600 x W1150x H1600 mm | L1800 x W1150x H1600 mm | |
| Maximum load | Z5kg | |||
| transmission method | Servo Motor + leading Screw | |||
| / Linear Motor Modules(Optiional) | ||||
| Max travel speed | Ball Screw:X/Y800,Z200 mm/s Linear motor:X/Y1500,Z200mm/s | |||
| Maximum acceleration | 0.8G/1.0G | |||
| Conveyor rail | Standard single rail, optional double rail / Motorized width adjustment (automatic) / PVC belt conveyor, nylon chain / speed multiplier chain Conveyor | |||
| Standard single conveyor, optional multi-stage conveyor / optional rail section heating | ||||
| Rail weight | Belt:3kg,miniature speed doubler chain 10kg above | |||
| Track parameters | Height above ground:900mm ±20mm, Conveying speed:Max 300mm/s | |||
| Positioning accuracy | Ball Screw:±0.01mm , Linear motor:±0.005mm | |||
| Visua system | German HD digital camera | |||
| Light source | LED red / blue / white ,Coaxial light source | |||
| Operating system | Win7 and above | |||
| Control system | Second Fluent | |||
| host computer communication protocol | SMEMA | |||
| Power input | AC220V 50/60Hz 2.5kw | |||
| Working environment | Relative humidity 20-90%, temperature 0-40℃ | |||
| Machine weight | 500-700kg (est.) | 700-900kg (est.) | 900-1000kg (est.) | |
Platform optional function configuration :
Basic configuration:






Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.

Floor-standing platform performance:
● CCD visual programming precise positioning, visual correction, improve programming efficiency and dispensing accuracy;
● Chinese and English operating system, clear software interface layout, simple operation, easy to learn and understand;
● Support visual inspection, integrated control of dispensing and visual inspection, one machine for multiple uses, effectively control dispensing yield;
● Can be equipped with a line laser scanner for 3D path guidance to achieve flexible dispensing;

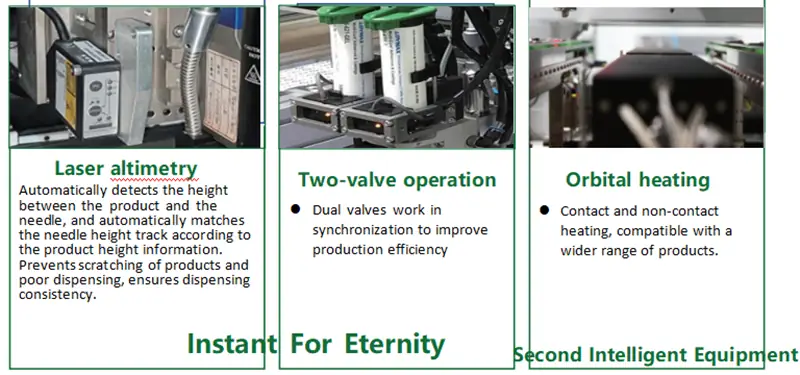

● The software can support a variety of dispensing systems and functional module applications, such as automatic needle alignment, automatic height measurement, dispensing weighing compensation, five-axis linkage and other functions,
effectively overcome the difficulties of various dispensing processes and help improve dispensing quality;
This machine is suitable for UV-packaging, hot melt adhesive dispensing robot bonding, epoxy bottom filling (underfill) and other precision dispensing processes.

Performance:
Precision Dual Y Platform
● Provides greater flexibility
● Alternating operations for higher productivity
● Powerful application expansion module for wider application
● Expandable dual Y dual rotary to realize six-axis alternate
dispensing function
Material ref.:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

DH Series Cantilever In-Line Automated Dispensing Systems Platforms:
● Large stroke dispensing for large product length and width
● Powerful expansion capabilities for ion cleaning, dispensing, testing UV exposure, etc.
● Powerful feature
● Rich Configuration
● Smart
● Wide range of application

This machine is used in solder paste dispensing, semiconductor IC packaging, bottom filling and other processes.
With this steup, in one machine, it can provide multiple functions, such as plasma treatment before dispensing; or UV curing after dispensing. It is suitable for high capacity UPH production, one operator can handle two stations efficiently and effectively.
