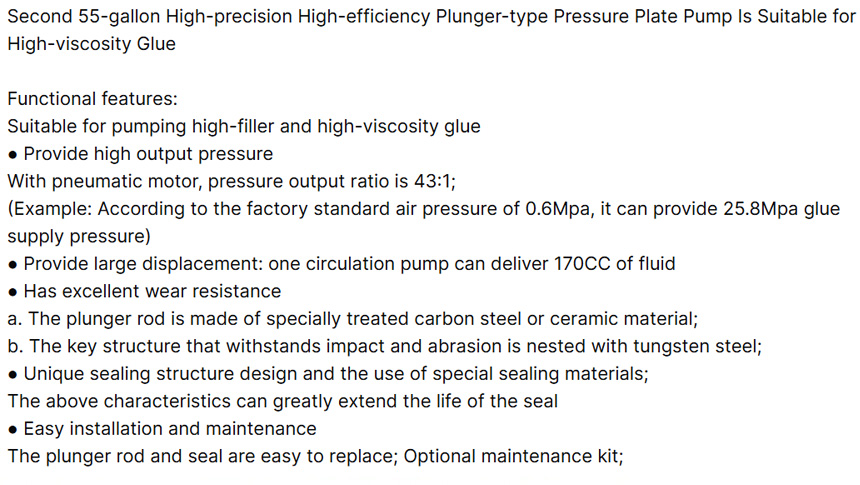

Functional features:

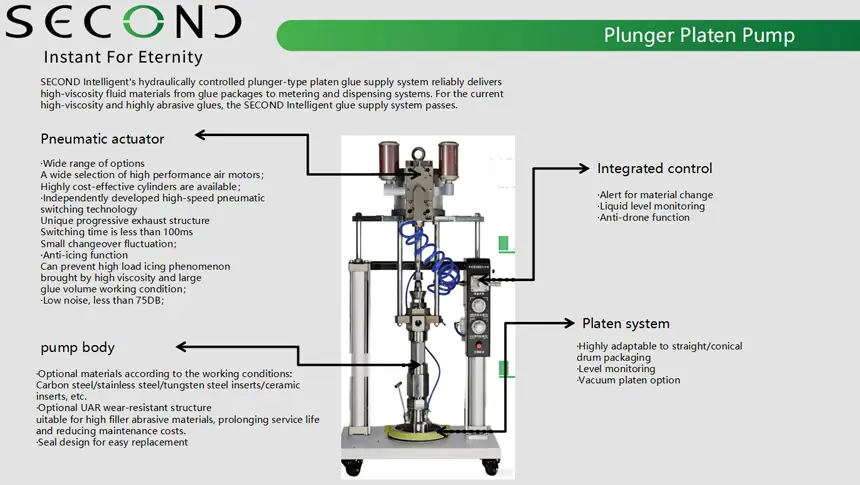

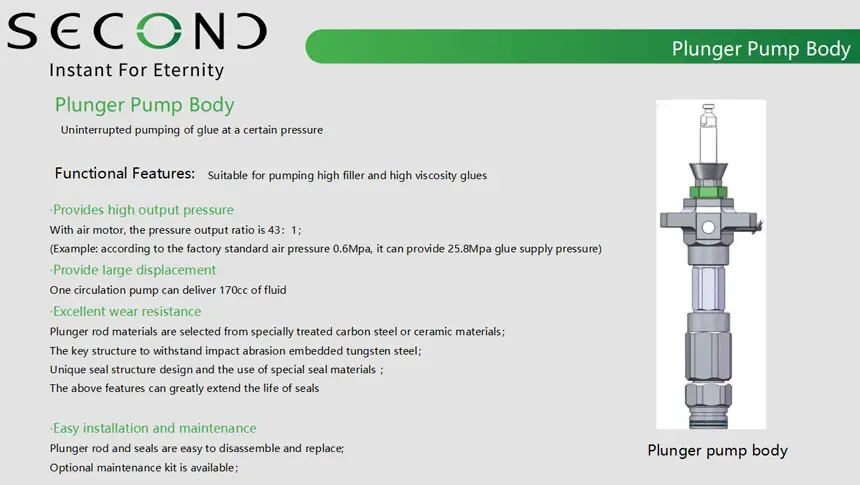

Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;

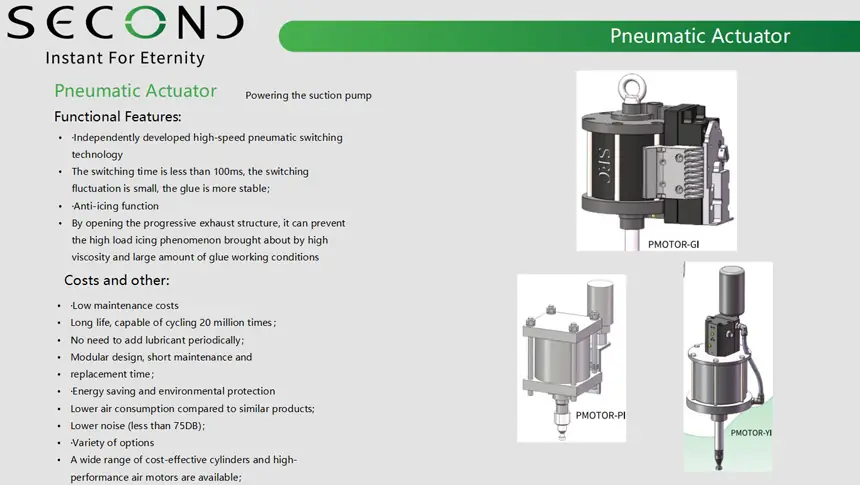

● Proven SECOND motor allows for compact and lightweight design
● Longer product lifecycle due to diamond-like carbon coating and improved rid and piston designs
● Simple and user-friendly control panel
Typical Fluids Handled:
● Thermal Interface Materials
● Silicon
● Colorants
● Grease
● Ink
● Adhesives

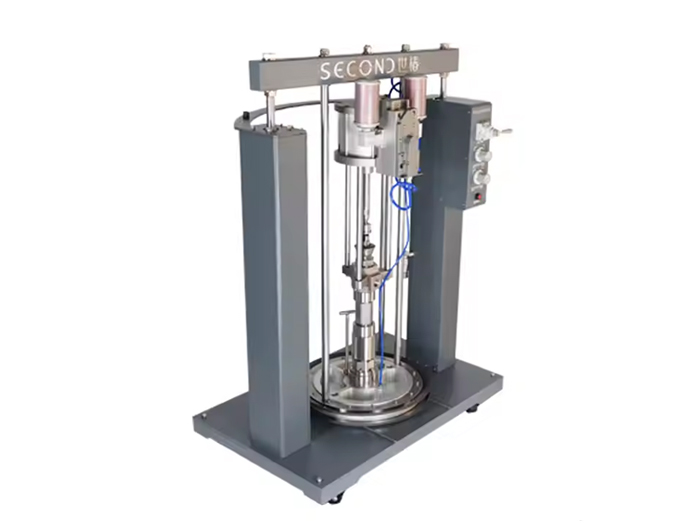

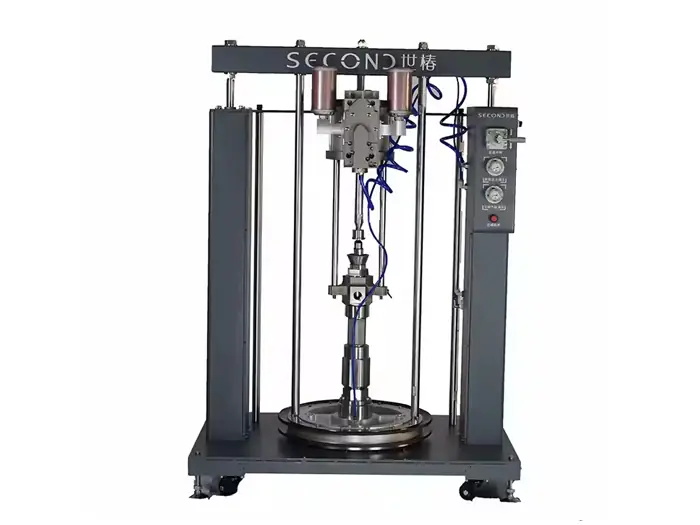

Plunger Platen Pump Selection Chart
Item | Parameter | |||
Glue Package | 5 Gallon | 55 Gallon | ||
Model | B-Z301 | B-Z402 | B-Z601 | B-Z602 |
Drive method | Air Cylinder | Air Motor | Air Motor | |
Pump Body Support | Double Column Cylinder | Double Column Cylinder | ||
Pump Body Type | Carbon Steel Pump | Wear Resistant Pump | Carbon Steel Pump | Wear Resistant Pump |
Applicable Glue Viscosity | 50000-1000000 CPS | |||
Bucket inner diameter size | 284~288mm | 564~589mm | ||
Glue Discharge | 170CC/cycle | |||
Booster Ratio | 43:1 | |||
Maximum Pump Speed | 30 Cycle/min | |||
Fluid Output Pressure | ≤28Mpa | |||
Pump Body Operating Temperature | <80℃ | |||
Item | Parameter | |||
Model | B-Z301 | B-Z402 | B-Z601 | B-Z602 |
Displacement Rod Material | Stainless Steel | Ceramic | Stainless Steel | Ceramic |
Piston Cylinder Material | Stainless Steel | Ceramic | Stainless Steel | Ceramic |
Pressure Plate Seal Material | Fluoroelastomer | |||
Cutting Valve Material | Carbon Steel | Tungsten Steel | Carbon Steel | Tungsten Steel |
Operating Air Pressure | 0.2~0.7Mpa | |||
Glue Discharge Thread Specification | NPT1 | |||
Mode of Operation | Pneumatic+Electric | Control Pneumatic | ||
Equipment Dimensions | 750*500*1535 | 750*500*1535 | 1220*770*1669 | 1220*770*1669 |
(L*W*H)mm | (L*W*H)mm | (L*W*H)mm | (L*W*H)mm | |
Gross Equipment Weight | Approx.220kg | Approx.220kg | Approx.320kg | Approx.320kg |
Wear Resistant Pumps Available as Option | ✔ | / | ✔ | / |
Typical Markets:
● Automotive Electronics
● Telecommunication Electronics
● Consumer Electronics
Its application areas include:
● Photovoltaic
● Automotive
● 3C Electronics,
● Automotive Electronics
● Aerospace
● Rail transport
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
