Features:
1. Used for fluid metering and shut-off action in the flow channel, with a firing pin type shut-off glue.
2. Suitable for low and medium viscosity fluids.
3. High precision glue volume control.
4. Mechanical volume control.
5. Rich optional configuration.
Application:
● Bottom Filling ● Surround Dam Filling ● Bezel Bonding & Sealing
● Chip Binding ● Pin Encapsulation ● Precision Coating
● Adopting the latest pneumatic injection, high speed and long life.
● Realizes precise non-contact injection dispensing operation.
● High speed, the maximum injection speed up to 200 points /SSpray volume can be accurate to 0.05UL
● spray dispensingconsistency accuracy up to 99%.
● Both runner and nozzle can be heated, and the temperaturedistribution is uniform.
● Air-cooled valve body cooling greatly improves performance and
life expectancy
● Modular design for flexible installation, easy disassembly andcleaning.
● Can be integrated with the dispensing system control, debuggingand modification of
parameters is convenient
● 3C Electronics ● 5G Communication
● Mobile Terminal ● Automotive Electronics
● New Energy Battery
● Display ● Smart Home Security
● Power LED ● SMT
● RTV silicone glue ● UV adhesive ● Epoxy
● Hot melt glue ● Red adhesive ● Polypropylen e adhesive
● Polyurethane adhesive ● white adhesive ● Black glue
● Silver adhesive ● solder paste ● All kinds of adhesive

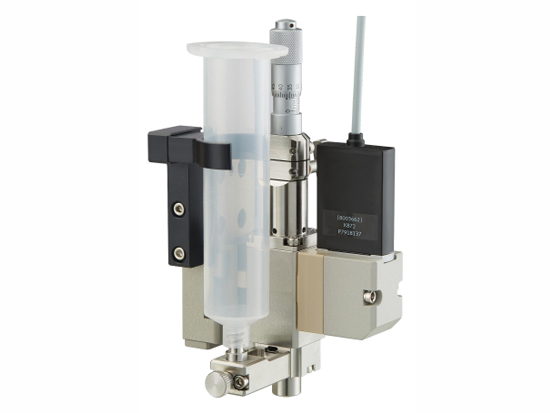

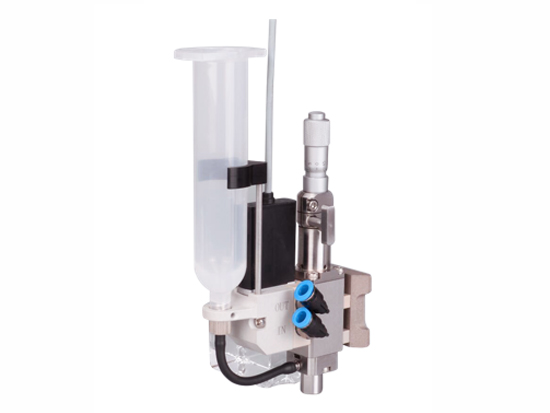

| Pneumatic injection valve technical parameters | |
| Liquid contact material | 304 stainless steel / special steel |
| Working frequency | 150Hz |
| Supply pressure | 0-3Bar |
| Liquid viscosity | 0-200000 |
| Minimum point warp | 0.3mm |
| Spray volume range | 2-200uL/per cycle |
| Nozzle type | One-piece nozzle; 0.003-0.5mm |
| Nozzle type | Extended nozzle：0.075-0.2mm |
| Cooling Air Pressure | 2-5Bar |
| Glue Packaging | 5-55cc Syringe Packaging |
| Packaging Details | wooden case or as your request |
| Supply Ability | 300 Set/Sets per Month |
| Quantity (sets) | 1 – 1 | 2 – 10 | > 10 |
| Lead time (days) | 16 | 30 | To be negotiated |
● Bottom Filling ● Surround Dam Filling ● Bezel Bonding & Sealing
● Chip Binding ● Pin Encapsulation ● Precision Coating
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

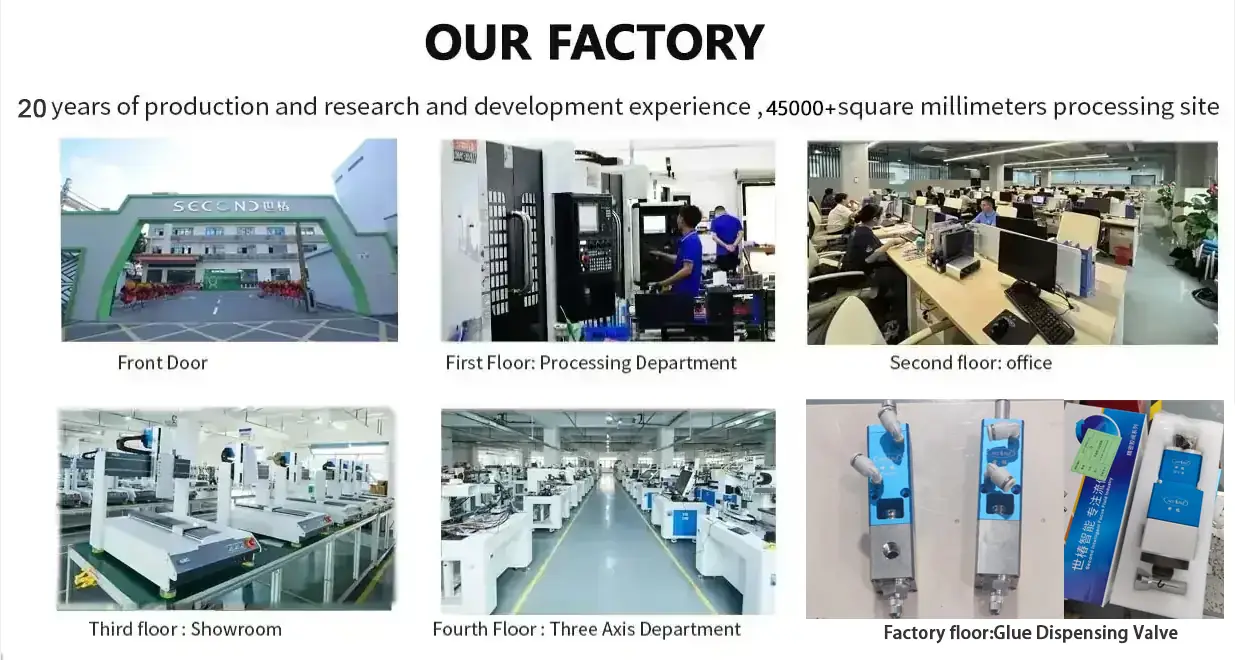

We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
Product Introduction: Double Liquid Dynamic Glue Dispensing Valve for Second AB 2K Two-Part Component Glue Potting Filling Machine Accessories
The Double Liquid Dynamic Glue Dispensing Valve is ideal for a wide range of applications, including but not limited to:
Electronics manufacturing
Automotive components
Aerospace parts
Medical devices
Precision machinery
Conclusion:
The Double Liquid Dynamic Glue Dispensing Valve for the Second AB 2K Two-Part Component Glue Potting Filling Machine is a must-have accessory for any manufacturer looking to improve the accuracy, consistency, and efficiency of their glue dispensing operations. With its precision dispensing, dynamic mixing, adjustable rate, durable construction, and easy integration, this valve is a true game-changer in the world of automated filling and dispensing.
Product Features:
Highly user-friendly, you can directly input the time quantitative value from the panel button, and you can increase or decrease it. When gluing, the display will jump from zero to the set time.
Product Parameters:
1. Microcomputer control
2. Timing time display 0.001 to 9.999
3. Repeatability 0.005 seconds
4. Learning TEACCH function
5. Non-disappearing time memory
6. Adjustable fluid pressure, 0 to 120 PSI (0 to 8.0KG)
7. One-year functional guarantee
Second piezoelectric jet valve
The FP series piezoelectric valve injection is a single-component volumetric metering valve. Its application scenarios are almost the same as those of pneumatic injection valves, but it uses piezoelectric drive. Compared with pneumatic injection valves , it has a higher dispensing rate and higher glue consistency, and can achieve a smaller amount of glue dispensing! It is widely used in a variety of high-precision dispensing occasions!
SEC-100TD standard included as below 6 parts.
Pressure Vessel Controller Automatic Glue Dispenser Controller
(please check and see if the below parts are fully received when machine is arrived)
● Main unit
● Syringe adaptor
● Syringe holder
● Ø6 Pneumatics tube
● Power cord
● Foot switch
