Features:

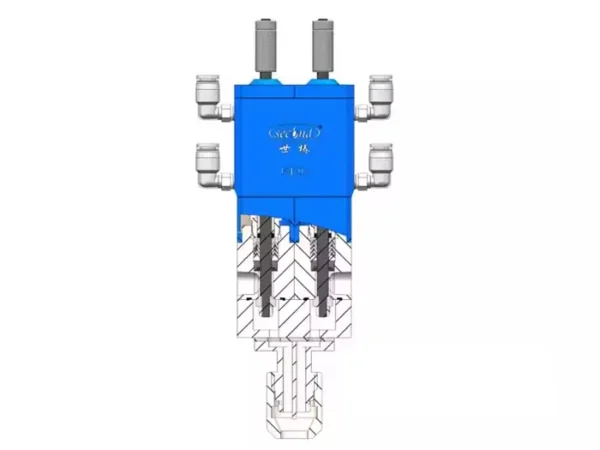

1. Acting on the switching and mixing of two-component fluids in the flow channel, adopting the pull-back type glue shut-off and static mixing.
2. Simultaneously control A, B liquid into the static mixing tube mixing.
3. Suitable for low, medium and high viscosity fluids, can withstand low and medium pressure glue supply.
4. It can be connected with various types of static mixing tubes and suitable for various forms of double-fluid dispensing equipment.
Specifications:
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 1.7 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | valve |
| Warranty | 1 Year |
| Applicable Industries | Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen |
| Brand Name | Second |

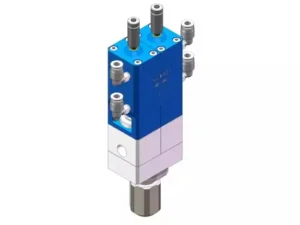

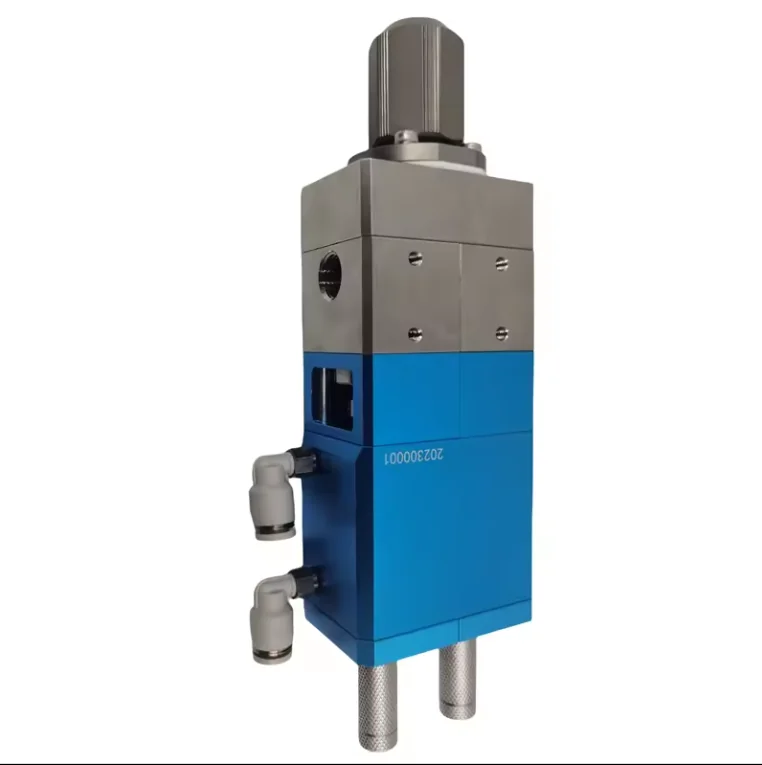

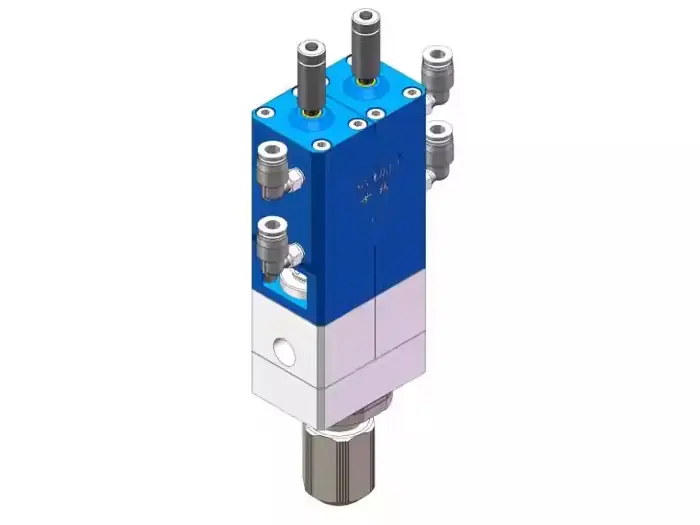

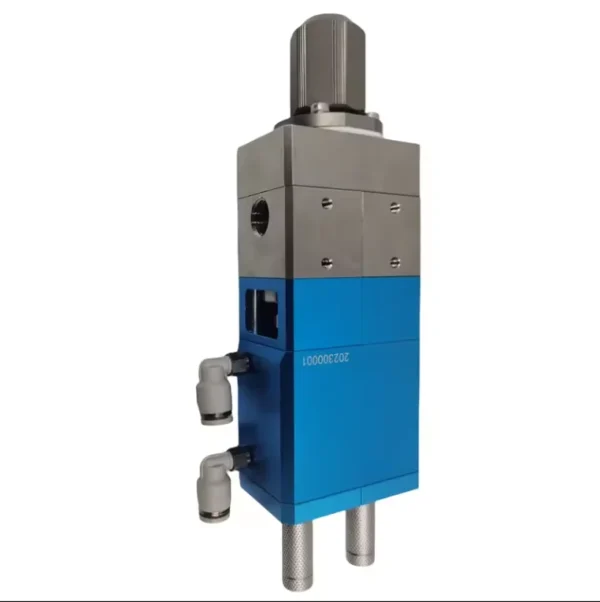

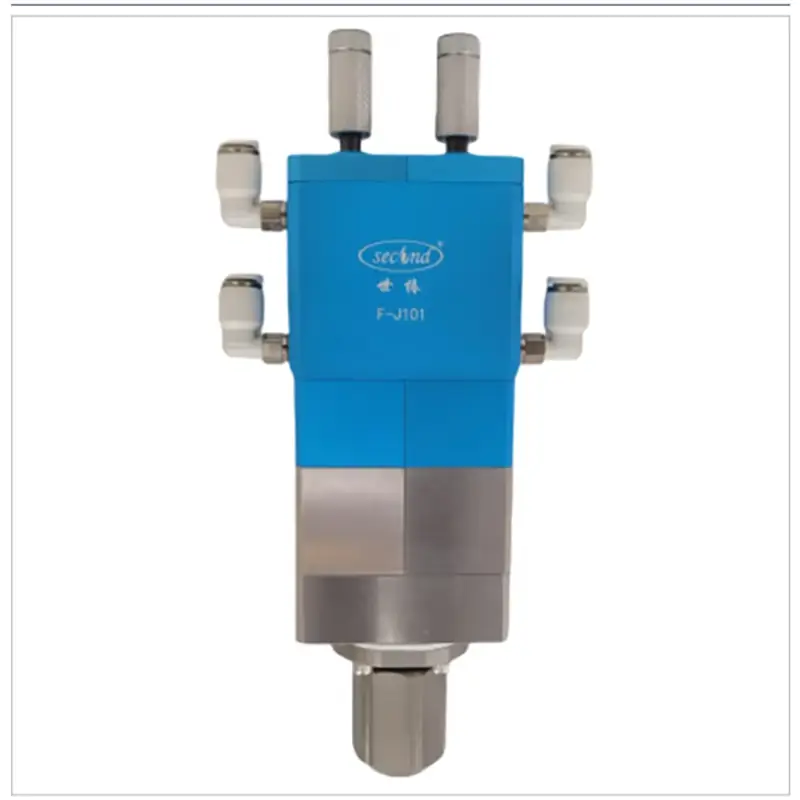

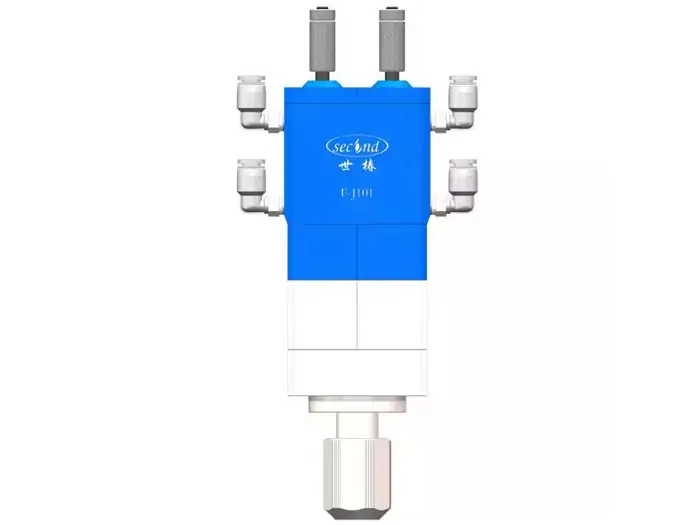

| Product name | Double liquid static glue dispensing valve |

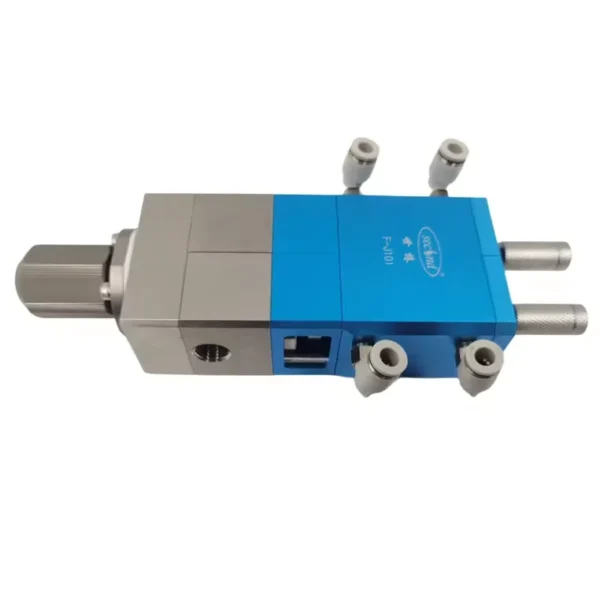

| Model | F-J101 |
| Driving mode | pneumatic |

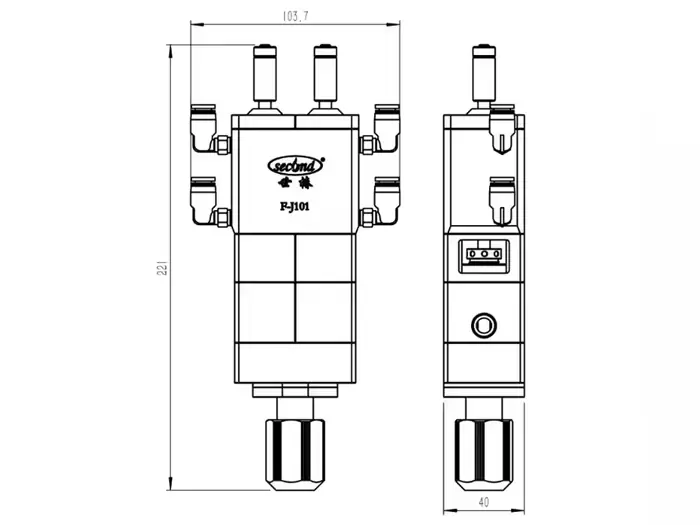

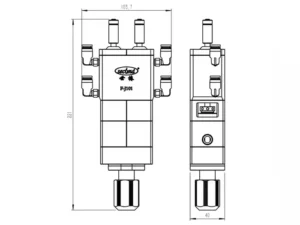

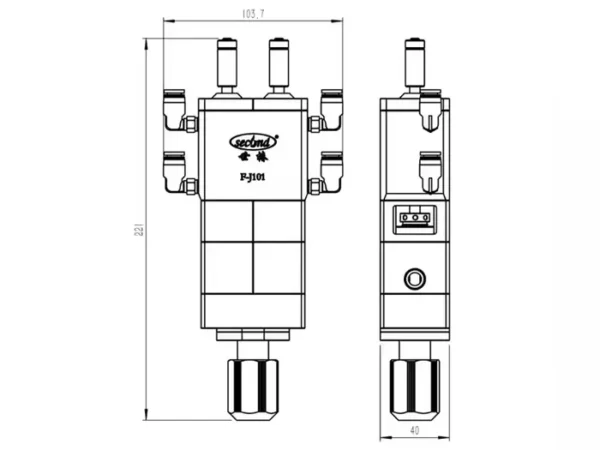

| Size | 33*33*190mm |
| Flow channel material | stainless steel |
| Stem material | stainless steel + heat treatment + plating/ceramic |
| Applicable glue viscosity | 0-100000cps |
| Seal material | NBR+PTFE+PA |
| Piston drive air pressure | 0.2~1Mpa |
| Injection pressure | ≤0.7Mpa |
| Packaging Details | wooden case or as your request |
| Supply Ability | 300 Set/Sets per Month |
| Quantity (sets) | 1 – 1 | 2 – 10 | > 10 |
| Lead time (days) | 16 | 30 | To be negotiated |
