Features:

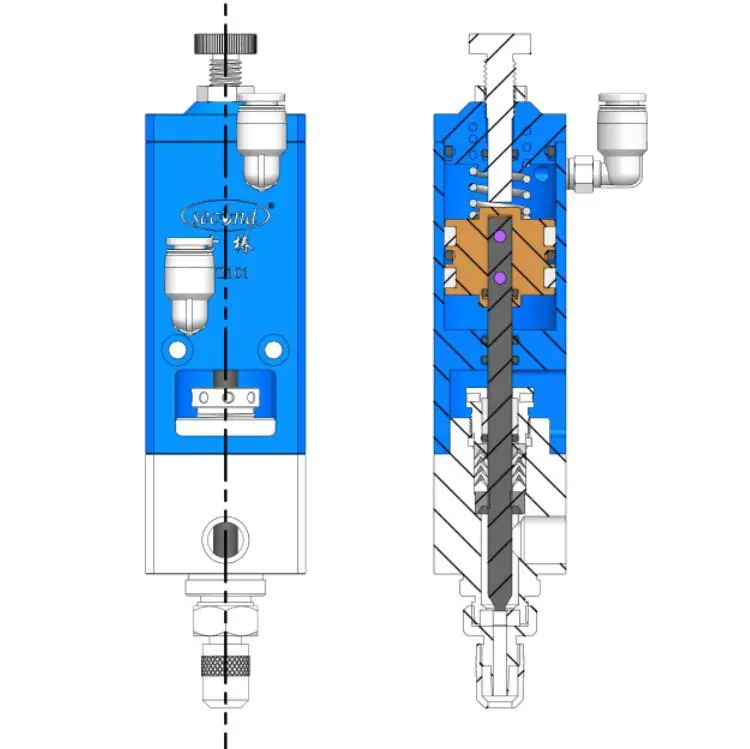

1. Acting on the switch of the fluid in the flow channel, impact type glue shut-off, stroke adjustable, glue shut-off quickly.
2. Suitable for low, medium and high viscosity fluids, can withstand high pressure glue supply.
3. A variety of flow rate can be selected to meet different efficiencies.
4. Stainless steel runner, compatible with many types of glue.
5. Compatible with plastic seat needles, stainless steel needles, TT angled needles and other specifications.
Specifications:
| Place of Origin | Shenzhen, China |
| Condition | New |
| Weight (KG) | 0.65 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | valve |
| Warranty | 1 Year |

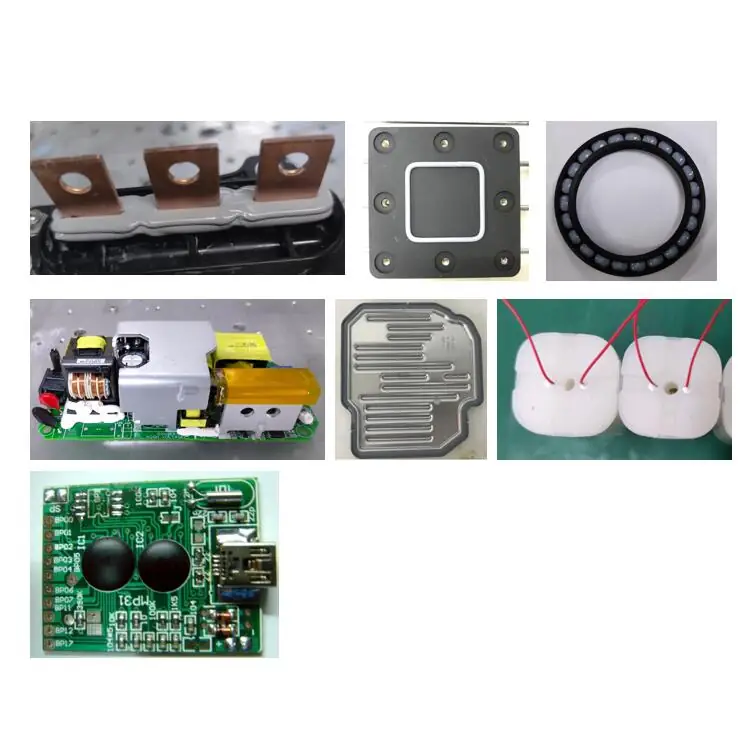

| Applicable Industries | Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen |
| Brand Name | Second |

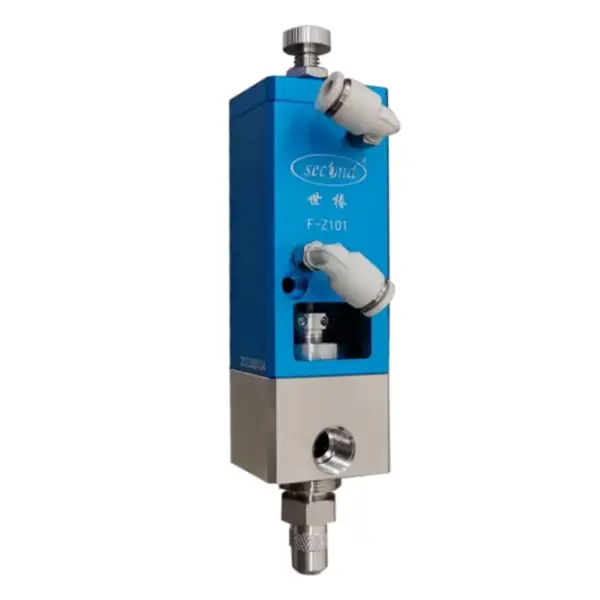

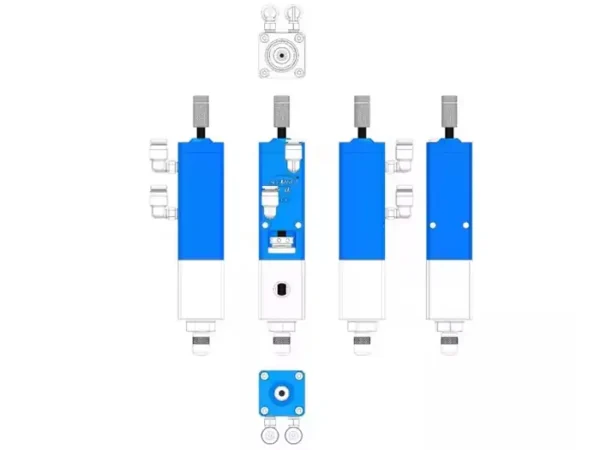

| Product name | Needle glue dispensing Valve |
| Model | F-Z101 |
| Driving mode | pneumatic |

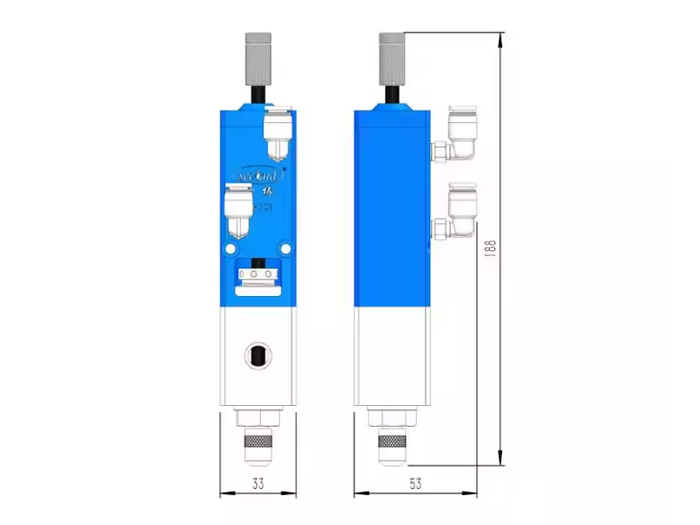

| Size | 40*33*165mm |
| Flow channel material | stainless steel |
| Stem material | stainless steel + heat treatment + plating |
| Applicable glue viscosity | 0-100000cps |
| Seal material | NBR+PTFE+PA |
| Piston drive air pressure | 0.3~1Mpa |
| Injection pressure | ≤20Mpa |
| Packaging Details | wooden case or as your request |
| Supply Ability | 300 Set/Sets per Month |
| Quantity (sets) | 1 – 1 | 2 – 10 | > 10 |
| Lead time (days) | 16 | 30 | To be negotiated |
