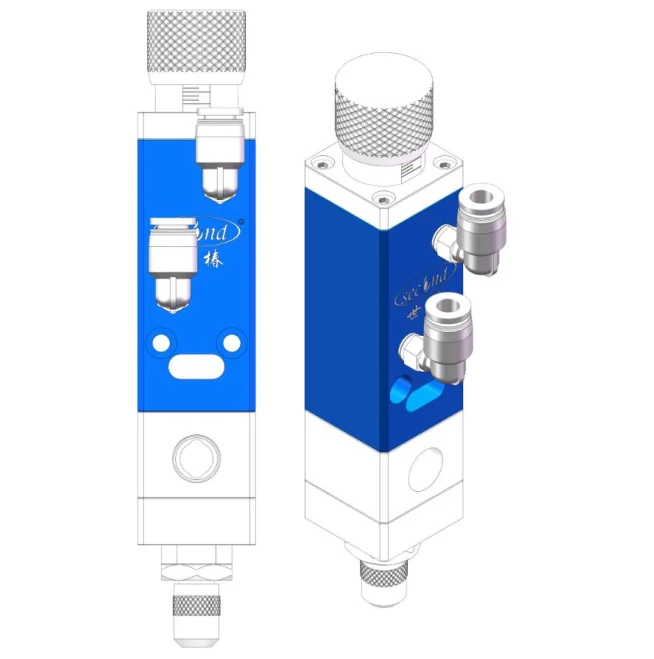

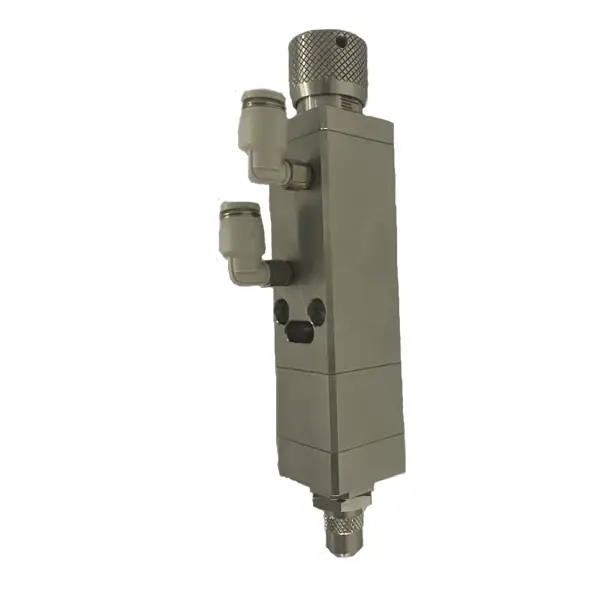

High-precision pneumatic stainless steel Pneumatic high pressure valve ( F-E102)

Features:

1. Acting on the switch of the fluid in the flow channel, pull back type off glue.

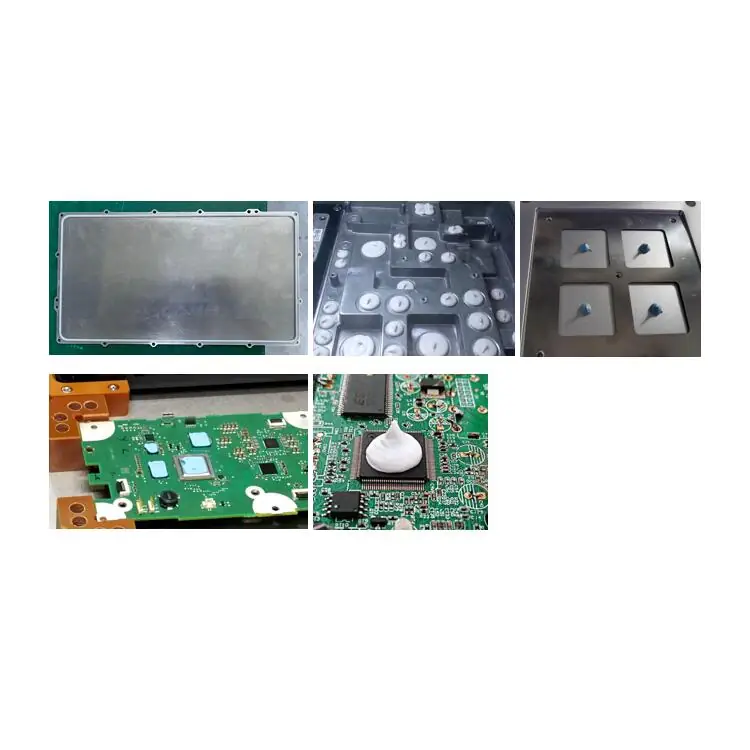

2. Suitable for medium and high viscosity heat-conducting paste fluids.
3. Valve spool adopts unique pressure balance structure design, can withstand high pressure glue supply.
4. Good glue consistency.
5. Compatible with plastic seat needles, stainless steel needles, TT angled needles and other specifications.

Description

Specifications:

ModelF-E102

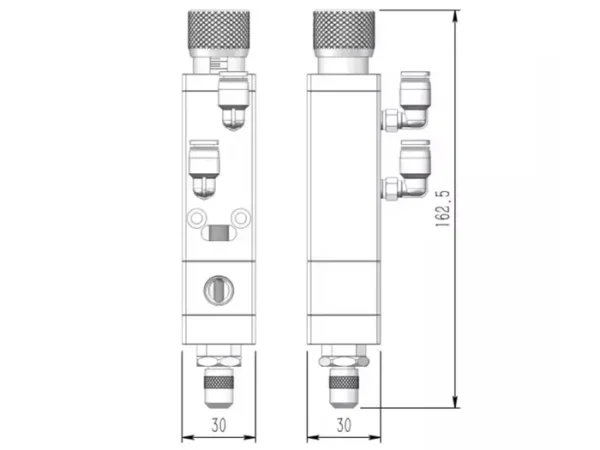

Dimensions30*30*163mm
Weight550g
Driving methodpneumatically
Caliber of glue feedRc1/4
Runner Stainless steel
Stem  materialtungsten steel
Applicable glue viscosity1000-1000000cps
 Seal materialNBR+PTFE
Piston Drive Air Pressure0.3~1Mpa
Inlet pressure≤12Mpa
Flow rate6.6L/min(Water/1Mpa)
Seal life≤80 million times(low-pressure, non-particulate glue)         ≤10 million times(High-pressure, particulate glue
Operation frequency≤12 time/s

Packaging and delivery

Packaging Detailswooden case or as your request

Supply Ability

Supply Ability300 Set/Sets per Month

Lead time

Quantity (sets)1 – 12 – 10> 10
Lead time (days)1630To be negotiated
