Features:
1. Used for fluid metering and shut-off action in the flow channel, with a firing pin type shut-off glue.
2. Suitable for low and medium viscosity fluids.
3. High precision glue volume control.
4. Mechanical volume control.
5. Rich optional configuration.
Specifications:
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 0.56 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | valve |
| Warranty | 1 Year |

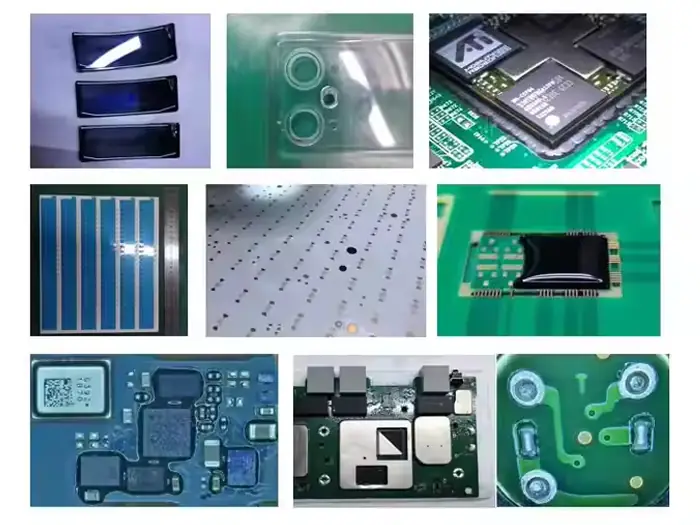

| Applicable Industries | Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen |
| Brand Name | Second |

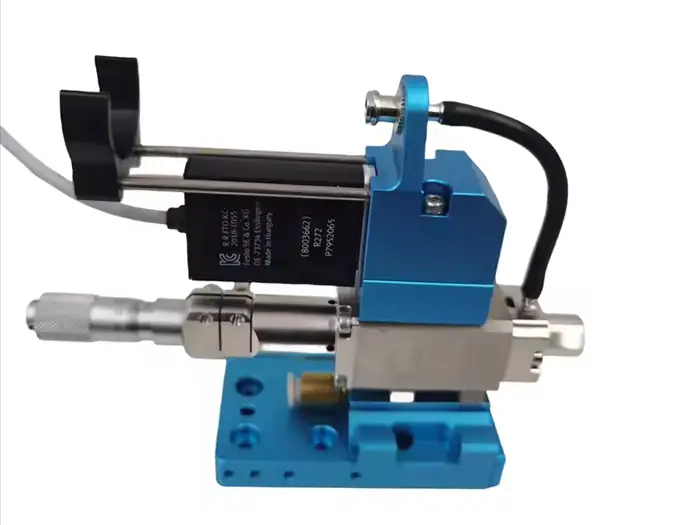

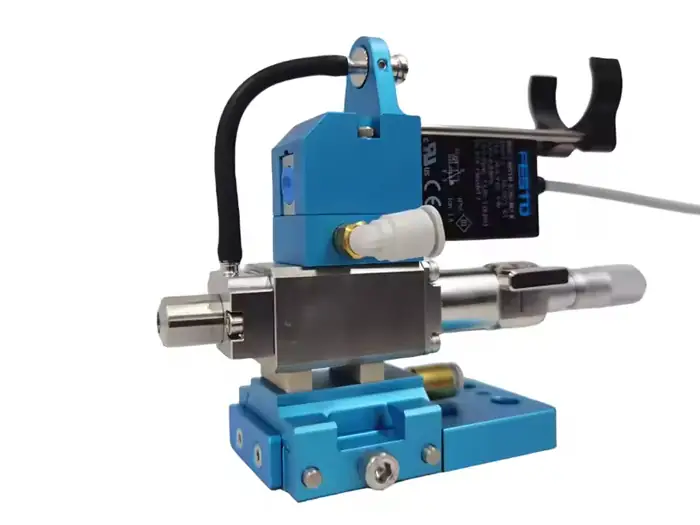

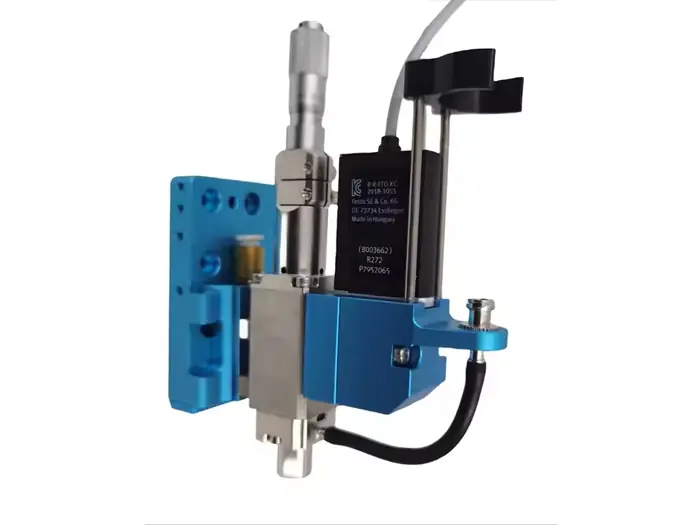

| Product name | Pneumatic injection glue dispensing valve |
| Model | F-Q101 |
| Driving mode | pneumatic |
| Size | 160*55*110mm |
| Flow channel material | stainless steel |
| Strike material | tungsten steel |
| Applicable glue viscosity | 0-100000cps |
| Seal material | PEEK/PTFE/PE |
| Maximum operating frequency | 200Hz |
| Driving pressure of cylinder | ≥0.6Mpa |
| Pressure of glue supply | 0.03~0.35Mpa |
| Packaging Details | wooden case or as your request |
| Supply Ability | 300 Set/Sets per Month |
| Quantity (sets) | 1 – 1 | 2 – 10 | > 10 |
| Lead time (days) | 16 | 30 | To be negotiated |
