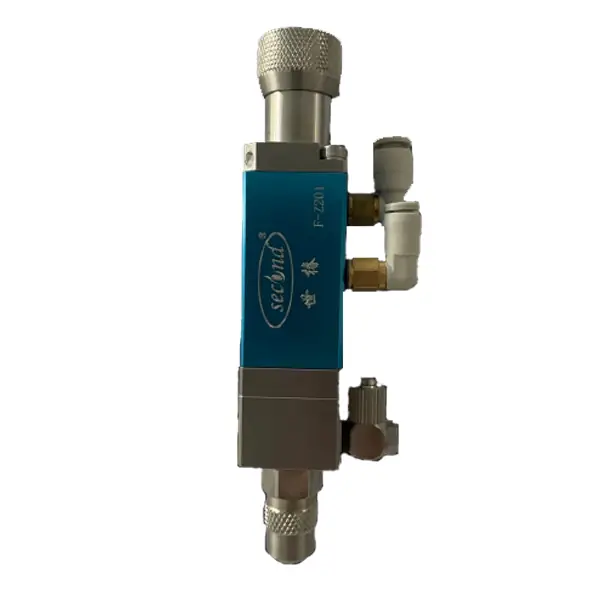

High-precision pneumatic stainless steel pneumatic needle glue dispensing valve F-Z201(S size)

Home|MACHINES|Dispensing Accessories And Spare Parts|High-precision pneumatic stainless steel pneumatic needle glue dispensing valve F-Z201(S size)

High-precision pneumatic stainless steel pneumatic needle glue dispensing valve F-Z201(S size)

Features :

1. Acting on the switch of the fluid in the flow channel, impact type glue shut-off, stroke adjustable, glue shut-off quickly.
2. Suitable for low, medium and high viscosity fluids, can withstand high pressure glue supply.
3. A variety of flow rate can be selected to meet different efficiencies.
4. Stainless steel runner, compatible with many types of glue.
5. Compatible with plastic seat needles, stainless steel needles, TT angled needles and other specifications.

Description

Specifications:

ModelF-Z201
Dimensions22*22*120mm
Weight650g
Driving methodMotorized
Caliber of glue feedM5
Runner Stainless steel
Stem  material Steel+Heat treatment + plating
Applicable glue viscosity0-100000cps
 Seal materialNBR+PTFE
Piston Drive Air Pressure0.1~1Mpa
Inlet pressure≤3.5Mpa
Flow rate3.6L/min(Water/1Mpa)
Seal life≤80 million times
Operation frequency≤12 time/s

Packaging and delivery

Packaging Detailswooden case or as your request

Supply Ability

Supply Ability300 Set/Sets per Month

Lead time

Quantity (sets)1 – 12 – 10> 10
Lead time (days)1630To be negotiated
