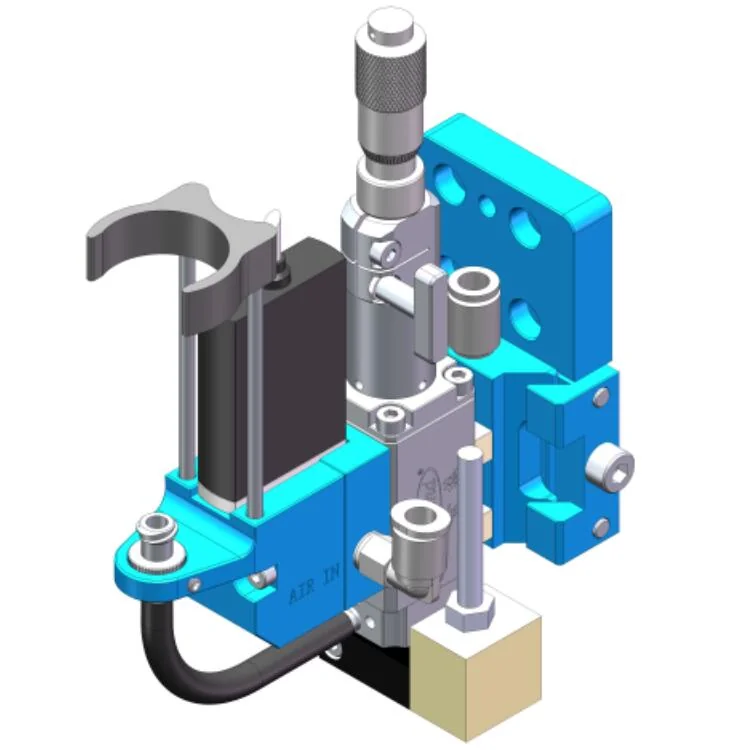

High-precision pneumatic stainless steel Pneumatic jet glue dispensing valve ( F-Q102)

Home|MACHINES|Dispensing Accessories And Spare Parts|High-precision pneumatic stainless steel Pneumatic jet glue dispensing valve ( F-Q102)

High-precision pneumatic stainless steel Pneumatic jet glue dispensing valve ( F-Q102)

Features:

1. Used for fluid metering and shut-off action in the flow channel, with a firing pin type shut-off glue.
2. Suitable for low and medium viscosity fluids.
3. High precision glue volume control.
4. Mechanical volume control.
5. Rich optional configuration.

Description

Specifications:

Place of OriginGuangdong, China
ConditionNew
Weight (KG)0.56
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Warranty of core components1 Year
Core Componentsvalve
Warranty1 Year
Applicable Industries
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
Brand Name
Second
Product namePneumatic injection glue dispensing valve
ModelF-Q102
Driving mode
pneumatic

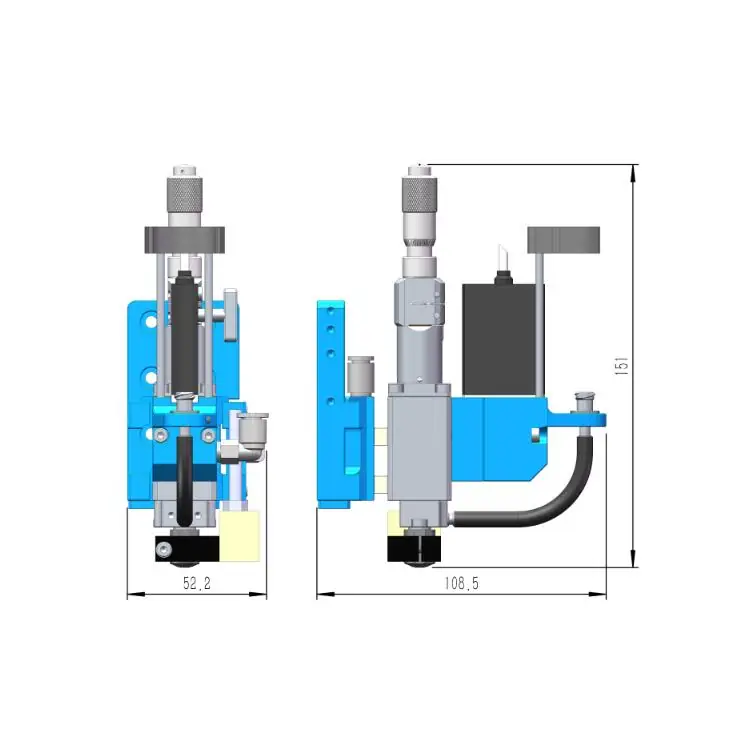

Size160*55*110mm
Flow channel material
stainless steel
Strike materialtungsten steel
Applicable glue viscosity
0-100000cps
Seal materialPEEK/PTFE/PE
Maximum operating frequency
200Hz
Driving pressure of cylinder≥0.6Mpa
Pressure of glue supply0.03~0.35Mpa

Packaging and delivery

Packaging Detailswooden case or as your request

Supply Ability

Supply Ability300 Set/Sets per Month

Lead time

Quantity (sets)1 – 12 – 10> 10
Lead time (days)1630To be negotiated
