High-precision pneumatic stainless steel suction glue dispensing valve (M size )

Features:

1. Acting on the switch of the fluid in the flow channel, pull back type glue shut-off, stroke adjustable.
2. Suitable for low, medium and high viscosity fluids, can withstand low and medium pressure glue supply.
3. The end section pulls back, the end of the glue point without big head phenomenon.
4. The thickness of the glue strip is uniform and good consistency.
5. Stainless steel runner, compatible with a variety of specifications of glue.
6. Compatible with plastic seat needle, stainless steel needle, TT oblique needle and other specifications of the needle.

Description

Specifications:

Place of OriginGuangdong, China
ConditionNew
Weight (KG)0.59
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Warranty of core components1 Year
Core Componentsvalve
Warranty1 Year

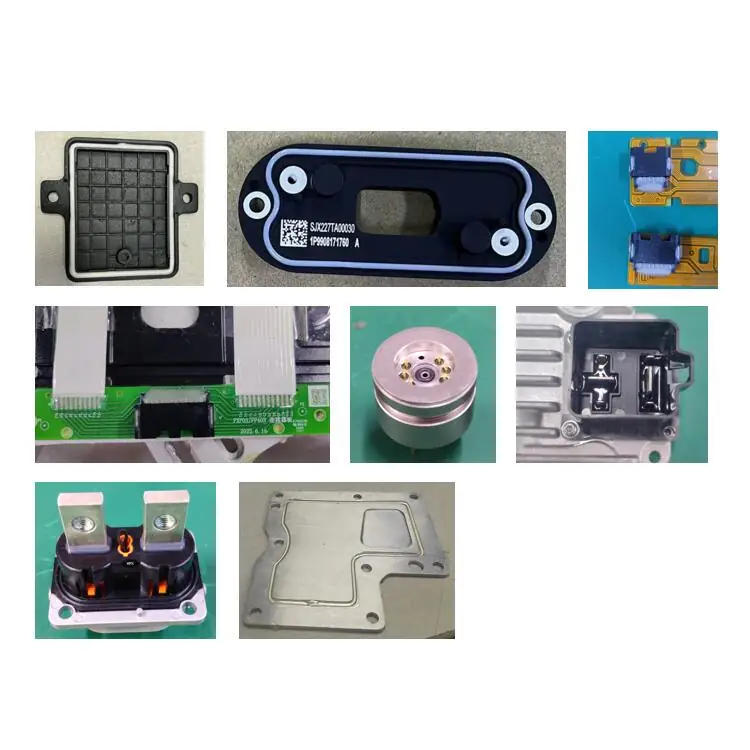

Applicable Industries
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
Brand Name
Second
Product nameGlue Dispensing Valve
ModelF-H101
Driving mode
pneumatic
Size33*33*190mm
Flow channel material
stainless steel
Stem material
stainless steel + heat treatment + plating
Applicable glue viscosity
0-100000cps
Seal material
NBR+PTFE+PA
Piston drive air pressure
0.3~1Mpa
Injection pressure
≤0.7Mpa

Packaging and delivery

Packaging Detailswooden case or as your request

Supply Ability

Supply Ability300 Set/Sets per Month

Lead time

Quantity (sets)1 – 12 – 10> 10
Lead time (days)1630To be negotiated
