Second High precision glue dispensing dispenser machine accessories parts stainless steel High pressure glue dispensing valve F-E102

Second F–E102––High pressure glue dispensing valve

F-E series high pressure valve is a single component back suction type switch valve, suitable for silicone, thermal glue andother medium and high viscosity glue, equipped with glue adjustment function, can adapt to a variety of dispensing needles, withtail pull back function, fast switching, accurate glue amount, no big head phenomenon at the end of the strip, while the specialvalve stem balance structure makes the high pressure valve with the same function of back suction valve at the same time, It canalso withstand high fluid pressure and is suitable for a wider range of single-component precision gluing applications.



Description

Product feature:

●A switch that acts on the fluid in the flow path and pulls the glue off;
●Suitable for medium and high viscosity silica gel/thermal paste fluids;
●The spool adopts a unique pressure balance structure design, which can withstand high pressure rubber supply;
●Adhesive strip consistency is good;
●Compatible with plastic seat needle, stainless steel needle,

   TT inclined needle and other specifications of the needle

Applicable Industries:

Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter,Toys and gift, PCBA bonding, LCD screen

Product name: High pressure glue dispensing valve
Driving mode: pneumatic
Flow channel material: stainless steel
Stem material: tungsten steel
Seal material:NBR+PTFE+PA

Key attributes

Other attributes

Place of OriginGuangdong, China
ConditionNew
Weight (kG)0.55
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Warranty of core components1 Year
Core Componentsvalve
Warranty1 Year
Applicable IndustriesManufacturing Plant,glue application industrial
Waterproof,encapsulating, gasket, Power adapter
Toys and gift, PCBA bonding, LCD screen
Showroom LocationViet Nam, Thailand, Malaysia
Brand NameSecond
Product nameHigh pressure glue dispensing valve
ModelF-E102
Driving modepneumatic
Size30*30*163mm
Flow channel materialstainless steel
Stem materialtungsten steel
Applicable glue viscosity1000-1000000cps
Seal materialNBR+PTFE+PA
Piston drive air pressure0.3~1Mpa
Injection pressure≦12Mpa



Specification

ItemParameters
ModelF-E102
Size30*30*163mm
Weight550g
Driving modepneumatic
Flow channel materialstainless steel
Stem materialtungsten steel
Applicable glue
viscosity
1000-1000000cps
Seal materialNBR+PTFE+PA
Piston drive air
pressure
0.3~1Mpa
Injection pressures12Mpa
Flow rate6.6L/min (water/1Mpa)

Product Description

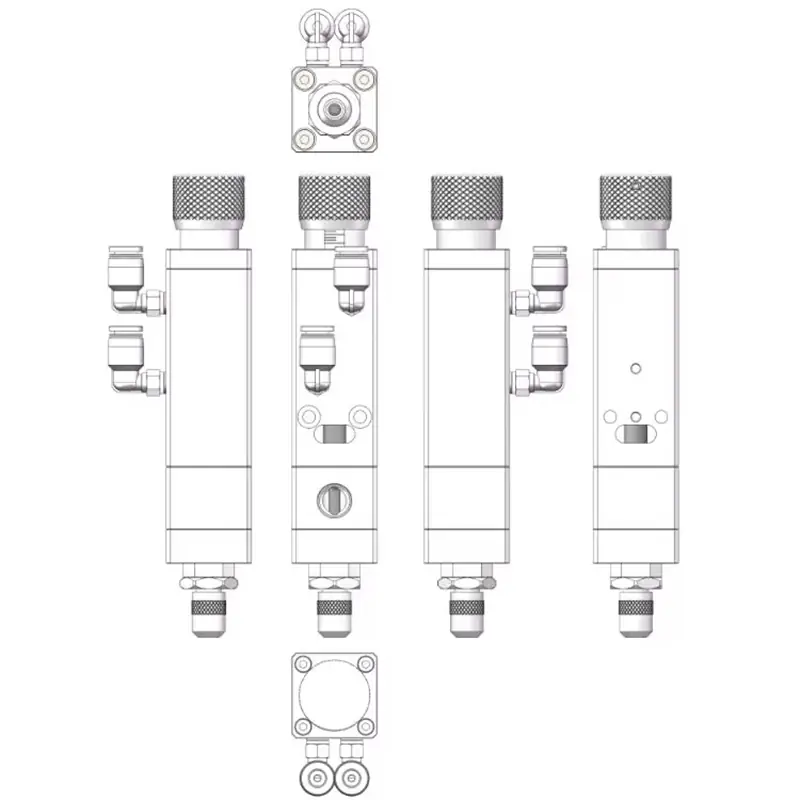

High pressure glue dispensing valve0

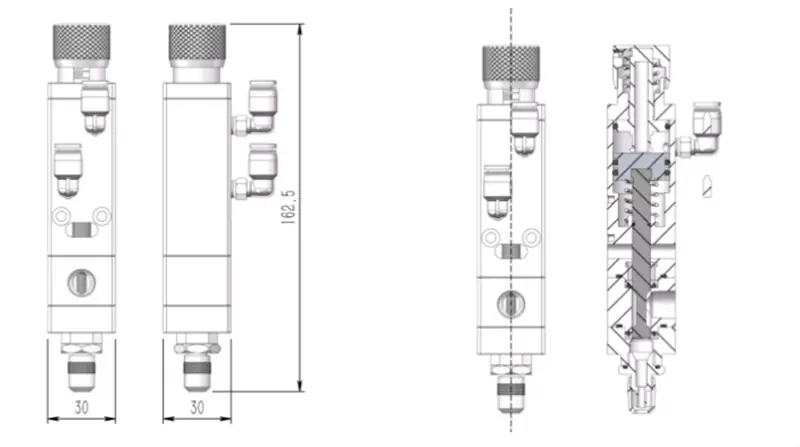

stainless-steel-High-pressure-glue-dispensing-valve6

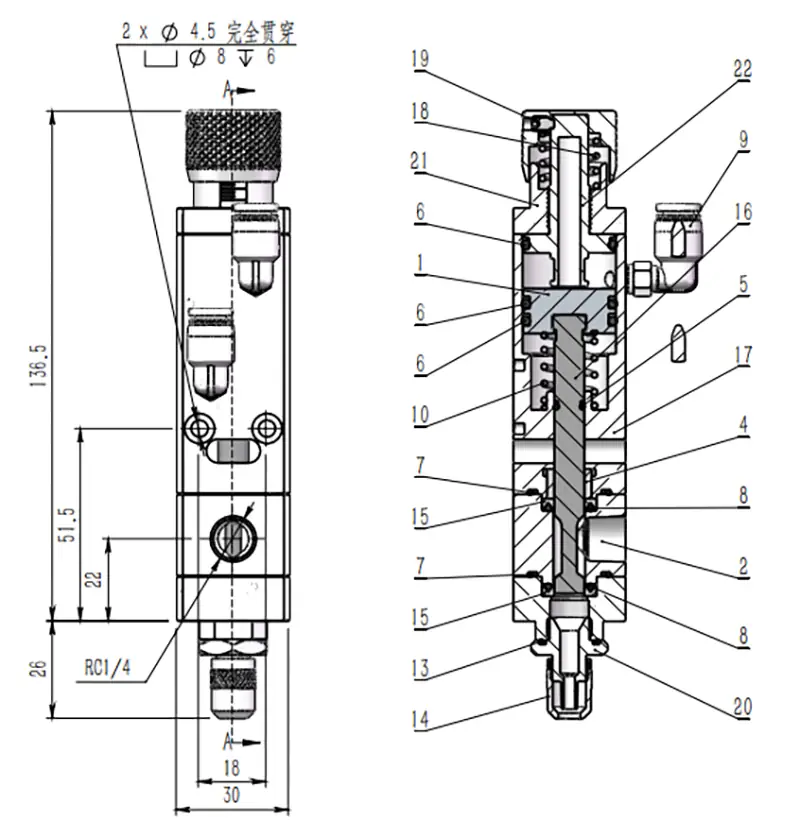

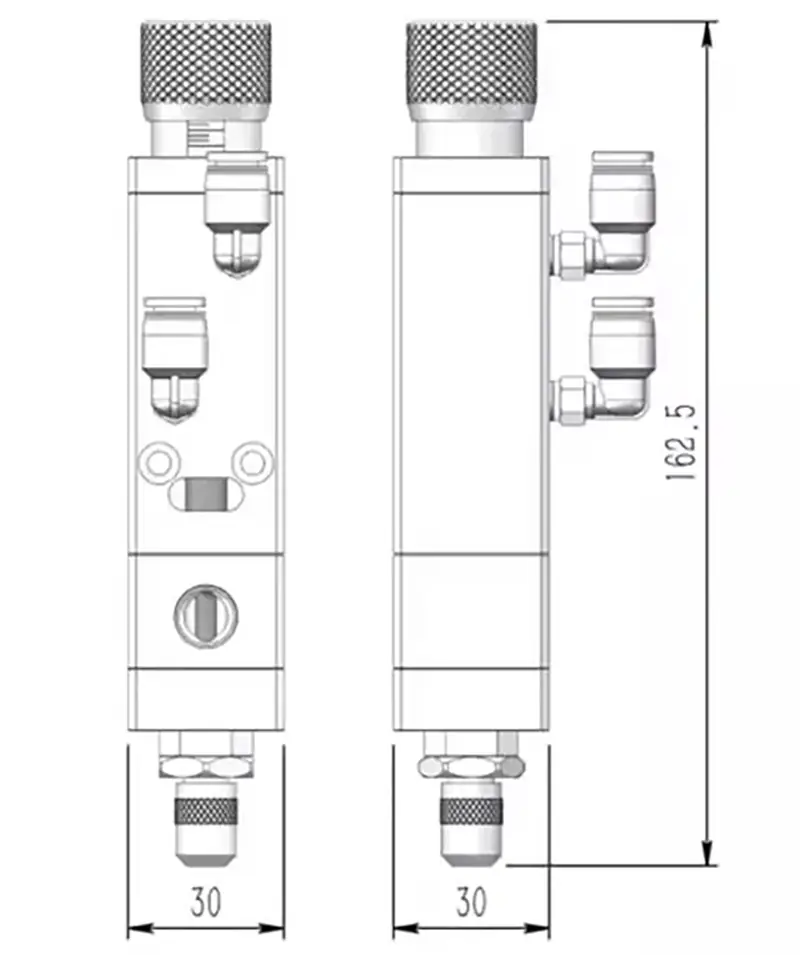

size

glue dispenser value

Function specifiction

High-pressure-glue-dispensing-valve
High-pressure-glue-dispensing-valve

Commonly Used Glue

Commonly Used Glue


APPLICATIONS

steel suction glue dispensing valve

automatic hot glue dispenser

OUR FACTORY (A3)

cnc-glue-dispenser-machines

CLIENT FEEDBACK

dispenser glue robot

Packing & Delivery

glue dispensing system

adhesive dispensing robot

SOLUTION

2-parts AB adhesive materials 1

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
