Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

The multi-station silo can be loaded without stopping, which can realize the automatic stacking of bipolar plates and MEA.
Adapting with two control modes, position mode and pressure mode
Inline air tightness testing, differential pressure method and flow method
Able to record and load historical data, parameters can be traced back
Automatic bending and welding of straps

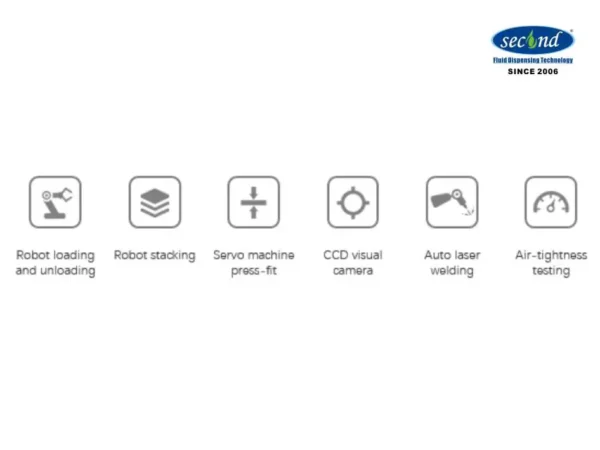

Main functions

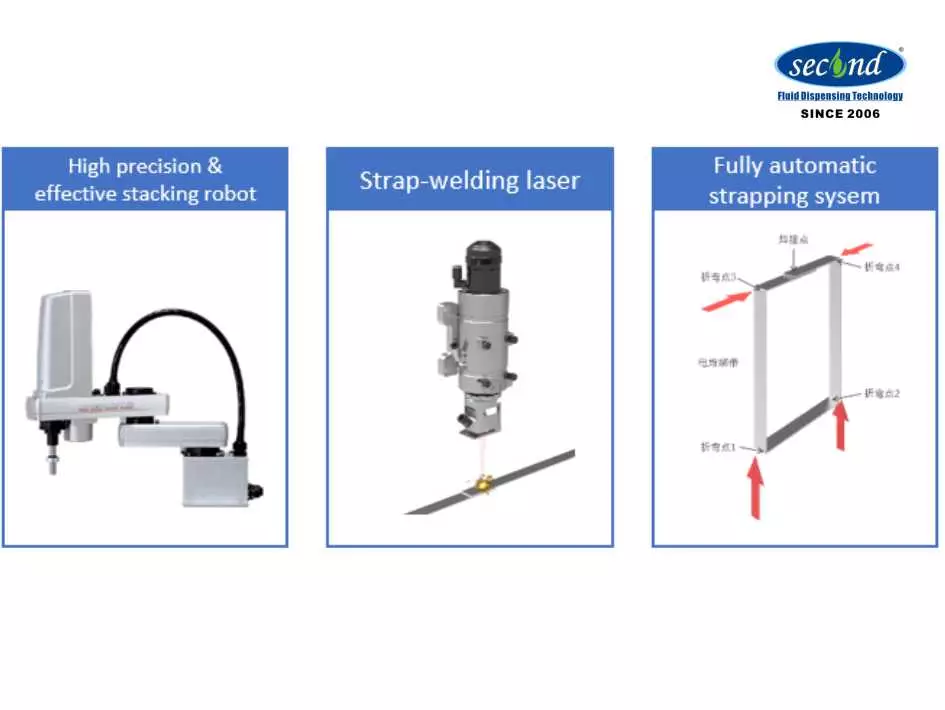

High precision robotic system
Flow method air tightness detection kit
Integrated system for stack pre-compression, stacking and compression
Laser marking system

Optional functions：

Intelligent logistics AGV
Stack automatic flip transfer AGV vehicle
Finished product re-inspection system

Specification

Machine footprint	LengthWidthHeight：About 8500mm2500mm3500mm
Failure-rate	3%
Comprehensive sacking accuracy	±0.2mm
Pressing stroke accuracy	±0.02mm
Cycle time	15s
Machine pressure	3-10T
Machine pressure-range	0-800mm
Pressure accuracy	±0.5%FS
Testing method	Total leakage, three channels, serial leakage
Flowmeter metering range	0.1-200ml/min
Flowmeter accuracy	±（0.8%RD+0.2%FS）
Pressing machine packaging speed	0.01 ~10mm/s
Power supply; air supply	AC380V 0.5-0.7Mpa
Working environment	Humidity：40-80%， Temperature: 22.5±1℃

PEM H2 fuel cell battery fabricating machine

PEM H2 fuel cell battery fabricating machine 1

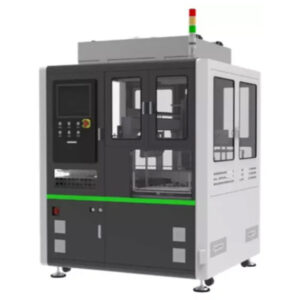

Supportive dispensing systems

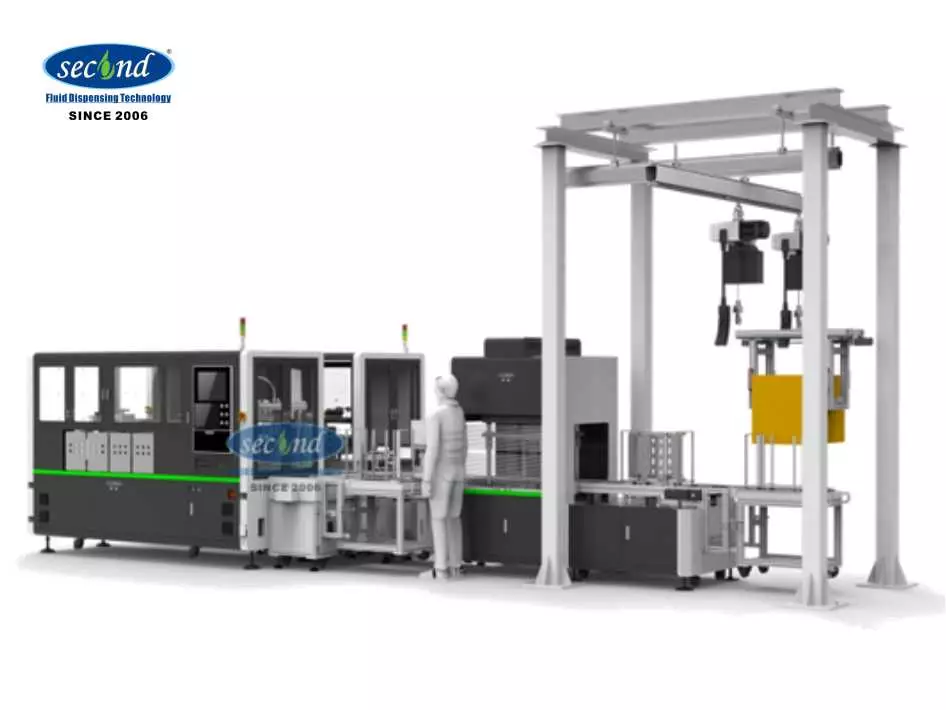

SEC- FC battery stacking system – Strap-type -a

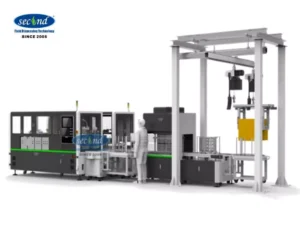

SEC- FC battery stacking system – Strap-type

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.
