Product Benefits:
● Available in 15L-, 30L- liter melter tanks.
● Multiple pump sizes can be chosen, up to four single- or dual-stream pumps possible.
● Large touch screen HMI for SECOND new generation user interface.
● Modbus® TCP communication for IIoT.
● Increased high-power heating zones.
● New pressure transducer with easy calibration.
● Pump RPM verification option.
● Real-time display of Flow and Pressure control data on all channels.
● Individual, per-pump Pressure buildup option
Features:
1.Durable fully automatic 3 axis dispensing robot.
2.Suit for UV glue, solder paste, hot melt red glue…etc
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
Product Description:

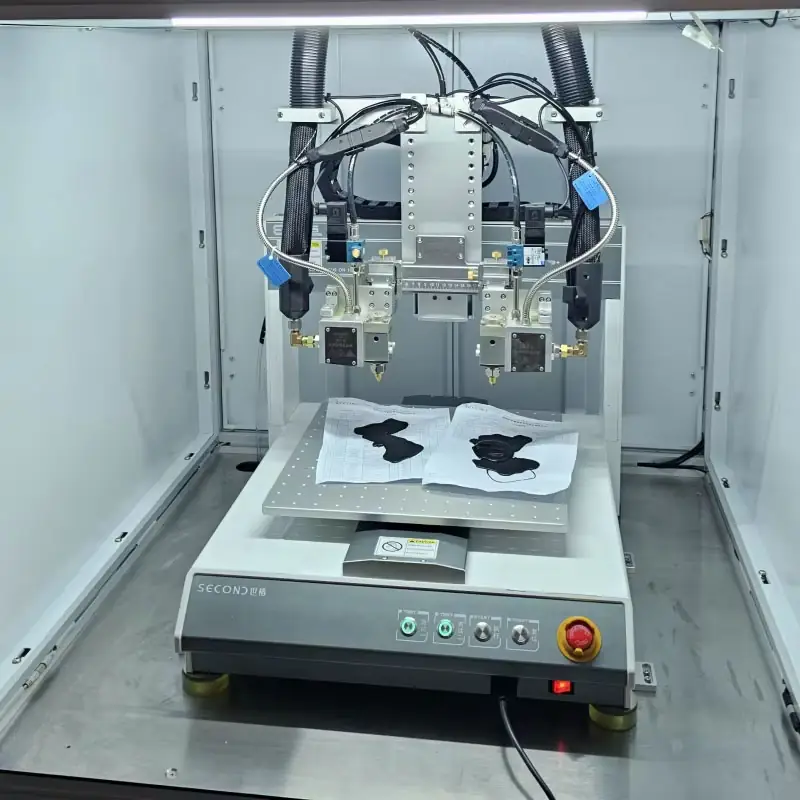

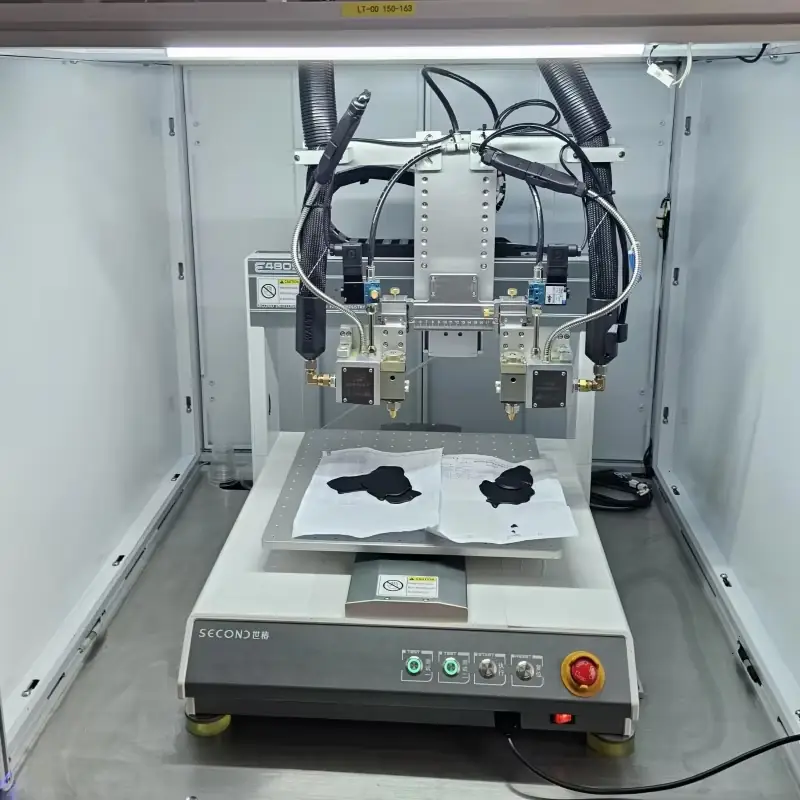

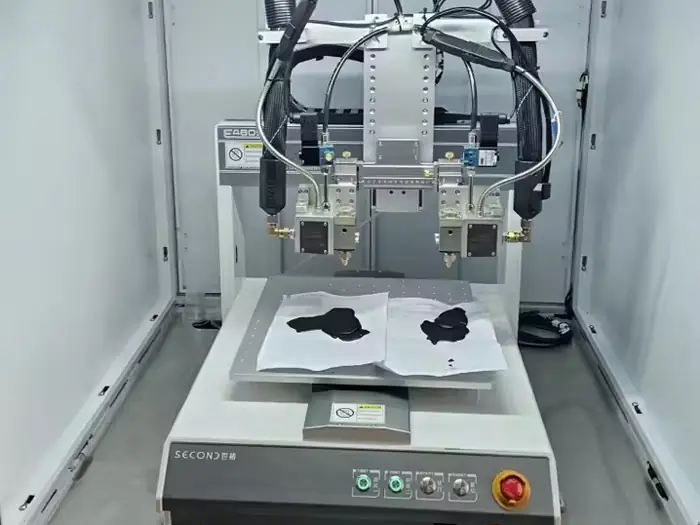

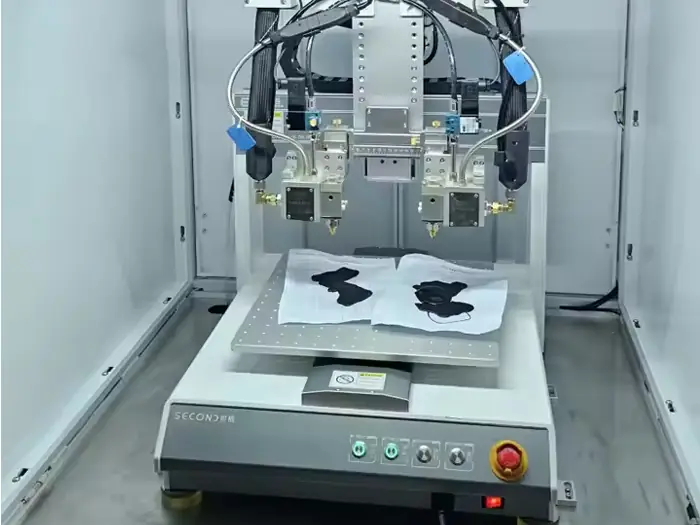

XYZ 3 Axis Desktop Hot Melt Adhesive Automatic Cnc Glue Dispenser
Dispensing Machine Robot
Product Details

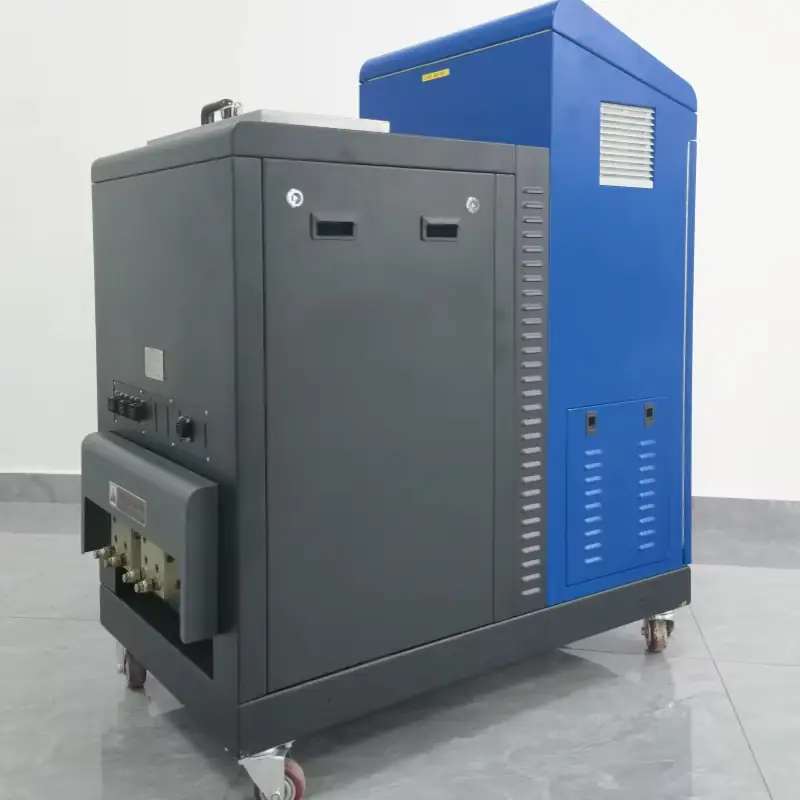

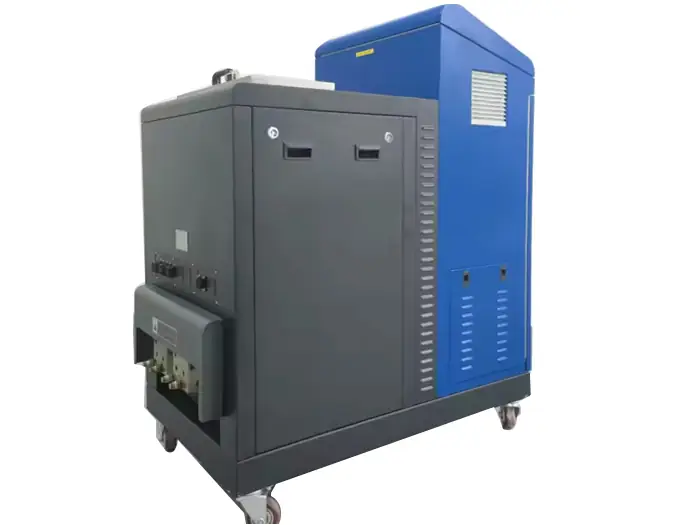

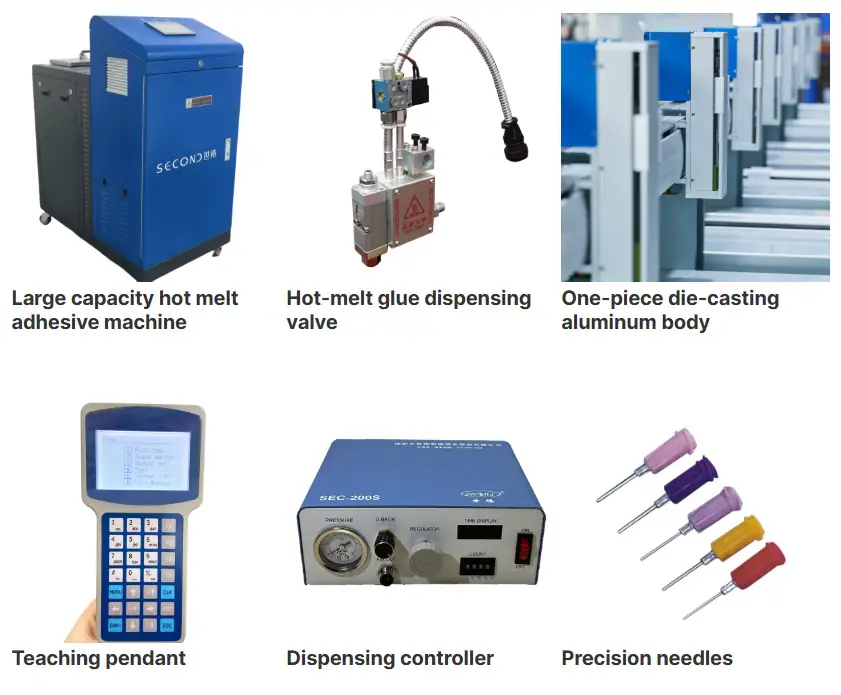

Large capacity hot melt adhesive machine
- melting tank capacity 6OL LITER
- pump number 1-3 single layer or double deck pump PCS
- heating output (channel) optional with 1-6 output GROUP
- temperature control range of 40 to 230 DEG C (100 to 450 degrees Fahrenheit)
- temperature range of0~50 DEG C (32 to 122 degrees Fahrenheit)
- temperature sensor type, standard PT100, optional Nl120
- maximum melt speed /60L KG/HR per hour
- power requirements 380V/220V/50-60HZ V/HZ
- maximum power consumption 6500W-7500W WAT
- overall size(L*w*h)950.00*650.00*1350.00 MM


6-30L Technical Parameters
| Cylinder capacity | 6L-12L/15-30L |
| Glue supply method | Gear pump glue supply |
| Heating output channel | 1-4 outputs |
| Temperature control range | 40-230°C (100-450°F) |
| Usage environment | 0-50°C Humidity 20-90% |
| Maximum dissolution speed | 6-12L/h, |
| Input voltage | AC380V/220V 50-60HZ |
| Maximum power | 6-12L:3000W |
| 15-60L:4000-5000W |
| Dimensions | 6-12L:800x380x460mm |
| 15-50L:850x510x1300 |
Apply industries:
The hot melt dispensing equipment be applied in the following fields:
1. Packaging industry:
● Paper box packaging ● Label pasting ● Bottle cap bonding
2. Automobile industry
● Interior assembly ● Parts fixing ● Headlight manufacturing
3. Electronics industry
● Circuit board manufacturing ● Electronic product assembly ● 5G communication module assembly
4. Medical industry
● Medical dressing production ● Medical device manufacturing
5. Construction industry
● Insulation material installation ● Waterproof membrane construction
