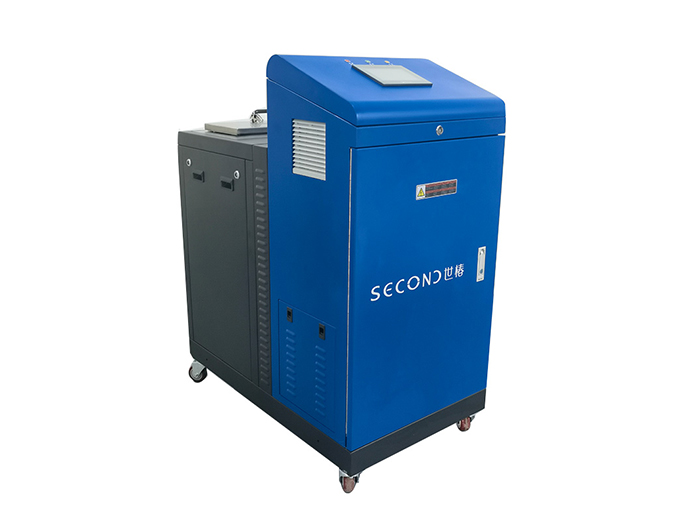

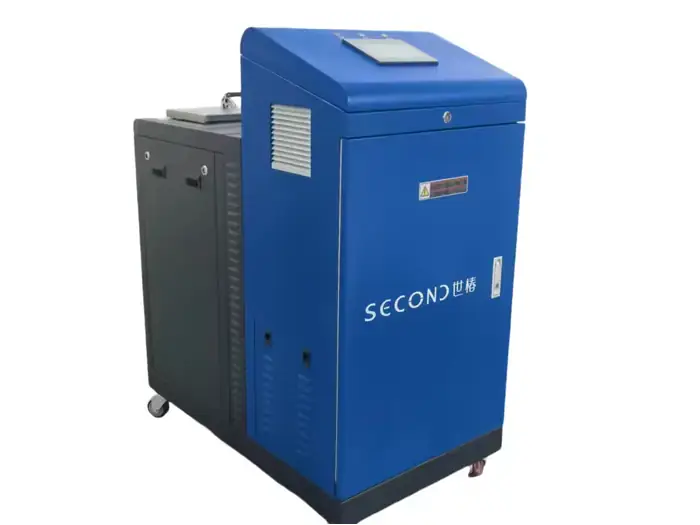

Hot melt machine system equipment 15-30L

Description

Module features :

● The inner wall of the cylinder is sprayed with Teflon coating, which can be used for a long time and can delay
the aging of hot melt adhesive to the greatest extent.

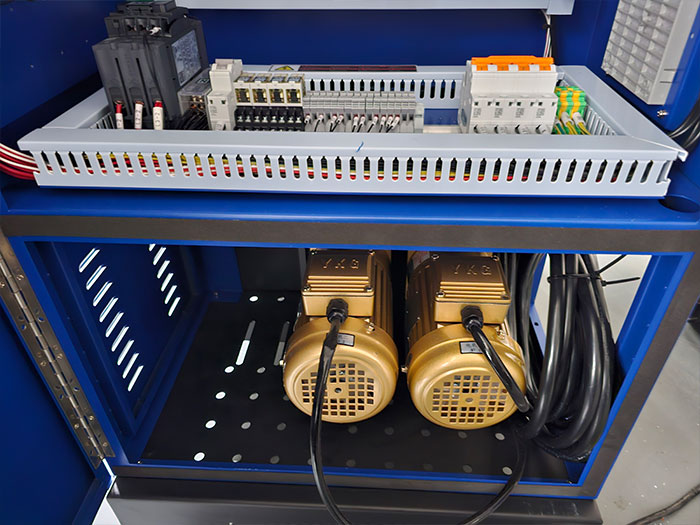

● The motor is equipped with a precision gear pump to supply glue, with stable pressure and accurate glue quantity.
● The melt cylinder, glue delivery pipeline and glue valve are divided into independent temperature control and temperature display.
● Real-time monitoring of the current status of the equipment (heating, ready, alarm light) ensures stable operation of the equipment.
● Built-in over-temperature, low temperature, motor delay start and output open circuit protection ensures
safe operation of the equipment.

Apply industries：

1. Packaging industry:
● Paper box packaging ● Label pasting ● Bottle cap bonding

2. Automobile industry
● Interior assembly ● Parts fixing ● Headlight manufacturing

3. Electronics industry
● Circuit board manufacturing: ● Electronic product assembly:

4. Medical industry
● Medical dressing production: ● Medical device manufacturing

5. Construction industry
● Insulation material installation: ● Waterproof membrane construction

6-30L Technical Parameters

Cylinder capacity	6L-12L/15-30L
Glue supply method	Gear pump glue supply
Heating output channel	1-4 outputs
Temperature control range	40-230°C (100-450°F)
Usage environment	0-50°C Humidity 20-90%
Maximum dissolution speed	6-12L/h,
Input voltage	AC380V/220V 50-60HZ
Maximum power	6-12L:3000W
Maximum power	15-60L:4000-5000W
Dimensions	6-12L:800x380x460mm
Dimensions	15-50L:850x510x1300

Product Details

Second Intelligent provides a full range of hot melt glue spraying solutions. hot melt glue spraying system adopts touch screen-human-machine interface full operation,
which is suitable for high-precision hot melt glue spraying applications. The motor drives the precision gear pump and the automatic glue output tracking system, and is equipped with
precision gear pumps of different specifications to meet the different production needs of users.

● The body adopts an arc frame structure design, and the snap-on enclosure combination makes its overall coordination beautiful, and ensures that daily maintenance is quick and convenient.

● The melting cylinder adopts a grid-approaching design, and the inner wall "Teflon" coating is durable, delays the aging of the hot melt glue, and ensures the maximum melting efficiency;

● The overall equipment adopts a motor-matched precision gear pump, and the gear pump has single-layer and double-layer models to choose from.

● Overall control, using touch screen-human-machine interface, each partition such as melting cylinder, glue delivery hose and gun body is independently displayed and adjusted;

● The overall equipment detects the current status "heating, ready, alarm" in real time to ensure stable operation of the equipment

● The overall equipment has built-in over-temperature protection, low-temperature protection, motor delay start protection, output open circuit or other

fault protection, etc. to ensure safe operation of the equipment;

● The overall equipment uses imported temperature controllers for temperature control, with a temperature control accuracy of ±1℃ (2℉), and can be equipped with PT100 and NI120 sensor models.

● The overall equipment uses independent reflux valve and branch seat control to ensure stable and adjustable glue pressure.

● The overall equipment has built-in insulation function.

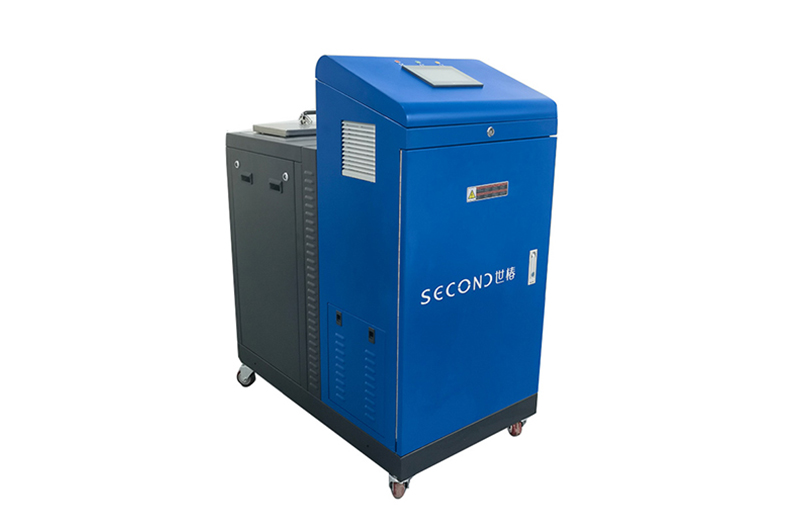

hot-melt-machine-adhesive-spraying-systems

Technical Parameters

Serial number	Name-Model Specifications	Parameter Value	unit
1	Melting tank capacity	30L	LITER
2	Number of pumps	1-2 single or double pumps	PCS
3	Heating output (channels)	Optional 1-6 outputs	GROUP
4	Temperature control range	40～230℃（100～450℉）	℃
5	Ambient temperature range	0～50℃（32～122℉）	℃
6	Temperature sensor type	Standard PT100, optional NI120
7	Maximum melting rate/hour	30L	KG/HR
8	Power requirements	380V/220V/50-60HZ	V/HZ
9	Maximum power consumption	3800W-4300W	WATT
10	Dimensions (lengthwidthheight)	850.00510.001290.00	MM
