3 Axis Desktop High Precision Hot Melt Uv Adhesive Cnc Automatic Glue Dispenser Dispensing Machine Robot

Home|MACHINES|Hot melt machine system|3 Axis Desktop High Precision Hot Melt Uv Adhesive Cnc Automatic Glue Dispenser Dispensing Machine Robot

3 Axis Desktop High Precision Hot Melt Uv Adhesive Cnc Automatic Glue Dispenser Dispensing Machine Robot

Focus on hot melt adhesive precision spraying equipment – gear pump hot melt adhesive machine and hot melt adhesive spraying system manufacturing supplier.

Product Features:

Second Intelligent provides a full range of hot melt adhesive spraying solutions. The SECOND system hot melt adhesive spraying system adopts touch screen-human-machine interface full control operation, which is suitable for high-precision hot melt adhesive spraying applications. The motor drives the precision gear pump and the glue output automatic tracking system, and is equipped with precision gear pumps of different specifications to meet the production needs of users. It is widely used in spraying, coating, scraping and other methods.

Description

Features & Benefits:

● Available in 15L-, 30L- liter melter tanks.

● Multiple pump sizes can be chosen, up to four single- or dual-stream pumps possible.

● Large touch screen HMI for SECOND new generation user interface.

● Modbus® TCP communication for IIoT.

● Increased high-power heating zones.

● New pressure transducer with easy calibration.

● Pump RPM verification option.

● Real-time display of Flow and Pressure control data on all channels.

● Individual, per-pump Pressure buildup option

Apply industries:

The hot melt dispensing equipment be applied in the following fields:

1. Packaging industry:
● Paper box packaging ● Label pasting ● Bottle cap bonding

2. Automobile industry
● Interior assembly ● Parts fixing ● Headlight manufacturing

3. Electronics industry
● Circuit board manufacturing ● Electronic product assembly ● 5G communication module assembly

4. Medical industry
● Medical dressing production ● Medical device manufacturing

5. Construction industry
● Insulation material installation ● Waterproof membrane construction

6-30L Technical Parameters

Cylinder capacity6L-12L/15-30L
Glue supply methodGear pump glue supply
Heating output channel1-4 outputs
Temperature control range40-230°C (100-450°F)
Usage environment0-50°C Humidity 20-90%
Maximum dissolution speed6-12L/h,
Input voltageAC380V/220V 50-60HZ
Maximum power6-12L:3000W
15-60L:4000-5000W
Dimensions6-12L:800x380x460mm
15-50L:850x510x1300



Product Description

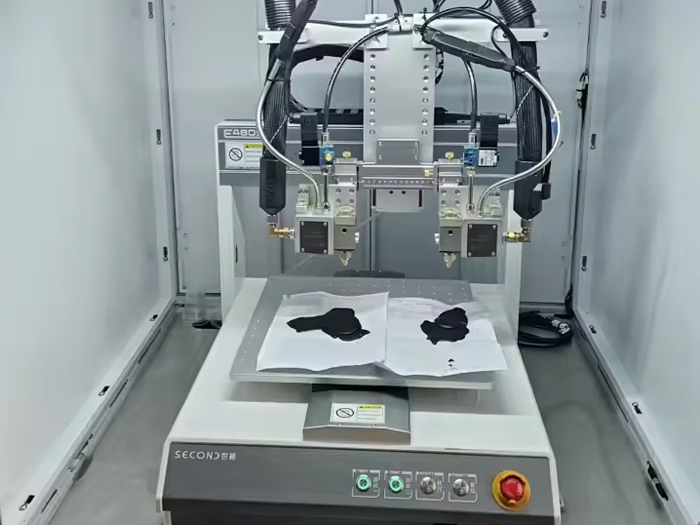

3 Axis Desktop High Precision Hot Melt Uv Adhesive Cnc Automatic

Glue Dispenser Dispensing Machine Robot Manufacture

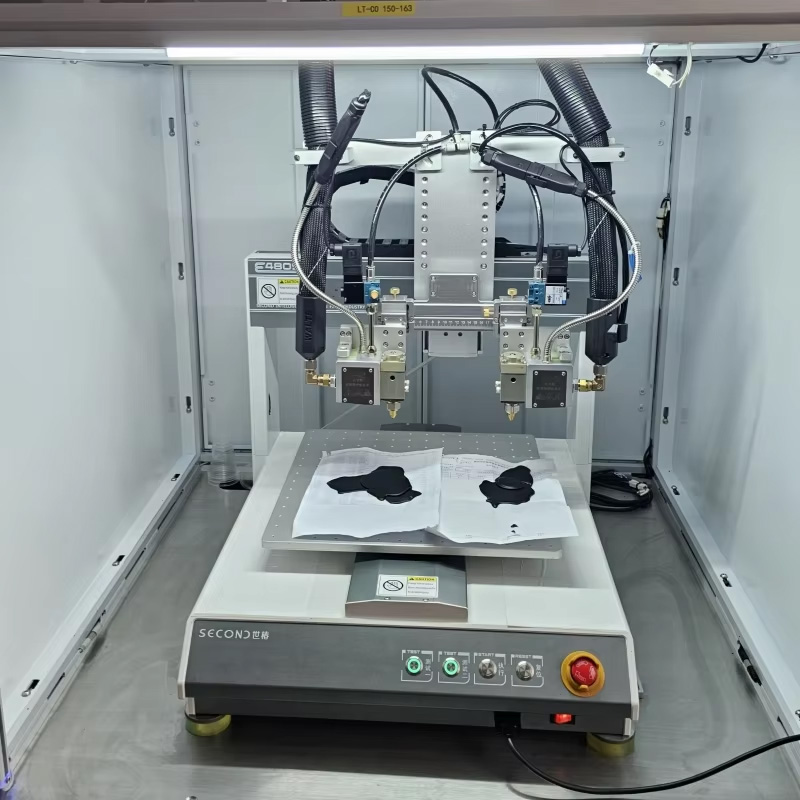

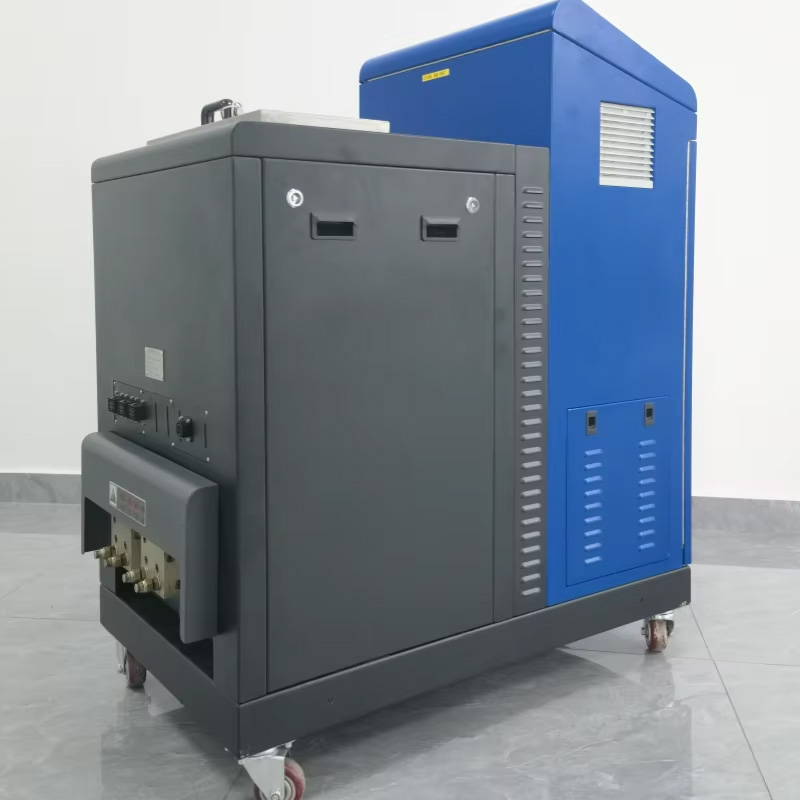

hot-melt-machine-system-manufacturers

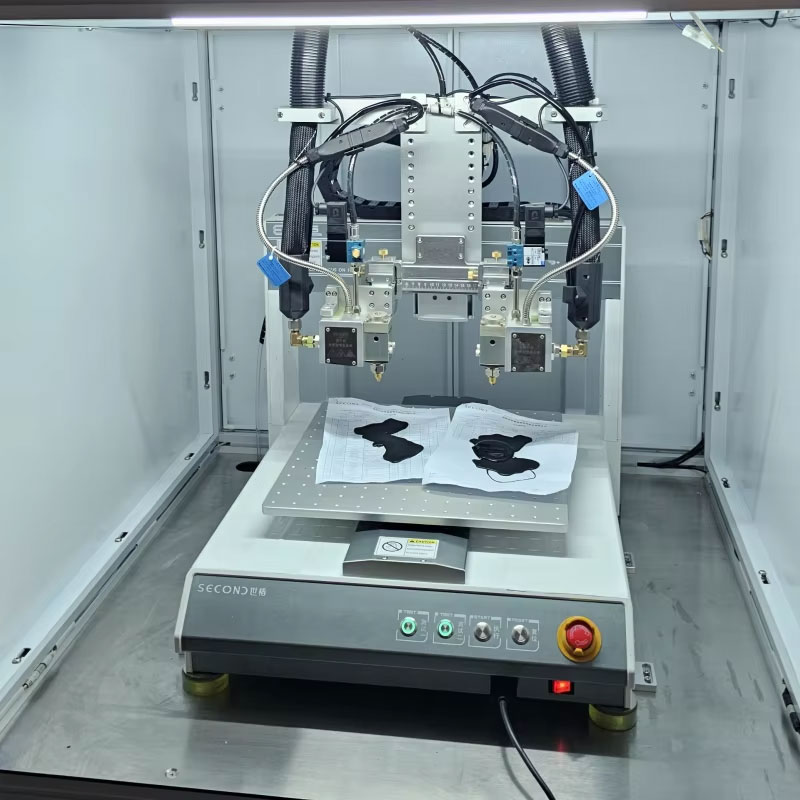

hot melt machine systems for sale

hot melt machine system manufacturers

Features:

                                                      Features:

                                                      1.Durable fully automatic 3 axis dispensing robot.
                                                      2.Suit for UV glue, solder paste, hot melt red glue...etc
                                                      3.One-piece die-casting aluminum boday.
                                                      4.User friendly teaching pendant.
                                                      5. Can be equipped with different glue supply systems

Product Details

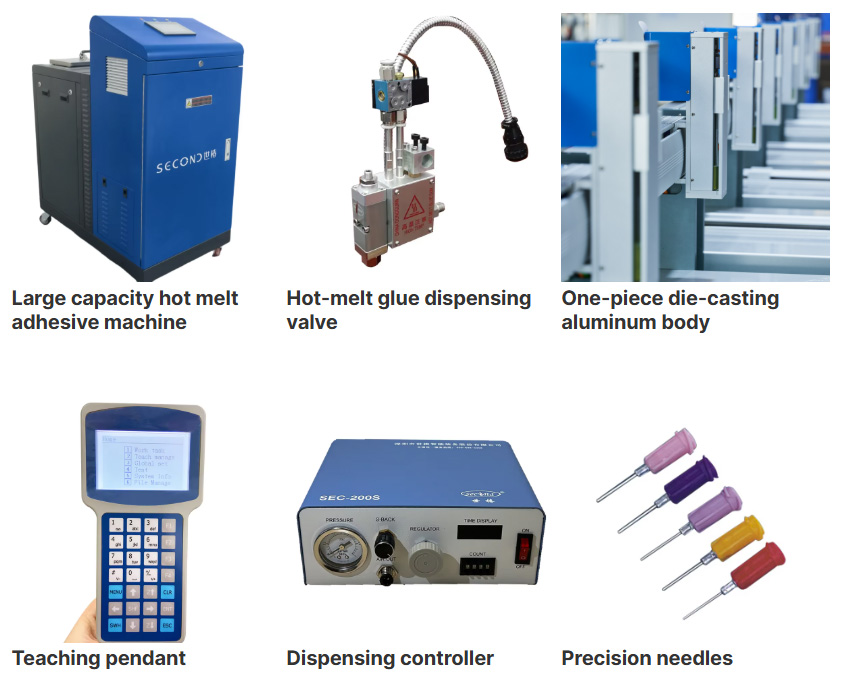

hot melt glue machine systems

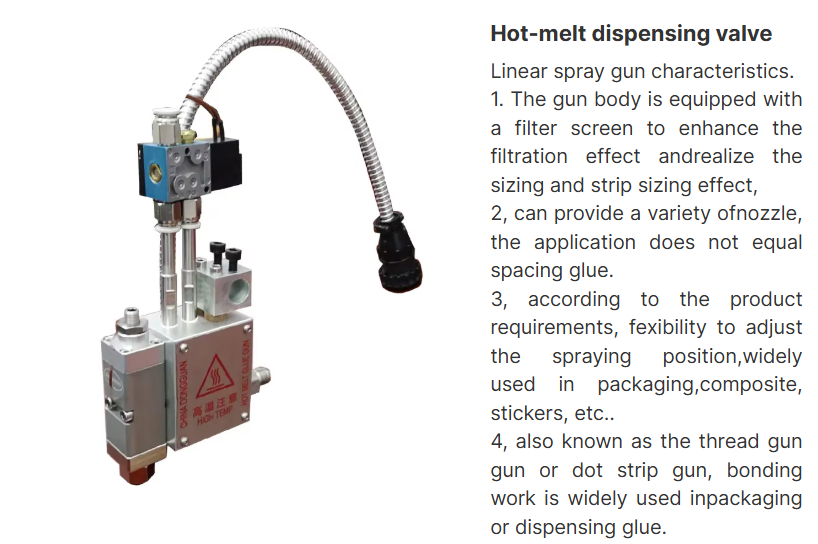

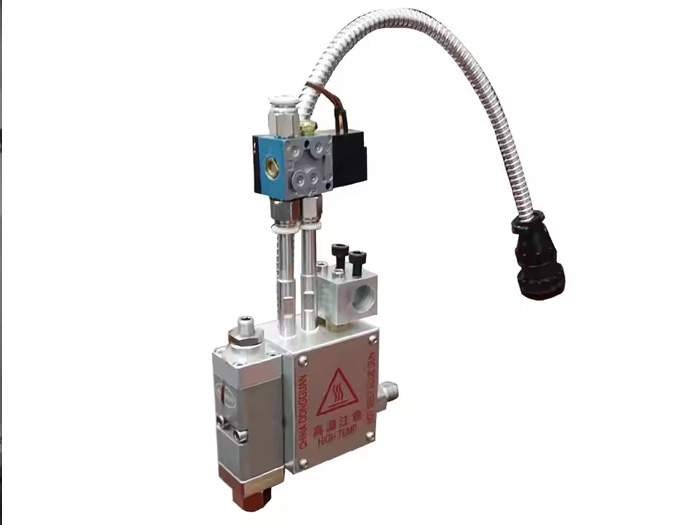

hot melt dispensing valve

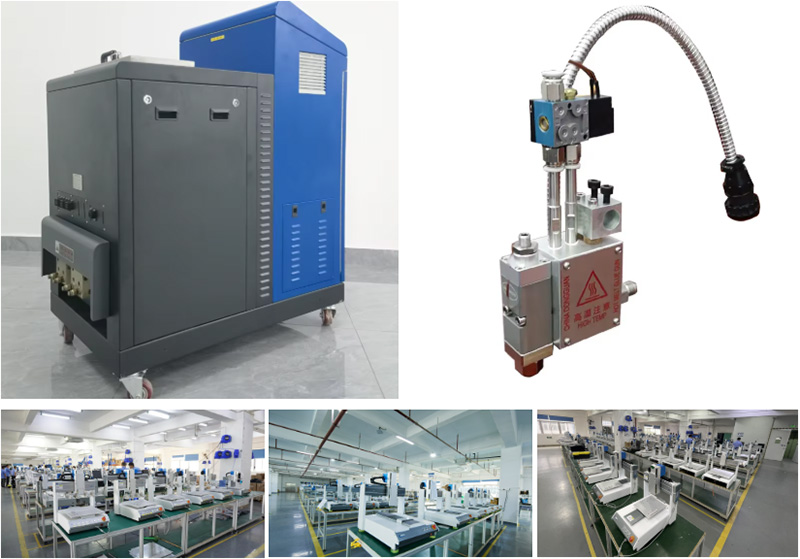

hot-melt-machine-system-manufacturers

                                             Title goes here.
                                            Ordinal name-model,specification,parameter, value, unit

                                             1 melting tank capacity 6OL LITER
                                             2 pump number 1-3 single layer or double deck pump PCS
                                             3 heating output (channel) optional with 1-6 output GROUP
                                             4 temperature control range of 40 to 230 DEG C (100 to 450 degrees Fahrenheit)
                                             5 temperature range of0~50 DEG C (32 to 122 degrees Fahrenheit)
                                             6 temperature sensor type, standard PT100, optional Nl120
                                             7 maximum melt speed /60L KG/HR per hour
                                             8 power requirements 380V/220V/50-60HZ V/HZ
                                             9 maximum power consumption 6500W-7500W WAT
                                            10 overall size(L*w*h)950.00*650.00*1350.00 MM

OUR FACTORY (A3)

hot melt adhesive spraying solutions

Logistics packaging collection

ab glue dispensing machine

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

hot-melt-adhesive-spraying-solutions

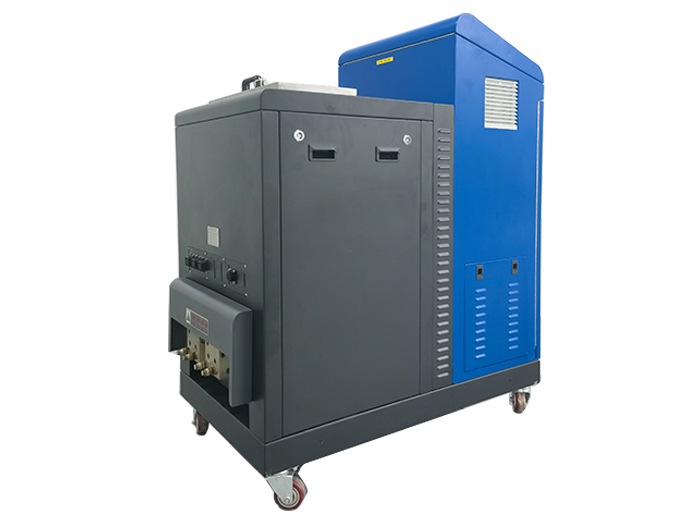

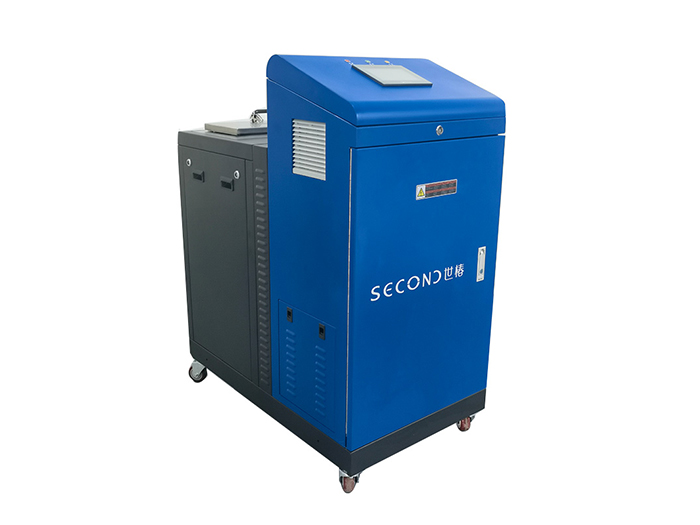

6-12L hot melt adhesive spraying system

Hot-melt-machine-systems

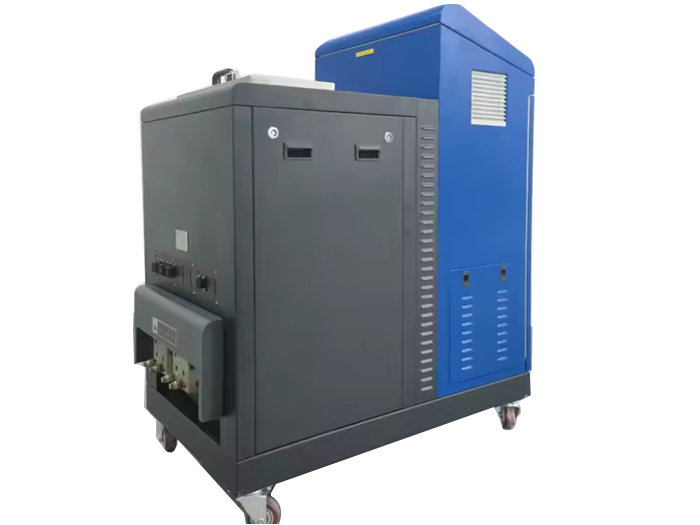

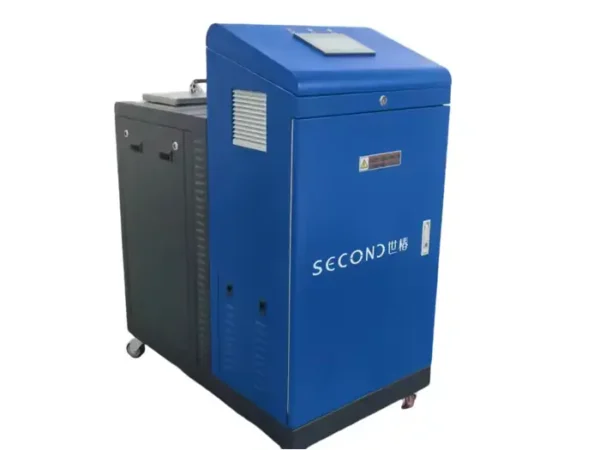

5-30L hot melt machine system

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue dispensing equipment

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

desktop glue dispensing robot

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Desktop glue dispensing machine

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

11.Can it dispense multiple materials simultaneously?2025-05-29T17:34:35+08:00

A: Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.

12.What’s the minimum dot size achievable?2025-05-29T17:35:03+08:00

A: 0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).

13.What certifications do the machines have?2025-05-29T17:35:54+08:00

A: CE, UL, ISO 9001, and RoHS compliance for global markets.

14.Can it dispense multiple materials simultaneously?2025-06-11T17:45:55+08:00

A: Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
