The CIPG/FIPG thermal paste dispenser is an automated device specifically designed for the precise application of thermal interface materials (TIMs), primarily used for heat management in electronic products. The CIPG/FIPG thermal paste dispenser’s application characteristics can be summarized as follows: It uses a highly automated and intelligent method to stably, consistently, and efficiently apply high-viscosity, high-performance thermal paste in a pre-set, precise three-dimensional pattern to the designated locations of complex electronic products. Deeply integrated with automated production lines, it ultimately aims to achieve a reliable, repeatable, and efficient heat dissipation assembly process in large-scale manufacturing. These features make it a critical piece of equipment for ensuring the thermal reliability and production quality of high-end electronic products.
Visual positioning + laser height measurement + syringe dispensing
RTV effectively suppresses the movement of plug-in components.
●High stability;
●High flexibility;
●High extensibility;
●Increase productivity;
●Being flexible and adaptable
Dual X/ Dual Y/ Dual Z workstation (dual station four stations), the two workstationscycle alternately, further improve the operational efficiency, but also to achieve thefront-end dispensing, back-end detection or curing, product deformation correctionor real-time 3D path guidance function. The workstation is also equipped with MESfunction, which can upload real-time information of equipment work and processinformation to MES system.

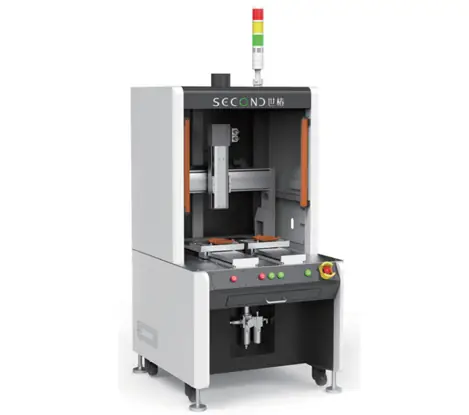

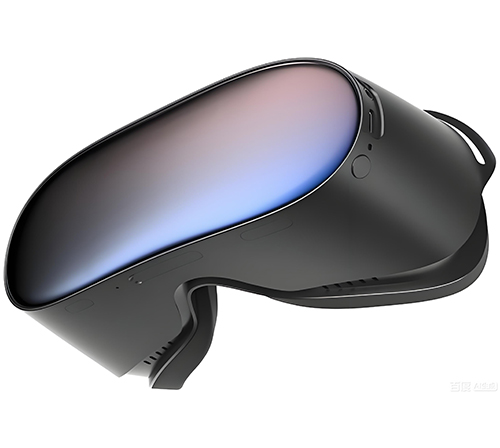

Six axes and four linkage, suitable for VR/AR smart wearable products in the frame, skeleton continuous dispensing, lens dispensing, battery protection board dispensing, thermal paste dispensing, magnet bonding glue and other processes
Double Y rear platform alternating operation to further improve production efficiency
Powerful module carrying capability, compatible with a variety of glue types and packaging dispensing applications
Multi-functional 5-axis dispensing platform with powerful motion controlsystem supports various standard curves, straight lines with arbitrary axes,spatial arcs, spatial spirals, spatial ellipses, spatial involutes, and spatialspline interpolation. It can be applied to the dispensing of round andshaped products.
The equipment is equipped with Mark point positioning and edge graspingpositioning functions, automatically calculates the center position of theproduct and corrects and compensates for the motion of each axis, and canautomatically identify the product omission and misplacementphenomenon.
Modular design and flexible matching to meet the contact and non-contactdispensing process, wider application.
Do not hesitate to contact us for further information, thanks in advance for your support!
