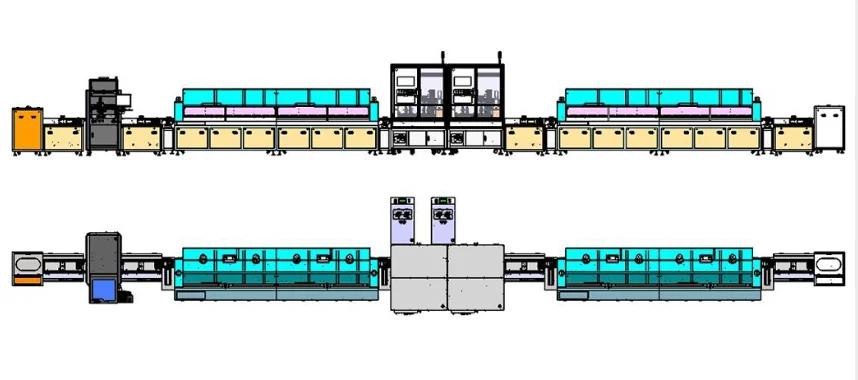

The CIPG/FIPG thermal paste dispenser is an automated device specifically designed for the precise application of thermal interface materials (TIMs), primarily used for heat management in electronic products. The CIPG/FIPG thermal paste dispenser’s application characteristics can be summarized as follows: It uses a highly automated and intelligent method to stably, consistently, and efficiently apply high-viscosity, high-performance thermal paste in a pre-set, precise three-dimensional pattern to the designated locations of complex electronic products. Deeply integrated with automated production lines, it ultimately aims to achieve a reliable, repeatable, and efficient heat dissipation assembly process in large-scale manufacturing. These features make it a critical piece of equipment for ensuring the thermal reliability and production quality of high-end electronic products.
Visual positioning + laser height measurement + syringe dispensing
RTV effectively suppresses the movement of plug-in components.
●The control software is easy to operate and program;It has the functions of drawing points, lines, surfaces, arcs, circles, irregular curves, continuous interpolation and three-axis linkage;
●Powerful PC compatibility, with Logoshop software, can import various file formats (such as .NC, .AI, .DXF, .JPG, .BMP, scanners, etc.) generated by mainstream design software (such as Jingdiao, AutoCAD, CoralDraw, etc.);
●Equipped with 130W pixel CCD visual software, it has a correction function, and the product can be automatically corrected if it has a certain range of offset;
●The equipment is equipped with laser height measurement to solve the problem of product deformation and dispensing The equipment is equipped with a low liquid level alarm function to remind the operator to change the glue in time;
●The equipment is equipped with an automatic needle alignment function to avoid poor dispensing after changing the needle;
●The equipment is equipped with a low air pressure alarm All doors of the equipment are equipped with safety door locks;
●The equipment can be adapted to visual positioning, product deformation correction, low-temperature plasma cleaning, automatic dispensing, dispensing effect detection, automatic glue quantity inspection, RFID station passing, automatic needle correction, MES system and other rich functions;
●The equipment can be adapted to visual positioning, product deformation correction, low-temperature plasma cleaning, automatic dispensing, dispensing effect detection, automatic glue quantity inspection, RFID station passing, automatic needle correction, MES system and other rich functions;

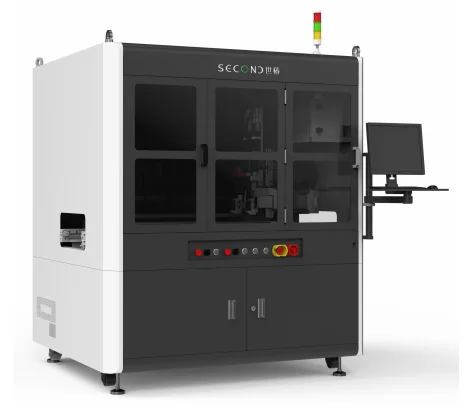

The platform and X/Y module base are cast in mineral form, and the key surface is grinded to ensure higher accuracy and stability
Gantry type structure, bearing large load, stable structure
Powerful visual positioning system, can meet the Mark point positioning, grab edge positioning, 3D scanning positioning,
Strong scalability, can expand AOI detection 3D detection, UV exposure curing and other functions
Strong platform compatibility, contact and non-contact dispensing, to meet the dispensing operations of different products and processes
Replaceable stainless steel housing to achieve 100 levels of cleanliness
The platform and X/Y module base are cast in mineral form, and the key surface is grinded to ensure higher accuracy and stability
Gantry type structure, bearing large load, stable structure
Powerful visual positioning system, can meet the Mark point positioning, grab edge positioning, 3D scanning positioning,
Strong scalability, can expand AOI detection 3D detection, UV exposure curing and other functions
Strong platform compatibility, contact and non-contact dispensing, to meet the dispensing operations of different products and processes
Replaceable stainless steel housing to achieve 100 levels of cleanliness
▪ Square welding frame + sheet metal shell, integrated steel plate on the table, all mounting surfaces are precision processed to ensure accuracy and better stability
▪ Cantilever structure is suitable for products with higher aspect ratio, which can better ensure the accuracy and stability of the robot arm while meeting the large stroke
▪ Powerful visual positioning system, which can meet the requirements of Mark positioning, edge positioning, 3D scanning positioning
▪ Strong scalability, can expand AOI detection 3D detection, UV Ricoh curing and other functions
▪ Strong platform compatibility, contact and non-contact dispensing, to meet the dispensing operations of different products and processes
Do not hesitate to contact us for further information, thanks in advance for your support!
