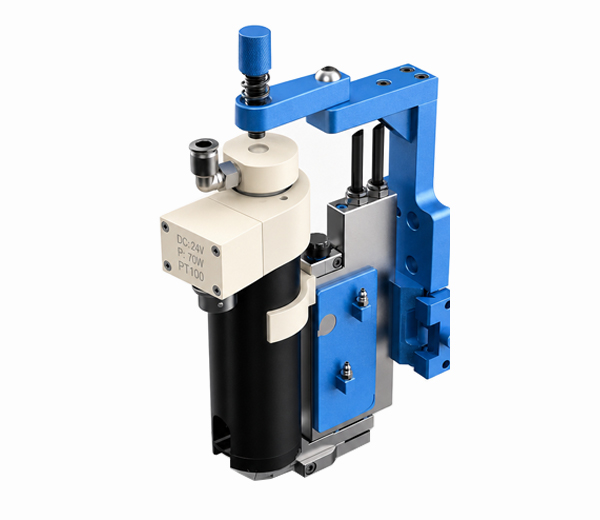

Second Piezoelectric Jetting Valve
●High Precision -0.2mm Micro Dots
●Highly Repeatable Jetting
●800HZ High-Speed Jetting
●Wide Viscosity Range0-100,000cps
●Smart & Convenient -Nozzle Heating Option

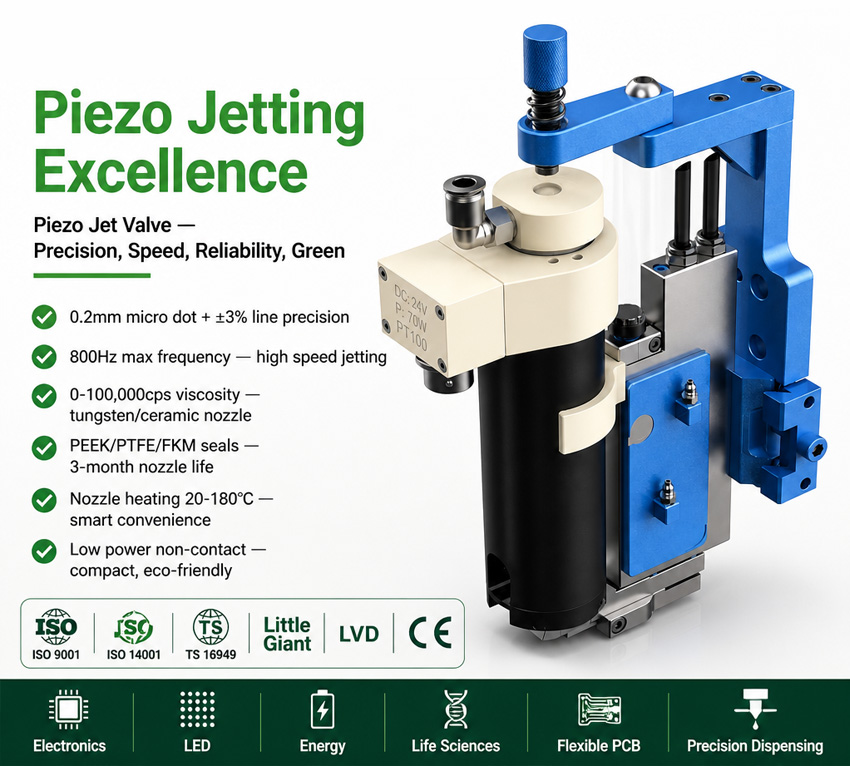

●Piezo Jetting Excellence
●Piezo Jet Valve -Precision, Speed, Reliability, Green
Engineered for ultra-fast and micron-level precision, the Second CE Certified High-Speed High Precision Non-Contact Piezoelectric Jet Valve is a state-of-the-art fluid control solution. Utilizing advanced piezoelectric actuator technology, this valve achieves high-frequency, non-contact jetting with exceptional consistency. Backed by our 20 years of industry expertise, it is the ultimate choice for micro-dispensing applications requiring high throughput, extreme precision, and energy efficiency.
Backed by 20 years of dedicated experience in the fluid application industry, we are recognized as a National “Little Giant” Enterprise. Our manufacturing and quality management systems are fully certified to international standards, including ISO 9001, ISO 14001, TS 16949, CE, and LVD. This guarantees that every valve we deliver meets the highest global benchmarks for safety, durability, and performance.
1. Ultra-High Precision & High-Speed Jetting

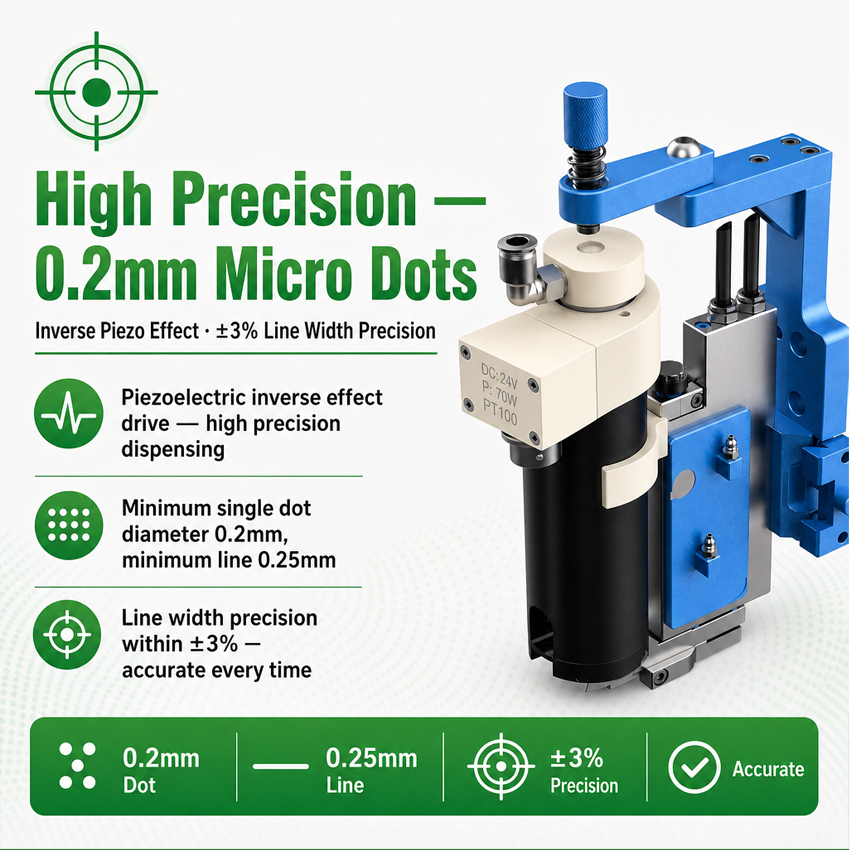

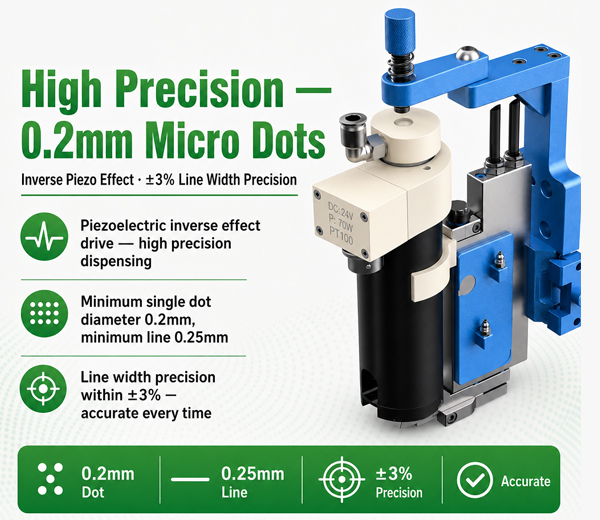

*Micron-Level Accuracy: Utilizing the inverse piezoelectric effect, the valve achieves highly precise dispensing with a minimum single dot diameter of 0.2mm and a minimum line width of 0.25mm. Line width precision is strictly controlled within ±3%.
*High-Frequency Operation: Capable of reaching a maximum operating frequency of 800Hz, this valve significantly accelerates production cycles and maximizes manufacturing efficiency.
2. Non-Contact Dispensing & High Consistency
*Z-Axis Independent: The non-contact jetting method eliminates the need for Z-axis movement, seamlessly adapting to complex surfaces and preventing product contamination or damage caused by traditional contact dispensing.
*Highly Repeatable Jetting: Ensures consistent glue dot quality throughout continuous production runs, providing flawless precision micro-dispensing for every single droplet.
3. Broad Applicability & Premium Wear Resistance
*Wide Viscosity Range: Exceptionally versatile, handling a broad spectrum of adhesives with viscosities ranging from 0 to 100,000 cps to meet diverse process requirements.
*Durable Components: Nozzles and needles are crafted from tungsten steel or ceramic, offering superior corrosion and abrasion resistance to extend component lifespan.
4. Stable Reliability & Extended Lifespan
*Premium Sealing Materials: Utilizes high-performance sealing materials such as PEEK, PTFE, PE, and FKM to guarantee stable sealing performance, with a seal lifespan of up to 1 week of continuous operation.
*Low Maintenance Costs: Nozzles and needles boast a lifespan of up to 3 months, drastically reducing the frequency of replacements and minimizing maintenance downtime.
5. Smart Control & Compact Modular Design

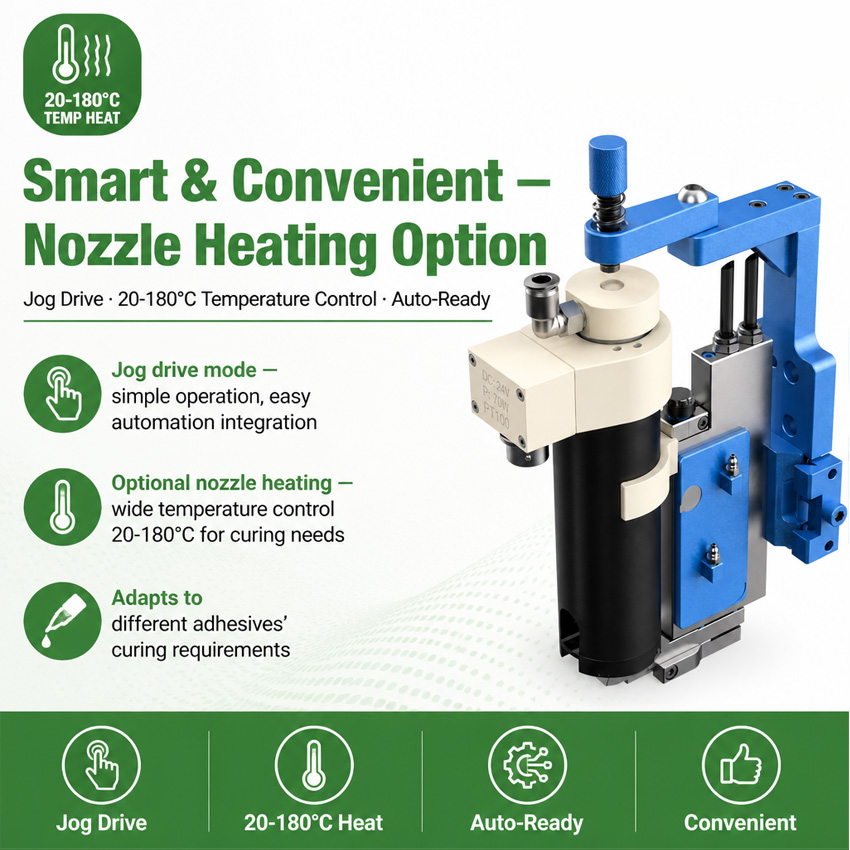

*Intelligent Heating Options: Select models feature nozzle heating capabilities with a wide temperature control range of 20~180℃, perfectly adapting to the curing requirements of various adhesives.
*Space-Saving & Easy Maintenance: The compact and exquisite structure saves valuable installation space. Its modular design allows for easy disassembly, cleaning, and maintenance, lowering overall operational costs.
6. Energy-Efficient & Eco-Friendly Operation
*Low Power Consumption: Piezoelectric drive technology inherently features low power consumption, contributing to energy conservation and emission reduction.
*Zero-Waste Dispensing: The non-contact jetting mechanism prevents glue waste and environmental pollution, promoting a cleaner and greener manufacturing process.
* Model: Second High-Speed High Precision Piezoelectric Jet Valve
* Drive Mode: Piezoelectric Actuator
* Dispensing Type: Non-Contact Jetting
* Max Operating Frequency: 800Hz
* Min Dot Diameter: 0.2mm
* Min Line Width: 0.25mm (Precision: ±3%)
* Applicable Viscosity: 0 – 100,000 cps
* Nozzle/Needle Material: Tungsten Steel / Ceramic
* Sealing Materials: PEEK / PTFE / PE / FKM
* Heating Range (Optional): 20~180℃
* Certifications: CE, ISO 9001, ISO 14001, TS 16949, LVD
By combining ultra-high-frequency piezoelectric actuation, non-contact micro-dispensing, and premium wear-resistant materials, this jet valve sets the industry standard for precision fluid control. It maximizes production speed, ensures flawless consistency, and significantly lowers long-term maintenance costs. Upgrade your manufacturing line with a reliable, high-performance, and eco-friendly dispensing solution built for industrial excellence.
Item | Parameters | ||
Model: | F-P101 | F-P102 | F-P103 |
Size | 220*55*105mm | 220*55*105mm | 220*55*135mm |
Weight | 540g | 600g | 850g |
Driving mode | electric | electric | electric |
Flow channel material | stainless steel | stainless steel | stainless steel |
Nozzle/strike material | tungsten steel/ceramic | tungsten steel/ceramic | tungsten steel/ceramic |
Applicable glue viscosity | 0-100000cps | 0-100000cps | 0-100000cps |
Seal material | PEEK/PTFE/PE/FKM | PEEK/PTFE/PE/FKM | PEEK/PTFE/PE/FKM |
Maximum operating frequency | 800HZ | 800HZ | 800HZ |
Minimum single point diameter | 0.2mm | 0.2mm | 0.2mm |
Minimum scribing size | 0.25mm | 0.25mm | 0.25mm |
Seal life | 1 week | 1 week | 1 week |
Nozzle/striker life | 3 months | 3 months | 3 months |
Minimum glue volume | 2nl/point | 2nl/point | 2nl/point |
Line width accuracy | ±3% | ±3% | ±3% |
Nozzle heating temperature | / | 20~180℃ | 20~180℃ |
Cylinder heating temperature | / | / | 20~200℃ |
Suction back glue dispensing valve can be applied to the following fields:
● Automation
● Electronics
● Mechanical engineering
● Automotive electronics
● Medical
● Pharmaceuticals
● Information technology
● Consumer electronics
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
F-H101 suction back glue dispensing valve uses the most advanced micro dispensing technology to achieve extremely high precision dispensing, especially suitable for high viscosity and ultra-high viscosity media. The system can be widely used in a variety of different liquids,
such as:
● SMT adhesive
● Filled conductive adhesive
● Conductive silver glue
● Solder paste
● Flux
● Silicone
● LED phosphor
● Bottom filler
● Hot melt adhesive
Quality control
● Raw-material traceability identification
● Finished product inspection
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
Second PP Flexible Pin Syringe Needle
PP flexible needle is suitable for complex working surfaces, convenient for dispensing glue at corners, can prevent scratches, make dispensing easier, needle tube length can be cut as needed. 50 pieces per box.
Screw pump for resin (pump head) :
Suitable for 2600 ml silicone sleeve packaging. Easy to operate and maintain. Can communicate with automatic machine . Stable glue output. The glue output accuracy can reach up to ± 3%
Screw pump stator material: FKM corrosion resistant fluororubber
Screw pump rotor material: 304 stainless steel plating
Screw pump connecting rod material: 304 stainless steel (with spiral blade)
Applied range:
Delivery of medium and high viscosity fluids such as silicone, epoxy resin, grease, thermal conductive gel,thermal conductive silicone, and thermal paste
Functional features:
Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;
Second Round Interface Dynamic mixing tube
Round Interface Dynamic mixing tube’s function is Dynamic Mixing two component glue , convenient for dispensing glue at corners, can prevent scratches, make dispensing easier, needle tube length can be cut as needed. 50 pieces per box.
