Plunger Platen Pumps Glue feeder for high viscosity multi-filler glues

Q: 2.What is your terms of packing?

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

Q: 3.What is your terms of payment?

Depends on terms and conditions, negotiable.

Q: 5.Can you produce according to the sample testing?

Yes, we can produce according to the tested result. We can also product base on your design.

Q: 6.Do you test your goods before delivery?

Yes, we will test 100% before delivery.

Q: 7.How do you make your business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q: 8.What is the working principle of the Glue Dispensing Machine?

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

Q: 9.What is the difference between a glue dispenser and a potting machine?

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

Q: 10.What kind of glue does the dispenser generally use?

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Description

Functional Features:

● Independently developed high-speed pneumatic switching technology

● High compatibility and versatility
By adjusting the installation direction of the sealing ring pressure plate, the cylindrical barrel can be compatible with the conical barrel structure, without replacing the sealing ring, and has strong versatility

● Convenient exhaust to prevent flow channel blockage
Adopting the T-type exhaust air flow channel structure design, the valve closing position is infinitely close to the glue outlet, eliminating problems such as flow channel blockage and dry glue.

● Convenient barrel removal
The air blowing device at the end of the pressure plate ensures that there is no air remaining in the airway after the empty barrel is removed, avoiding dry glue in the airway and causing blockage.

Industrial Applications ：

● Plunger-type platen pumps are used in various industries as the core component of the glue supply of the hydraulic control system.

● As the core component of the glue supply link of the hydraulic control system,

the Plunger-type platen pumps product is applied to various industries.

Its application areas include:

Photovoltaic, Automotive, 3C Electronics, Automotive Electronics, Aerospace, Rail transport

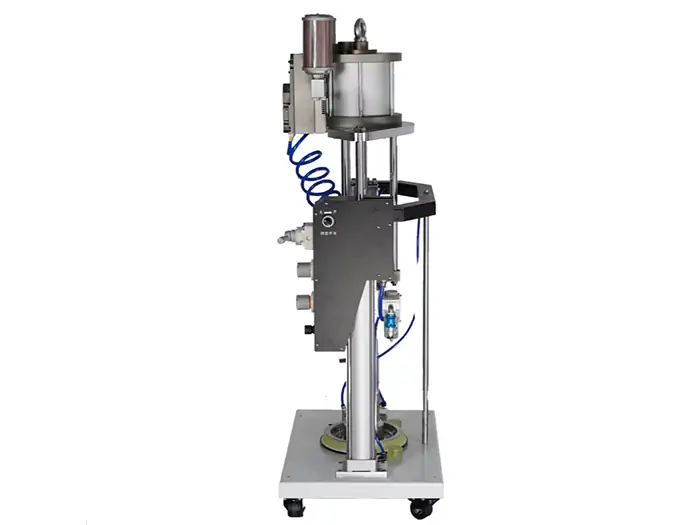

Plunger Platen Pump Selection Chart

Item	Parameter
Glue Package	5 Gallon		55 Gallon
Model	B-Z301	B-Z402	B-Z601	B-Z602
Drive method	Air Cylinder	Air Motor	Air Motor
Pump Body Support	Double Column Cylinder		Double Column Cylinder
Pump Body Type	Carbon Steel Pump	Wear Resistant Pump	Carbon Steel Pump	Wear Resistant Pump
Applicable Glue Viscosity	50000-1000000 CPS
Bucket inner diameter size	284~288mm		564~589mm
Glue Discharge	170CC/cycle
Booster Ratio	43:1
Maximum Pump Speed	30 Cycle/min
Fluid Output Pressure	≤28Mpa
Pump Body Operating Temperature	<80℃

Item	Parameter
Model	B-Z301	B-Z402	B-Z601	B-Z602
Displacement Rod Material	Stainless Steel	Ceramic	Stainless Steel	Ceramic
Piston Cylinder Material	Stainless Steel	Ceramic	Stainless Steel	Ceramic
Pressure Plate Seal Material	Fluoroelastomer
Cutting Valve Material	Carbon Steel	Tungsten Steel	Carbon Steel	Tungsten Steel
Operating Air Pressure	0.2~0.7Mpa
Glue Discharge Thread Specification	NPT1
Mode of Operation	Pneumatic+Electric	Control Pneumatic
Equipment Dimensions	7505001535	7505001535	12207701669	12207701669
Equipment Dimensions	(LWH)mm	(LWH)mm	(LWH)mm	(LWH)mm
Gross Equipment Weight	Approx.220kg	Approx.220kg	Approx.320kg	Approx.320kg
Wear Resistant Pumps Available as Option	✔	/	✔	/

Structural layout introduction

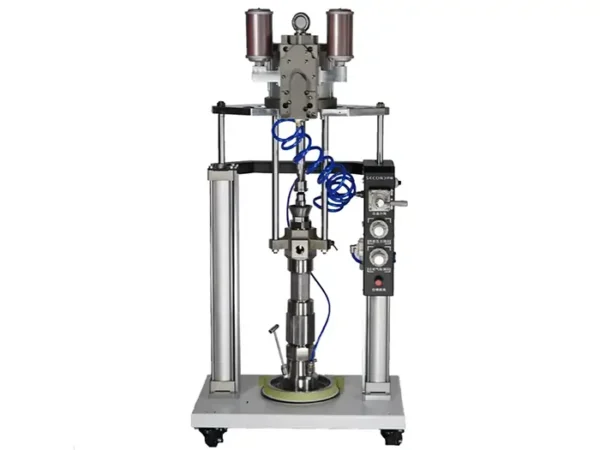

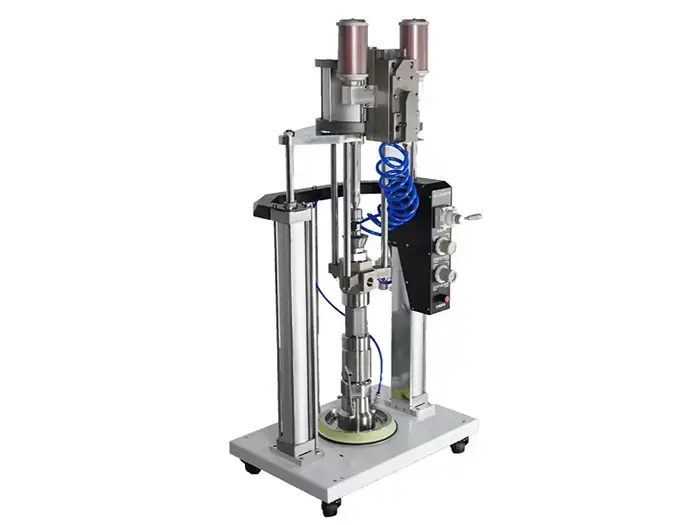

PlungerPlunger-type-platen-pumps-type-platen-pumps

Structure diagram

Product Description

Module features :

Industry Applications:

Commonly used glue:

Multi-valve picture display:

OUR FACTORY (A3)

Logistics packaging collection

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

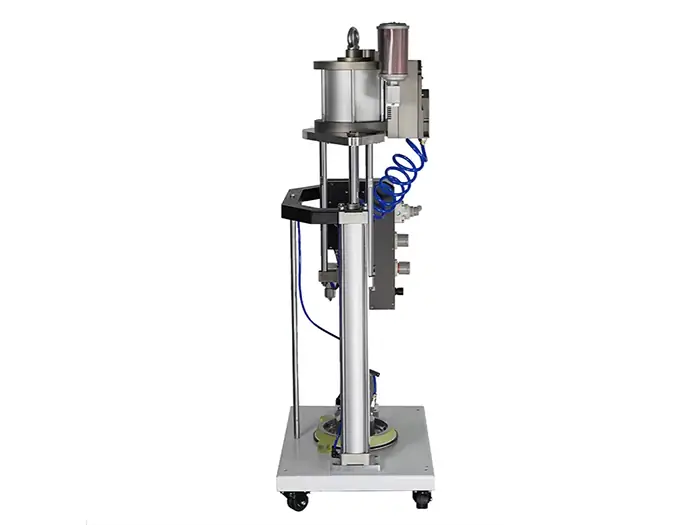

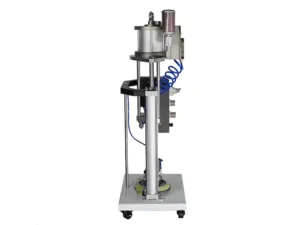

5 gallon Plunger type platen pumps
