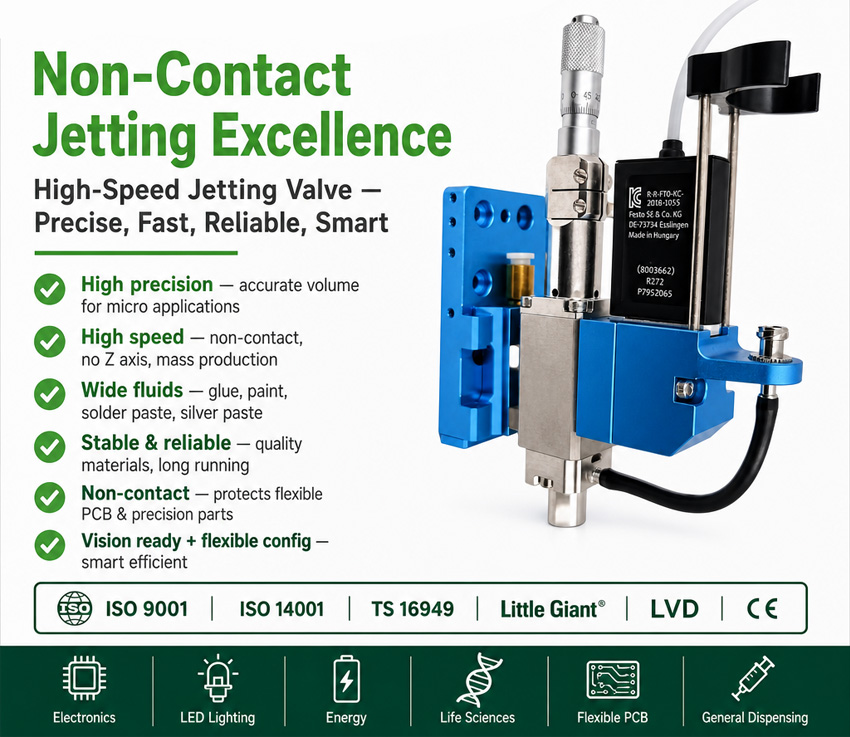

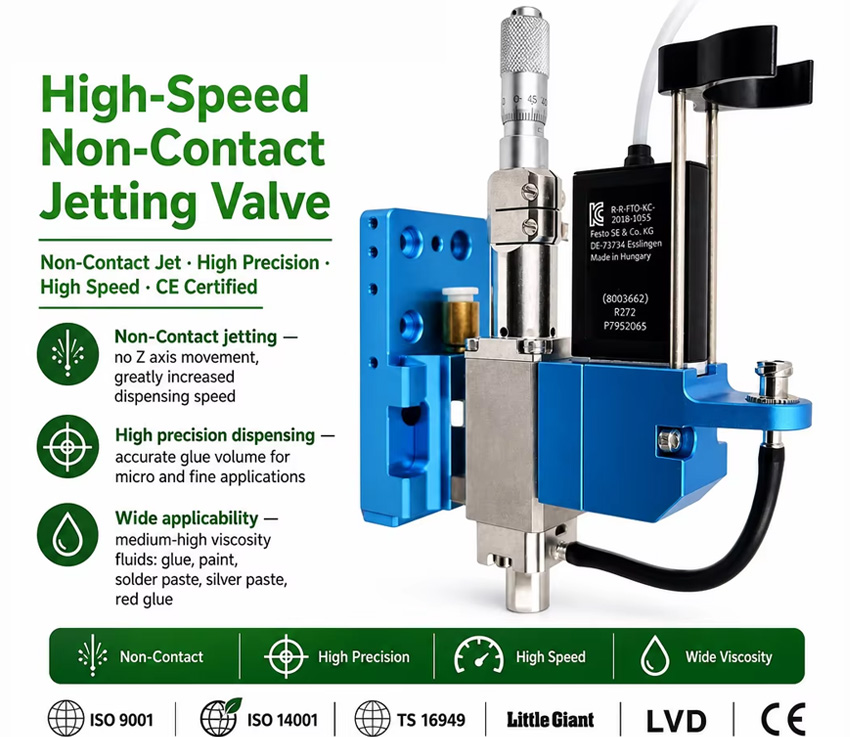

Second High-Speed Non-Contact Pneumatic Jetting Valve :
● Ultra-High Precision & Non-Contact Jetting
● High-Speed Operation & Enhanced Efficiency
● Broad Applicability & Flexible Configuration
● Smart Vision Integration & Easy Automation
● Stable Reliability & Easy Maintenance

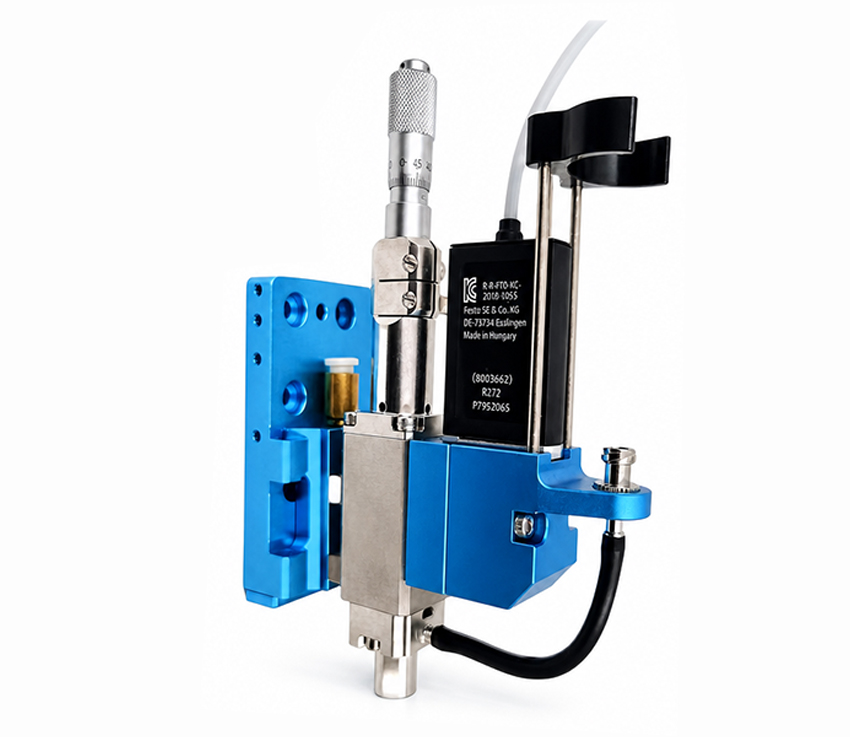

Engineered for ultimate speed and micron-level accuracy, the Second CE Certified High-Speed High Precision Non-Contact Pneumatic Jetting Valve is a premium fluid control component. Utilizing an advanced non-contact jetting mechanism, this valve eliminates the need for Z-axis movement, delivering ultra-fast dispensing while protecting delicate workpieces. Backed by our 20 years of industry expertise, it is the ideal solution for high-volume, high-precision manufacturing across various demanding industries.

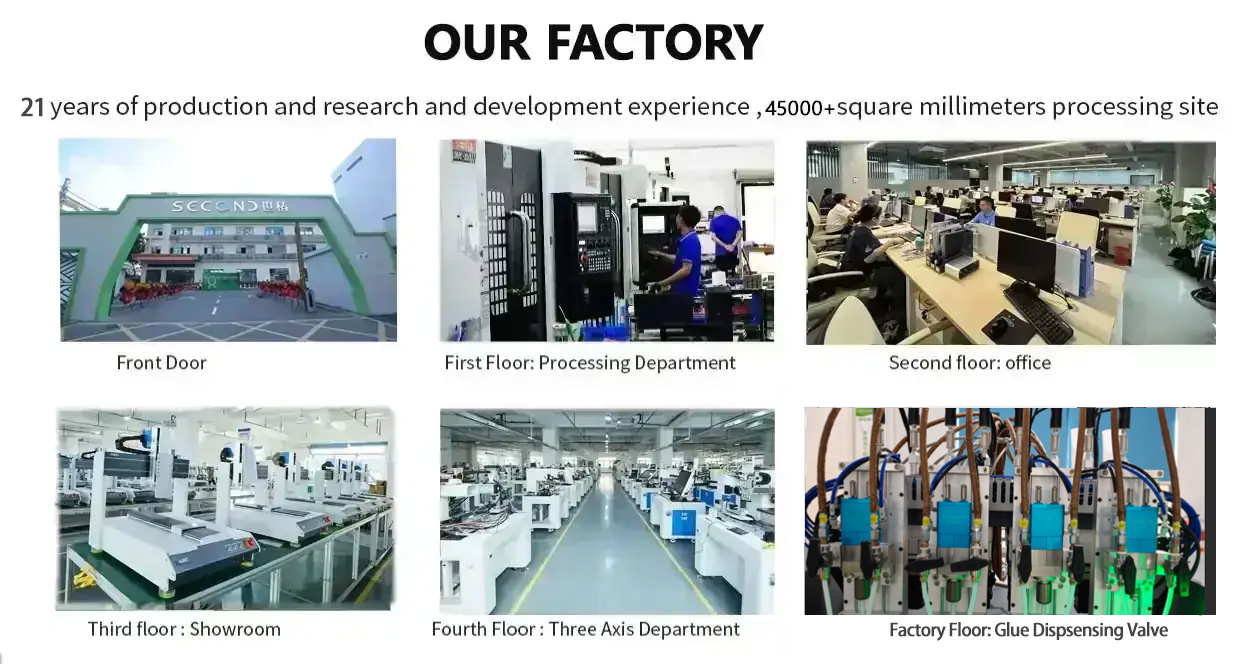

Backed by 20 years of dedicated experience in the fluid application industry, we are recognized as a National “Little Giant” Enterprise. Our manufacturing and quality management systems are fully certified to international standards, including ISO 9001, ISO 14001, TS 16949, CE, and LVD. This guarantees that every valve we deliver meets the highest global benchmarks for safety,durability, and performance.
1. Ultra-High Precision & Non-Contact Jetting
*Flawless Accuracy: Delivers highly precise dispensing operations that perfectly meet the requirements for micro-dimensions and fine applications. Every shot guarantees accurate glue volume, significantly improving product quality and production consistency.
*Zero-Damage Dispensing: The non-contact jetting method eliminates the risk of damaging delicate components during the dispensing process. It is especially ideal for precision products like flexible printed circuit boards (FPCs), ensuring product integrity and quality.
2. High-Speed Operation & Enhanced Efficiency
*Z-Axis Independent: By eliminating the need for Z-axis movement, the valve achieves exceptionally high dispensing speeds. This drastically reduces cycle times and significantly boosts overall production efficiency, making it perfect for large-scale mass production.
3. Broad Applicability & Flexible Configuration
*Versatile Fluid Handling: Expertly controls a wide range of medium-to-high viscosity fluids, including adhesives, paints, solder paste, thermal conductive silver paste, and red glue. It is widely applied in electronic packaging, LED lighting, new energy, and biomedical industries.
*Customizable Accessories: The valve supports flexible configuration of accessories. Users can freely select different nozzles and components based on specific liquid jetting process requirements, seamlessly adapting to diverse dispensing scenarios.
4. Smart Vision Integration & Easy Automation
*Vision System Compatibility: Can be seamlessly paired with vision systems to enable automatic product recognition and intelligent positioning. This allows for dispensing without the need for custom fixtures, greatly enhancing automation levels, precision, and operational convenience.
*User-Friendly Operation: Features advanced control and mechanical systems that are intuitive and easy to understand. This lowers operator training costs and reduces labor intensity.
5. Stable Reliability & Easy Maintenance
*Robust Construction: Built with premium materials and a solid structure, the valve maintains highly stable performance. It is minimally affected by fluctuations in pressure, temperature, and time, ensuring long-term continuous operation.
*Low Maintenance: The reliable design significantly reduces the probability of failures, lowering equipment maintenance costs and minimizing unexpected downtime.
* Model: Second High-Speed High Precision Non-Contact Pneumatic Jetting Valve
* Drive Mode: Pneumatic
* Dispensing Type: Non-Contact Jetting (No Z-Axis Movement Required)
* Applicable Fluids: Glue, Paint, Solder Paste, Thermal Silver Paste, Red Glue (Medium to High Viscosity)
* Key Features: High-Speed, High-Precision, Vision-Compatible, Fixture-Free Operation
* Certifications: CE, ISO 9001, ISO 14001, TS 16949, LVD
By combining ultra-high-speed non-contact jetting, micron-level precision, and smart vision compatibility, this valve sets the standard for advanced fluid dispensing. It maximizes production throughput, protects delicate workpieces, and significantly lowers operational costs. Upgrade your manufacturing line with a reliable, high-performance valve built for industrial excellence.
| Voltage | 220 V,110V | Power (W) | 1kW |
| core components | valve | machinery test report | Provided |
| warranty | 1Year | video outgoing-inspection | Provided |
| place of origin | Guangdong, China | Weight (kg) | 0.6 |
| brand name | Second | Product name | Pneumatic injection glue dispensing valve |
| Model | F-Q101 F-Q102 | Driving mode | Pneumatic |
| Flow channel material | stainless steel | Strike material | tungsten steel |
| Applicable glue viscosity | 0-100000cps | Seal material | PEEK/PTFE/PE |
| Maximum operating frequency | 200Hz | Driving pressure of cylinder | >0.6Mpa |
| Pressure of glue supply | 0.03~0.35Mpa | ||
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which is able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
Second PP Flexible Pin Syringe Needle
PP flexible needle is suitable for complex working surfaces, convenient for dispensing glue at corners, can prevent scratches, make dispensing easier, needle tube length can be cut as needed. 50 pieces per box.
Dual-Component Dynamic Mixing Valve :
Product Introduction:
Double Liquid Dynamic Glue Dispensing Valve for Second AB 2K Two-Part Component Glue Potting Filling Machine Accessories
The Double Liquid Dynamic Glue Dispensing Valve is ideal for a wide range of applications, including but not limited to:
Electronics manufacturing
Automotive components
Aerospace parts
Medical devices
Precision machinery
Conclusion:
The Double Liquid Dynamic Glue Dispensing Valve for the Second AB 2K Two-Part Component Glue Potting Filling Machine is a must-have accessory for any manufacturer looking to improve the accuracy, consistency, and efficiency of their glue dispensing operations. With its precision dispensing, dynamic mixing, adjustable rate, durable construction, and easy integration, this valve is a true game-changer in the world of automated filling and dispensing.
Screw Pump Assembly Glue Supply :
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,
exhaust the air in the pipeline, and start one of the cylinders.
After that, you only need to replace the glue barrel that has run out of glue.
2.For example, when glue barrel A is used up, click cylinder A to press the glue up, and then click cylinder B to press the glue down,
so that glue can be supplied without stopping the machine. After opening buckle A, rotate glue barrel A counterclockwise
to take out glue barrel A.
3.Put the new plastic barrel A into the plastic barrel seat A and tighten it, then fasten the buckle A.
Applicable Industries:
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
Close the glue in advance:
Value range: 0~99mm Recommended value:1~20mm
Open glue in advance:
Value range: 0~99mm Recommended value: based on the actual dispensing
