High scalability, high compatibility meet various production needs in different stages.

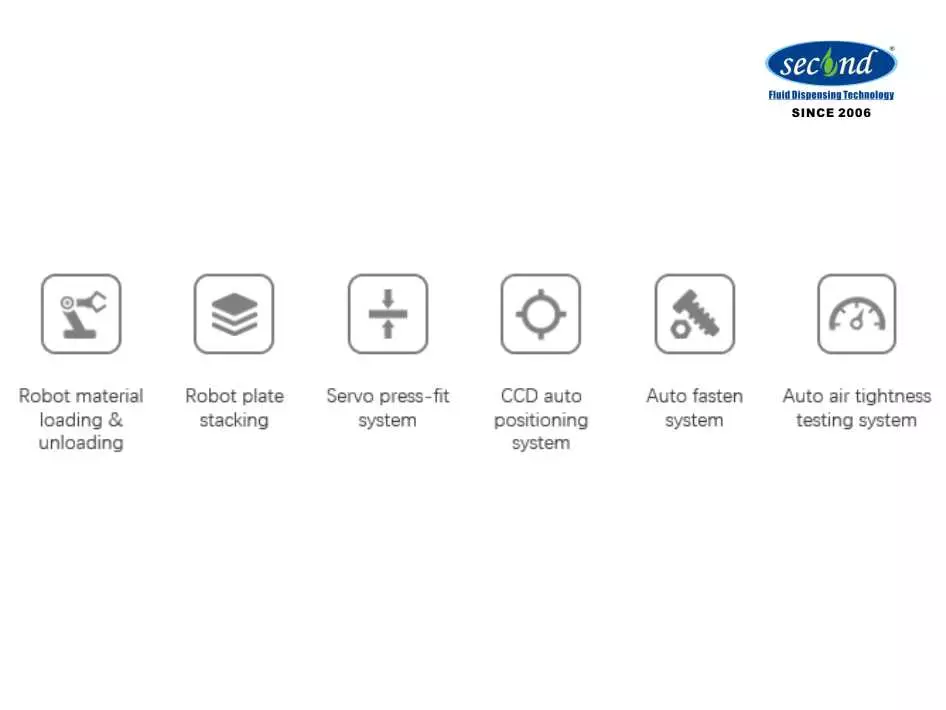

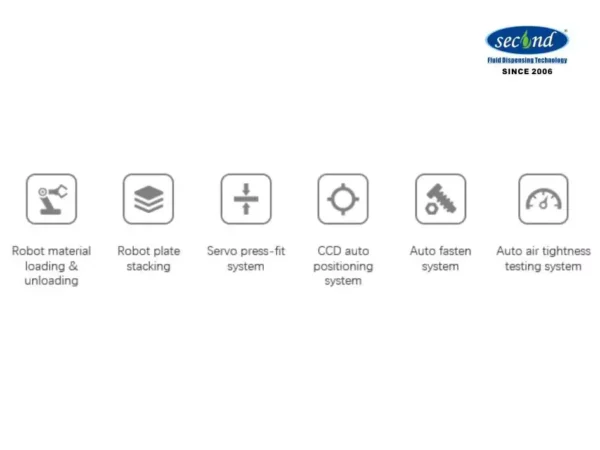

The design of the system stacking line aims to develop a fully automatic assembly line for stacking and assembling PEM hydrogen fuel cell battery stacks. The loading and unloading of materials in this line is realized by robots, stack end plates, current collector plates, bipolar plates, etc. The stacking of materials is completed by the robot, the high-precision servo press ensures the precise pressure of the stack, the visual alignment system ensures the accuracy, the stack is automatically tightened, and the multi-directional air tightness test is performed on the stack by the flow method.

Category: Tags: , , , , , , , , , , , ,

Description

Introduction：

Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.

The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

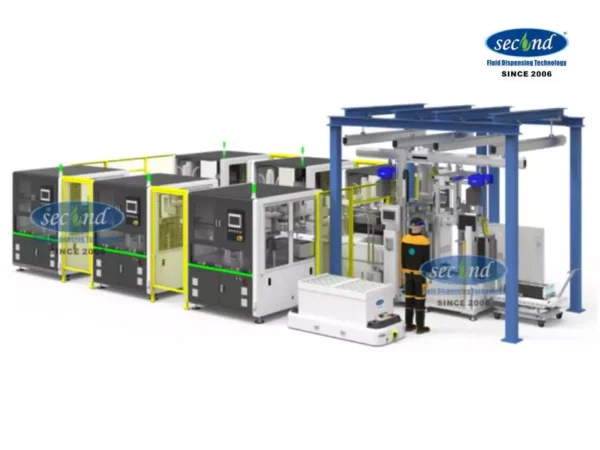

  • The multi-station silo can be loaded without stopping, which can realize the automatic stacking of bipolar plates and MEA.
  • Adapting with two control modes, position mode and pressure mode

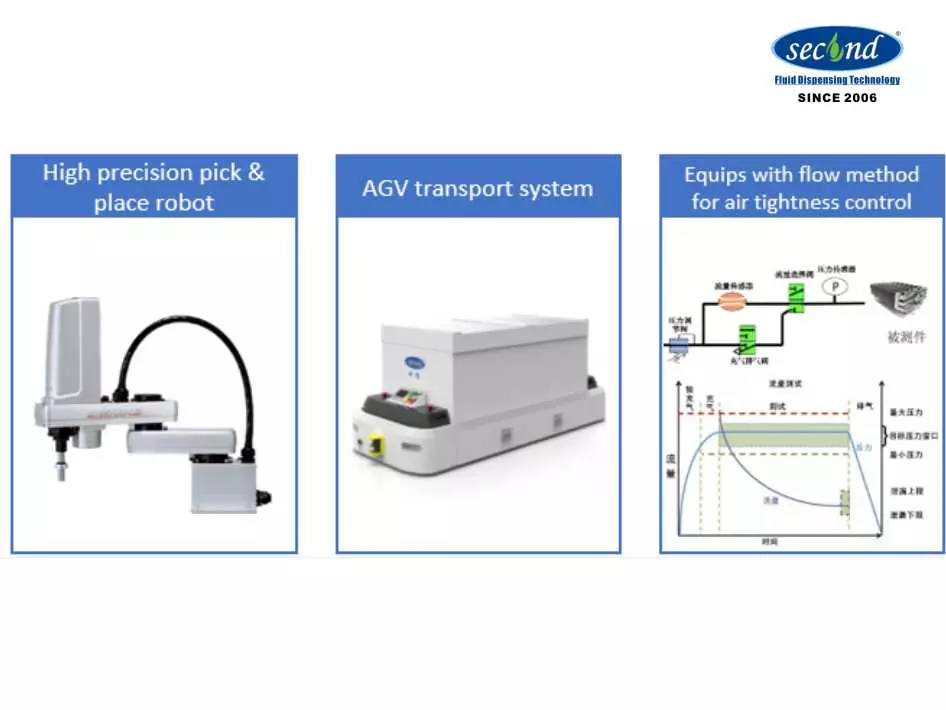

  • Inline air tightness testing, differential pressure method and flow method
  • Equips with line-crane, stack auto loading system, and AGV logistic system
  • System designed in modular units, can expand production line according to production capacity demand

Main functions

  • High-precision robotic manipulator (4-axis/6-axis)
  • Flow method air tightness detection system
  • Integrated system for stack pre-compression, stacking and compression
  • Laser marking system

Optional functions：

  • Intelligent logistics AGV
  • Stack automatic flip transfer AGV vehicle
  • Finished product re-inspection system

Specification

Machine footprint

Length*Width*Height：About 11000mm*6200mm*3500mm

Failure rate

3%

Comprehensive stacking accuracy

±0.2mm

Pressing stroke accuracy

±0.02mm

Cycle time (est.)

3s

Pressing pressure

3-10T

Pressing range

0-800mm

Pressing precision

±0.5%FS

Testing method

Total leakage, three channels, serial leakage

Flowmeter range

0.1-200ml/min

Flowmeter accuracy

±（0.8%RD+0.2%FS）

Press-pack speed

0.01 ~10mm/s

Power supply, air supply

AC380V   0.5-0.7Mpa

Working environment

Humidity：40-80%，  Temperature: 22.5±1℃

PEM H2 fuel cell battery fabricating machine
PEM H2 fuel cell battery fabricating machine
PEM H2 fuel cell battery fabricating machine 1

Supportive dispensing systems
