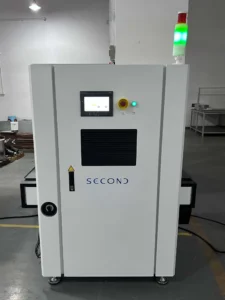

SEC-J450 In-line coating machine
In-line conformal coating machine

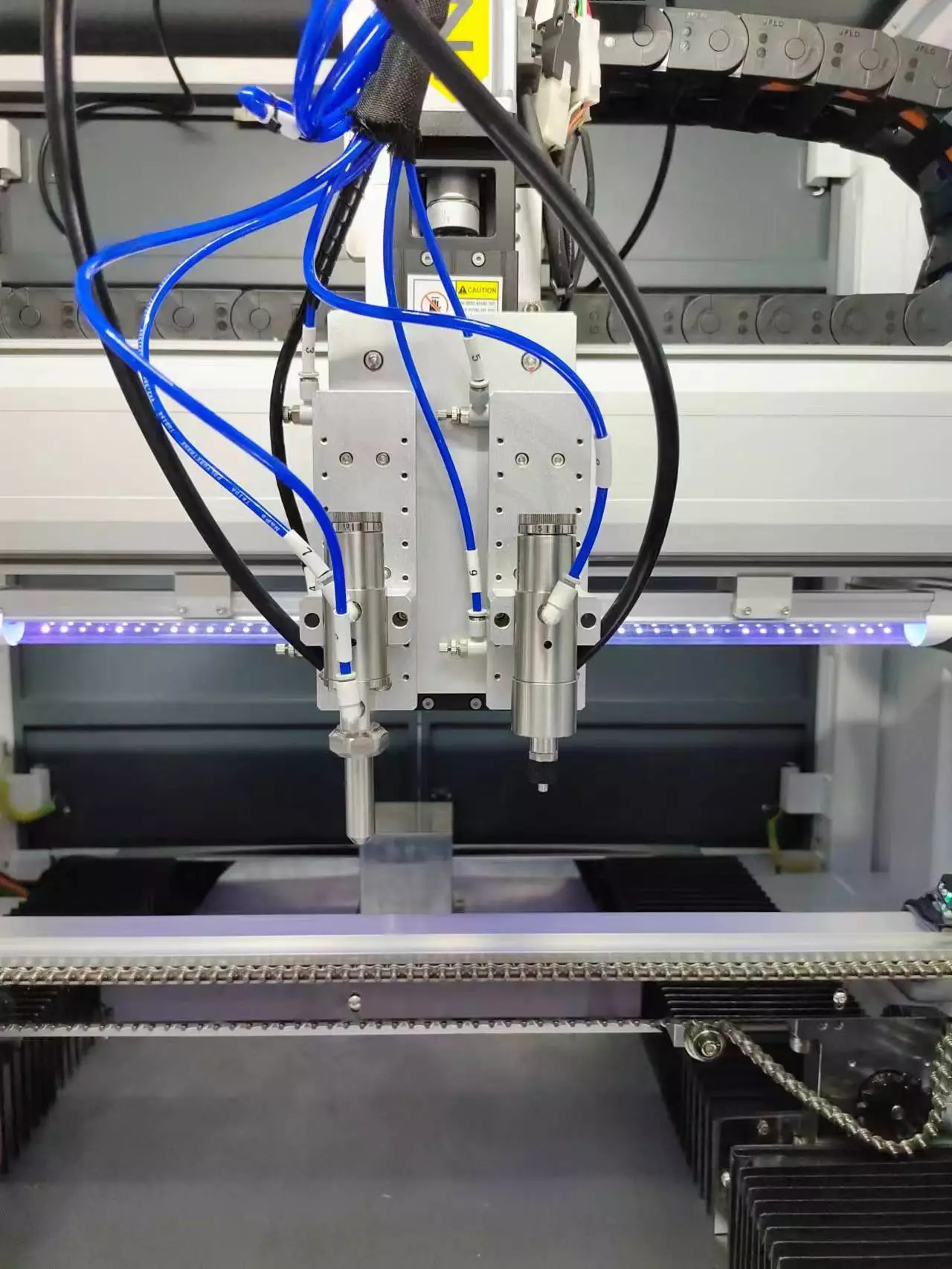

In-line coating track with automatic width adjustment. Can be equipped with a variety of coating modules, can realize multi-track, point and line coating.
Large-area selective coating for multi-industry coating applications, multi-platen, high-capacity requirements, and a wide variety of processes.
Introduction：

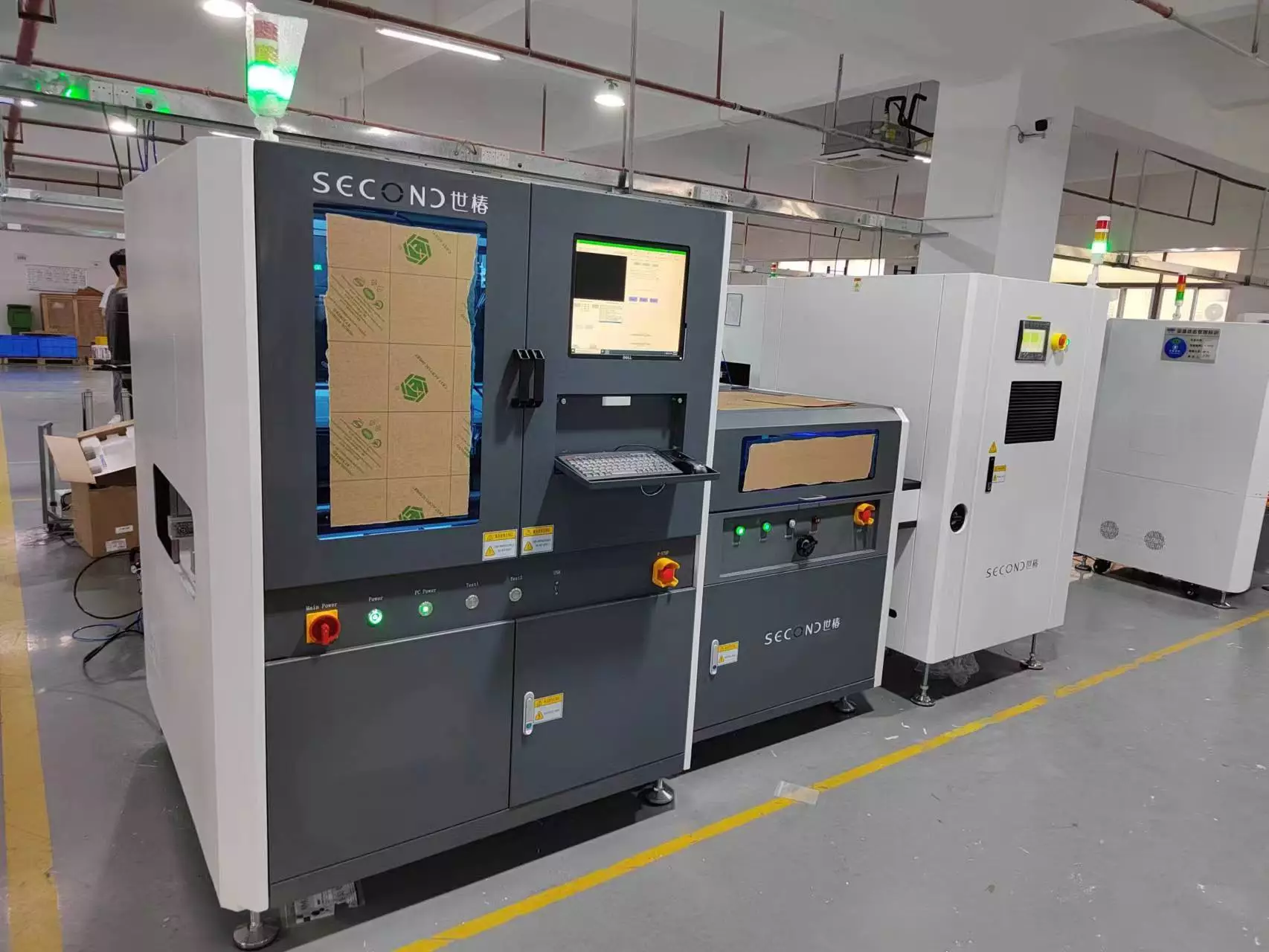

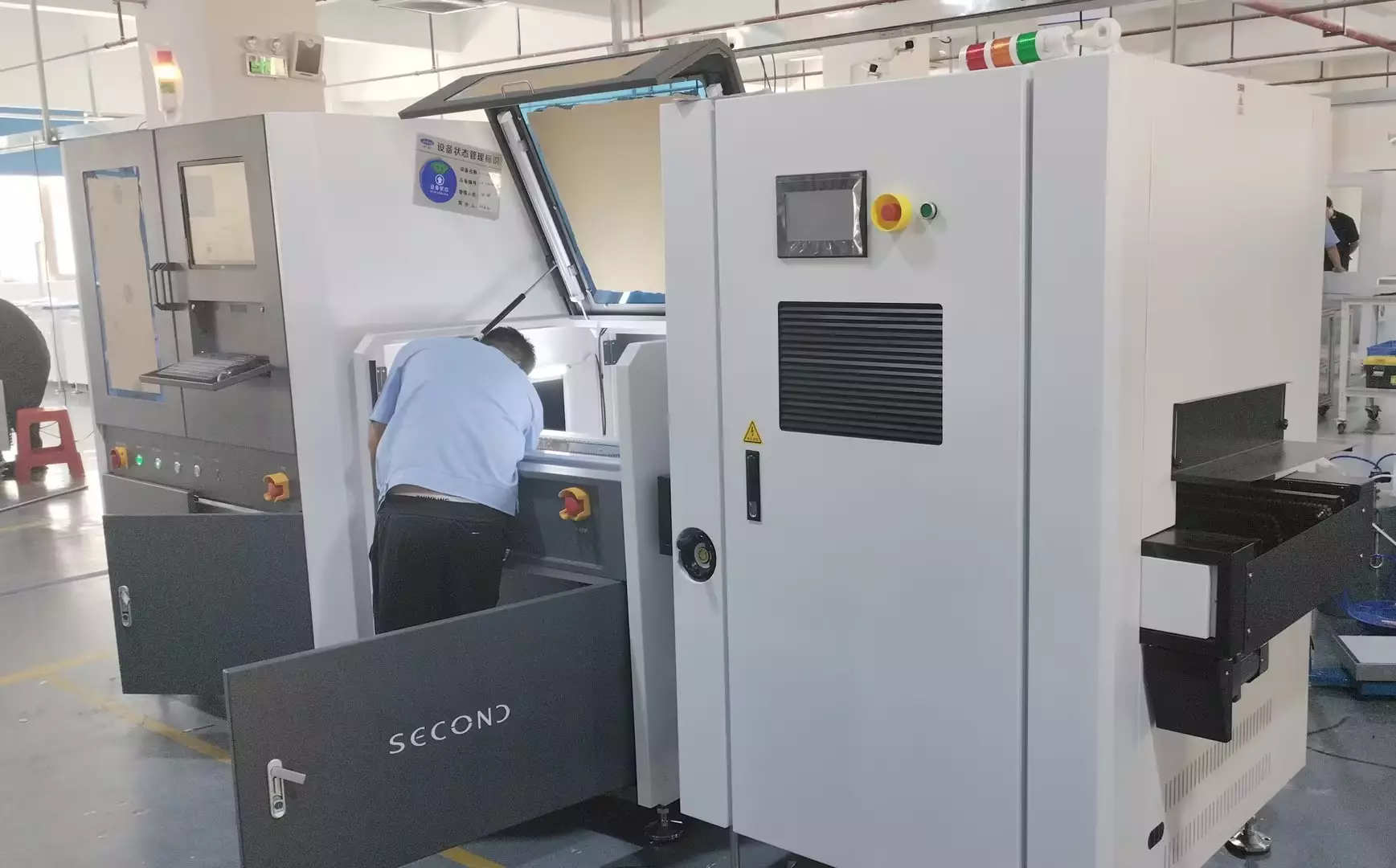

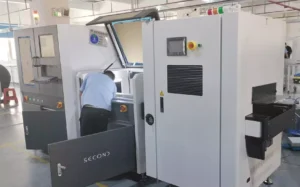

SEC-J450, In-line conformal coating machine
In-line coating track with automatic width adjustment. Can be equipped with a variety of coating modules, can realize multi-track, point and line coating.

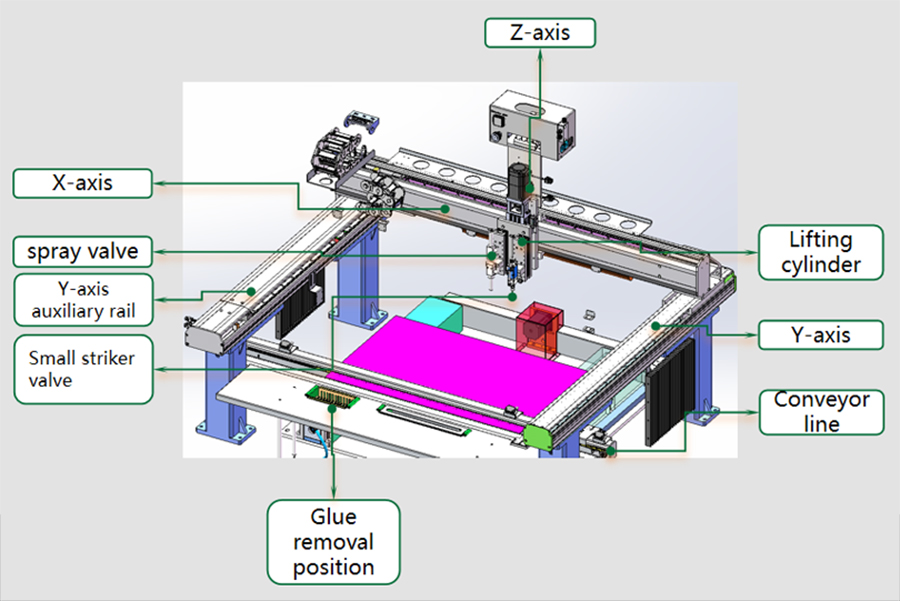

Equipment introduction：
Standard features
Optional functions：
Specification
Household appliance control boards, automotive electronic control boards, military instrumentation circuit boards, computer control boards, industrial equipment control boards.
Agricultural equipment control boards, battery protection boards, LED control boards, outdoor LED displays, inverter boards, security control boards, motor control boards and so on.
Motor control boards, etc.
M0del | SEC-J450 |
Working Range | X500*Y500*Z100mm (single valve) |
Transmission method | Servo motor/ball screw |
XY speed Max | 800mm/s |
XY acceleration Max | 0.8g |
Z speed Max | 200mm/s |
Z acceleration Max | 0.3g |
XYZ repeatability | ±0.02mm |
Z-axis load | 5Kg |

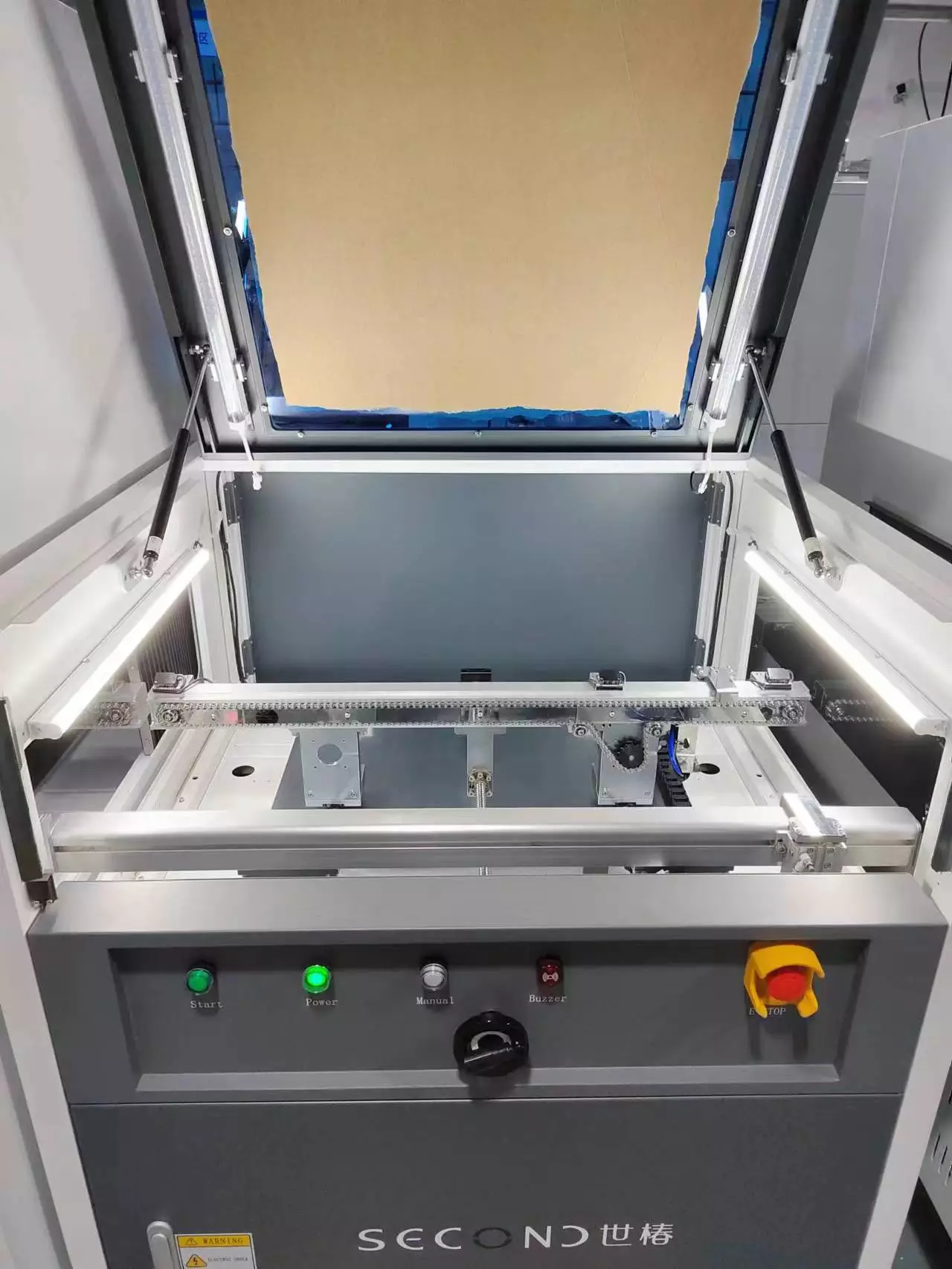

Rail transfer type | Special aluminum alloy rail + stainless steel chain with extended pin |
Rail speed Max | 300mm/s |
Rail adjustment mode | Motorized adjustable (optional automatic width adjustment) |
Width range | 40-500mm |
Rail load Max | 10Kg |
Height of track from the ground | 900±20mm |
Coating width | 2-30mm |
Maximum component height | 90mm above and below the conveyor surface |
Computer | Industrial computer, liquid crystal display, mouse and keyboard |
Operation system | Windows7 |
Control software | Second Fluent |
Upper and lower computer communication protocol | SMEMA |
Machine volume | L1060*W1450*H1700mm |
Machine weight | About 800Kg |
Power requirement | AC220V,50/60Hz,2Kw |

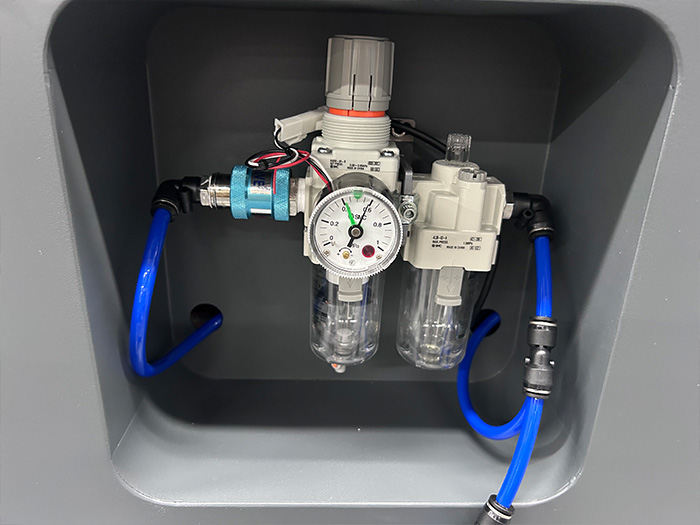

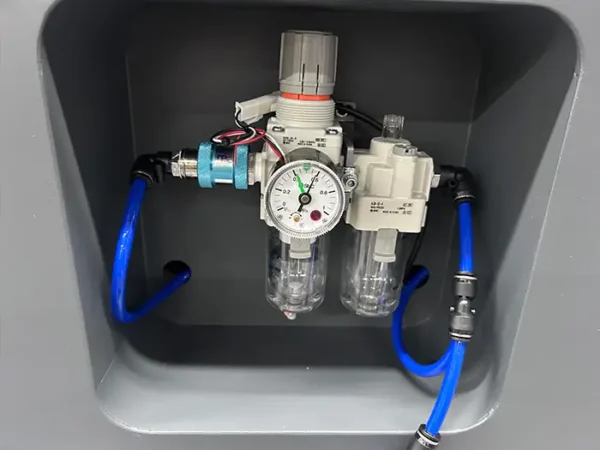

Air pressure | 0.4-0.6Mpa |
FAQ
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
