Second Single component glue dispenser machine Piezoelectric Electric Injection glue dispensing valve accessories parts F-P102

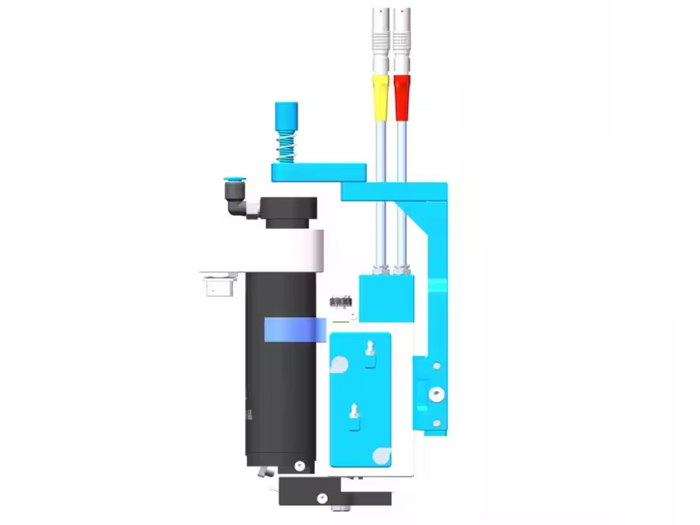

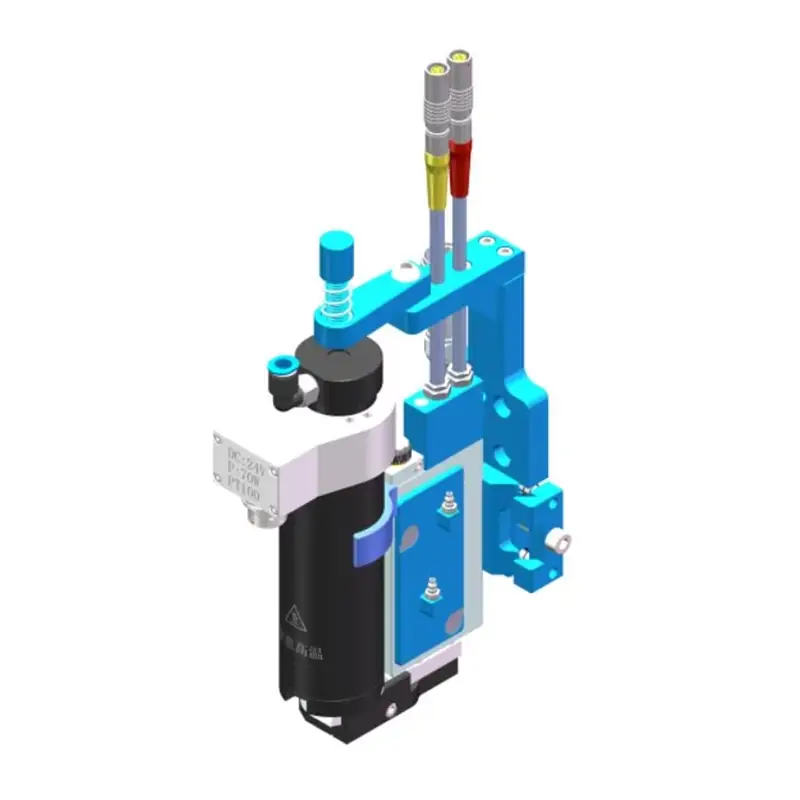

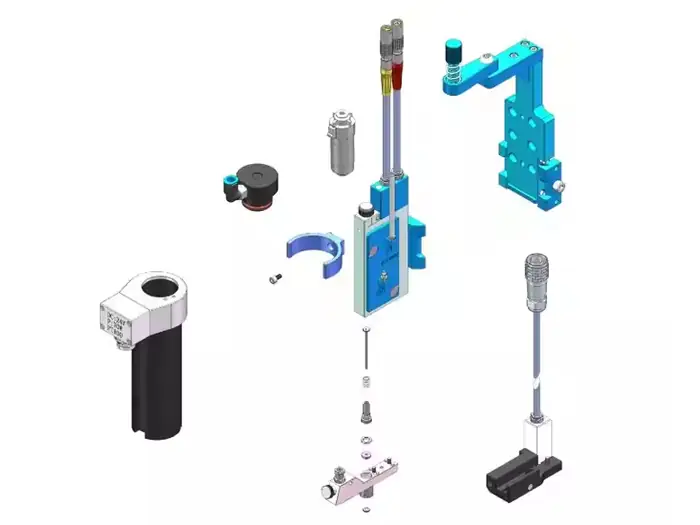

Second Piezoelectric Electric Injection Glue Dispensing Valve

The F-P series piezoelectric injection valve is a single-component volumetric metering valve. Its application scenarios are almost the same as those of pneumatic injection valves, but it uses piezoelectric drive. Compared with pneumatic injection valves, it has a higher dispensing rate and higher glue consistency, and can achieve a smaller amount of glue dispensing! It is widely used in a variety of high-precision dispensing occasions!



Description

Product features:

● Non-contact dispensing mode

● Fast upper end correction method, eliminating the traditional method of debugging the nozzle

● The highest dispensing frequency is greater than 800Hz

● Achieve micro-control of 200 microns/dot

● High precision glue control accuracy ±1%

● Stable dispensing repeatability

● Standard equipped with adjustable temperature control structure

● Can carry out 232 communication and implement software to modify controller parameters

Working principle:

When voltage acts on piezoelectric ceramics, the piezoelectric ceramics will produce mechanical deformation according to the magnitude of the voltage and the frequency, and cooperate with the spring-driven striker to hit the fluid on the nozzle,thereby ejecting the fluid.

Application:

Circuit board chip protection, LCM, headset, VCM, FPC protection, mobile phone, fingerprint module and other dispensing applications.

Applicable Industries

Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding,

LCD screen

Specification

ItemParameters
Model:F-P101F-P102F-P103

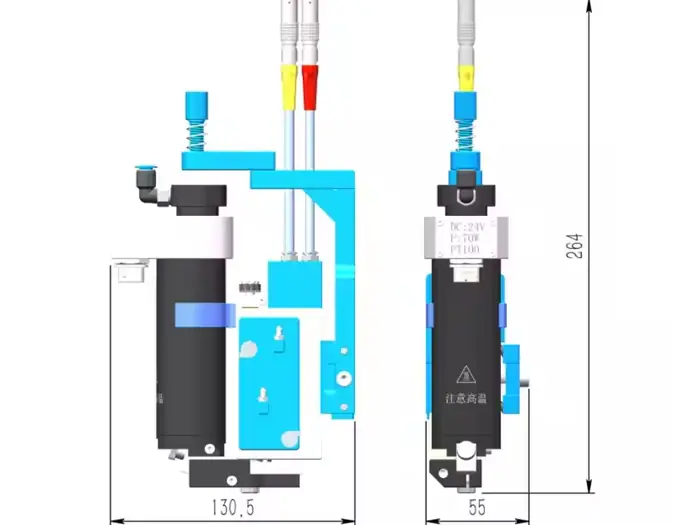

Size220*55*105mm220*55*105mm220*55*135mm
Weight540g600g850g
Driving modeelectricelectricelectric
Flow channel materiastainless steelstainless steelstainless steel
Nozzle/strike materialtungsten
steel/ceramic
tungsten steel/ceramictungsten steel/ceramic
Applicable glue viscosity0-100000cps0-100000cps0-100000cps
SealmaterialPEEK/PTFE/PE/FKMPEEK/PTFE/PE/FKMPEEK/PTFE/PE/FKMM
Maximum operating
frequency
800HZ800HZ800HZ
Minimum single point
diameter
0.2mm0.2mm0.2mm
Minimum scribing size0.25mm0.25mm0.25mm
Seal life1 week1 weekweek
Nozzle/striker life3 months3 months3 months
Minimum glue volume2nl/point2nl/point2nl/point
Line width accuracy±3%±3%±3%
Nozzle heating temperature/20~180-C20~180℃
Cylinder heating
temperature
//20~200℃

Product Description

glue dispensing robot

pneumatic glue dispenser

Commonly Used Glue

Commonly Used Glue


APPLICATIONS

steel suction glue dispensing valve

automatic hot glue dispenser

OUR FACTORY (A3)

cnc-glue-dispenser-machines

CLIENT FEEDBACK

dispenser glue robot

Packing & Delivery

glue dispensing system

adhesive dispensing robot

SOLUTION

2-parts AB adhesive materials 1

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Packaging and delivery

Selling Units:Single item
Single package size:35X19X23 cm
Single gross weight:5.000 kg

Lead time

Quantity (sets)1 - 12 - 10> 10
Lead time (days)1630To be negotiated
