Selective automatic coating machine line system solutions

Selective automatic coating machine system solutions

● Complete production automation, complete coating automated production
line solutions.
● Customized coating line combinations are available upon request.
● Curing ovens: Uv, infrared optional.

fully automation, complete coating automated production line solutions.

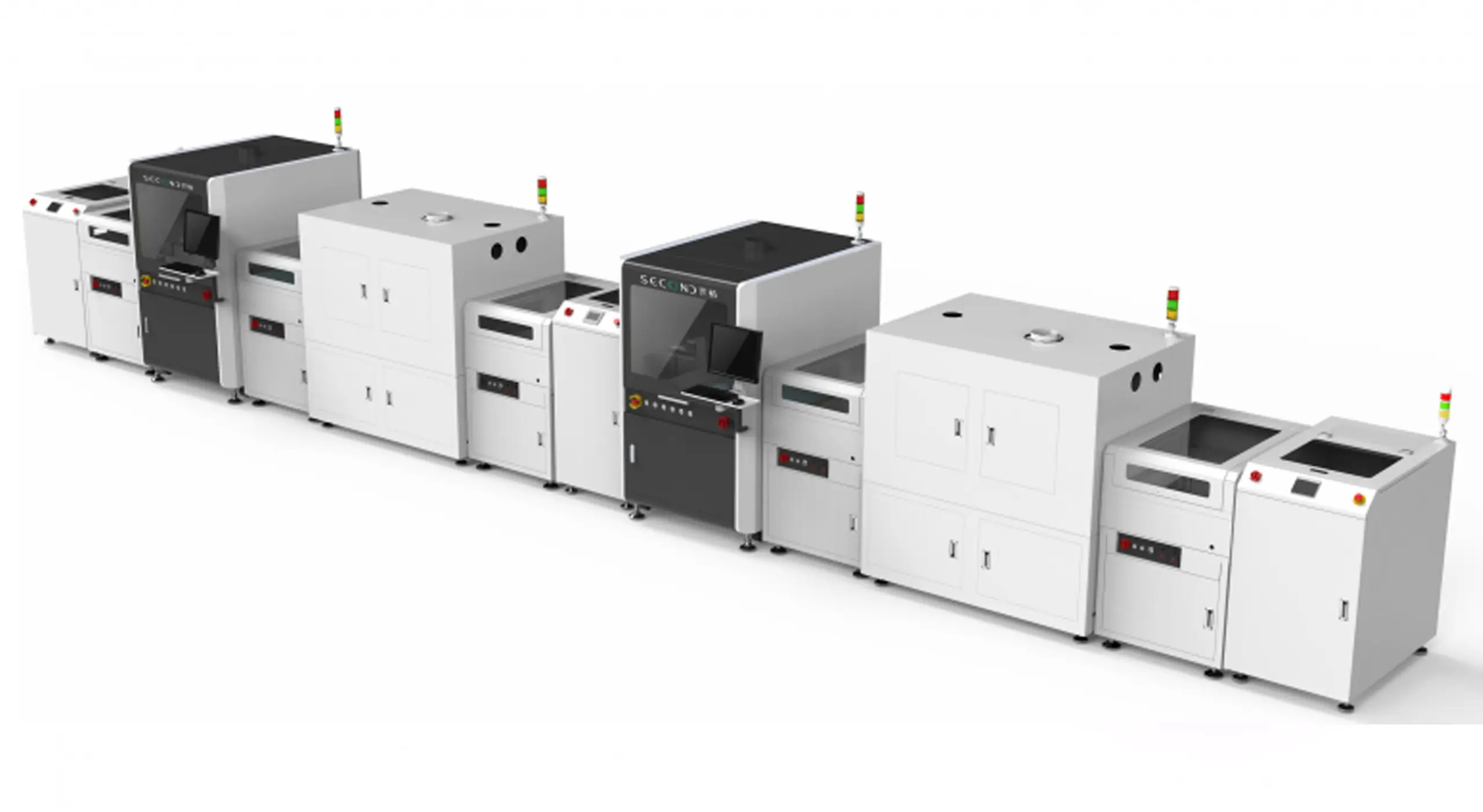

Fully automatic  coating  system, is a combination of different equipments, elevator, connecting table, inspection table, coating machine, hot air curing oven or UV oven, assembly line and so on.

Description

Equipment introduction

● Overall steel motion platform, sturdy frame structure provides a strong guarantee for stable operation.
● Adopting servo motor + precision screw module drive, compared with the control system of stepping motor in
the market, it has stable and high-precision motion control effect.
● Professional control card and high quality motion configuration system lay a solid foundation for high speed and
high precision operation. Special aluminum alloy rail and stainless steel conveyor chain.
● Adopting man-machine operation interface, convenient programming method can greatly reduce the
programming time. The control software is coating software developed independently under Windows 7
environment by combining the reguirements of customers in the industry for various coating processes. fast
speed and stable operation. flexible multi-axis control, can realize the complex PCB board of high degree of
spraying.
● Powerful process control ensures high coating quality and consistency. independent coating container drum
and equipped with waste discharge port, effectively reducing the emission of irritating odor.

Application

Selective automatic coating machine line system solutions can be applied in the following fields:

  • Household electrical control boards
  • automotive electronic control boards,
  • military instrumentation circuit boards,
  • computer control boards,
  • industrial equipment control boards
  • agricultural equipment control boards,
  • battery protection boards,
  • LED control boards,
  • outdoor LED displays,
  • inverter circuit boards,
  • security control boards,
  • motor control boards
  • so on.

Introduction

This is the system solutions for automatic coating machines, fully automatic coating  line, works graphite, composite and metal plates.It is widely used in LED industry, driving power supply industry, communication industry, computer motherboard, automation industry, electronics, welding machine industry, automotive electronics industry, smart meter industry and so on. For example, it is applied to PCBA surface triple-proof coating, dyke process, applying anti-solder adhesive, DIP component reinforcement, etc.

  • Complete production automation, complete coating automated production line solutions.
  • Customized coating line combinations are available upon request.
  • Curing ovens: UV, infrared optional.

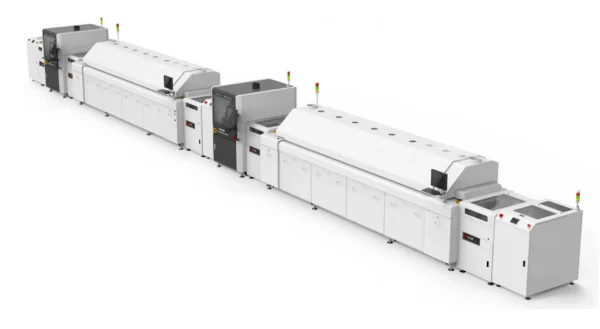

PCBA board double-sided coating UV/heat curing assembly line reflow line:
Our solution : Auto Lifter+Automatic Splicing Table+Coating Machine+Inspection Splicing Table+UV Curing Oven+Automatic Splicing Table+Automatic Flipper+Coating Machine+Inspection Splicing Table+Infrared Curing Oven+Automatic Lifter

Module Introduction

conformal coating machines

Application Cases

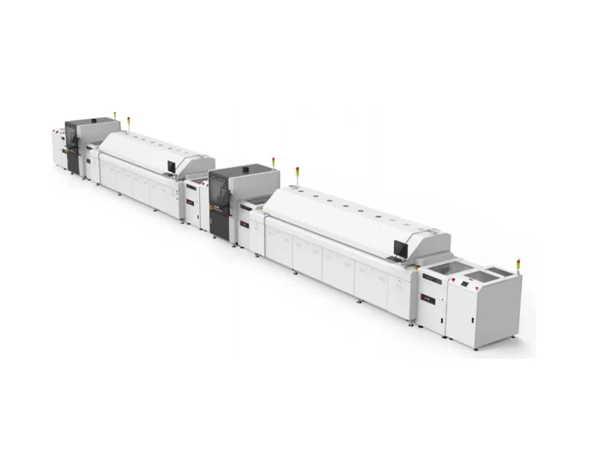

PCBA board double-sided coating UV curing assembly line reflow line:



Selective automatic coating machine line system solutions

automatic coating machines

PCBA board double-sided coating heat curing assembly line reflow line:

Conformal coating electronic manufacturing

PCB coating equipment

OUR FACTORY

automatic glue dispensing machine

MANUFACTURING

silicone glue dispensing machineliquid glue dispensing machine

SOLUTION

hot glue dispenser machine

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

11.Can it dispense multiple materials simultaneously?2025-05-29T17:34:35+08:00

A: Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.

12.What’s the minimum dot size achievable?2025-05-29T17:35:03+08:00

A: 0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).

13.What certifications do the machines have?2025-05-29T17:35:54+08:00

A: CE, UL, ISO 9001, and RoHS compliance for global markets.

14.Can it dispense multiple materials simultaneously?2025-06-11T17:45:55+08:00

A: Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
