Product Description：

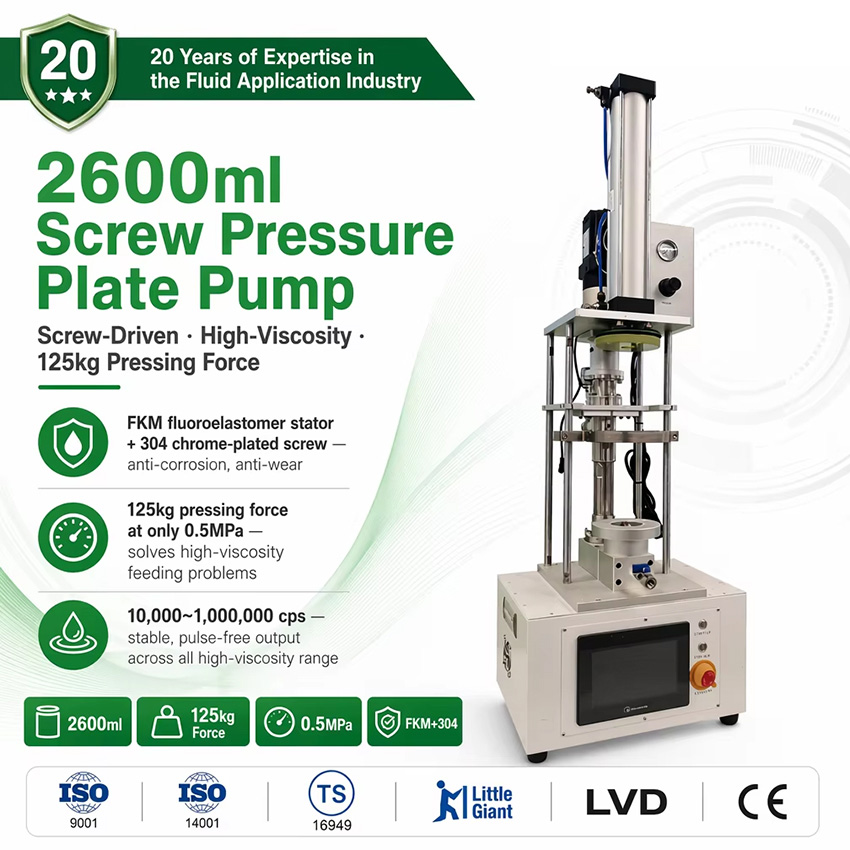

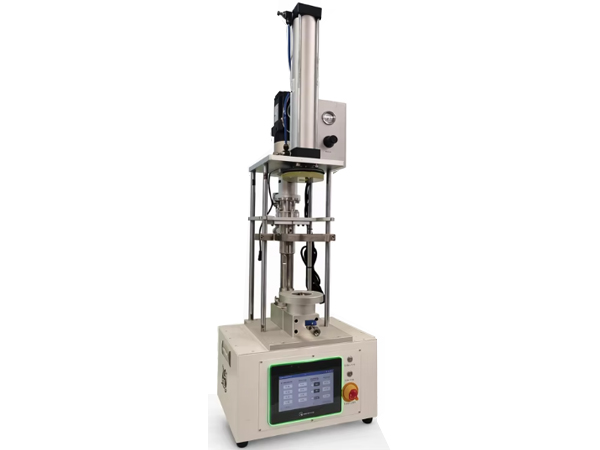

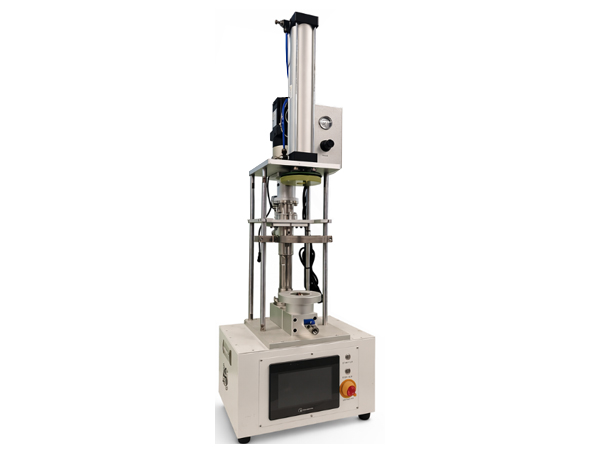

2600ml Single Barrel Screw Pressure Plate Pump: Heavy-Duty High-Viscosity Fluid Dispensing Solution
Product Overview：
Engineered for the most demanding industrial applications, the 2600ml Single Barrel Screw Pressure Plate Pump is a robust and highly efficient fluid dispensing system. Designed to conquer the challenges of high-viscosity, high-filler, and corrosive adhesives, this pump delivers a powerful 125kg downward thrust to ensure a continuous, pulse-free flow. With its compact footprint and intelligent PLC control, it is the ultimate solution for seamless integration into existing production lines, guaranteeing precision and reliability in continuous mass production.
Company Strength & Certifications
Backed by 20 years of dedicated experience in the fluid application industry, we are recognized as a National “Little Giant” Enterprise. Our manufacturing and quality management systems are fully certified to international standards, including ISO 9001,ISO 14001, TS 16949, CE, and LVD. This ensures that every piece of equipment we deliver meets the highest global benchmarks forsafety, durability, and performance.
Key Features & Advantages：
1. Hardcore Durability for Corrosive & High-Filler Adhesives
Built to withstand extreme conditions, the entire wetted flow path is engineered for maximum wear and corrosion resistance. It features an FKM (Viton) stator, a 304 stainless steel screw with a hard chrome coating, and a 304 connecting rod equipped with spiral blades. This 100% anti-wear and anti-corrosion design ensures long-term, slip-free delivery even when handling highly abrasive fillers and aggressive chemicals.
2. 125kg Strong Downward Pressure to Eliminate Supply Issues
Operating at a low air pressure of just 0.5MPa, the pressure plate generates a massive 125kg downward thrust. This powerful force effectively pushes thick, paste-like adhesives out of the 2600ml barrel, completely preventing the common issues of bridging,cavitation, or air entrapment. Say goodbye to glue starvation and inconsistent supply forever.
3. 100% Coverage of 10,000 to 1,000,000 CPS Viscosity Range
From standard medium-high viscosity fluids to ultra-thick pastes, this pump provides stable, pulse-free delivery. Unlike conventional pumps that suffer from “fast flow with thin glue, stalling with thick glue,” our screw pressure plate pump guarantees a smooth and consistent output across the entire extreme viscosity spectrum.
4. Intelligent PLC Control for Error-Proof Mass Production
The system is managed by a precision PLC that accurately controls the glue flow and automatically triggers an alarm when material is running low. This smart anti-idle protection prevents the screw from running dry, avoiding costly damage to the pump components. It eliminates the need for manual monitoring, making it perfect for long-term, unattended continuous production.
5. Compact Footprint for Seamless Line Integration
Despite its heavy-duty capabilities, the machine boasts an incredibly compact footprint of just 0.11㎡. It is designed to integrate directly into existing production lines without requiring line modifications. The G3/4 large-diameter outlet prevents clogging and is directly compatible with standard 2600cc barrels, eliminating the need for intermediate transfer tanks, minimizing residual glue, and ensuring virtually zero waste.
6. Broad Compatibility with Core Industrial Adhesives
This versatile pump is specifically designed to handle a wide range of challenging industrial fluids without filler settling or pump clogging:
* Electronic Encapsulation: High-viscosity single-component silicone, thermal potting compounds, underfill, and high-filler conductive silver/copper pastes.
* Structural Bonding: High-viscosity epoxy AB glues, polyurethane sealants, and acrylic structural adhesives. Delivers uniform，fluctuation-free flow even at 1,000,000 CPS.
* New Energy Vehicles: Power battery PACK sealing adhesives, thermal greases, and high-viscosity lithium battery electrode slurries. Strong pressure feeding prevents air mixing, ensuring coating consistency.
* Industrial Greases: High-viscosity damping greases, lubricating greases, and sealing damping pastes. Ensures continuous delivery of paste-like fluids that ordinary pumps cannot handle.
* Coatings & Chemicals: High-viscosity thick-film coatings, UV-curable thick adhesives, and single-component RTV silicones. The FKM stator provides excellent solvent resistance, preventing swelling during long-term use.
Technical Specifications：
* Model: 2600ml Single Barrel Screw Pressure Plate Pump
* Barrel Capacity: Standard 2600cc (Direct Compatible)
* Viscosity Range: 10,000 – 1,000,000 CPS
* Downward Pressure: 125kg (at 0.5MPa air pressure)
* Outlet Size: G3/4
* Machine Footprint: 0.11㎡
* Control System: Intelligent PLC with Auto-Alarm
* Wetted Parts Material: FKM Stator, 304 Hard Chrome-Coated Screw, 304 Spiral Connecting Rod
Why Choose Our Single Barrel Pump?：
By combining extreme viscosity handling, massive downward pressure, and intelligent automation in a space-saving design, this pump transforms your fluid dispensing process. It maximizes production efficiency, protects valuable materials, and significantly reduces maintenance headaches. Upgrade your production line with a heavy-duty solution built for continuous, high-volume success.
Size
Function specification
Commonly Used Glue
Dispensing process
Multi-valve picture display
Applied range ：
Double barrel precision screw pump can be applied to the following fields:
● Automation
● Electronics
● Mechanical engineering
● Automotive electronics
● Medical
● Pharmaceuticals
● Information technology
● Consumer electronics
Suitable for dispensing substrates of various shapes and surface materials.
APPLICATIONS
SOLUTION
Material
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Control
- The machine is user friendly, and operating by Window base software.
- The software is design and developed by Second Intelligent.
- With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.
- The software has English instruction, and we welcome your language as well.
- It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.
