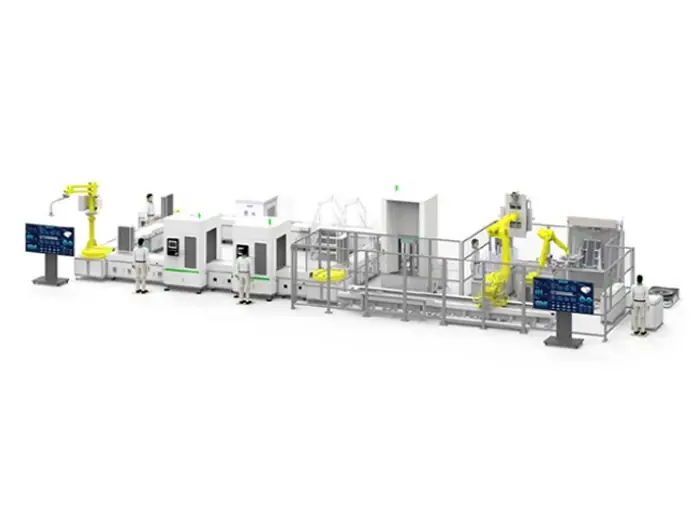

Adopt high-speed, high-precision modules, automatic visual alignment, and assemble MEA/bipolar plates
Adopt multi-speed servo stacking, real-time force feedback, combined with high-precision, high-rigidity carriers, so that the stack is stable and deformed
Full functions, including airtight test, insulation test, CVM assembly, stack shell assembly, laser marking, intelligent offline and other functions
Scientific and strict airtight pipeline design, flow method/pressure difference method, support zero leakage and standard leakage test
Modular design of production line, with high flexibility and informationization capabilities
Main process
The production line has high-speed automatic stacking, servo stacking, manual screw locking, airtight insulation test, CVM/shell installation, laser marking, screw locking and other functions, with complete functions, scientific and rigorous process, information production, high stability and other capabilities.
Tooling online→ Manual placement of lower end plates,current collectors special plates and MEA→ Tooling online→ Manual placement ofspecial plates,MEA. current collectors,andupper end plates→ Automatic stacking →Manual locking screw → Air tightness test → Manually install CVM components→ Insulation testing→ Housing assembly→ Laser marking→ Smart offline
RTV effectively suppresses the movement of plug-in components.
●Accepts production capacity customization and different process combinations. The line can be operated as a whole line or as a single machine offline;
●The whole line realizes water field and air field sealing;
●The control system is an independent, modular, standardized program;
Accurate ratio, integrated glue mixing and filling,
to achieve truly fully automated mixing, avoid manual mismatching,
resulting in waste and scrap. Accurate positioning,
fast speed, simple and convenient adjustment, strong versatility, conventional LED, electronic appliances,
handicrafts can be used. Simple programming, simple operation,
can be used with assembly lines,
anyone can operate the counting function, non-standard mode,
bottom glue mode, liquid level alarm
Accepts production capacity customization and different process combinations. The line can be operated as a whole line or as a single machine offline.
The whole line realizes water field and air field sealing
The control system is an independent, modular, standardized program
Do not hesitate to contact us for further information, thanks in advance for your support!
