Product Overview :

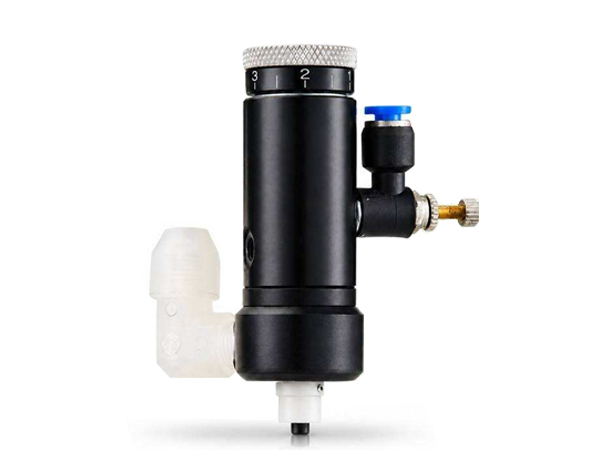

Engineered for precision and chemical resistance, the Second CE Certified Quick-Drying Adhesive Micro Diaphragm Valve is a premium fluid control component. Featuring a PTFE (Teflon) internal construction, a highly reliable isolation diaphragm, and precise flow control mechanisms, this valve ensures flawless dispensing of corrosive quick-drying adhesives. Backed by our 20 years of industry expertise, it is the ultimate solution for high-precision, clean, and reliable manufacturing applications.
Company Strength & Certifications :
Backed by 20 years of dedicated experience in the fluid application industry, we are recognized as a National “Little Giant” Enterprise. Our manufacturing and quality management systems are fully certified to international standards, including ISO 9001, ISO 14001, TS 16949, CE, and LVD. This guarantees that every valve we deliver meets the highest global benchmarks for safety, durability, and performance.
Key Features & Advantages:
1. Superior Chemical Resistance & PTFE Construction
*Teflon Internal Components: The valve’s internal structure is crafted from PTFE (Teflon), offering exceptional chemical stability.
*Corrosion-Proof Performance: It effectively resists aggressive and corrosive adhesives, including cyanoacrylates (instant glues), UV adhesives, and epoxy resins, ensuring long-term durability in complex working environments.
2. Precision Flow Control & Excellent Sealing
*High-Accuracy Dispensing: As a standout in the micro-valve series, its diaphragm design allows for exact control over glue flow and precise open/close actuation, ensuring ultimate consistency for stringent production requirements.
*Leak-Proof Isolation: The diaphragm effectively isolates the valve body cavity from the cover cavity, forming a highly reliable seal. This prevents any leakage or medium contamination, ensuring a clean and safe production process.
3. Broad Adhesive Compatibility & Compact Design
*Versatile Application: Demonstrates excellent adaptability to various quick-drying adhesives, meeting diverse process and material needs while minimizing equipment adjustment costs during glue changes.
*Space-Saving & Durable: The highly compact structure occupies minimal space, making it easy to integrate into various production lines. Premium materials and wear-resistant diaphragms guarantee long-term, stable operation.
4. User-Friendly Operation & Low Maintenance
*Intuitive Adjustment: Features a top-mounted calibrated knob, allowing operators to quickly and easily adjust dispensing parameters to maximize production efficiency.
*Low Failure Rate: The simple structural design with minimal moving parts significantly reduces the failure rate. Maintenance is straightforward, effectively minimizing machine downtime and lowering long-term operational costs.
Technical Specifications:
* Model: Second Quick-Drying Adhesive Micro Diaphragm Valve
* Internal Material: PTFE (Teflon)
* Key Feature: Micro Diaphragm Isolation Design
* Applicable Fluids: Cyanoacrylates, UV Adhesives, Epoxy Resins, Quick-Drying Glues
* Adjustment Mechanism: Top-Mounted Calibrated Knob
* Certifications: CE, ISO 9001, ISO 14001, TS 16949, LVD
Why Choose Our Micro Diaphragm Valve?:
By combining chemical-resistant PTFE internals, precision diaphragm flow control, and a compact, low-maintenance design, this valve sets the standard for handling quick-drying adhesives. It maximizes dispensing accuracy, ensures a spotless work environment, and significantly reduces operational costs. Upgrade your precision fluid control system with a reliable, high-performance valve built for industrial excellence.
