Vacuum glue injection machine
Feature :
The integral steel motion platform and the solid frame structure provide a strong guarantee for the stability during operation.
It adopts servo motor + precision screw module drive, with stable and high-precision motion control effect. Professional control card and high-quality motion configuration system lay a solid foundation for high-speed and high-precision operation. Special aluminum alloy track and stainless steel conveyor chain.
It adopts human-machine operation interface and quick programming method can greatly reduce programming time. Equipped with a dual-track system, there is no need to wait for the board to teach, which greatly improves work efficiency. A single device is equipped with two independent small vacuum boxes, which work alternately, greatly improving work efficiency and output.
The appearance and structure design of the small vacuum box is flexible and concise, with good sealing, durable pressure retention, automatic lifting, strong safety, rapid vacuuming and rapid pressure relief, which greatly improves the output rate and product yield of the equipment. The injection head lifting module uses a high-precision module with a servo motor to control the lifting of the injection head (screw valve), which can adapt to different product mold thicknesses; lifting and injecting fills the gap at the injection port caused by the lifting of the injection head; the good sealing effect of the injection head lifting process does not affect the vacuum value in the vacuum box, ensuring the injection quality of the product.
The vacuum box cover is driven to open and close by a rodless cylinder + true line guide rail. A transparent observation window is installed on the cover, which can clearly observe the internal situation of the vacuum box, facilitating manual debugging.
Equipped with SMEMA interface to communicate with other devices. It has fault sound and light alarm and menu display.
Advantage :
- High-precision motion control effect
- Adopting human-machine interface, quick programming method can greatly reduce programming time
- The appearance structure design is flexible and concise, with good sealing, pressure retention, automatic lifting, strong safety, fast vacuuming and fast pressure relief
- The injection head lifting module uses a high-precision module with a servo motor
Application process :

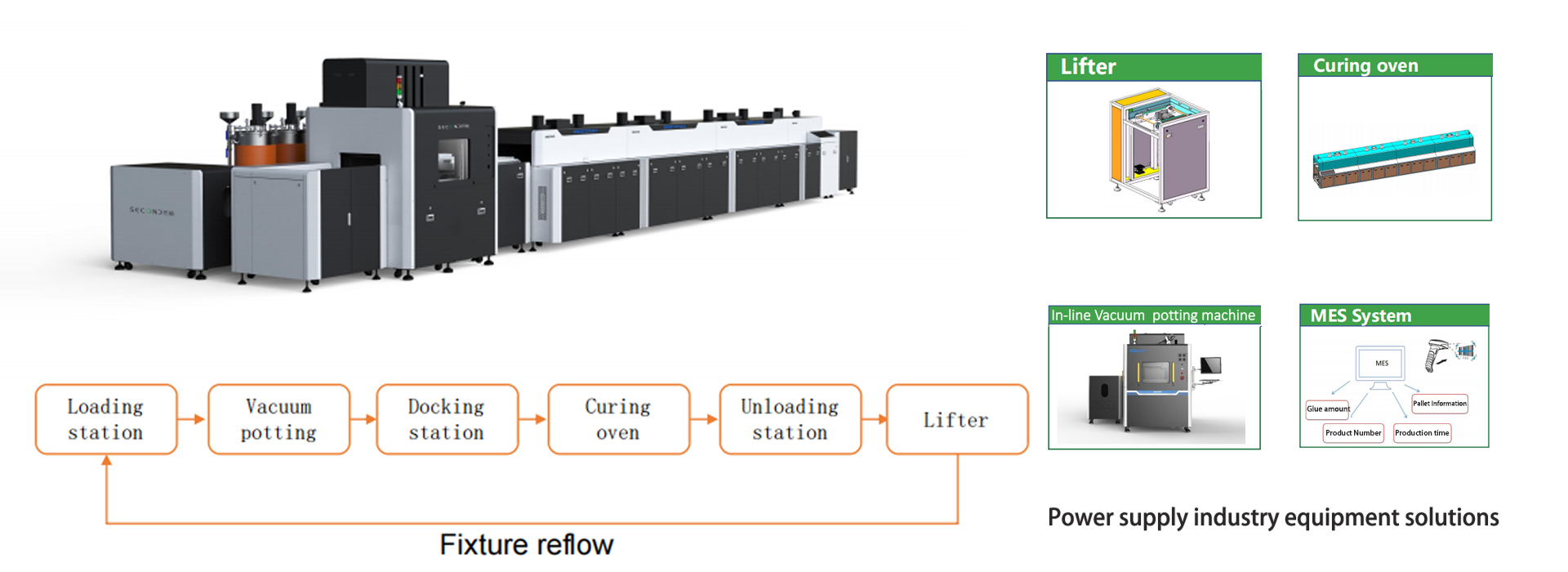

Loading-Vacuum potting-Curing oven-Unloading-Pallet return
Related content :
*Pre-sales services：
Providing solution consulting based on customers’ needs
Free sample test
Factory audit
Customized solutions according to customers’ needs
*Services during sale：
Production visualization
Machine quality controlling
Finished Machine test report
Logistics support upon customers’ requirement
*After-sales service：
Instruction manuals, step-by-step guides for installation and usage, and free remote video technical support
On-site technical service in 24 hours
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Recommended equipment 1

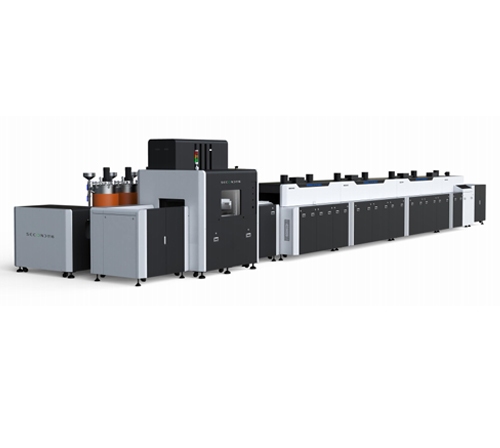

- Name: Production Line Glue Potting Machine
- Model: SEC-S400-ZL
- Video: Click to view
Equipment Features
Accurate ratio, integrated glue mixing and filling,
to achieve truly fully automated mixing, avoid manual mismatching,
resulting in waste and scrap. Accurate positioning,
fast speed, simple and convenient adjustment, strong versatility,
conventional LED, electronic appliances,
handicrafts can be used. Simple programming, simple operation,
can be used with assembly lines,
anyone can operate the counting function, non-standard mode,
bottom glue mode, liquid level alarm
Recommended equipment 2
- Name: Vacuum glue injection machine
- Model:
- Video: Click to view
Equipment Features
The integral steel motion platform and the solid frame structure provide a strong guarantee for the stability during operation.
It adopts servo motor + precision screw module drive, with stable and high-precision motion control effect. Professional control card and high-quality motion configuration system lay a solid foundation for high-speed and high-precision operation. Special aluminum alloy track and stainless steel conveyor chain.
It adopts human-machine operation interface and quick programming method can greatly reduce programming time. Equipped with a dual-track system, there is no need to wait for the board to teach, which greatly improves work efficiency. A single device is equipped with two independent small vacuum boxes, which work alternately, greatly improving work efficiency and output.
