2600ml silicone RTV automated desktop dispensing machine

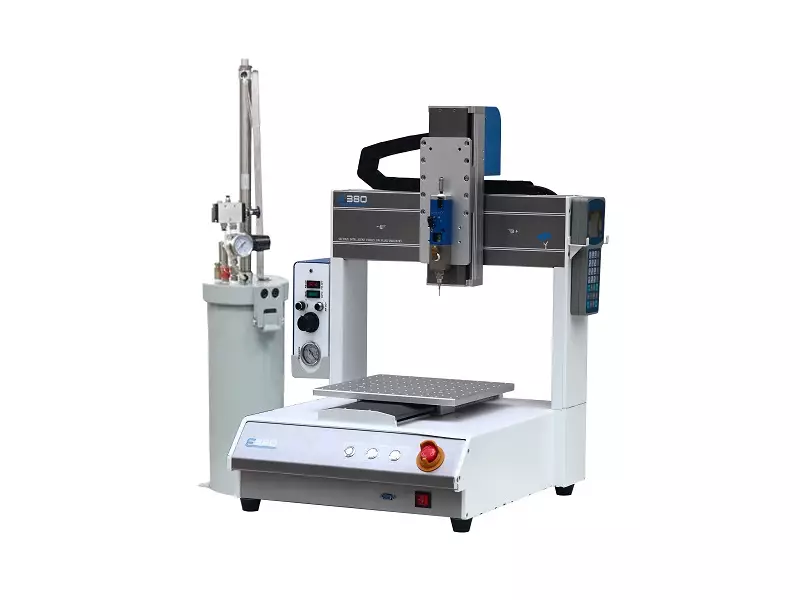

This is an industrial 2600cc fluid, adhesive dispensing machine. The machine pairs with a 2600cc material feeding tank, and a suck-back valve. It is suitable for low to medium viscosity fluids or adhesives dispensing, such as silicone, RTV, and other similar materials. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.

Description

Features:

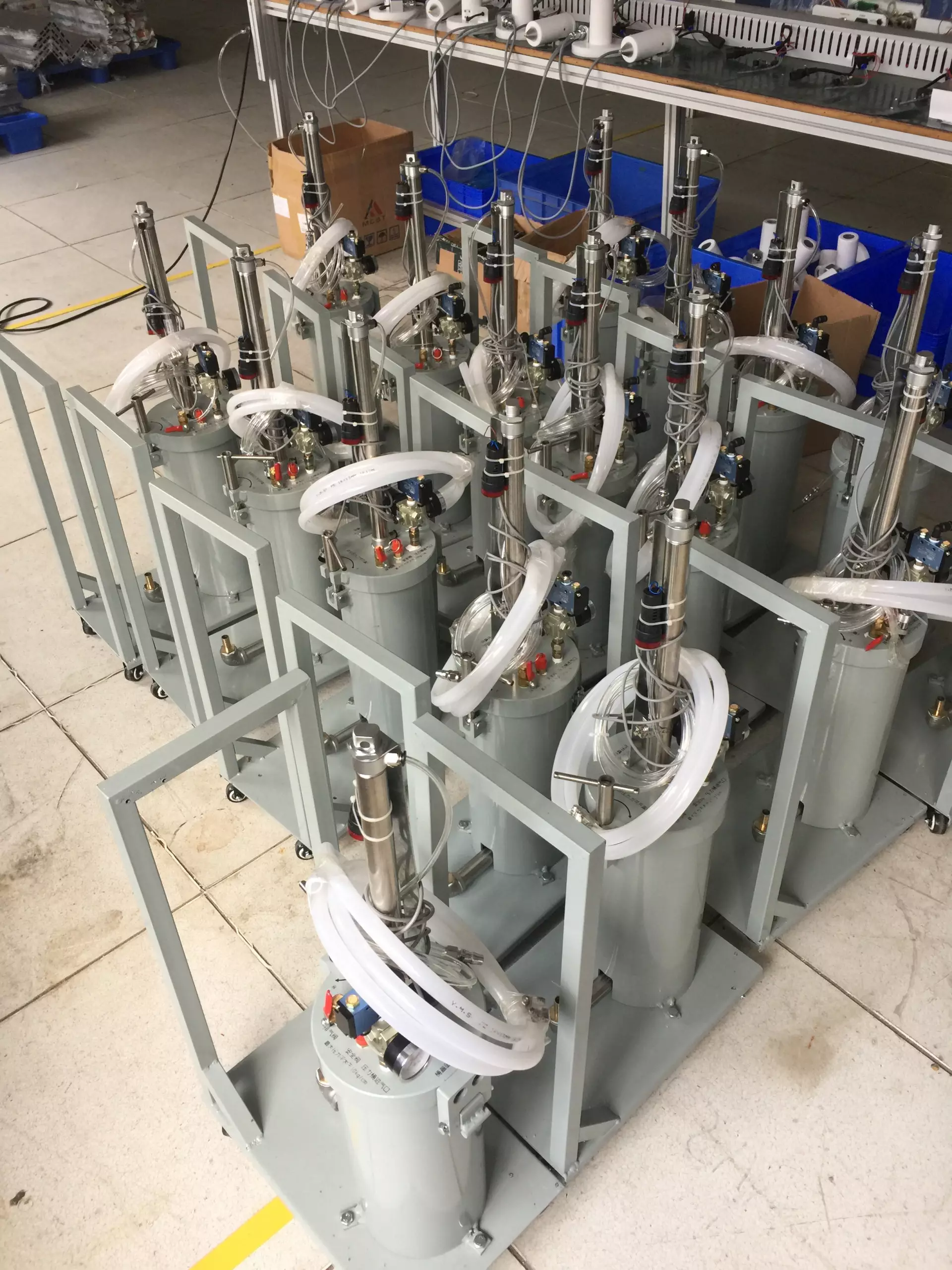

  1. The dispenser works with a 2600ml material feeding tank for high volume production need.
  2. The machine’s main body is built with one-piece aluminum casting, strong structure and stable operation; smaller overall size, but with bigger dispensing strokes.
  3. It comes with precision step-motor and belts, or servo-motor and lead-screw transportation system.
  4. Suitable for various kinds of fluids or adhesives dispensing.
  5. The mounting system is designed for easy, and quick changeover.
  6. The robot is controlling by a latest user-friendly teach pendant, also available in PC computer control.
  7. It is built with quality and durable materials for heavy-duty production and require very low maintenance.
  8. The main tear and ware parts are on the dispensing unit, since it is constantly contact with the material and endure the air-pressure. The robot itself has no quick-spare needed.

Application:

Used in the fixing and protection of PCB electronic parts in the electronics industry, bonding of mobile phones, notebook shells, LCD glass, LED dispensing, optical lens dispensing, fabric material, paper packaging, automotive parts, and other hardware components to achieve the role of bonding and fixing.



Material ref.:

UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.





Introduction of the E-series desktop dispensing machines:

This new E-Series desktop / benchtop / tabletop dispensing robot is the result of careful refinement by our engineers and industrial designers. The body and gantry of this series of dispensing robots are made of one-piece aluminum die-casting. Compared with the dispenser assembled with aluminum profiles on the market, the one-piece aluminum die-casting dispenser will be more precise, durable, steady, and low-maintenance. The machine not only can be easily equipped with different dispensing systems for different glues, we have also optimized the dispensing range without changing the overall machine size. Via smart calculation engineers have increased its dispensing stroke by 300mm to 380mm XY axis, which is more suitable for factories and workshops of all sizes use. By this we reduce the cost of the materials, and reduce the cost of the machine too, customers also have also reduce the operating overhead. This series of machine are in mass production already, stock is available for fast delivery (10 days approx.). With mass production, its cost is lowered and we offer competitive package discount, and further achieve a win-win situation.

We provide international support and maintenance directly for the series of machines. The machine itself has limited warranty period of 12 months from the delivery date, expect the tear and wear consumable parts. During this period, if the machine is found and proved to be faulty due to manufacturing under normal use, we will provide you with free replacement parts, after the proof, the shipping cost of the accessories is also paid by us.

Speaking of tear and wear consumable parts, this machine, except for the dispensing system, has no immediate-consumables for the robot itself. The consumables of the dispensing system are also mainly plastic hose and pipe, sealing rings and needles. We will pack-along some of these consumables, free of charge, following the purchase of the machine.

Specifications (robot):

Model

SEC-E380

SEC-E480

Working range

380(X)*380*(Y)*100(Z)

480(X)*480(Y)*100(Z)mm

Max payload

7kg/3kg

Max travel speed

400mm/sec(XY)/200mm/sec(Z)

Transfer method

Stepper motor, belt, precision rail

XYZ position accuracy

±0.025mm

Resolution

0.01

Memory storage

999 program setup (each program store up to 65535 spots)

Operating method

LCD, Teach pendant

Transport motor

Precision stepper motor

Movement patterns

3 axis spot to spot, continue line, arc

I/O

1 input, 4 output (support expansion)

Power supply

AC220V 50/60Hz 0.5kw

Working environment

Temperature 0-40℃, Humidity 20-90%

Machine dimension

Approx. 48KG

Approx. 60KG

Machine dimension

520*583*645mm

620*683*645mm

Supporting System

Automatic adhesive fluid glue dispensing controller
Adhesive dispensing machine teah pendant

Material

This desktop dispenser setup is suitable for 1-part fluid, glue automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.

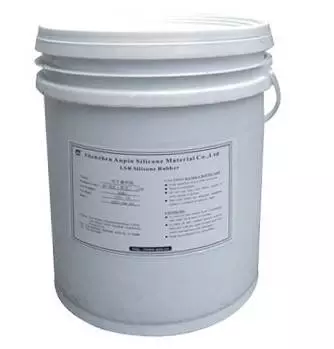

2600ml silicone
2600ml silicone
2600ml silicone

MANUFACTURING

Although the desktop industrial glue dispenser seems to have only XYZ axis, it seems to just has a simple structure, but professional production lines, such as EMS manufacturing factories are generally require very precise, some are up-to nanometer. A professional industrial desktop dispenser may has to travel back and forth for several kilometers and dispense thousands of times, so do not underestimate the quality requirements of a desktop dispensing robot. We provide professional, heavy-duty automatic dispensing machines. "Dispensing is no small matter, our quality starts from the desktop."

Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1

Available in stock:

Most models of our desktop / benchtop dispensing machines are available in stock for fast delivery, between 10-15 days, we accept URGENT order in case if needed. In an average month, we stock-up about 100 units of standard sizes of the machines. Please contact us now to discuss and arrange.

Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock

CASE

epoxy resin dispenser

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

30cc syringe fluid glue desktop dispensing machine

E-series

30cc syringe fluid glue desktop dispensing machine

EDN-series

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
