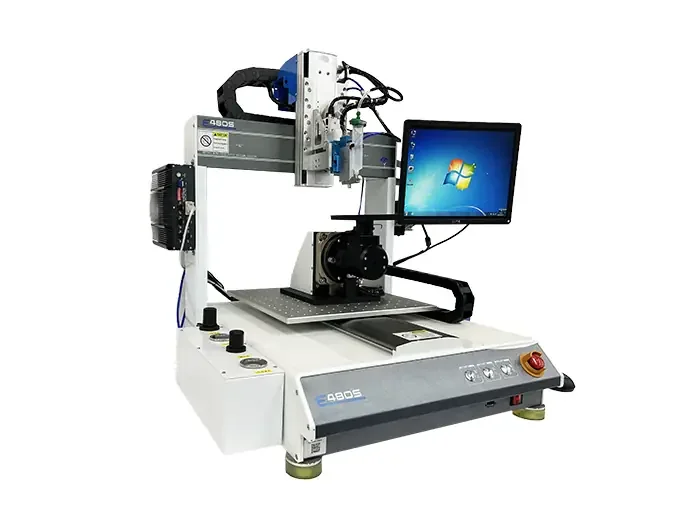

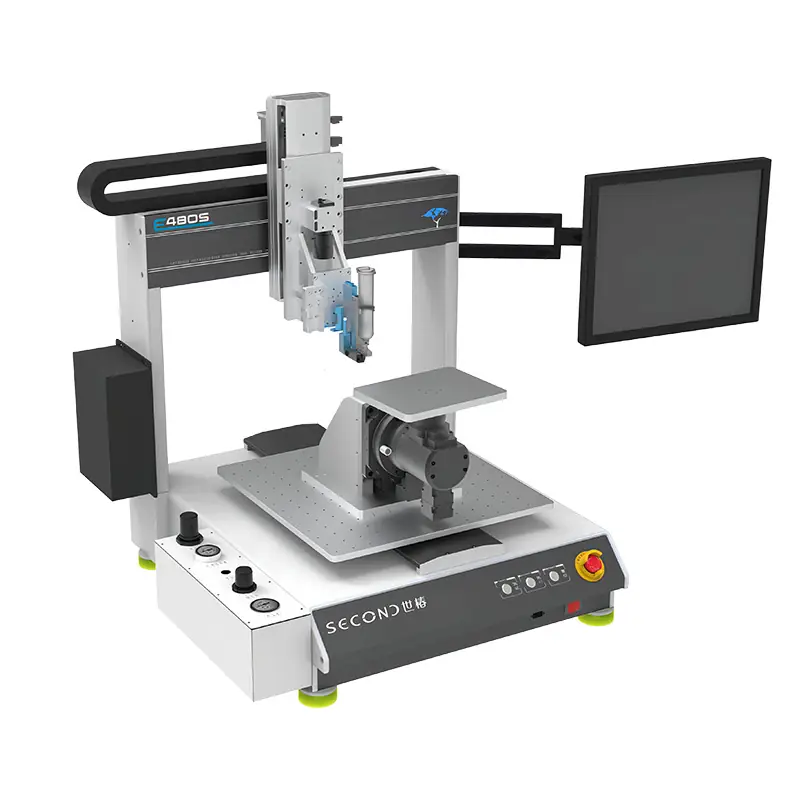

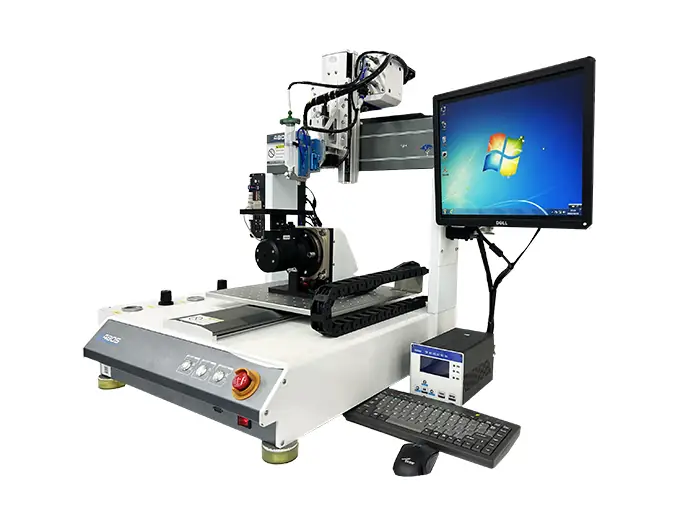

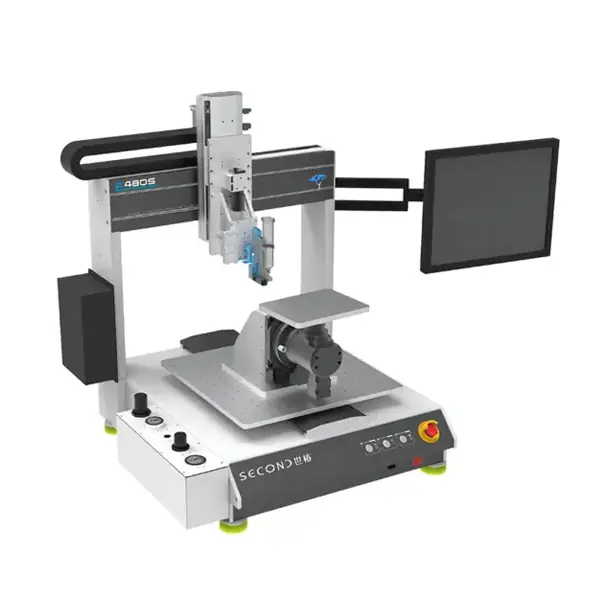

4 axis high precision Servo motor screw Automated desktop glue dispensing machine SEC-E480SV

Performance:

Visual Five-axis Platform

● Dual rotary sations for greater flexibility

● Five-axis linkage operation, realize multi-attitudecontinuous dispensing

● Compatible with a variety of application expansionmodules for a wider range of applications

Material ref.:

UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

Description

Features:

  • One-piece casting, strong structure, stable operation; smaller size, larger stroke
  • Servo motor plus precision grinding screw drive mode, speed block, high precision, large load
  • The size remains the same, but the stroke increases by 20-25%, making it more compatible.
  • Abundant product categories, single platform and dual platform are optional to meet the application of different scenarios.
  • The platform has more advanced and powerful functions, which can be equipped with functions such as visual positioning, automatic calibration, glue dispensing detection, laser height measurement and compensation, product information scanning, MES system docking, etc., to meet the use of various industries and multiple scenarios
  • Equipped with a high-precision piezoelectric valve, the applicable viscosity range is 1-200000cps, the minimum dispensing volume can be accurate to 0.1nl, and the minimum dispensing strip width is 0.2mm

Apply industries:

Fixing and protection of PCB electronic parts, mobile phone, notebook shell bonding, LCD glass, LED dispensing, optical lens dispensing and packaging,
auto parts, hardware parts and adhesive dispensing, etc.

Applied works:

Underfill, dam fill, frame bonding and sealing, chip bonding, lead encapsulation, precision coating.

Material ref.:

UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

Specification

Model

SEC-E480SV

Working range

480(X)╳480(Y)╳100(Z)mm

Machine dimension

L620 x W720x H702 mm

Max payload Y/Z

20kg/10kg

Max traveling speed

800mm/sec(XY)/200mm/sec(Z)

Transporting axis

Servo motor, lead-screw + precision linear guide

Repeat accuracy

±0.015mm

Resolution

0.01mm

Operating system

Windows 7/10

Light source

LED red, blue, white coaxial light source (standard white light source)

Dispensing valve

Non contact piezo electric jetting valve

Power supply

AC220V 50/60HZ 1.6KW

Working environment

Temperature:0-40℃ Humidity:20-90%

Machine weight

80KG (est.)

Detailed display diagram

silicone glue dispenser.jpg

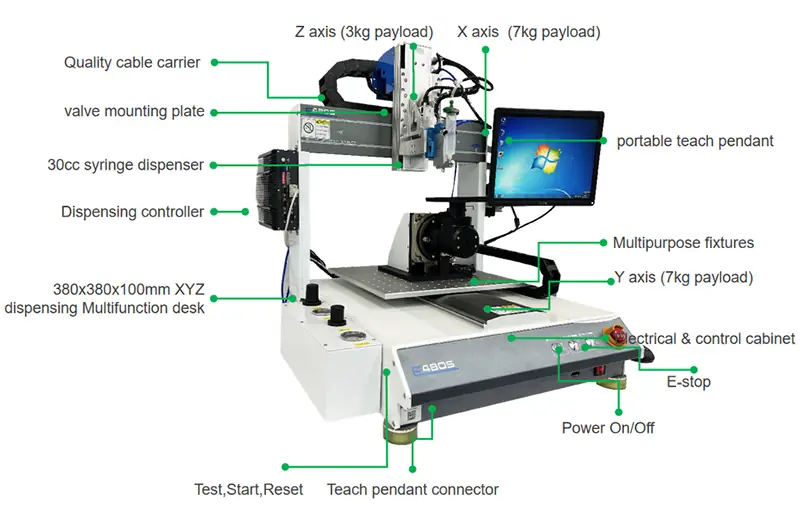

Structure diagram

desktop-glue-machines

Product Description

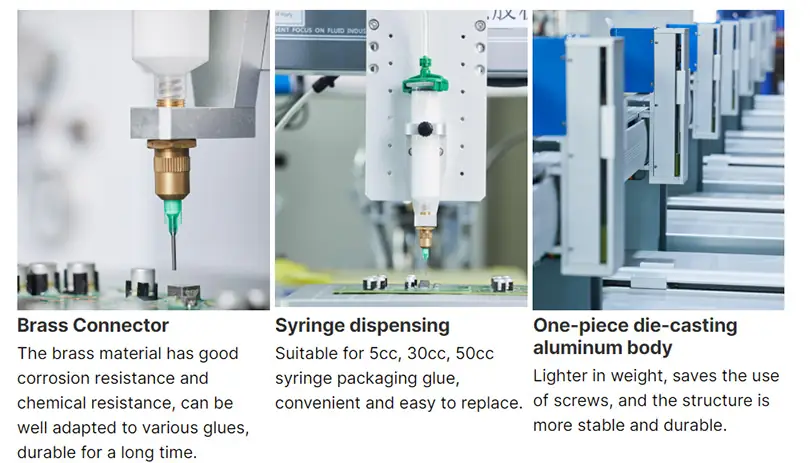

Module features :

benchtop-glue-dispenser

Dispensing process:

glue-dispenser-automatic

Commonly used glue:

automatic-robot-glue-dispenser2

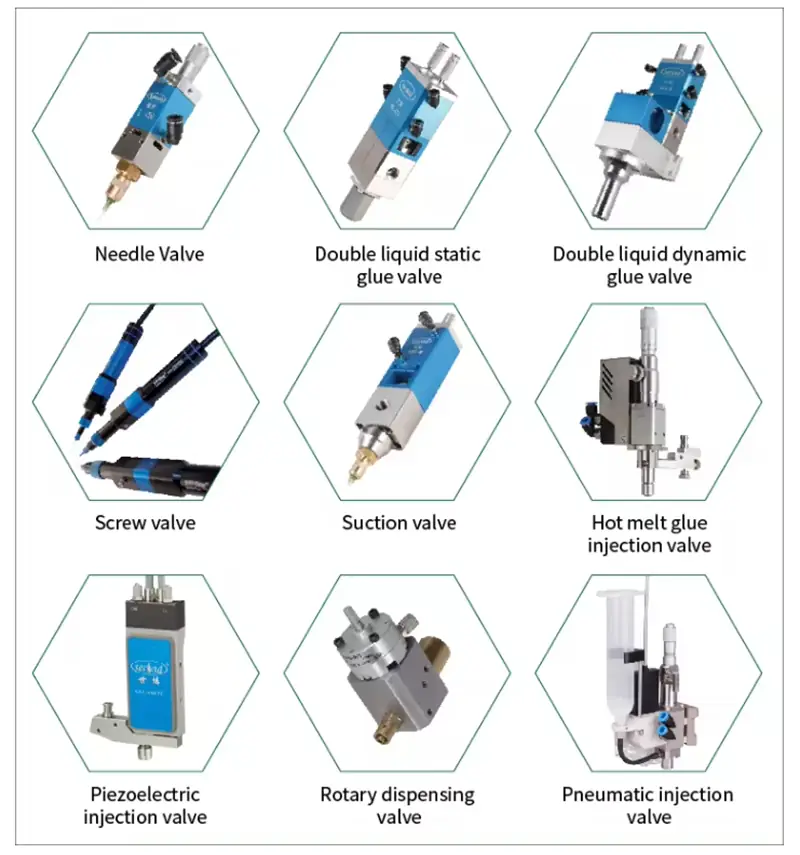

Multi-valve picture display:

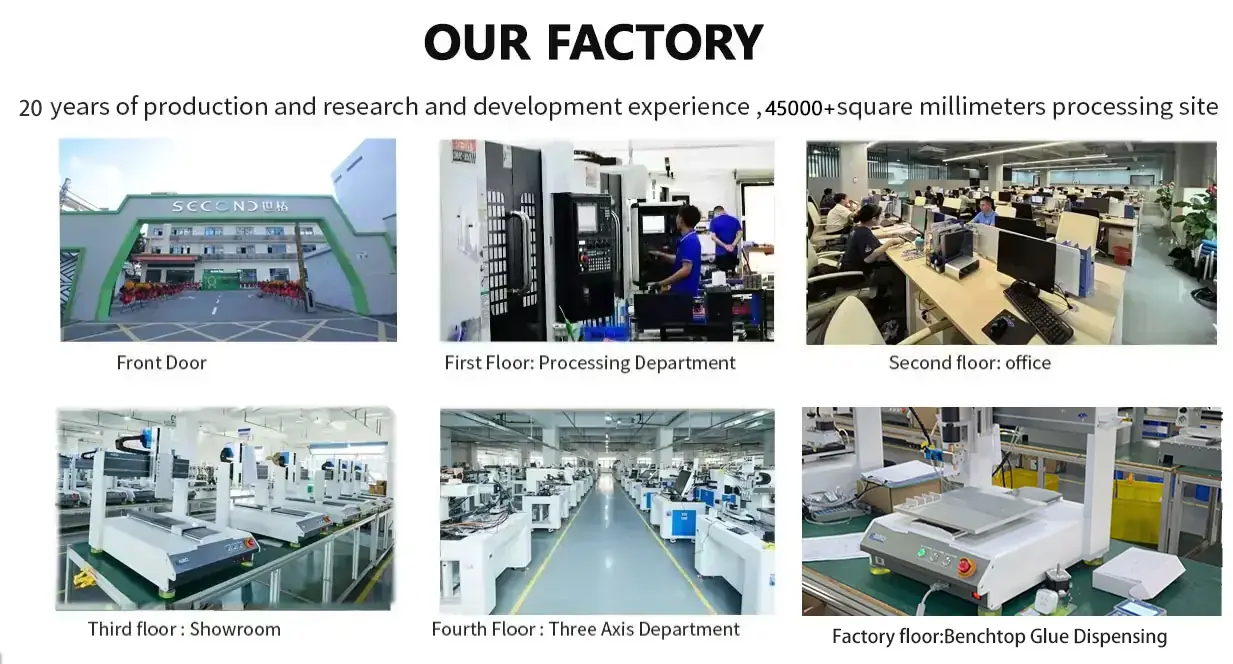

OUR FACTORY (A3)

cnc-glue-dispenser-machines

Logistics packaging collection

adhesive dispensing robot.jpg

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

liquid super glue dispenser

E-series Benchtop Glue Dispensing Machine SEC-E480

desktop epoxy glue machine robot

Desktop Glue Dispensing Machine SEC-E480SV

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
