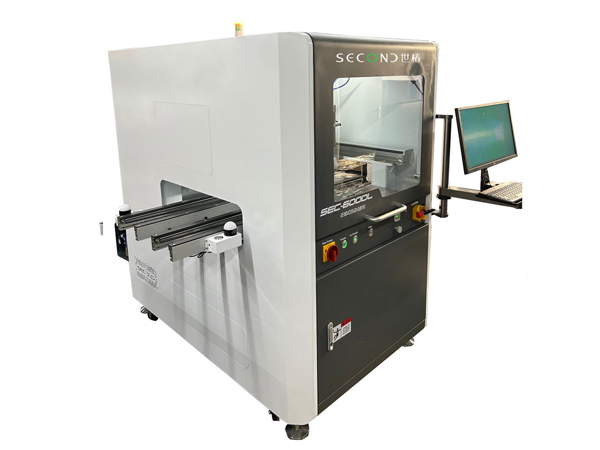

Equipment Features:
1: The platform and X/Y module seat are both made of mineral casting, and the key surfaces are ground to ensure
higher precision and stability
2: Gantry structure, heavy load bearing, stable structure
3: Powerful visual positioning system, can
meet Mark point positioning, edge positioning, 3D scanning positioning,
4: Strong scalability, can expand AOI detection 3D
detection, UV exposure curing and other functions
5: Strong platform compatibility, contact and non-contact dispensing, to meet the
dispensing operations of different products and processes
6: Replaceable stainless steel shell to achieve Class 100 cleanrequirements
Equipment Advantafes:
1: Integrated mineral casting, ultra-high precision and super stability
2: Strong expansion capability, can achieve ion cleaning, dispensing, detection, UV exposure and other functions
3: Powerful functions, rich configuration, wide application
Fully Automatic Coating Machine Line:
This is the system solutions for automatic coating machines, fully automatic coating line, works graphite, composite and metal plates. It is widely used in LED industry, driving power supply industry, communication industry, computer motherboard, automation industry, electronics, welding machine industry, automotive electronics industry, smart meter industry and so on. For example, it is applied to PCBA surface triple-proof coating, dyke process, applying anti-solder adhesive, DIP component reinforcement, etc.
● Complete production automation, complete coating automated production line solutions.
● Customized coating line combinations are available upon request.
● Curing ovens: UV, infrared optional.

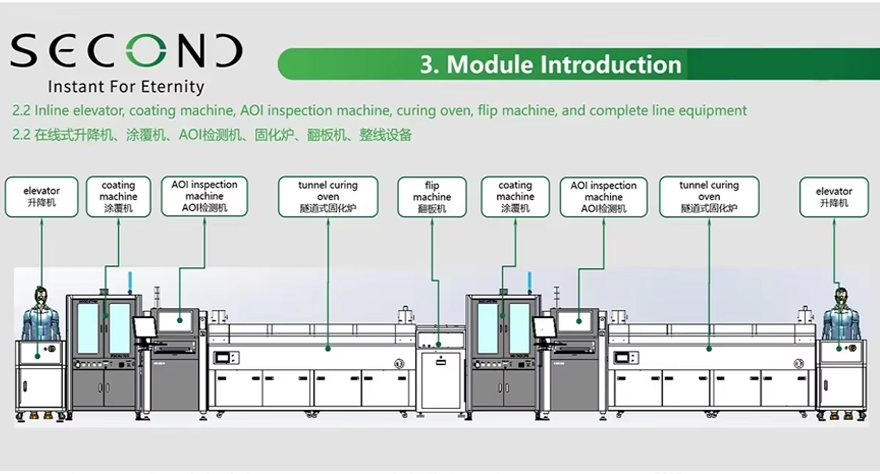

PCBA board double-sided coating UV/heat curing assembly line reflow line:
Our solution: Auto Lifter+Automatic Splicing Table+Coating Machine+Inspection Splicing Table+UV Curing Oven+Automatic Splicing
Table+Automatic Flipper+Coating Machine+Inspection Splicing Table+Infrared Curing Oven+Automatic Lifter

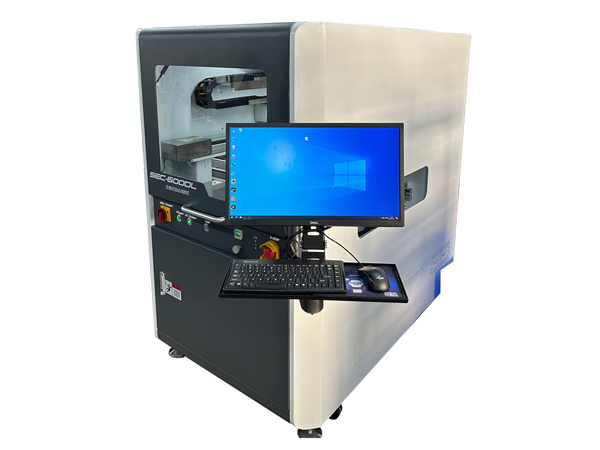

Equipment Introduction:
● Overall steel motion platform, sturdy frame structure provides a strong guarantee for stable operation.
● Adopting servo motor + precision screw module drive, compared with the control system of stepping motor in
the market, it has stable and high-precision motion control effect.
● Professional control card and high quality motion configuration system lay a solid foundation for high speed
and high precision operation. Special aluminum alloy rail and stainless steel conveyor chain.
● Adopting man-machine operation interface, convenient programming method can greatly reduce
the programming time. The control software is coating software developed independently under Windows7 environment by combining the
reguirements of customers in the industry for various coating processes. fast
speed and stable operation. flexible multi-axis control, can realize the complex PCB board of high degree of
spraying.
● Powerful process control ensures high coating quality and consistency. independent coating container drum
and equipped with waste discharge port, effectively reducing the emission of irritating odor.
Advantages Of Fully Automatic Coating Machines
1. Efficient production Automated operation can quickly complete coating tasks, significantly improve production efficiency, and meet the needs of large-scale production; The continuous and stable coating process is not limited by manpower, shortens the production cycle and reduces the overall cost; The intelligent system automatically optimizes parameters such as coating speed and thickness, reducing downtime adjustment time.
2. Precise control and high-quality output The precision control system ensures coating uniformity and thickness accuracy (such as 0.01mm), avoiding the uneven problem of manual coating; The preset program realizes precise positioning of the coating path and position (such as positioning accuracy 0.02mm), reducing the rework rate; Programmable parameters support complex pattern coating and enhance the uniqueness of product design
3. Cost optimization Reduce manual intervention and reduce labor costs; Precisely control the amount of paint and reduce material waste; Long-term stability reduces equipment failure rate and maintenance costs.
4. Flexibility and adaptability Supports a variety of coating materials (such as glue, paint, solvent-free coating) and process adjustments to meet the needs of different industries;Can quickly switch production batches to adapt to diverse product sizes and coating requirements.
5. Environmental compliance Reduces excessive use of coatings and volatile emissions, in line with environmental protection requirements; Some models use solvent-free technology to further reduce the impact on the environment.
6. Standardization and quality control capabilities Automated processes ensure the consistency and repeatability of coating for each batch of products, improving the level of standardization; Reduces human operating errors and significantly improves product qualification rate. 7. Reliability and intelligence The application of advanced materials and technologies ensures long-term and stable operation of equipment; Humanized software systems simplify operations and reduce the threshold for technical learning.

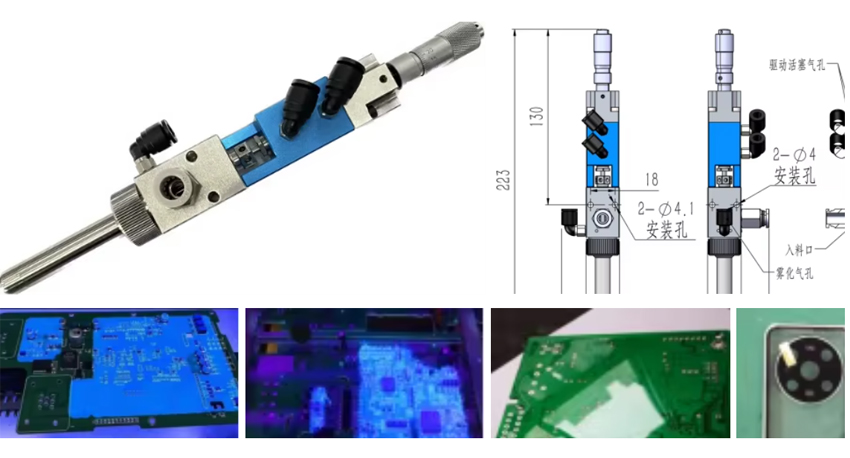

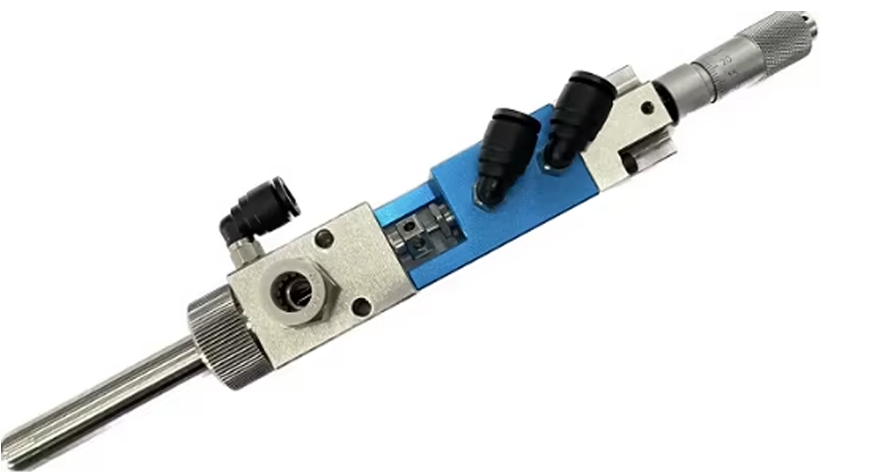

Second SEC-H808 Spray valve

Product overview
SEC-H808 series spray valve is the 1 device that can convert liquid into tiny particles and spray them in the form of spray. Through precise control and adjustment, different spray effects can be achieved to meet various application requirements. As the 1 important spray equipment, it has the characteristics of precise control, high efficiency, durability and reliability, easy operation and wide applicability, and plays an important role in various fields.

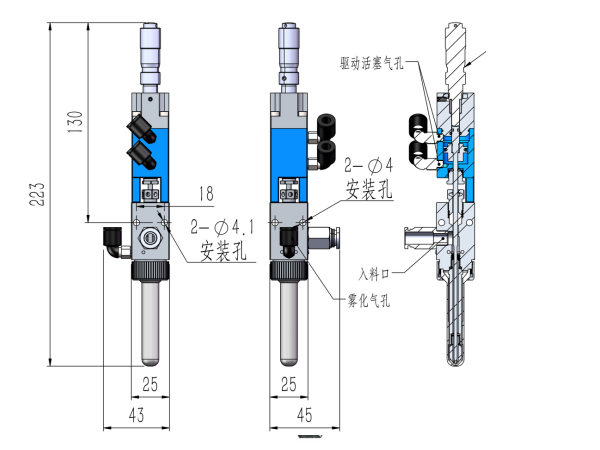

Principle
The SEC-808 series spray valve opens the air pressure of the on-off valve. When the upper end of the piston receives air, the piston drives the striker to move downward, and the striker fits closely with the nozzle, so that the rubber valve is in a closed state. When the lower end of the piston receives air, the piston drives the striker to move upward, and the striker is separated from the nozzle. The fluid flows out from the inlet through the nozzle and the needle under the action of the feeding pressure, thus making the rubber valve open state, compressed air enters between the forming tube ① and the sleeve ④ to form an atomized airflow at the outlet. Under the action of the airflow, the fluid at the outlet of the nozzle further breaks the droplets into smaller particles, thereby achieving the atomization effect. control of the area size of the spray glue;
Product Features
Modularity; Compact structure, small size; · Precise stroke adjustment;
Product Advantages
Excellent spraying effect: uniform atomization, high spraying precision and neat edges; Convenient and flexible operation: rich adjustment functions, wide application range, good compatibility with equipment, easy installation; Stable and reliable performance: reliable quality, anti-clogging design, good sealing Application Scenarios:
Applicable Fluid:
three anti-paint, ink, UV glue, adhesive, solvent/volatile materials, cleaning fluid, etc; Applicable industries: 3C electronics, new energy, coating industry;
