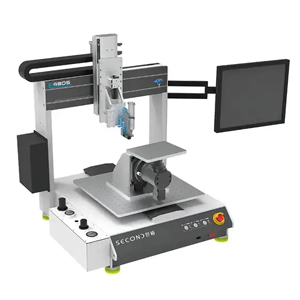

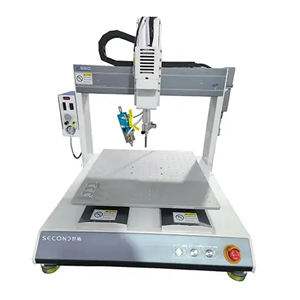

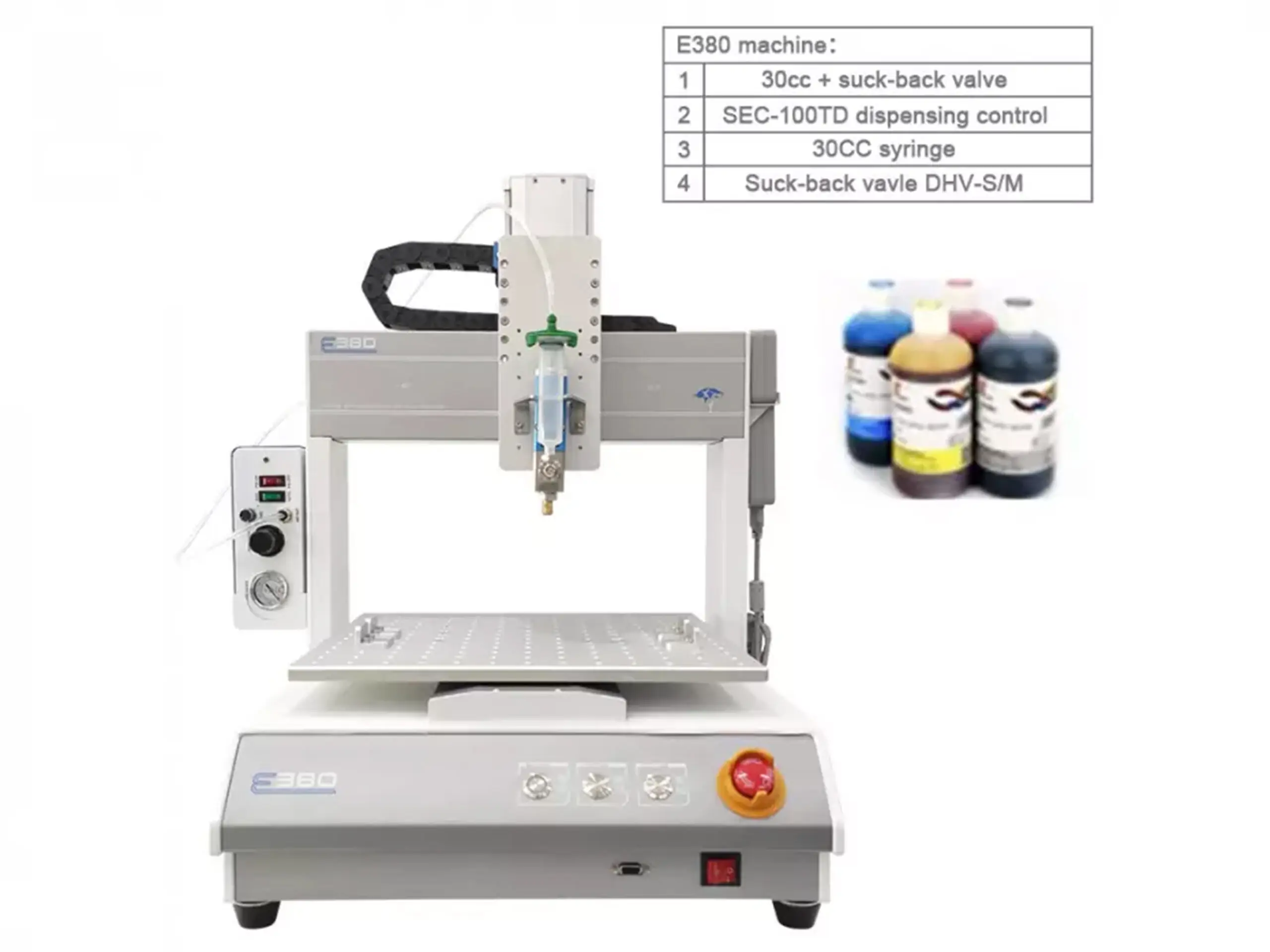

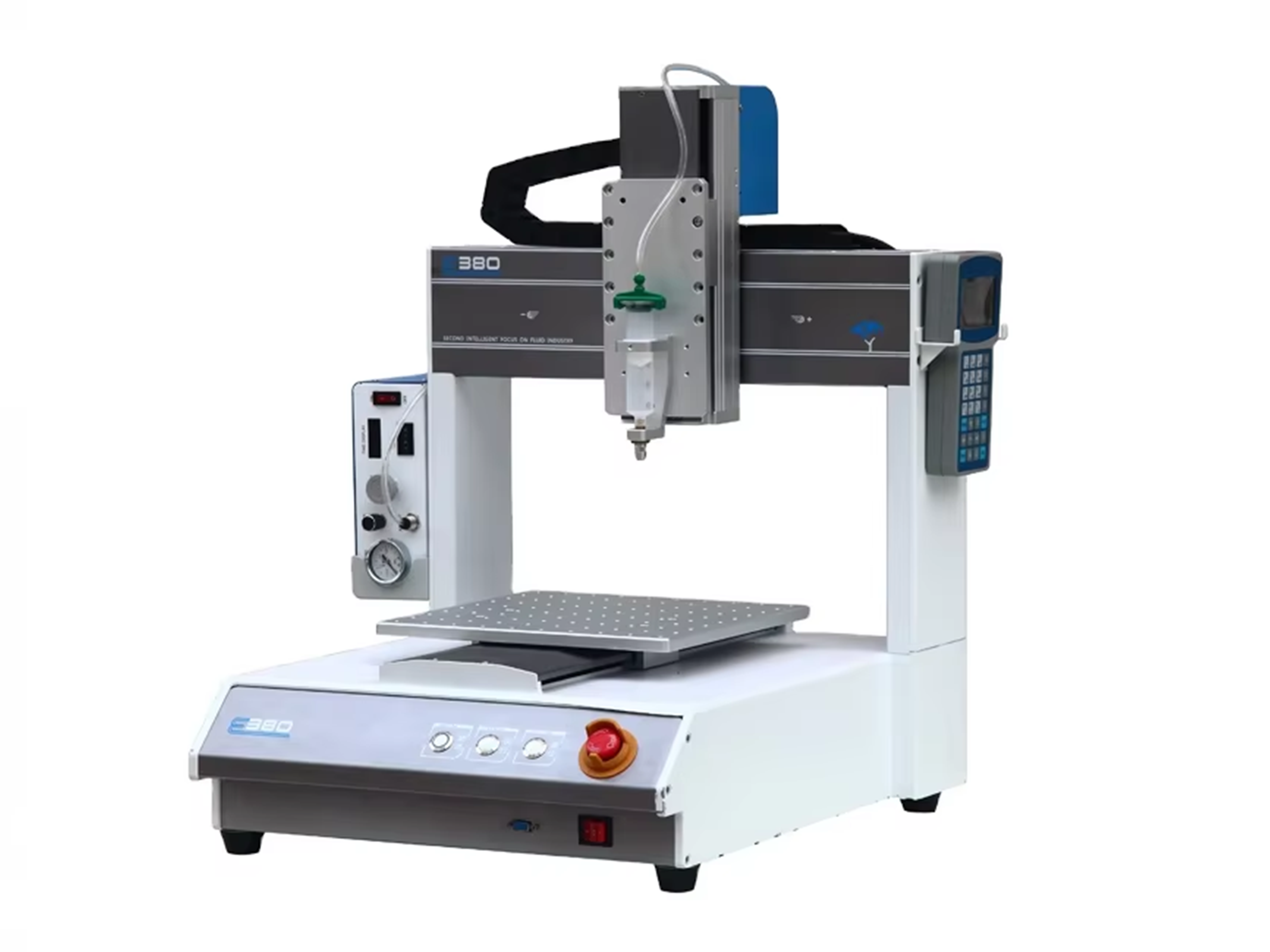

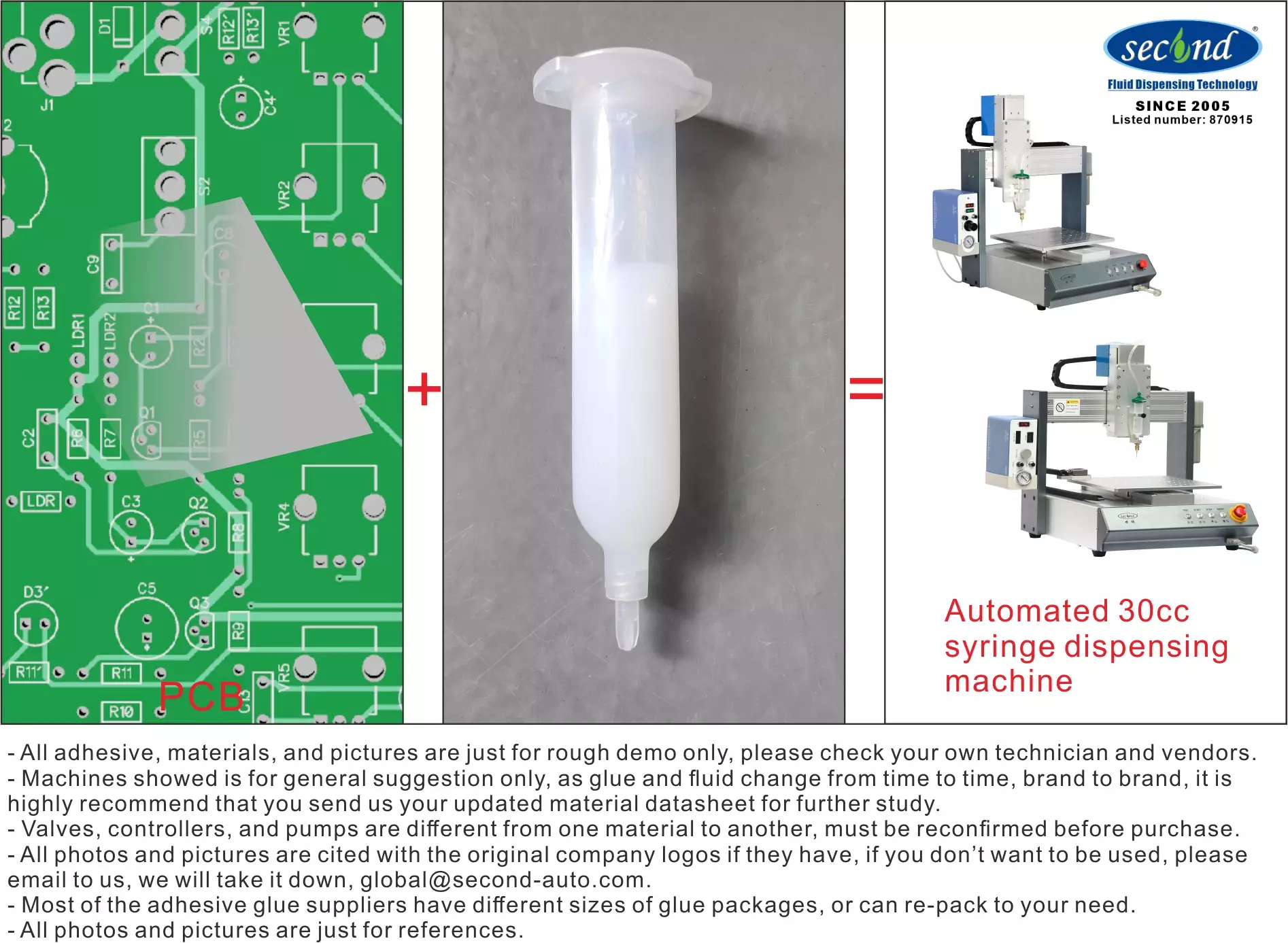

30cc syringe Benchtop Glue Dispensing Robot:
This is an industrial 30cc syringe fluid, adhesive dispensing machine . It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The robot has compacted, but with bigger working range, 380x380x100mm XYZ. It is also flexible to work and match with different glue filling systems, from 5cc syringe, 300cc cartridge, 1 gallons, 5 gallons, and so on. With this design, it is truly realize the dispensing of different adhesives materials for different products. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.

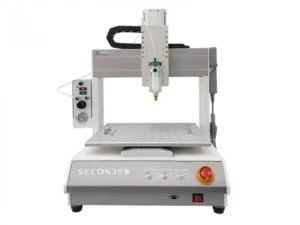

Introduction of the E-series desktop dispensing machines:
This new E-Series desktop / benchtop / tabletop dispensing robot is the result of careful refinement by our engineers and industrial designers. The body and gantry of this series of dispensing robots are made of one-piece aluminum die-casting. Compared with the dispenser assembled with aluminum profiles on the market, the one-piece aluminum die-casting dispenser will be more precise, durable, steady, and low-maintenance. The machine not only can be easily equipped with different dispensing systems for different glues, we have also optimized the dispensing range without changing the overall machine size. Via smart calculation engineers have increased its dispensing stroke by 300mm to 380mm XY axis, which is more suitable for factories and workshops of all sizes use. By this we reduce the cost of the materials, and reduce the cost of the machine too, customers also have also reduce the operating overhead. This series of machine are in mass production already, stock is available for fast delivery (10 days approx.). With mass production, its cost is lowered and we offer competitive package discount, and further Achieve a win-win situation.
We provide international support and maintenance directly for the series of machines. The machine itself has limited warranty period of 12 months from the delivery date, expect the tear and wear consumable parts. During this period, if the machine is found and proved to be faulty due to manufacturing under normal use, we will provide you with free replacement parts, after the proof, the shipping cost of the accessories is also paid by us.
Speaking of tear and wear consumable parts, this machine, except for the dispensing system, has no immediate-consumables for the robot itself. The consumables of the dispensing system are also mainly plastic hose and pipe, sealing rings and needles. We will pack-along some of these consumables, free of charge, following the purchase of the machine.
This desktop dispenser setup is suitable for hot-melt, solide glue and similar adhesive material automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.
Although the desktop industrial glue dispenser seems to have only XYZ axis, it seems to just has a simple structure, but professional production lines, such as EMS manufacturing factories are generally require very precise, some are up-to nanometer. A professional industrial desktop dispenser may has to travel back and forth for several kilometers and dispense thousands of times, so do not underestimate the quality requirements of a desktop dispensing robot. We provide professional, heavy-duty automatic dispensing machines. “Dispensing is no small matter, our quality starts from the desktop.”

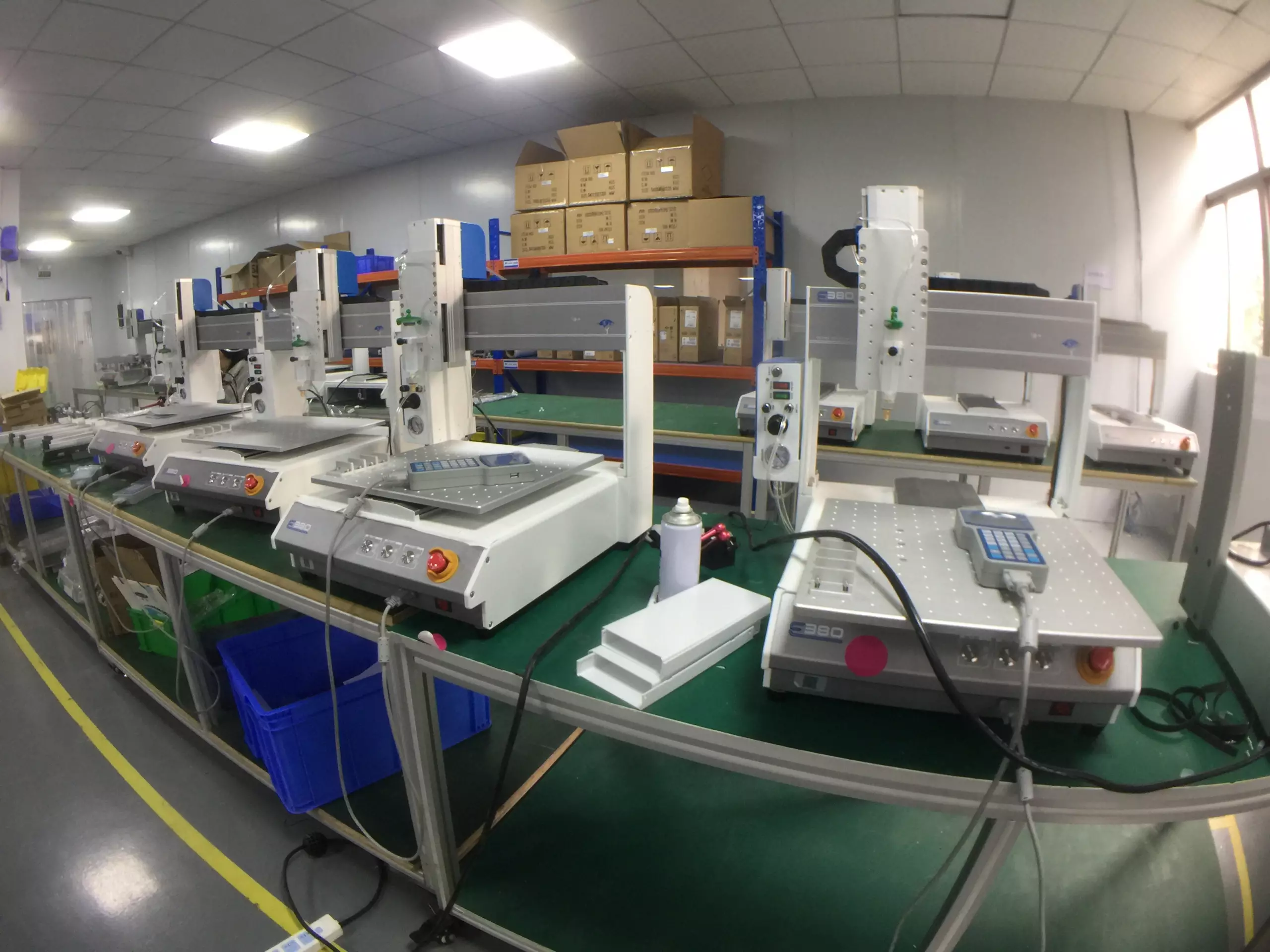

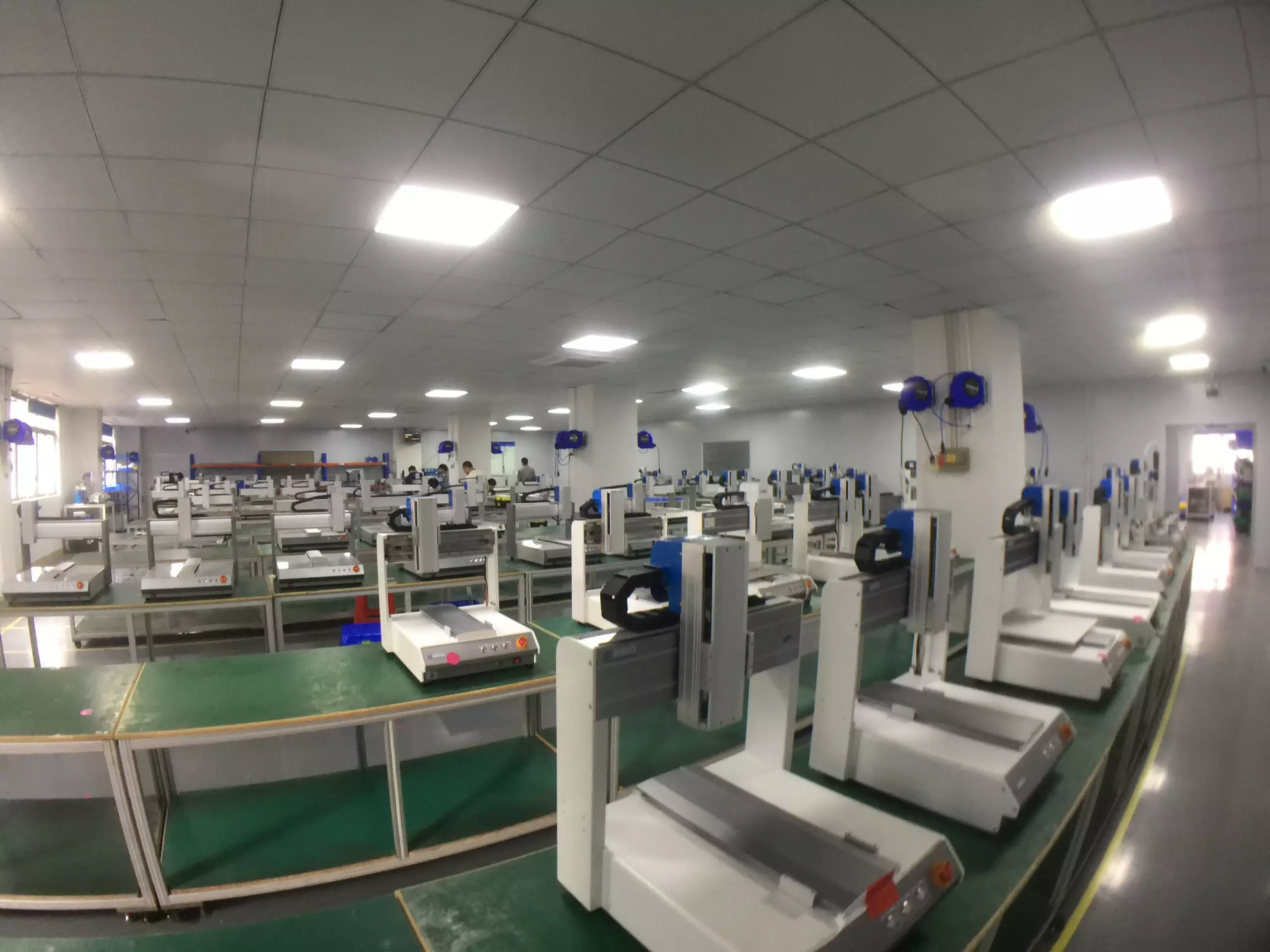

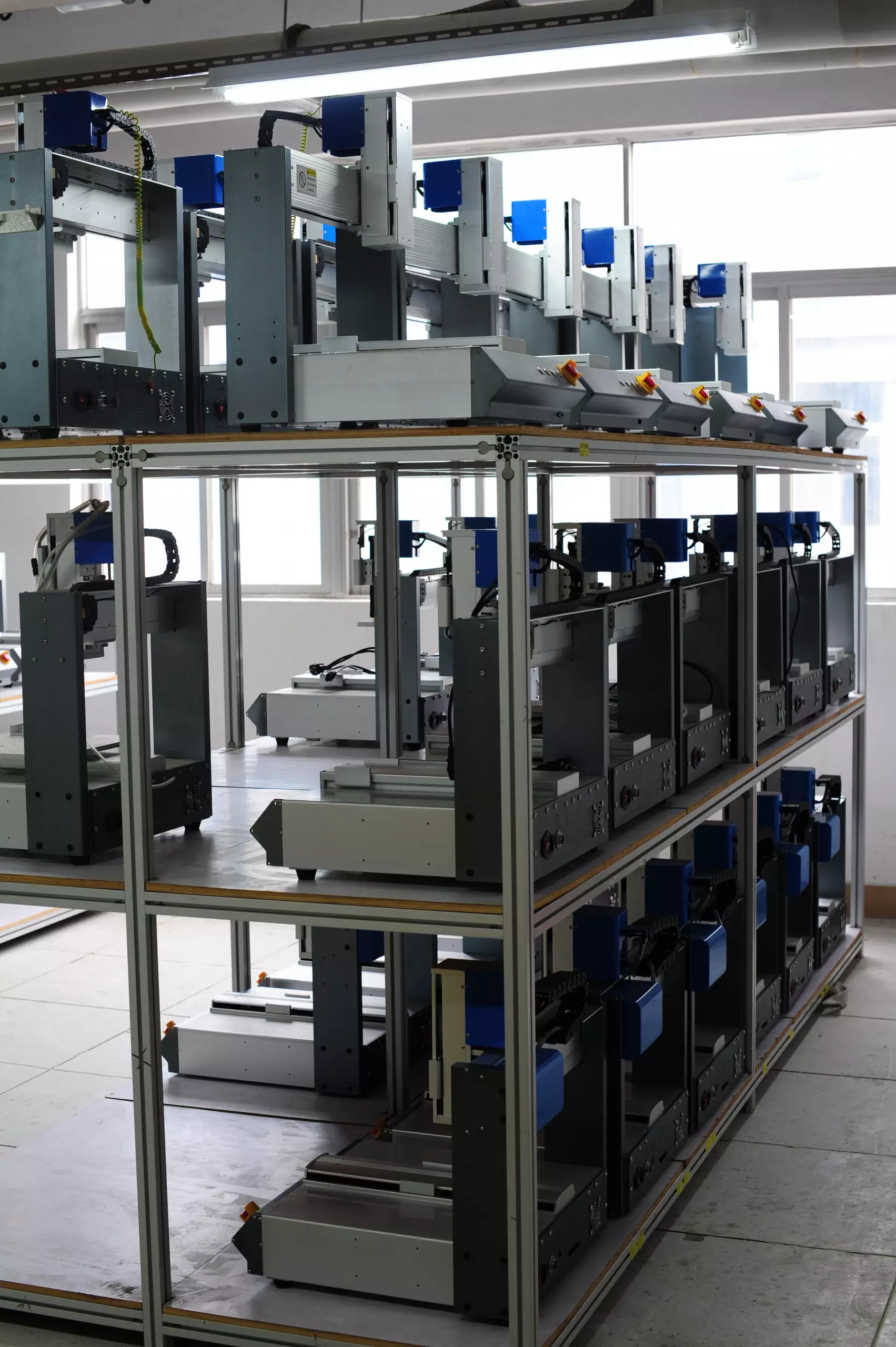

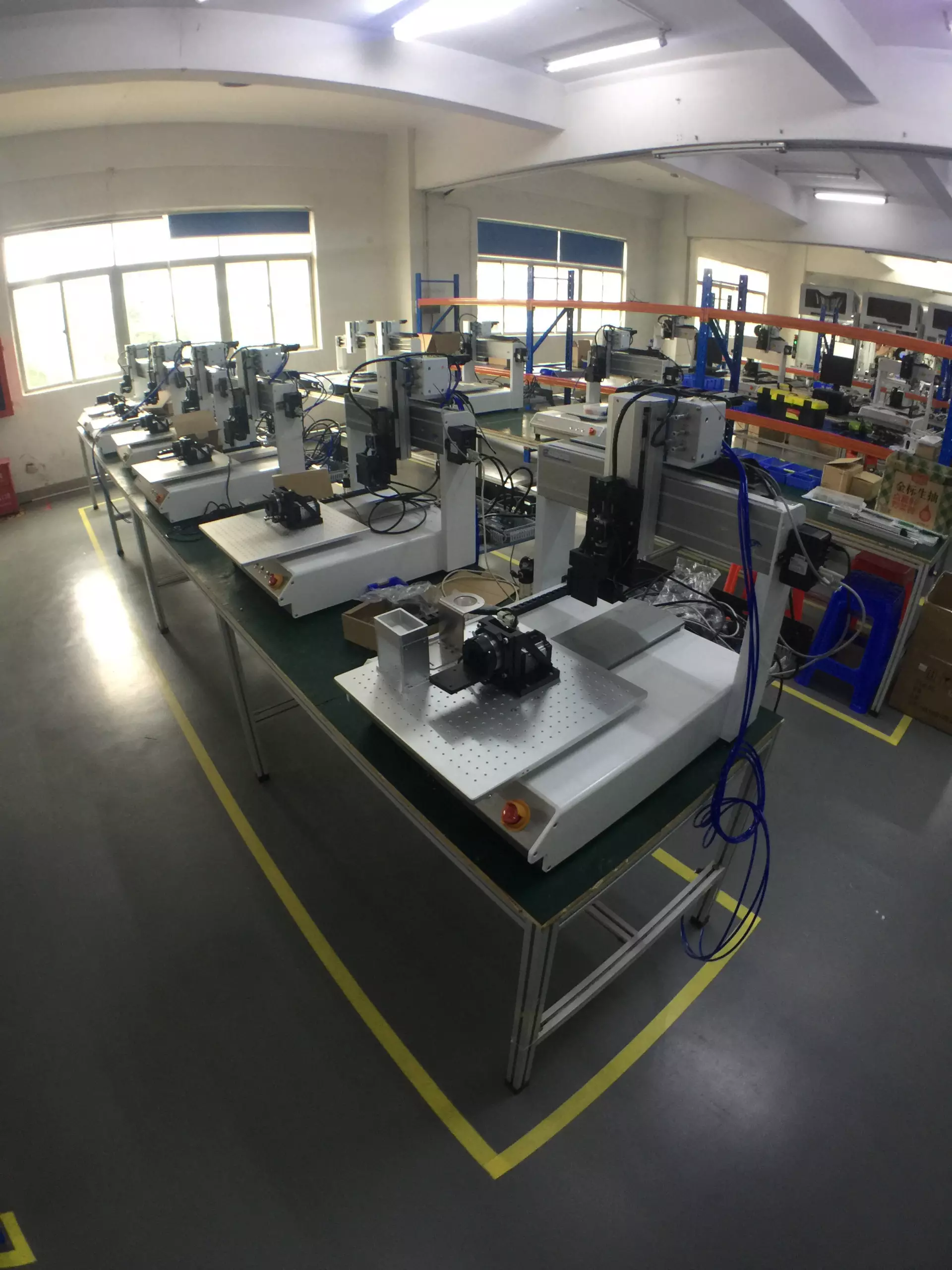

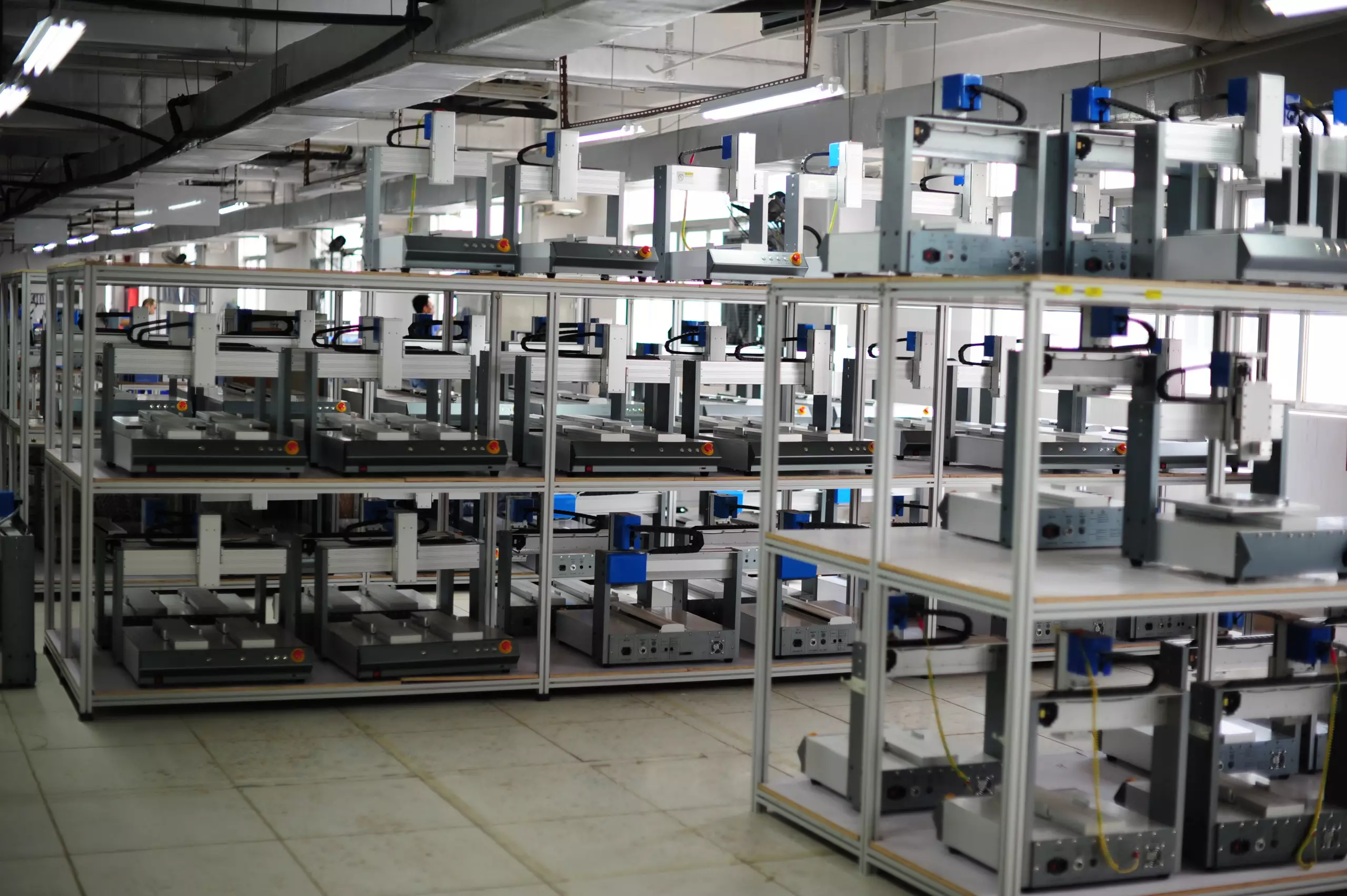

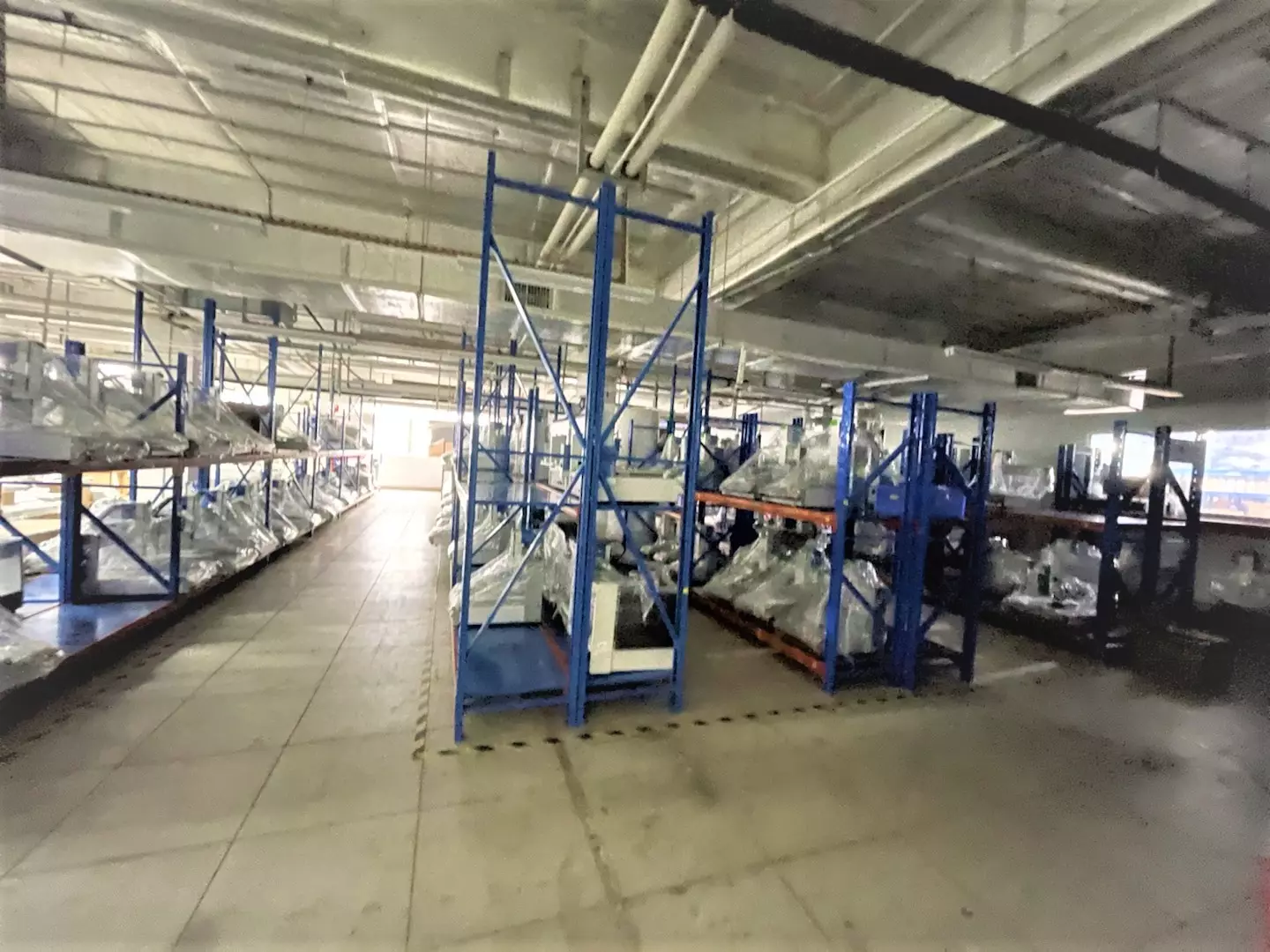

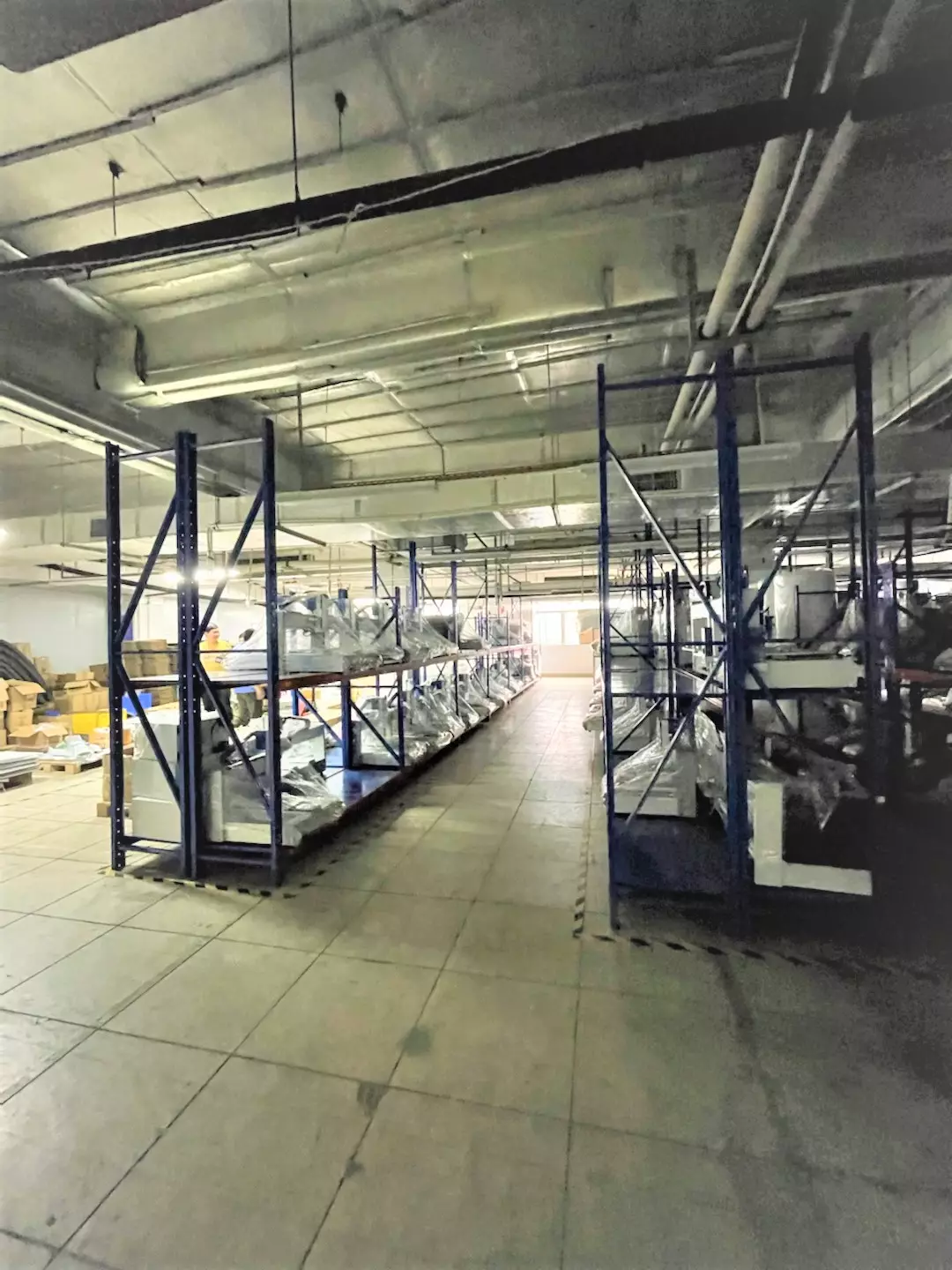

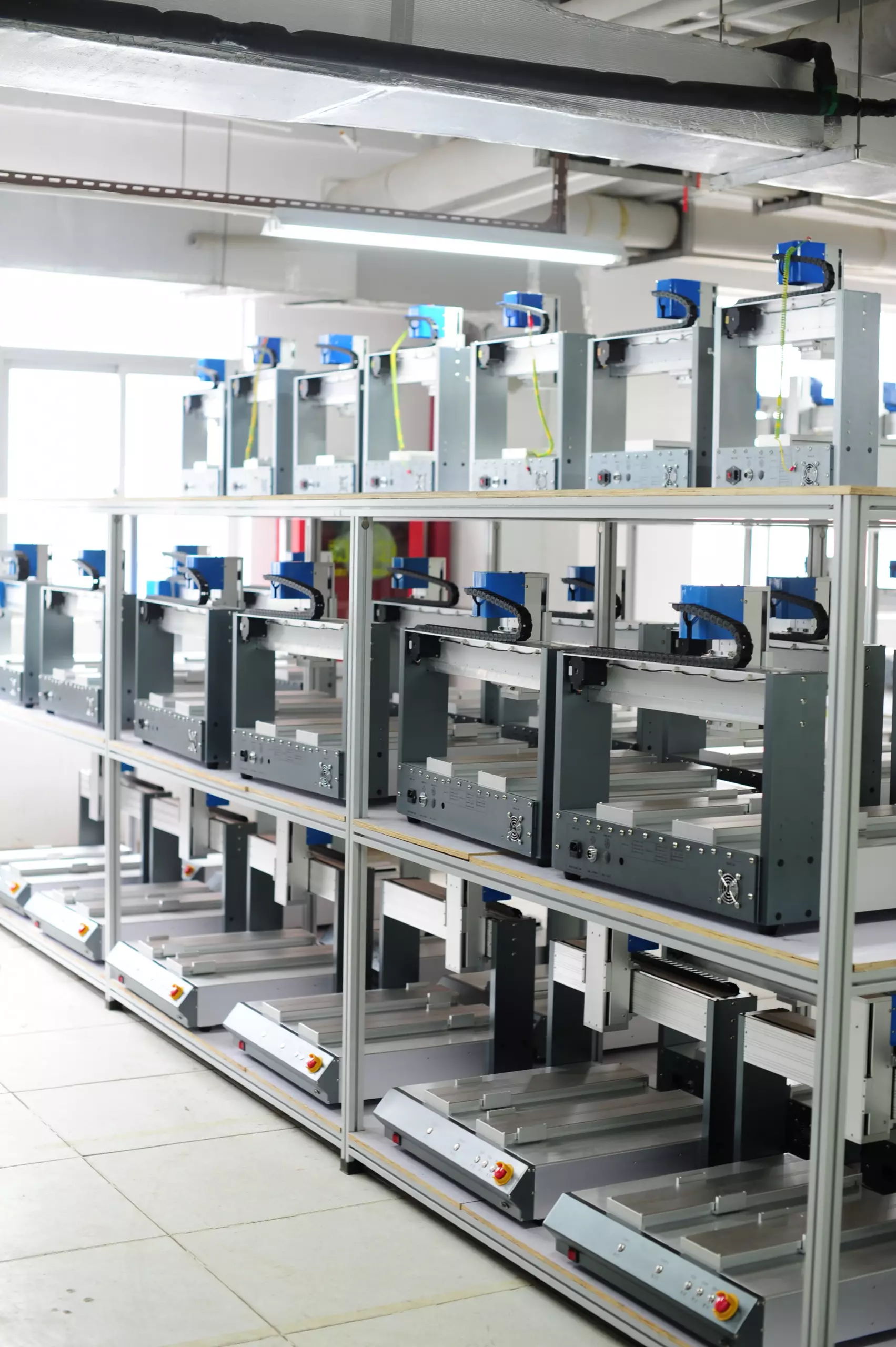

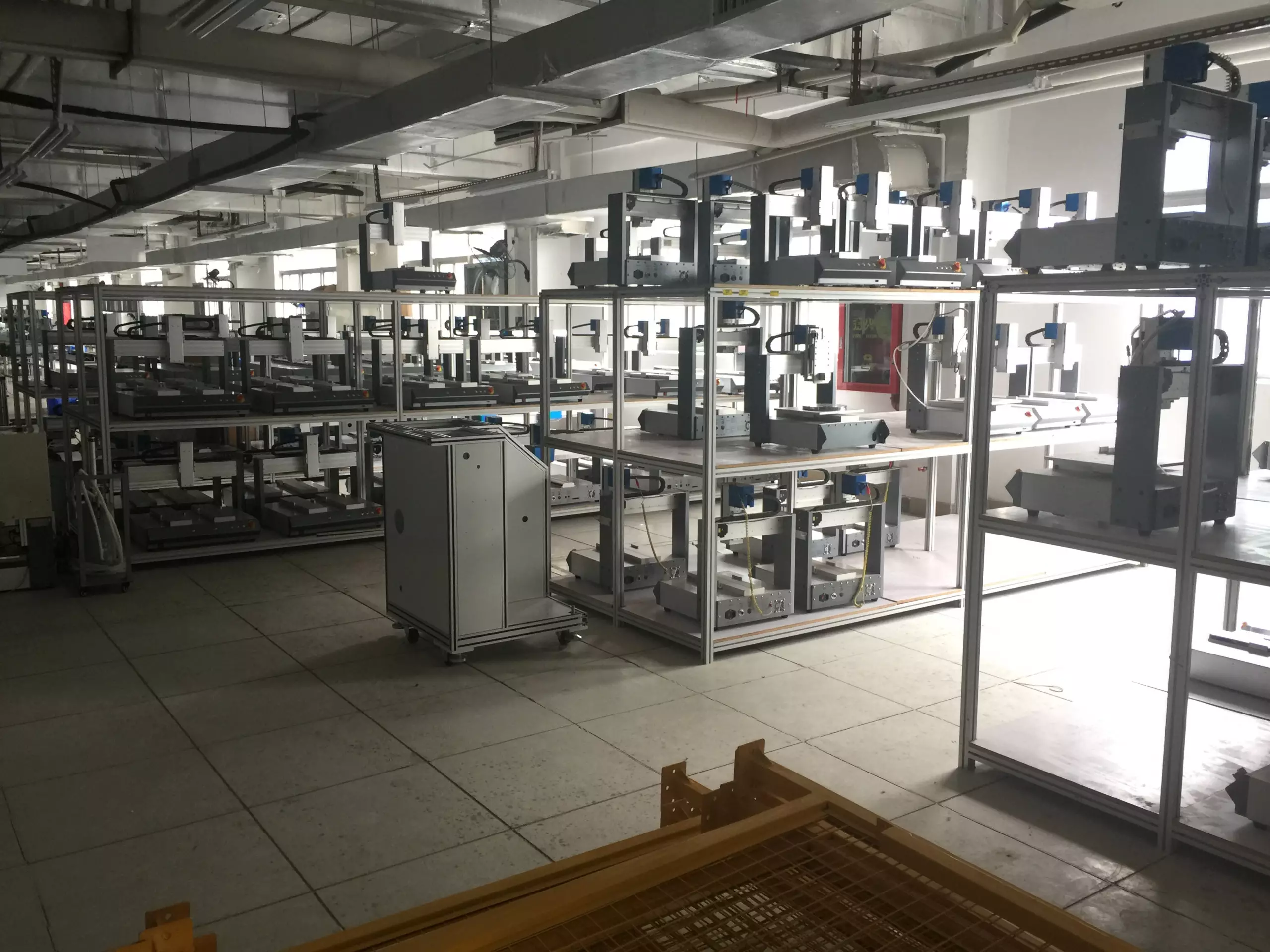

Most models of our desktop / benchtop dispensing machines are available in stock for fast delivery, between 10-15 days, we accept URGENT order in case if needed. In an average month, we stock-up about 100 units of standard sizes of the machines. Please contact us now to discuss and arrange.
Dispensing process:

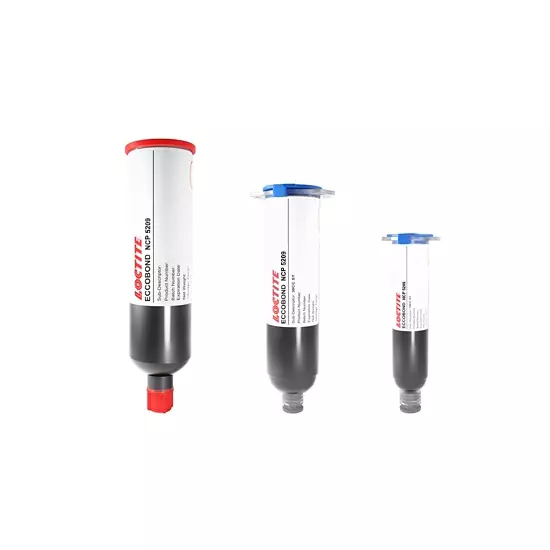

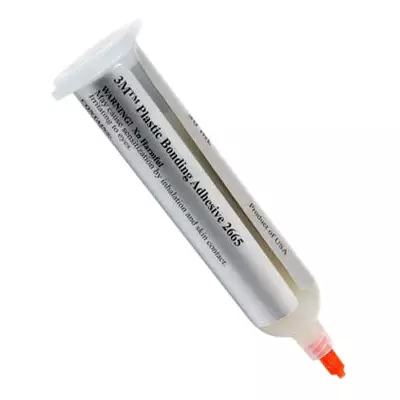

Commonly used glue
Multi-valve picture display
Model | SEC-E380 | SEC-E480 |
Working range | 380(X)*380*(Y)*100(Z) | 480(X)*480(Y)*100(Z)mm |
Max payload | 7kg/3kg | |
Max travel speed | 400mm/sec(XY)/200mm/sec(Z) | |
Transfer method | Stepper motor, belt, precision rail | |
XYZ position accuracy | ±0.025mm | |
Resolution | 0.01 | |
Memory storage | 999 program setup (each program store up to 65535 spots) | |
Operating method | LCD, Teach pendant | |
Transport motor | Precision stepper motor | |
Movement patterns | 3 axis spot to spot, continue line, arc | |
I/O | 1 input, 4 output (support expansion) | |
Power supply | AC220V 50/60Hz 0.5kW | |
Working environment | Temperature 0-40℃, Humidity 20-90% | |
Machine dimension | Approx. 48KG | Approx. 60KG |
Machine dimension | 520*583*645mm | 620*683*645mm |
Used in the fixing and protection of PCB electronic parts in the electronics industry, bonding of mobile phones, notebook shells, LCD glass, LED dispensing, optical lens dispensing, material fabric, paper packaging, automotive parts, and other hardware components to achieve the role of bonding and fixing.

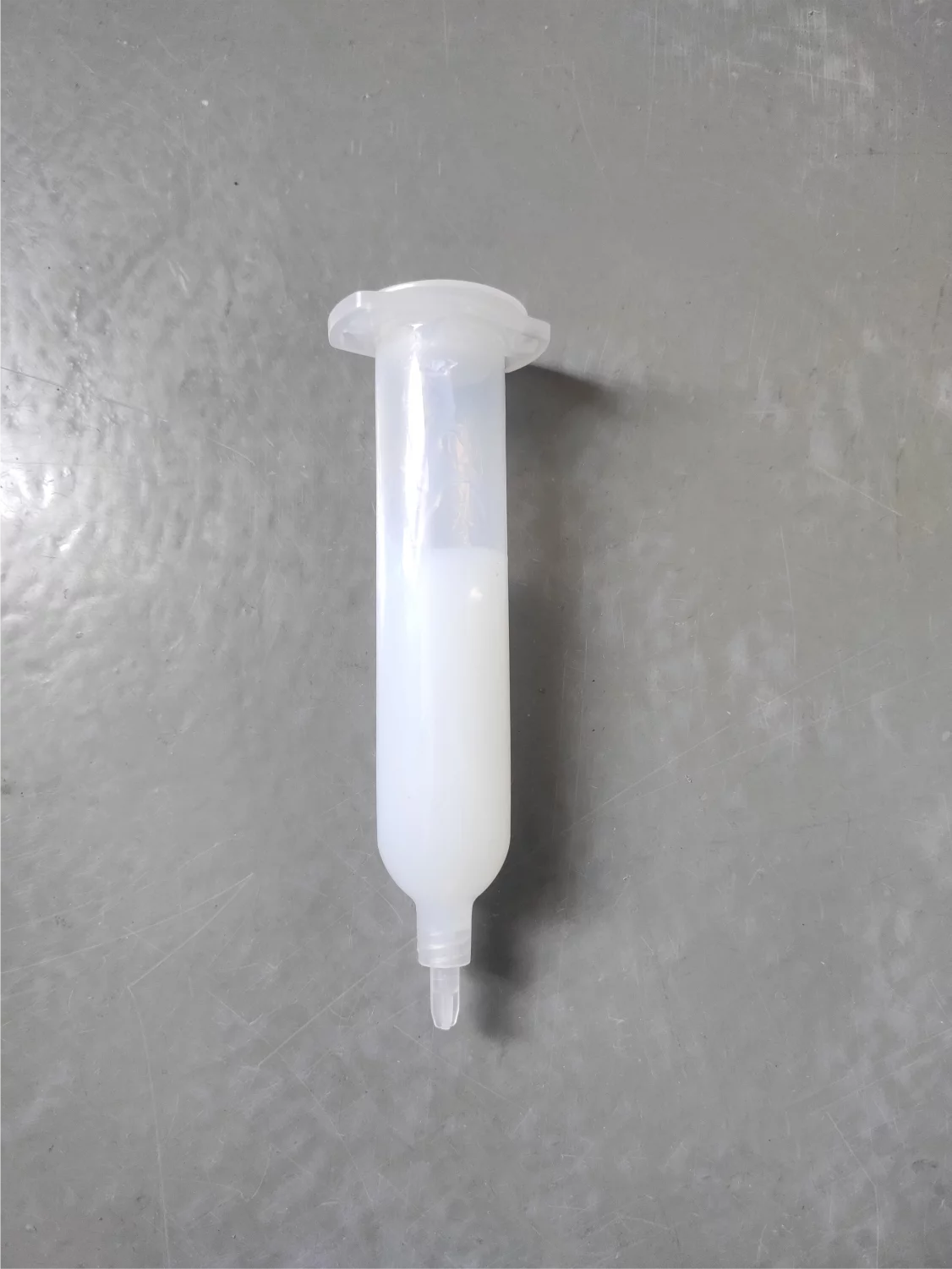

UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste, clear paint, screw fixer, etc.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
EC series Adhesive dispenser machine performance:
CCD video-assisted programming, large field of view to take pictures as a whole, automatic identification of product location.
Independently researched and developed R-axis needle head linkage rotation function, equipped with ceramic rotary valve, which is absolutely leading in the application field of conductive adhesive.
Gantry dispensing platform can be equipped with a variety of glue supply systems to meet multi-process and realize one machine with multiple uses.
The online dispenser can be flexibly equipped with automatic width adjustment, memory, weighing, code scanning, improve the information management level of the entire line of equipment.
Multi-nozzle automated desktop glue dispenser with dual dispensing desks
3-axis glue dispensing machine ：
This is an industrial 1.5 gallons fluid, adhesive dispensing machine . The machine pairs with a 1.5 gallons material feeding tank, and a suck-back valve. It is suitable for low to medium viscosity fluids or adhesives dispensing.
This is a hot melt adhesive dispensing machine equips with 10 liters material feeding tank. The tank can store 10 liters of material in total, can melt hot melt chips, resin, sticks, blocks, and other similar adhesive materials. It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The machine has compacted, but with bigger working range, 380x380x100mm XYZ. The dispenser equips with ceramic heating barrel, and one pre-heater for effectively and efficient work. The heating controller works with a digital temperature control, can be accurately controlled to ± 1 ℃. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine. Besides 10 liters tank, we also provide different volumes of hot-melt dispensing system, such as 30cc, 100cc, and others.
