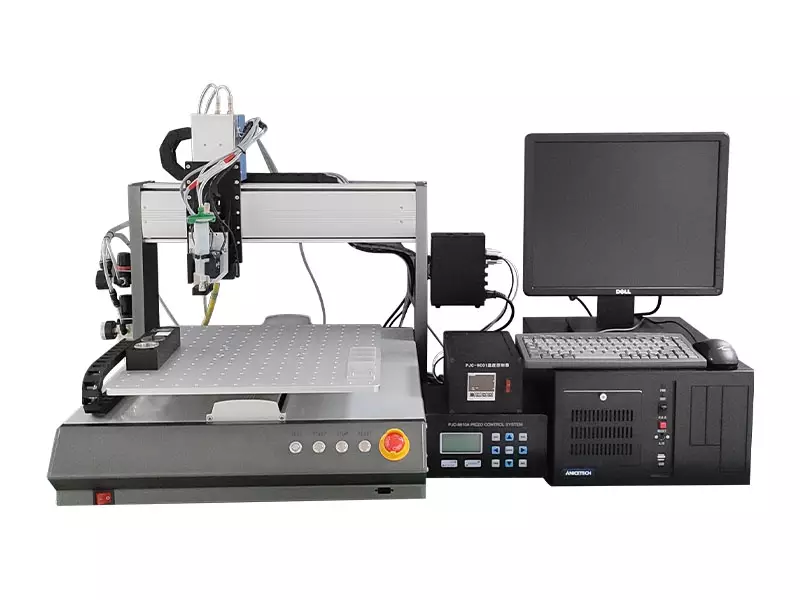

Desktop jet valve dispenser (with computer)

Desktop jet valve dispenser (with computer)

The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.

Description

Our homepage is under construction, more information will be posted, welcome to email us for specific inquiry, thx

Features

Specification

epoxy resin dispenser

Features:

One-piece aluminum casting molding

Strong structure

Stable and user friendly operation

Allow quick changeover

Advantages:

Simple operation

Greatly saves the manual dispensing time

Improves efficiency

Saves costs and cost-effective

PRODUCT DETAILS

Supporting Systems

(1)The machine equips with 3 axis robotic system. It is operated by Second originally developed software, windows based.
(2)It can not only set trajectories such as set points, lines, circles, and arcs, but also has advanced functions such as three-dimensional potting through program setting.

Features

(1)One-piece casting molding, strong structure, stable operation; small size, large stroke, 300 dimensions, actual operation up to 380mm working range.

(2)Dispensing head supports 360-degree rotation, can achieve the side, corner dispensing.



E380L automatic robot glue dispenser

MANUFACTURING

It builds various types of dispensing valves, and controlers

How It Works

Automated high viscosity thermal interface material deispensing machine, Shichun‘s unique control software can follow the set points, lines, circles, arcs and other trajectories

It builds various types of dispensing valves, and controlers

How It Works

Automated high viscosity thermal interface material deispensing machine, Shichun‘s unique control software can follow the set points, lines, circles, arcs and other trajectories

CASE

epoxy resin dispenser

The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

SOLUTION

Industrial

Resin crystal doming

Machine

SEC-E380

Features

Material-

One-piece casting molding, strong structure, stable operation; small size, large stroke, 300 dimensions, actual operation up to 380mm working range. Adopt wire support, use sensors to automatically sense the state of materials, issue commands to start and stop equipment; realize automatic unmanned operation;

Dispensing valve –

This dispensing valve is direct made by Second, the materials are high quality aluminum and stainless steel, great for anti corrosion, precise and durable. It is also low maintenance with only O-ring and sealant need to be replaced one retired. Different valves also equip with suck-back function, effectively prevent dripping.

Control –

The Teach pendant works like app. It is in English. You basically move the cursor to any direction, and enter to confirm (details check the instruction). All the paths and files can be saved into the system, and reload for future works.



FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

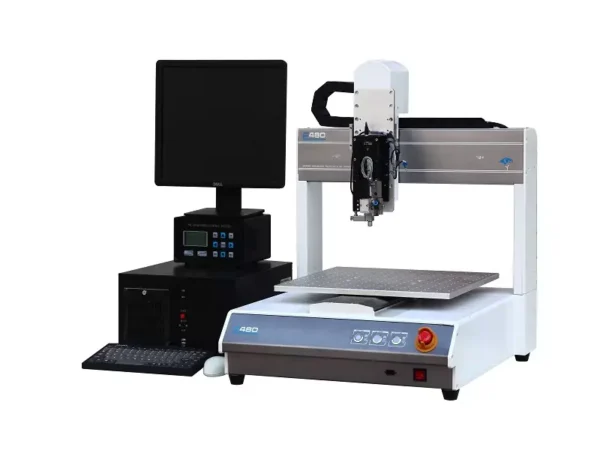

Technical Parameter

ModelE480SP
Working range480(X)*480*(Y)*100(Z)
Max payload7kg(Y)/6.5kg(X)
Max travel speed400mm/sec(XY)/200mm/sec(Z)
Transfer methodServo motor, lead screw
XYZ position accuracy±0.025mm
CCD Visual Camera(CCD)High resolution digital camera
Memory storage999 program setup (each program store up to 65535 spots)
Operating methodWindows7
Control softwareSecond Fluent
Movement patterns 3 axis spot to spot, continue line, arc
I/O1 input, 4 output (support expansion)
Power supplyAC220V 50/60Hz 1 kw
Working environmentTemperature 0-40℃, Humidity 20-90%
Machine dimensionApprox. 65KG
Machine dimension620*683*645mm
