This is a 30cc hot melt adhesive dispensing machine. It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The machine has compacted, but with bigger working range, 380x380x100mm XYZ. The dispenser equips with ceramic heating barrel, and one pre-heater for effectively and efficient work. The heating controller works with a digital temperature control, can be accurately controlled to ± 1 ℃. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine. Besides 30cc packaged hot-melt dispensing machine, we also provide different volumes of hot-melt dispensing system, such as 100cc, 10 liters and others.

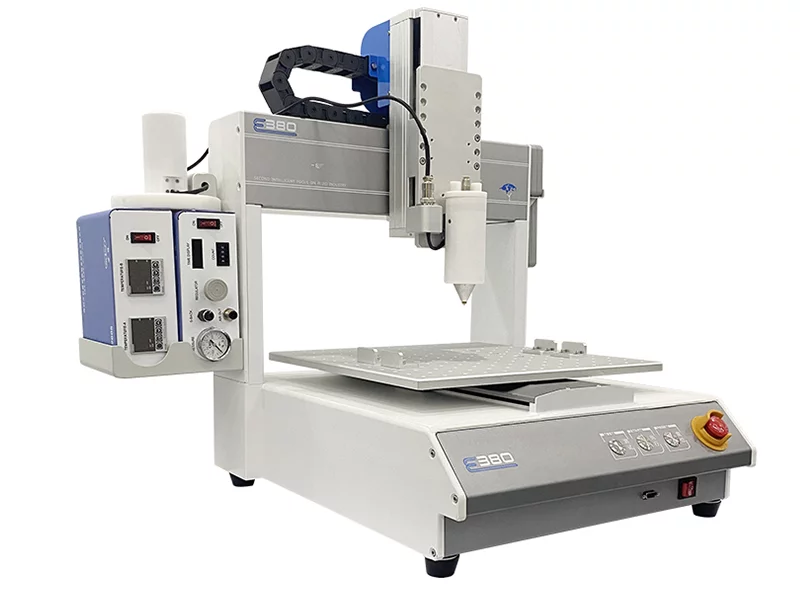

Automated hot melt adhesive desktop dispensing machine with 30cc cartridge – E380-30cc-HM
Description
Features:
- The machine’s main body is built with one-piece aluminum casting, strong structure and stable operation; smaller overall size, but with bigger dispensing strokes.

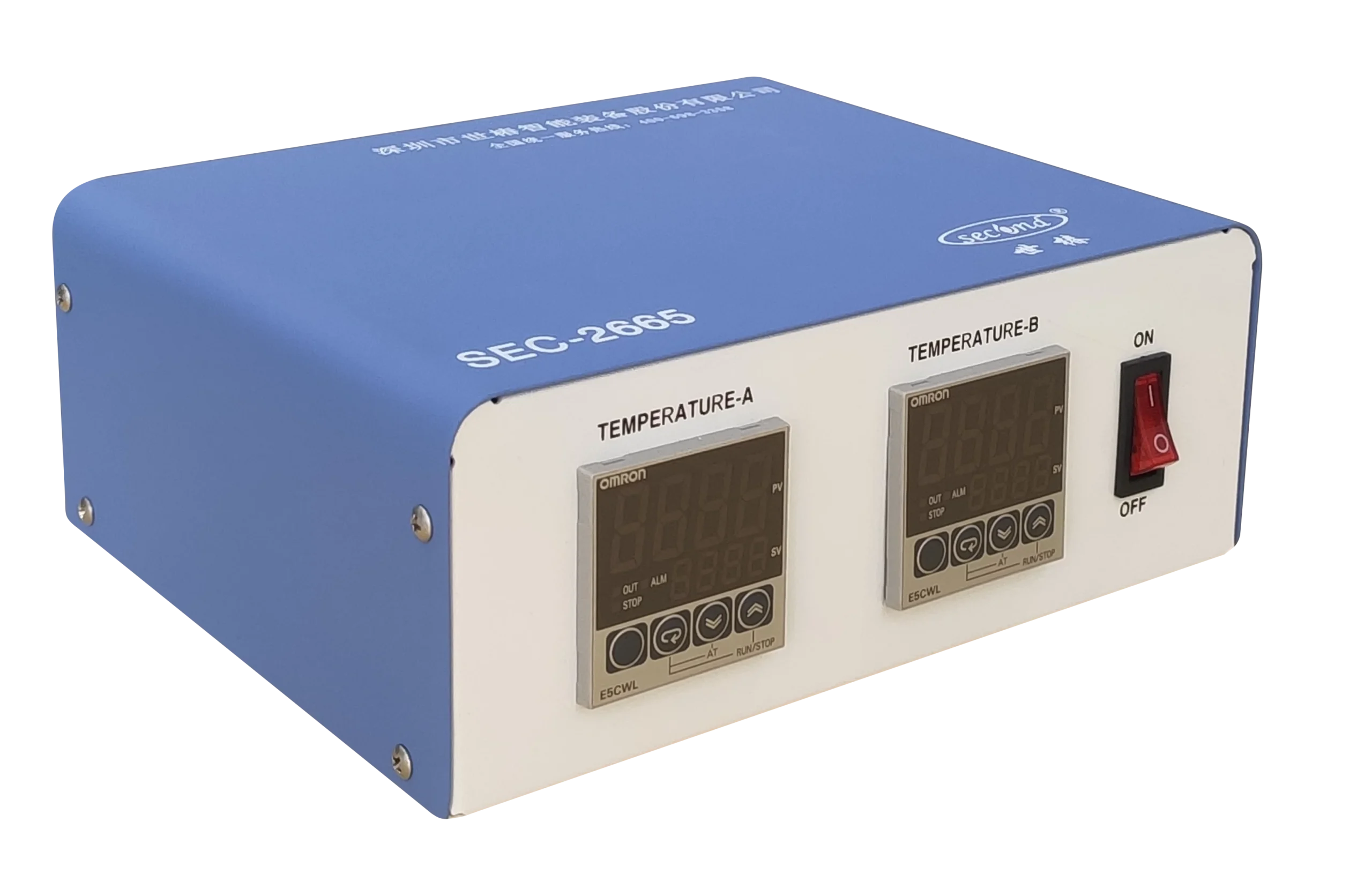

- Digital temperature control is adopted, which can be precisely controlled to ±1°C.

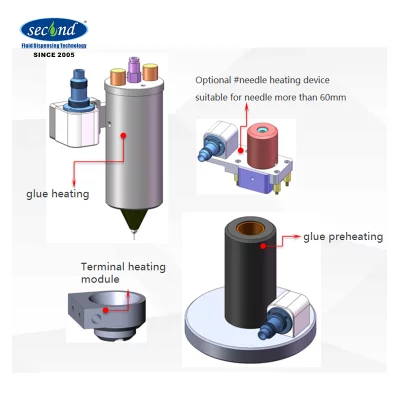

- Suitable for various kinds of hot melt adhesives in 30cc packaging, with quality heating system, good heat preservation, auto temperature regulartor, and anti-scalding protect
- Optional glue preheating device, replace the glue and. use it directly without waiting.
- Equipped with optional needle insulation device, suitAable for the edge and corner dispensing process of lengthened needles.
Application:
Used in the fixing and protection of PCB electronic parts in the electronics industry, bonding of mobile phones, notebook shells, LCD glass, LED dispensing, optical lens dispensing, fabric material, paper packaging, automotive parts, and other hardware components to achieve the role of bonding and fixing.
Specifications (robot):
Model | SEC-E380 | SEC-E480 |
Working range | 380(X)╳380(Y)╳100(Z)mm | 480(X)╳480(Y)╳100(Z)mm |
Machine dimension | 520*583*645mm | 620*683*645mm |
Y/Z max payload | 7kg/3kg | |
Max travel speed | 400mm/sec(XY)/200mm/sec(Z) | |
Movement method | Stepper motor, belt, precision rail | |
XYZ accuracy | ±0.025mm | |
Resolution | 0.01 | |
Storage memory | 999 setups (each file records up to 65535 points) | |
Operating control | LCD panel, handheld teach pendant | |
Motorize system | Precision stepper motor | |
Movement pattern | 3-axis point-to-point, continuous straight line, arc. | |
I/O | 1 input / 4 output (support expansion) | |
Temperature range | 0-180℃(±1℃) （can customize） | |
Power supply | AC220V 50/60Hz 0.9kw | |
Working environment | Temperature 0-40℃ Humidity 20-90% | |
Weight | approx. 48kg | Approx. 60kg |
Supporting System
Material

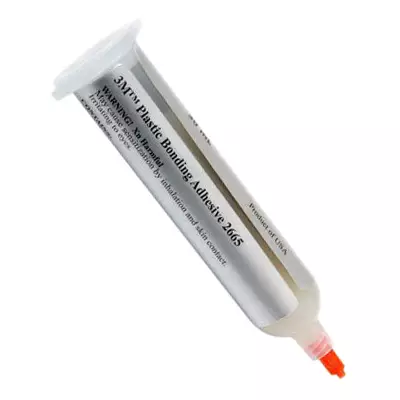

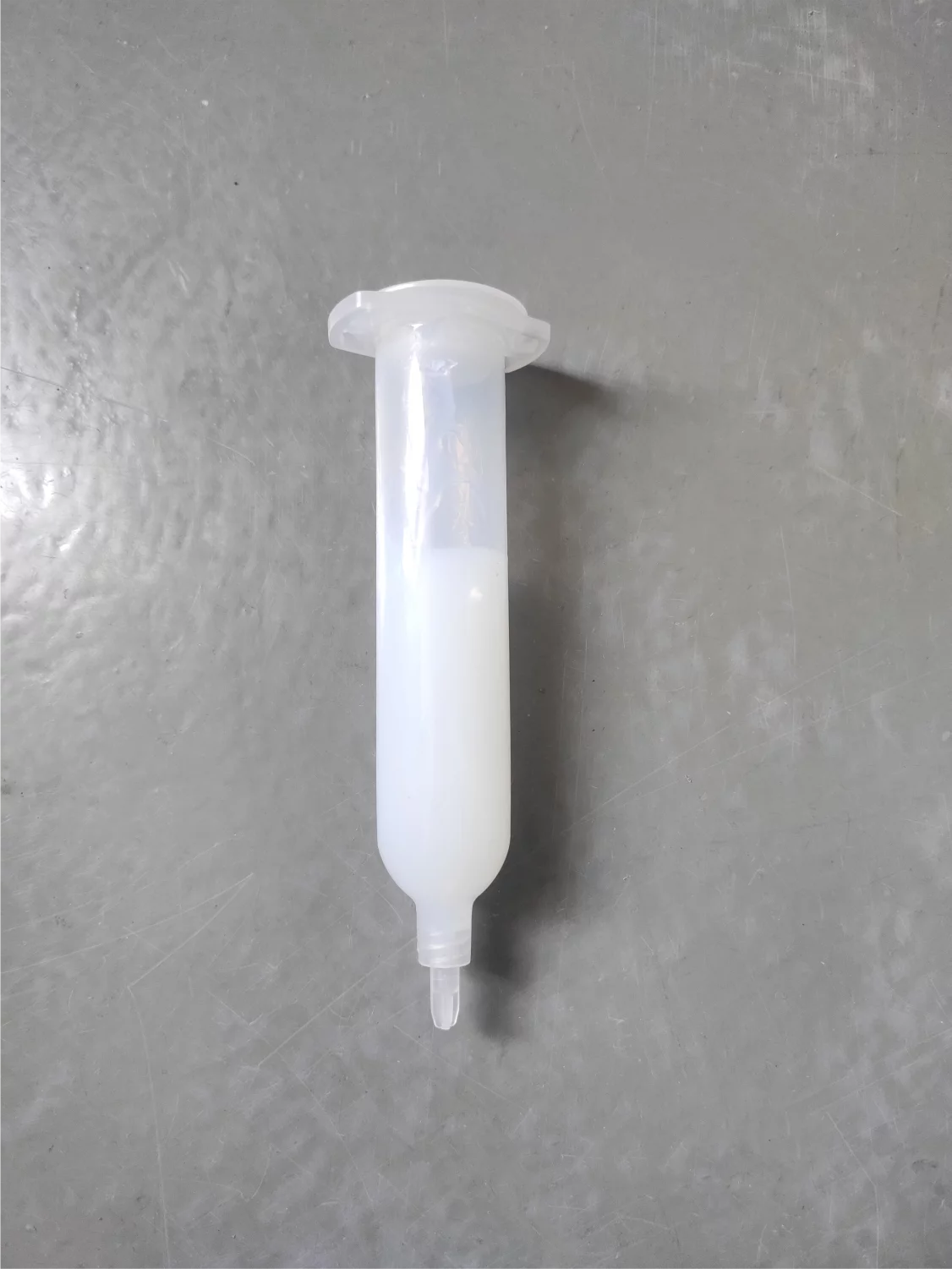

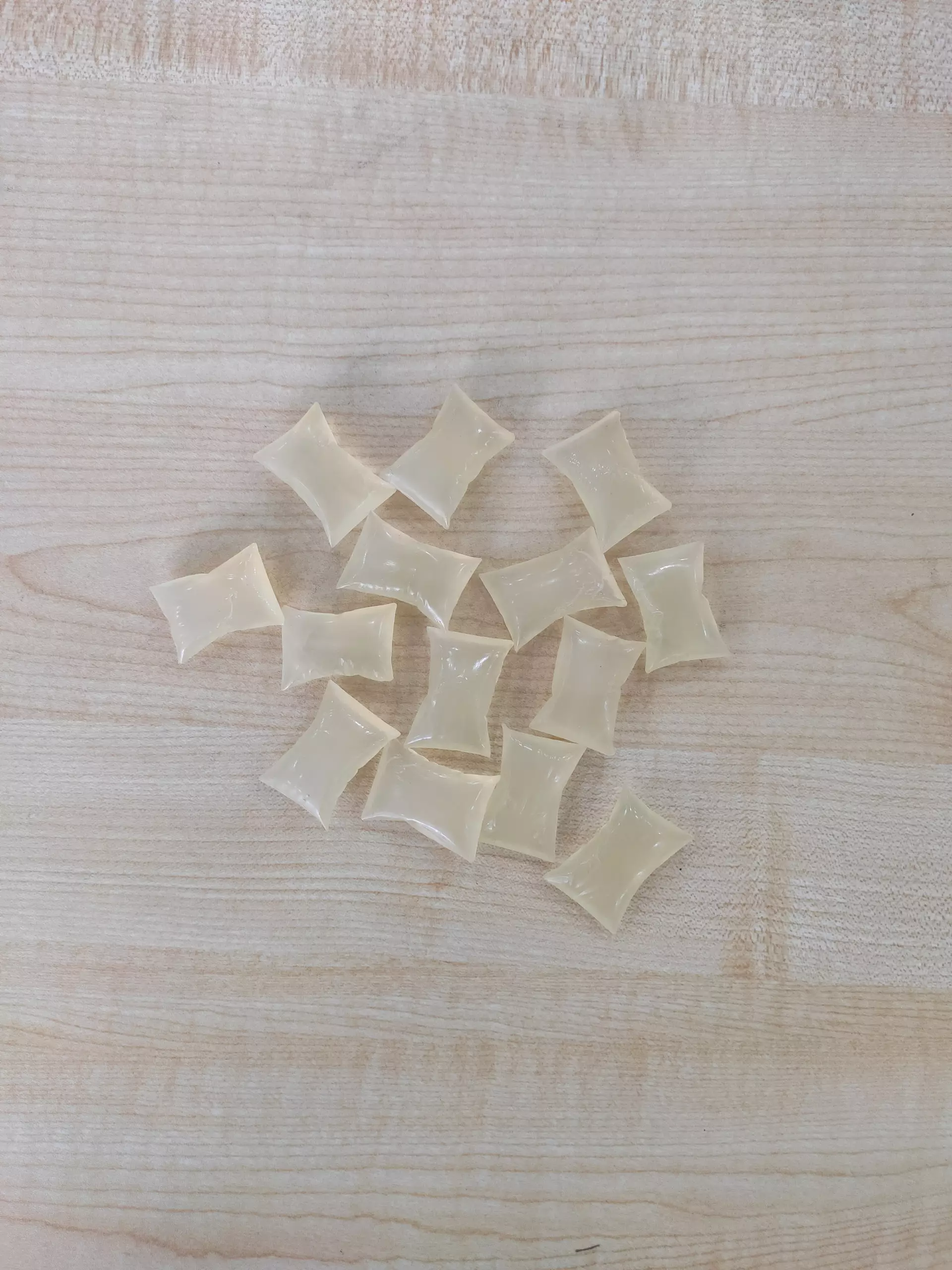

This desktop dispenser setup is suitable for hot-melt, solide glue and similar adhesive material automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.
MANUFACTURING
Although the desktop industrial glue dispenser seems to have only XYZ axis, it seems to just has a simple structure, but professional production lines, such as EMS manufacturing factories are generally require very precise, some are up-to nanometer. A professional industrial desktop dispenser may has to travel back and forth for several kilometers and dispense thousands of times, so do not underestimate the quality requirements of a desktop dispensing robot. We provide professional, heavy-duty automatic dispensing machines. "Dispensing is no small matter, our quality starts from the desktop."
Available in stock:
Most models of our desktop / benchtop dispensing machines are available in stock for fast delivery, between 10-15 days, we accept URGENT order in case if needed. In an average month, we stock-up about 100 units of standard sizes of the machines. Please contact us now to discuss and arrange.
CASE
What's the different between END-series and E-series desktop dispensing machines?

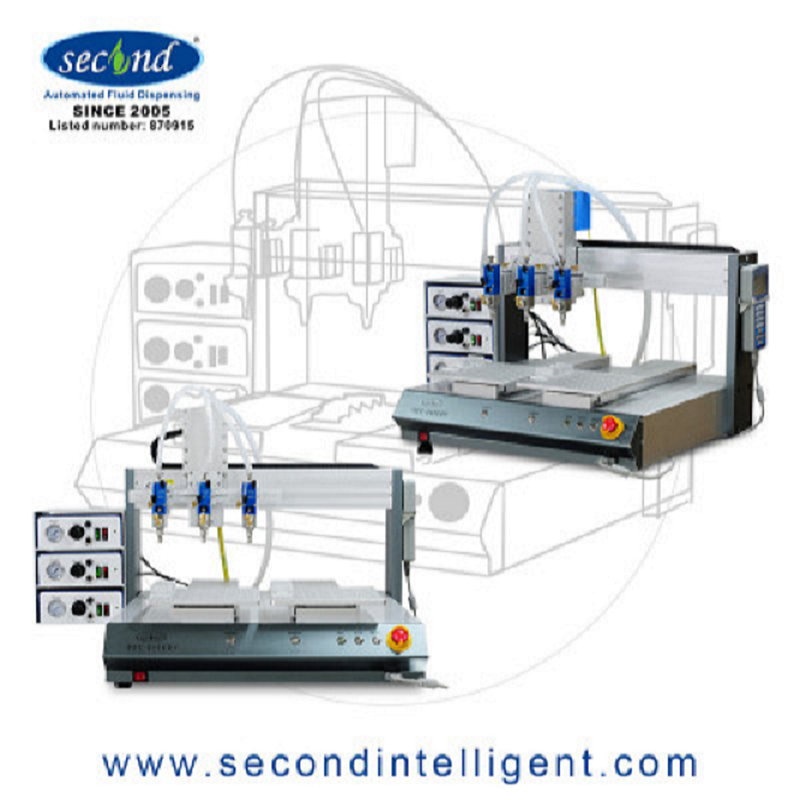

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.
E-series
EDN-series
FAQ
1.Are you trading company or manufacturer?ehaitech2021-08-26T11:19:43+08:00
We are direct manufacturer.
2.What is your terms of packing?ehaitech2021-08-26T11:20:44+08:00
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
3.What is your terms of payment?ehaitech2021-08-26T11:21:07+08:00
Depends on terms and conditions, negotiable.
5.Can you produce according to the sample testing?ehaitech2021-08-26T11:22:35+08:00
Yes, we can produce according to the tested result. We can also product base on your design.
6.Do you test your goods before delivery?ehaitech2021-08-26T11:22:44+08:00
Yes, we will test 100% before delivery.
7.How do you make your business long-term and good relationship?ehaitech2021-08-26T11:22:53+08:00
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
8.What is the working principle of the Glue Dispensing Machine?ehaitech2021-08-26T11:24:59+08:00
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
9.What is the difference between a glue dispenser and a potting machine?ehaitech2021-08-26T11:25:18+08:00
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
10.What kind of glue does the dispenser generally use?ehaitech2021-08-26T11:26:02+08:00
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
