Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

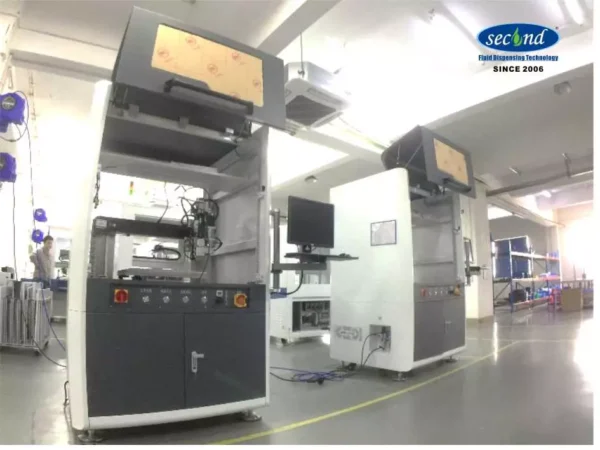

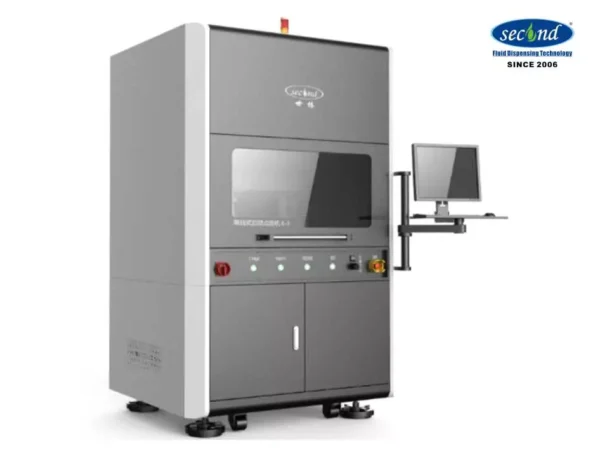

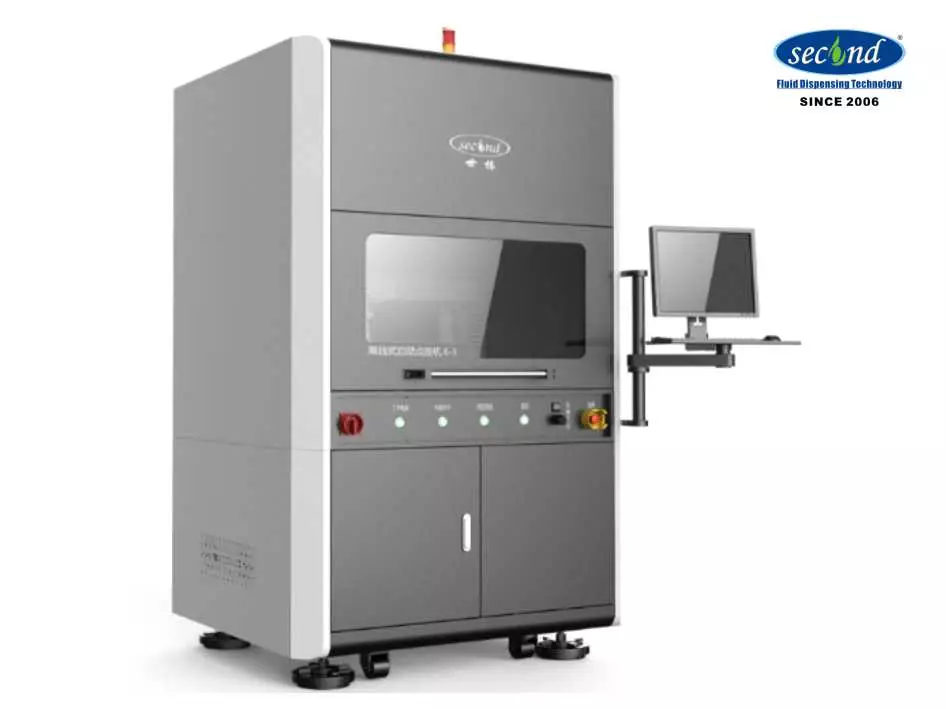

Dual dispensing desks to implement high precision, high capacity dispensing.
Smart CCD visual system, which can realize positioning, size measurement, QR code scanning, and auxiliary programming.
Laser altimetry system to measure product surface, which can realize the optimization of product deformation adaptive dispensing trajectory;
Air suction dispensing desks, which can use to position and secure the plates on the desks, compatible with graphite plate, composite plate, metal plate.
Smart material supply system, which can detect and signal material shortage alarm, low air pressure alarm, and abnormal temperature alarm.
Precise adhesive glue dispensing system, which can achieve a minimum glue amount of 0.001ml, glue application accuracy CPK>1.33, and adapt to glue viscosity <170000cps.
Smart dispensing software control system, supports automatic import of CAD files, and supports 3D interpolation.
Smart information management system can realize the transmission and automatic storage of process data such as movement, glue supply and dispensing, compatible with MES system and CIM system data communication, and supports one-key backup.

Main functions

High-precision four-axis robot
CCD auto positioning visual system
Auto laser altimetry system
Smart-matrial-feeding system
Smart dispensing system
Smart material control system
Smart information management system

Optional functions：

Digital material weighing system
Dedicated precise positioning platform
Plate fitting fixture
Curing oven

Specification

Model	SEC-H500-2Y
Max working range	800(X)╳700(Y1)╳700(Y2) ╳100(Z)mm
XY speed	Max：1000mm/sec
XY accelerate speed	Max：1.0g
Repeat accuracy	±0.01mm
CCD visual camera	130 pix.
Laser height altimeter	±0.005mm
Monitor	17”
Material feeding system	30CC/50CC/330CC Syringe or cartridge
Material cartridge and valve temperature control precision	±1℃
Operating system	Windows 10
Power supply	AC220V，50-60HZ 2.3Kw
Machine footprint	L1400╳W1300╳H2000mm
Machine weight	About 900kg
Working environment	Humidity：20-90%， Temperature: 0-40℃

PEM H2 fuel cell battery fabricating machine 1

Supportive dispensing systems

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.
