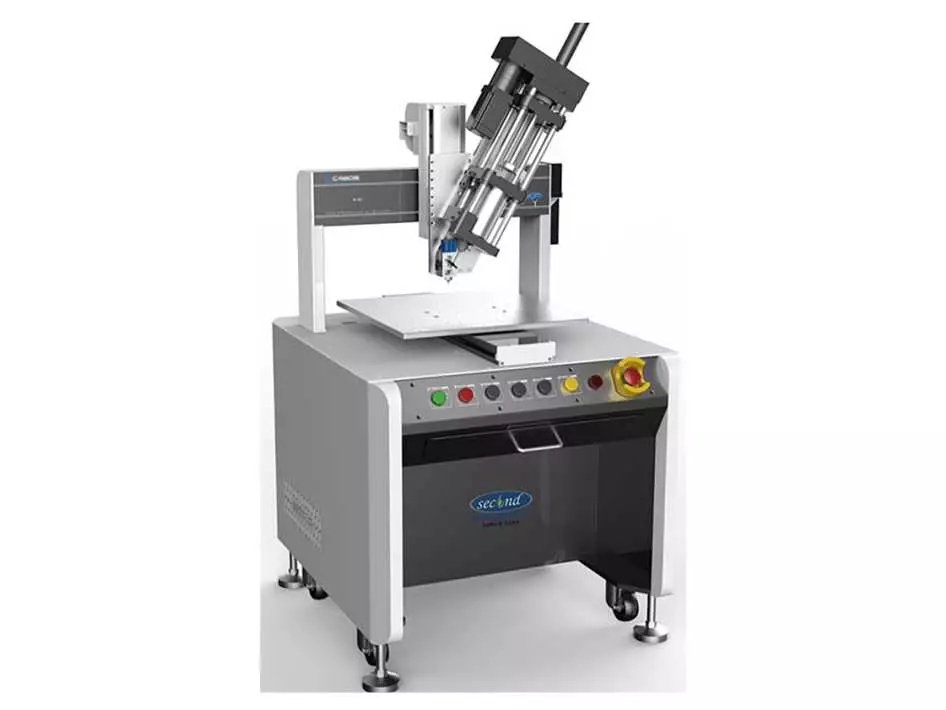

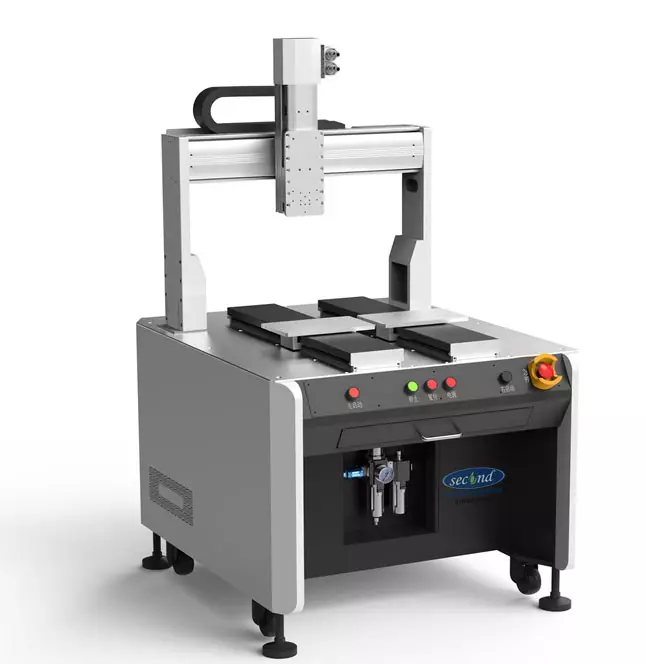

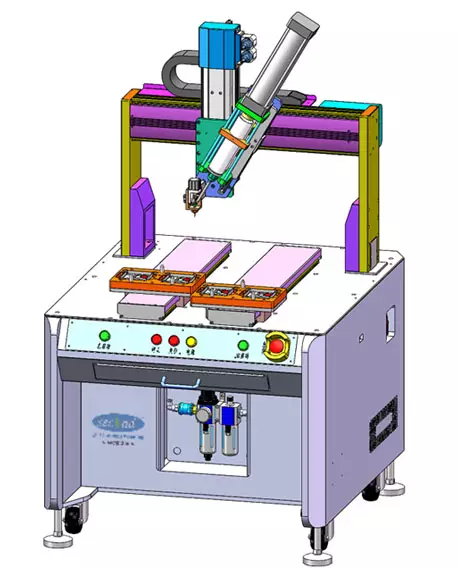

Smart high precision automated adhesive material dispensing machine with inline conveying system.
One-piece of square-steel stand for firm structure and stable operation.
lAble to adopt various dispensing units, realize multi-industry, multi-process dispensing application.

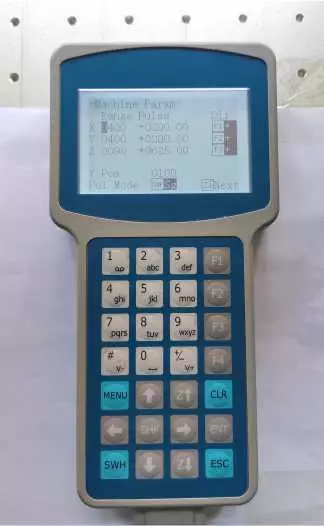

lStraightforward and convenient hand-held control system makes dispensing and operation more flexible.
lWith good-value performance, it can also meet most EMS dispensing application processes

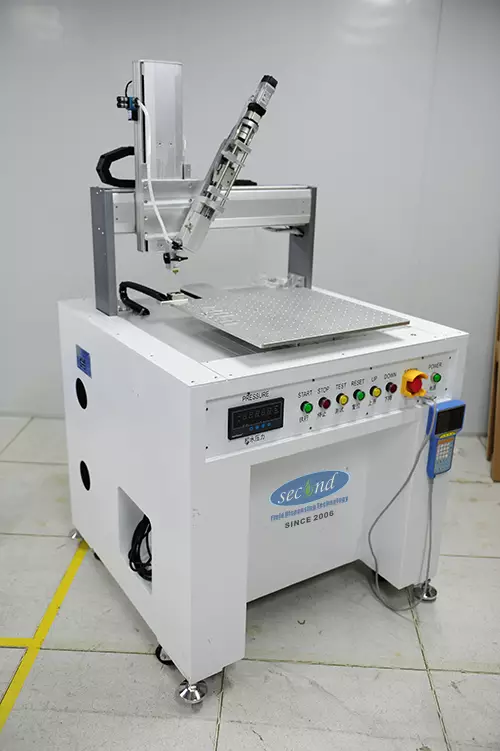

lFlexible hand-held control system with table-top simple operation and floor-standing stability
Rich-product variety：
From entry-level to precision-level, from teaching pendant control system to industrial computer control system, from three-axis to six-axis dispensing applications, it meets the dispensing needs of multi-energy, multi-industry and multi-process.
Diversified application processes and modules：
From 5ML to 200L packaging glue, from various needle rotary dispensing to various product rotary dispensing, from simple syringe dispensing to metering dispensing and non-contact jet dispensing.
Powerful system functions：
From three-axis applications to eight-axis applications, from simple automatic nozzle alignment to complex 3D scanning and path guidance.
Design concept：
Straightforward and user-friendly, emphasizing the unity and practicability of the design, the products are presented in a simple and practical way, while taking into account the design concept of ergonomics, making the operation of the equipment more user-friendly.
EC-series machine performance ：
CCD visual programming for precise positioning, visual correction, to improve programming efficiency and dispensing accuracy;
English operating system, the software interface layout is clear, the operation is user-friendly, easy to learn and understand;
Support visual inspection, integrated control of dispensing and visual inspection, multi-purpose machine, effective control of dispensing yield;
Can be equipped with a line laser scanner for 3D path guidance and flexible dispensing;
The software can support a variety of dispensing systems and functional module applications, such as automatic nozzle alignment, automatic height measurement, dispensing weighing compensation, five-axis linkage and other functions, which can effectively overcome the difficulties of various dispensing processes and help improve Dispensing quality;

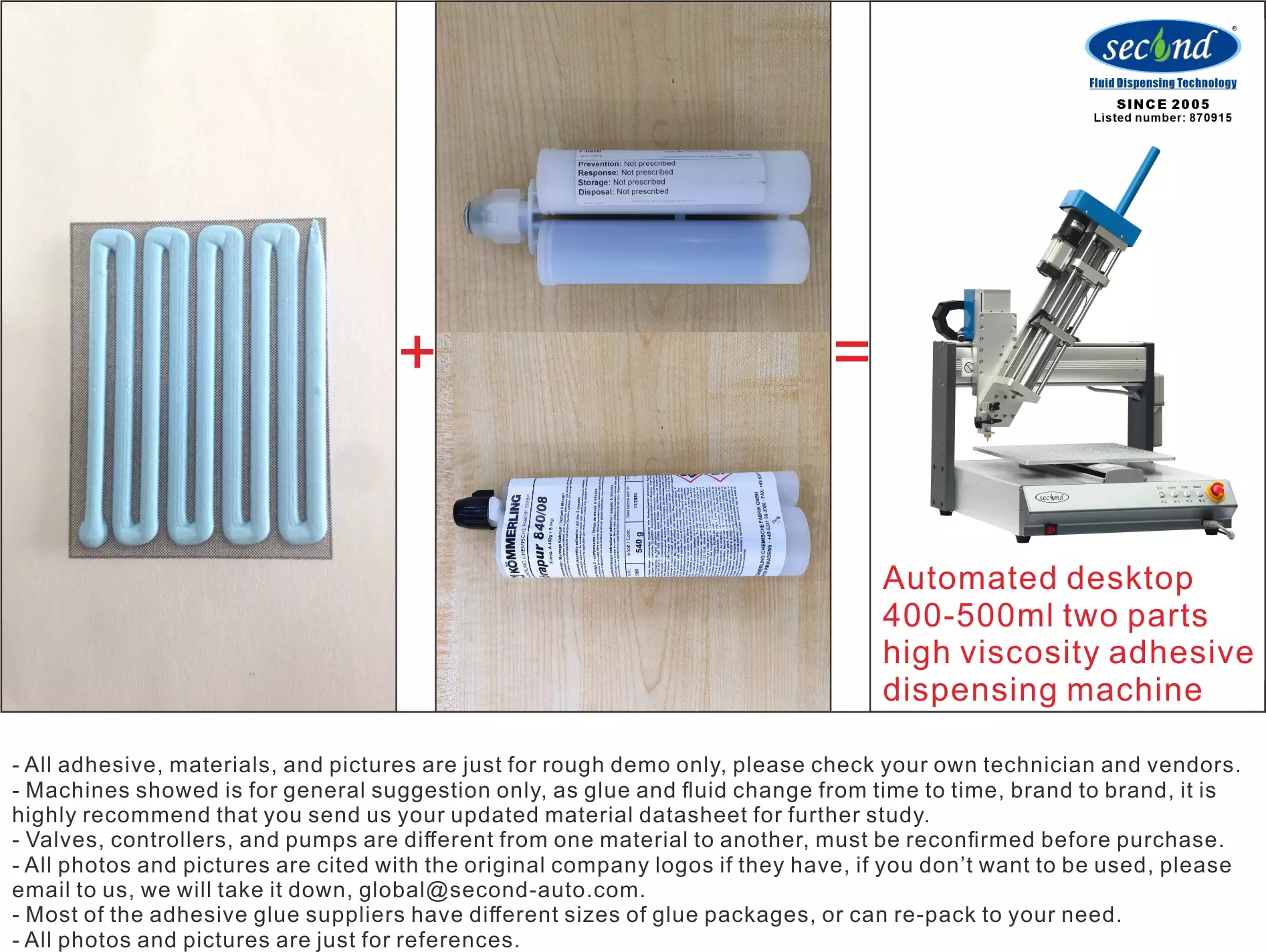

This stand-alone dispenser setup is suitable for 50ml, 400ml, or other packaged sizes of 2-part fluids, glues automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.
Specification: | ||||
Model | SEC-EC500 | SEC-EC600 | SEC-EC650Y | |
Dispensing range | X500/Y500/Z200 mm | X600/Y600/Z200 mm | X600 /Y1Y2,500 / Z100mm | |
Machine footprint | L820 x W820 x H1500mm | L920 x W920 x H1500mm | L920 x W820 x H1500mm | |
Max payload | Y20kg / Z15kg | Y20kg / Z15kg | Y1,15kg / Y2,15kg /Z15kg | |
Max travel speed | X/Y500,Z200 mm/s | X/Y500,Z200 mm/s | X/Y500,Z200 mm/s | |
Traveling system | Servo-motor + lead-screw | |||
Repeating accuracy | ±0.015 | |||
Program storage capacity | Able to store 999 parameter files (each file able to have 65535 spots） | |||
Operating system | Hand-held LCD teaching pendant + Control-card | |||
Dispensing modes | Point-to-point, continuous direct selection, arc, 3D curve, etc. | |||
Expansion port | Standard 1 input/4 output, extended 10 input/10 output | |||
Input voltage | AC220V 50/60Hz 0.7-1kw | |||
Working environment | Relative humidity 20-90%, temperature 0-40℃ | |||
Machine weight | 120kg (est.) | 150kg (est.) | 180kg (est.) | |
One dispensing machine that can meet the application process of various industrial adhesive needs.
Adopting platform standardization, function modularization design concept and technique, so that you can quickly install a dispenser that meets your mass production needs.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
EC series machine performance:
CCD video-assisted programming, large field of view to take pictures as a whole, automatic identification of product location.

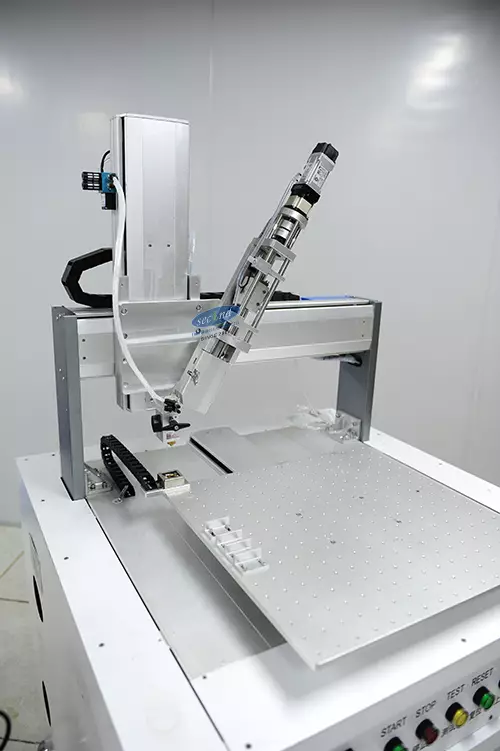

Independently researched and developed R-axis needle head linkage rotation function, equipped with ceramic rotary valve, which is absolutely leading in the application field of conductive adhesive.
Gantry dispensing platform can be equipped with a variety of glue supply systems to meet multi-process and realize one machine with multiple uses.
The online dispenser can be flexibly equipped with automatic width adjustment, memory, weighing, code scanning, improve the information management level of the entire line of equipment.
Floor-standing platform performance:
● CCD visual programming precise positioning, visual correction, improve programming efficiency and dispensing accuracy;
● Chinese and English operating system, clear software interface layout, simple operation, easy to learn and understand;
● Support visual inspection, integrated control of dispensing and visual inspection, one machine for multiple uses, effectively control dispensing yield;
● Can be equipped with a line laser scanner for 3D path guidance to achieve flexible dispensing;
● The software can support a variety of dispensing systems and functional module applications, such as automatic needle alignment, automatic height measurement, dispensing weighing compensation, five-axis linkage and other functions,
effectively overcome the difficulties of various dispensing processes and help improve dispensing quality;
This machine is suitable for UV-packaging, hot melt adhesive dispensing robot bonding, epoxy bottom filling (underfill) and other precision dispensing processes.
DH Series Cantilever In-Line Dispensing Platforms
• Large stroke dispensing for large product length and width
• Powerful expansion capabilities for ion cleaning, dispensing, testing
UV exposure, etc.
• Powerful feature Rich Configuration • Smart
• Wide range of application
This machine is used in solder paste dispensing, semiconductor IC packaging, bottom filling and other processes.
With this steup, in one machine, it can provide multiple functions, such as plasma treatment before dispensing; or UV curing after dispensing. It is suitable for high capacity UPH production, one operator can handle two stations efficiently and effectively.
