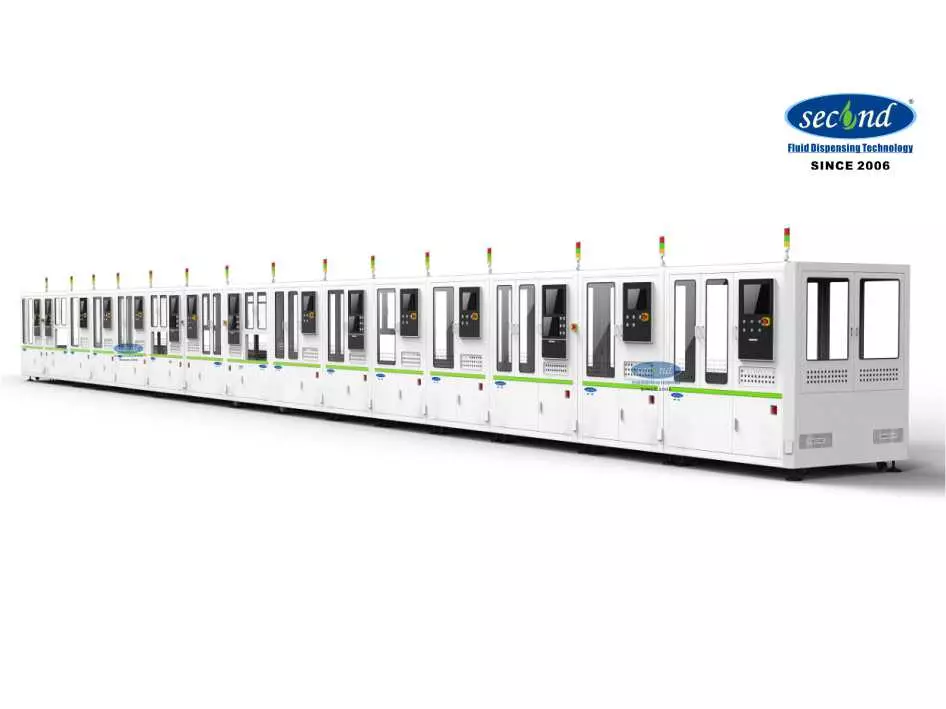

Fully automatic MEA package line, from rolls to packaged product - SEC-H500-ML - Second with Many Kinds of Robot Dispensers| Second Intelligent

Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

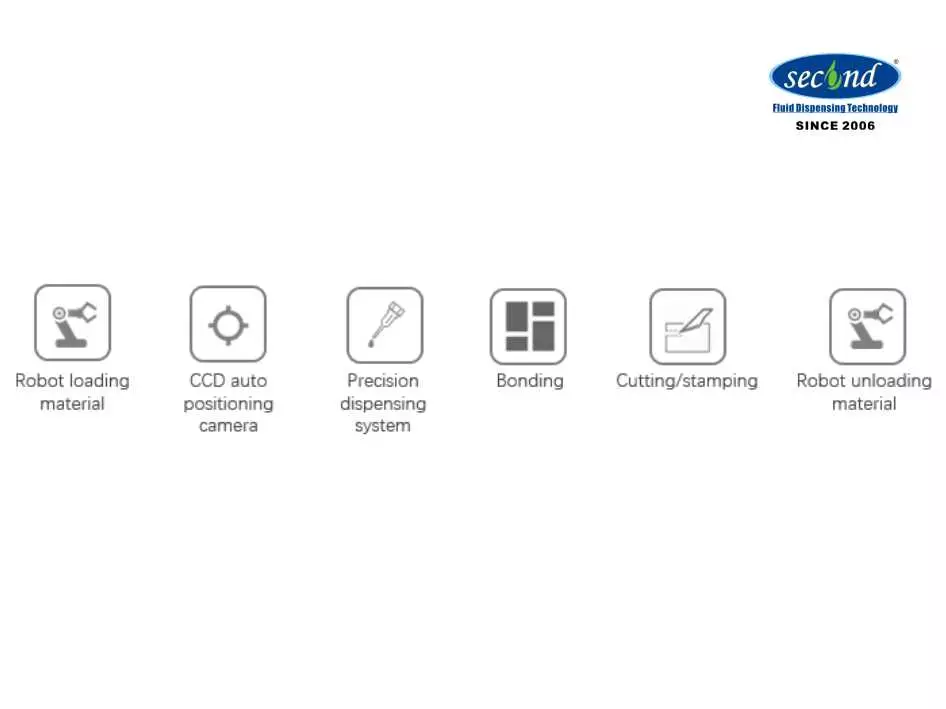

Equipment introduction：

Accept target capacity and different work processes customize design.
Raw material roll auto cutting system able to realize 3CCM, rim/frame, GDL and other roll or sheet cutting and waste collecting.

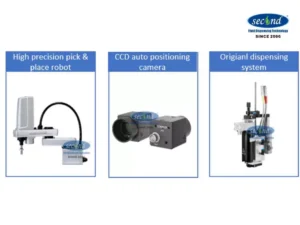

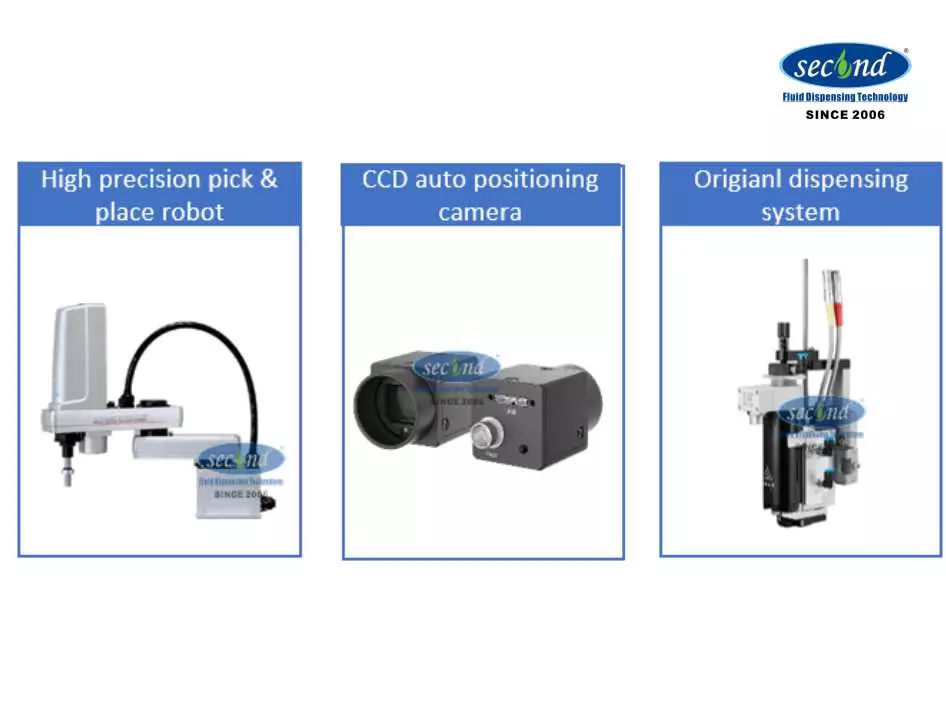

Smart visual auto positioning system, which can visually locate the 3CCM, rim/frame and GDL delivered by the robot.
Five-in-one auto fitting system able to achieve precise fitting and pre-pressing of rim/frame + 3CCM + rim/frame.
Five-in-one customized pressing system to complete 5CCM pressing and shaping.
Seven-in-one packaging system to complete GDL+5CCM+GDL dispensing and packaging.
Precision cutting system able to cut packaged materials, and it becomes MEA.
The seven-in-one defect detection system can realize the detection of defects such as bubbles, scratches, and alignment.

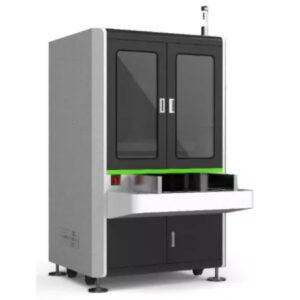

Air tightness testing system to detect whether the MEA leaks.
Smart information management system can realize the transmission and automatic storage of process data such as movement, glue supply and dispensing, compatible with MES system and CIM system data communication, and supports one-key backup.

Main functions

Raw materials cutting system
Smart visual positioning system
5-in-1 material fitting system
Five-in-one materials press-fit system
Seven-in-one auto packaging system
High tech, high accuracy cutting system
Seven-in-one material defect auto detection system
Auto air tightness detection system
Smart information management system

Optional functions：

Five-in-one auto defect detection system
Barcode scanning system
Auto coding system
Smart glue-break detection system

Specification

Model	SEC-H500-ML
Applicable product range	500(X)╳300(Y) ╳5(Z)mm
Cycle time	≤25s/PCS
MEA packaging accuracy	≤±0.2mm
Raw material roll outer diameter	500mm
Raw material roll width	≤500mm（Customizable）
Temperature range	Room temperature - 150℃（Adjustable）
Temperature control precision	≤±1℃
Five-in-one rated pressing force	20T
Seven-in-one rated pressing force	≤5T
Inspection method	Flow method, pressure method
Operating system	Windows 10 + PLC
Power supply	AC220V，50-60HZ 150Kw
Machine footprint	L30000╳W5000╳H2600mm
Working environment	Humidity：20-90%， Temperature: 0-40℃

PEM H2 fuel cell battery fabricating machine

PEM H2 fuel cell battery fabricating machine 1

Supportive dispensing systems

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.

MANUFACTURING

LED Drive Power

The SECOND glue potting equipment is used in the LED drive power supply to play a role in heat dissipation, moisture proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equipped with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
